ASVK-32.768KHZ-Y-K-S-A-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> ASVK-32.768KHZ-Y-K-S-A-T

Preview

ASVK-32.768KHZ-Y-K-S-A-T: DescriptionHCMOS/TTL Output Clock Oscillator, 0.032768MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size2MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASVK-32.768KHZ-Y-K-S-A-T Overview

HCMOS/TTL Output Clock Oscillator, 0.032768MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ASVK-32.768KHZ-Y-K-S-A-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	DILCC4,.2,200
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	250 ns
Frequency Adjustment - Mechanical	NO
frequency stability	30%
JESD-609 code	e4
Manufacturer's serial number	ASVK
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	0.032768 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS/TTL
Output load	10 TTL, 15 pF
Package body material	CERAMIC
Encapsulate equivalent code	DILCC4,.2,200
physical size	7.0mm x 5.0mm x 1.6mm
power supply	2.8 V
Certification status	Not Qualified
longest rise time	250 ns
Maximum supply voltage	2.94 V
Minimum supply voltage	2.66 V
Nominal supply voltage	2.8 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

32.768kHz CERAMIC SMD CRYSTAL OSCILLATOR

ASVK

FEATURES:

• Industrial operating temperature range available

• CMOS output

• Small surface mount package

• Compact and low in height

APPLICATIONS:

• Real time clocks

• System References

Pb

RoHS

Compliant

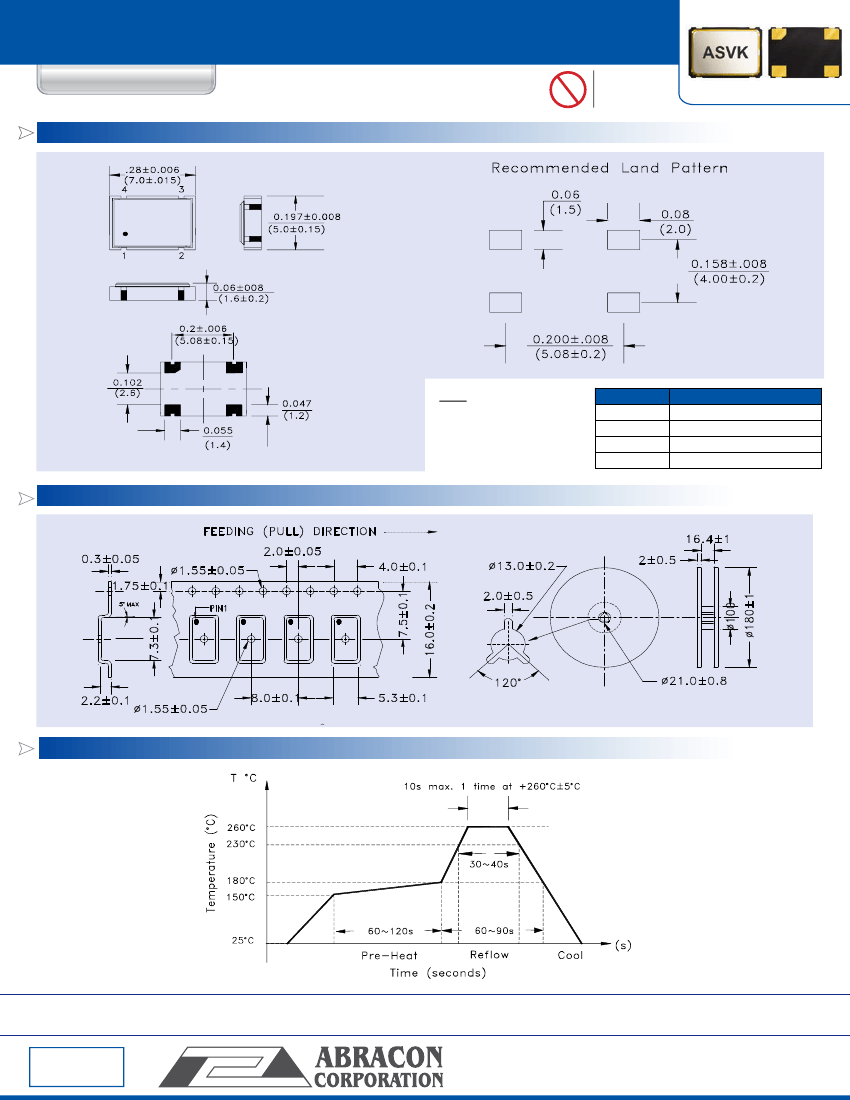

7.0 x 5.0 x 1.6 mm

| | | | | | | | | | | | | | |

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Frequency Tolerance at 25°C

Supply voltage (Vdd)

Input Current

Output load

Output voltage

Rise and fall time (Tr/Tf)

Start-up time

Output type

Aging:

Symmetry(Duty Cycle)

Tri-state function

ASVK Series

32.768kHz

0°C to + 70°C (See options)

-55°C to +125°C

± 100ppm max. (See options)

3.3 Vdc ± 10% (see options)

7mA max

15pF or 10TTL

VOH = 0.9*Vdd min.; VOL = 0.1*Vdd max.

250ns max.

30 ms max.

HCMOS

± 5ppm/year max. @ 25°C

40/60% (see options)

Logic "1" (2.0V min) or open = OSC

Logic"0" (0.8V max) = Hi Z output disabled

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASVK - 32.768kHz -

Supply Voltage

Y

2.8V±5%

Z

3.0V±10%

-

Packaging

Tape and

T

Reel

Tri-State Function

A

Tri-state

Operating Temp.

-20°C to +70°C

E

F

-30°C to +70°C

N

-30°C to +85°C

L

-40°C to +85°C

*Contact ABRACON for extended.

temperature range.

Freq. Stability

J

± 20 ppm

R

± 25 ppm

K

± 30 ppm

H

± 35 ppm

B

± 40 ppm

C

± 50 ppm

Symmetry

S

45/55%

Duty Cycle

< 10MHz

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 08.07.09

30332

Esperanza, Rancho Santa Margarita, California

92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
