ECCM3QA08-48.000M datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECCM3QA08-48.000M

ECCM3QA08-48.000M: DescriptionQUARTZ CRYSTAL RESONATOR, 48MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size233KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ECCM3QA08-48.000M Overview

QUARTZ CRYSTAL RESONATOR, 48MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ECCM3QA08-48.000M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; BULK
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	8 pF
Manufacturer's serial number	ECCM3
Installation features	SURFACE MOUNT
Nominal operating frequency	48 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
physical size	L2.0XB1.6XH0.4 (mm)/L0.079XB0.063XH0.016 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)

Preview

Download Datasheet

View All

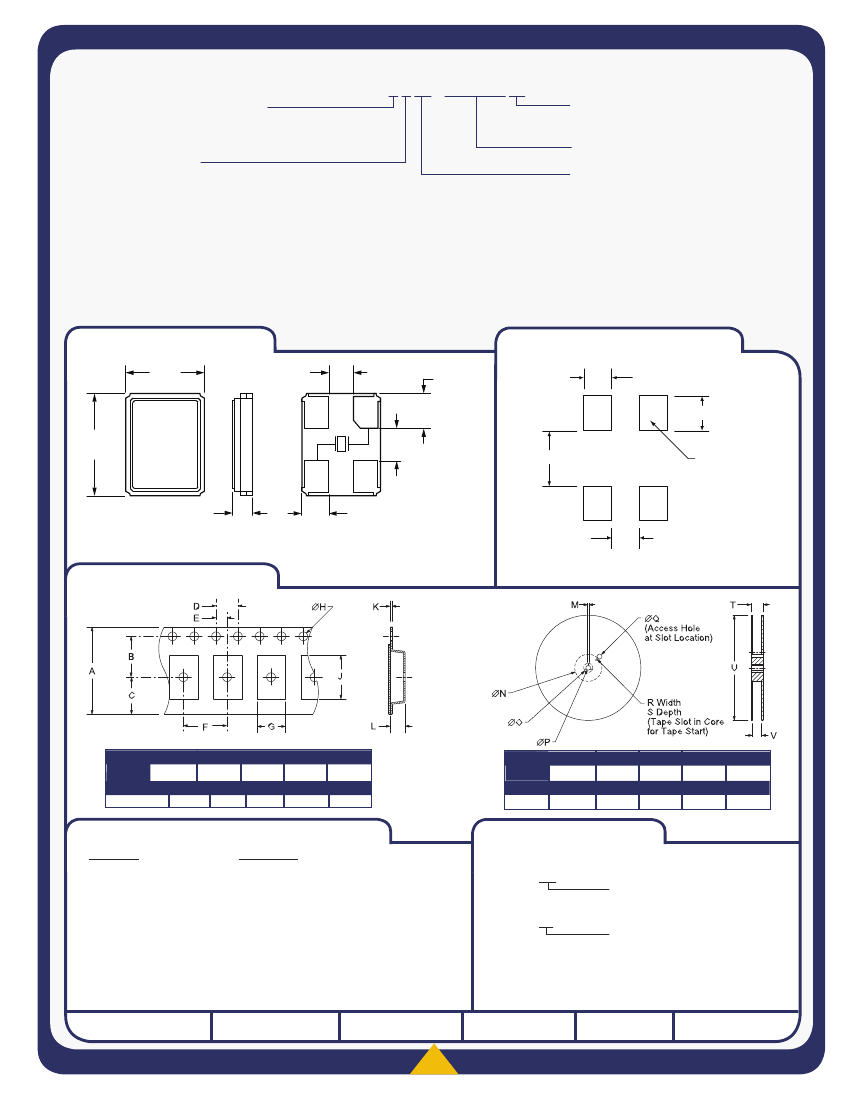

ECCM3

Series

• Quartz Crystal Resonators

• 4 Pad Ceramic SMD Package

• Seam Sealed

• AT Cut

• Fundamental Mode

• Tight Tolerance/Stability

• RoHS Compliant (Pb-Free)

ECCM3

0.40

2.00

1.60

CRYSTAL

NOTES

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

Frequency Tolerance / Stability

Over Operating Temperature Range

Operating Temperature Range

Load Capacitance (C

)

Shunt Capacitance

Mode of Operation

Crystal Cut

Aging (at 25°C)

Drive Level

Storage Temperature Range

Insulation Resistance

Spurious Response

Equivalent Series Resistance

±10ppm / ±10ppm or ±10ppm / ±15ppm

-10°C to +60°C or -30°C to +85°C

8pF Parallel Resonant

12pF Parallel Resonant

5pF Maximum

Fundamental

AT-Cut

±3ppm / year Maximum

100 µWatts Maximum

-40°C to 90°C

500 Megaohms Minimum at 100V

-3dB Minimum; F

to F

+5000ppm

120 Ohms Maximum from 24.000MHz to 25.999999MHz

100 Ohms Maximum from 26.000MHz to 29.999999MHz

80 Ohms Maximum from 30.000MHz to 35.999999MHz

50 Ohms Maximum from 36.000MHz to 48.000MHz
