L7676CSEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> L7676CSEC

L7676CSEC: DescriptionT-1 SINGLE COLOR LED, SUPER BRIGHT ORANGE, 3 mm; CategoryLED optoelectronic/LED photoelectric; File Size61KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L7676CSEC Overview

T-1 SINGLE COLOR LED, SUPER BRIGHT ORANGE, 3 mm

L7676CSEC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	unknown
color	SUPER BRIGHT ORANGE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	3.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	4 mm
method of packing	BULK
peak wavelength	610 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal surface	NOT SPECIFIED
Terminal pitch	5.08 mm
perspective	60 deg

L7676CSEC Preview

Kingbright

Features

SUPER FLUX OUTPUT.

7.6mm x7.6mm SUPER FLUX

L7676CSEC

Package Dimensions

DESIGN FOR HIGH CURRENT OPERATION.

OUTSTANDING MATERIAL EFFICIENCY.

RELIABLE AND RUGGED.

Description

The Super Bright Orange source color devices are made

with DH InGaAlP on GaAs substrate Light Emitting Diode.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emer-

ge package.

4. Specifications are subjected to change without notice.

Selection Guide

Part No.

Dice

Lens Type

Iv (mcd)

@ 20 mA *70mA

Min.

300

L7676CSEC

SUPER BRIGHT ORANGE (InGaAlP)

WATER CLEAR

*1300

*1800

70°

Typ.

600

Viewing

Angle

2θ1/2

70°

NOTES FOR L-7676C SERIES:

*1. DRIVE CURRENT BETWEEN 10mA AND 30mA ARE RECOMMENDED FOR LONG TERM PERFORMANCE.

*2. OPERATION AT CURRENT BELOW 10mA IS NOT RECOMMENDED.

Note:

θ1/2

is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.

L7676CSEC#1

Electrical / Optical Characteristics at T

=25°C

Symbol

Parameter

Peak Wavelength

Device

Super Bright Orange

Typ.

610

Max.

Units

Test Conditions

IF=20mA

peak

∆λ

1/2

Spectral Line

Halfwidth

Super Bright Orange

IF=20mA

Capacitance

Super Bright Orange

VF=0V;f=1MHz

Forward Voltage

Reverse Current

Super Bright Orange

All

1.95

2.5

IF=20mA

VR = 5V

Absolute Maximum Ratings T

=25°C

Parameter

Power dissipation

DC Forward Current

Peak Forward Current [1]

Reverse Voltage

Operation/Storage Temperature

Lead Solder Temperature [2]

Notes:

1. 1/10 Duty Cycle, 0.1ms Pulse Width.

2. 4mm below package base.

150

-40

°C

To +85

°C

260

°C

For 5 Seconds

Units

L7676CSEC#2

Super Bright Orange L7676CSEC

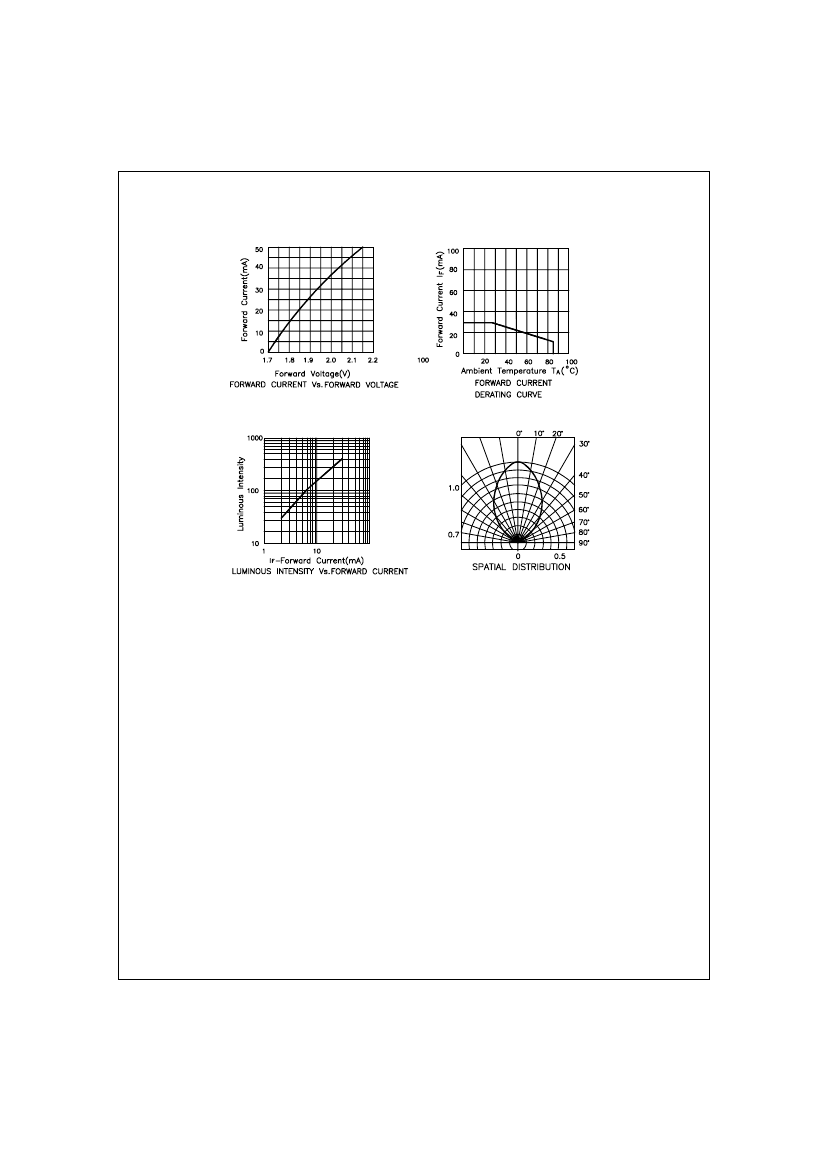

L7676CSEC#3

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
