400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15

Preview

Download Datasheet

View All

creat by art

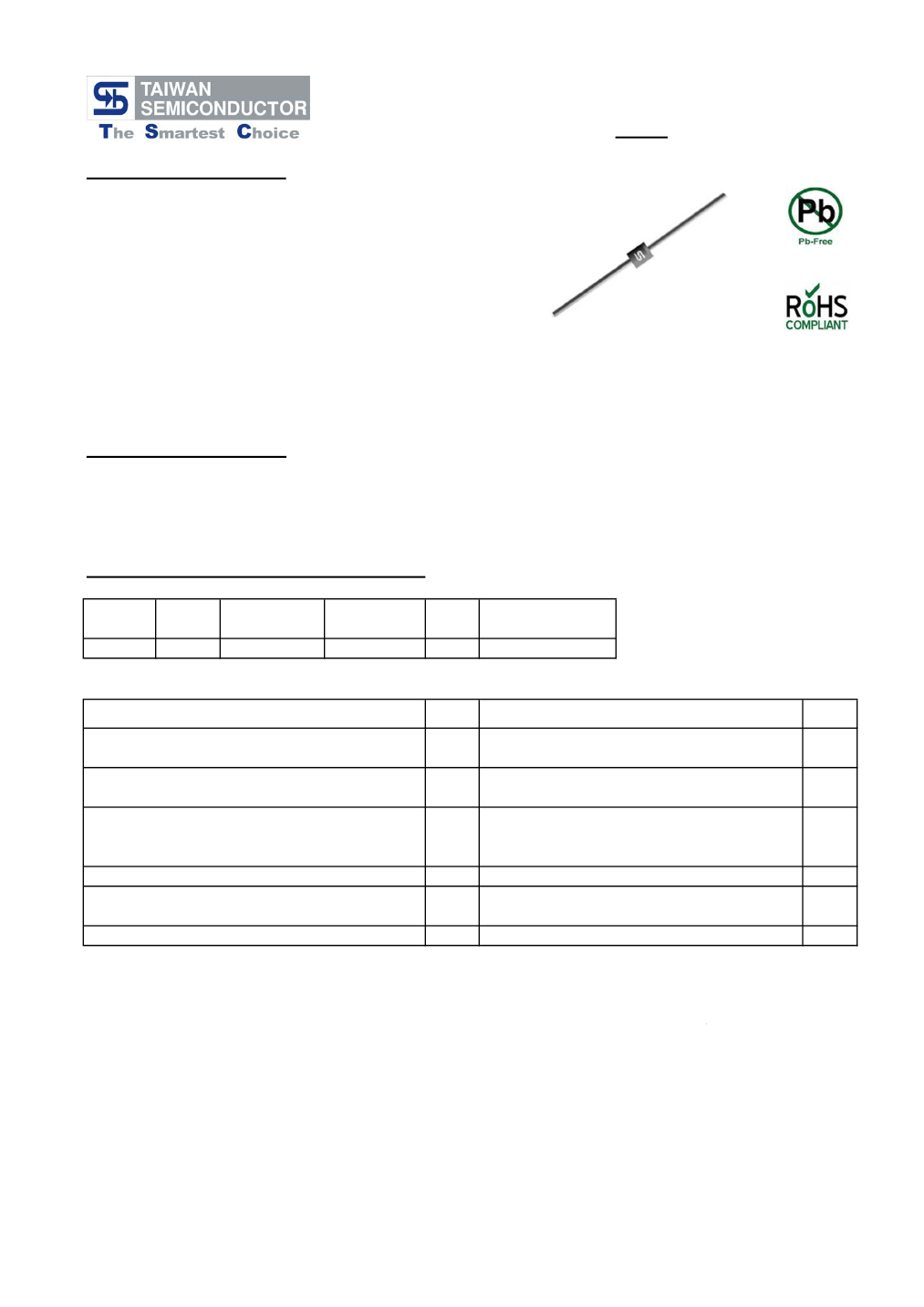

BZW04 SERIES

400 Watts Transient Voltage Suppressor

DO-41

Features

Plastic package has Underwriters

Laboratory Flammability Classification 94V-0

Exceeds environmental standards of MIL-STD-19500

400W surge capability at 10 x 1000 us waveform

Excellent clamping capability

Low impedance surge resistance

Very fast response time

Typical I

less than 1uA above 10V

High temperature soldering guaranteed:

260℃ / 10 seconds / .375", (9.5mm) lead length

/ 5lbs.,(2.3kg) tension

Green compound with suffix "G" on packing

code & prefix "G" on datecode

Mechanical Data

Case: Molded plastic

Lead: Axial leads, solderable per MIL-STD-202,

Method 208

Polarity: Color band denotes cathode except bipolar

Weight: 0.34 gram

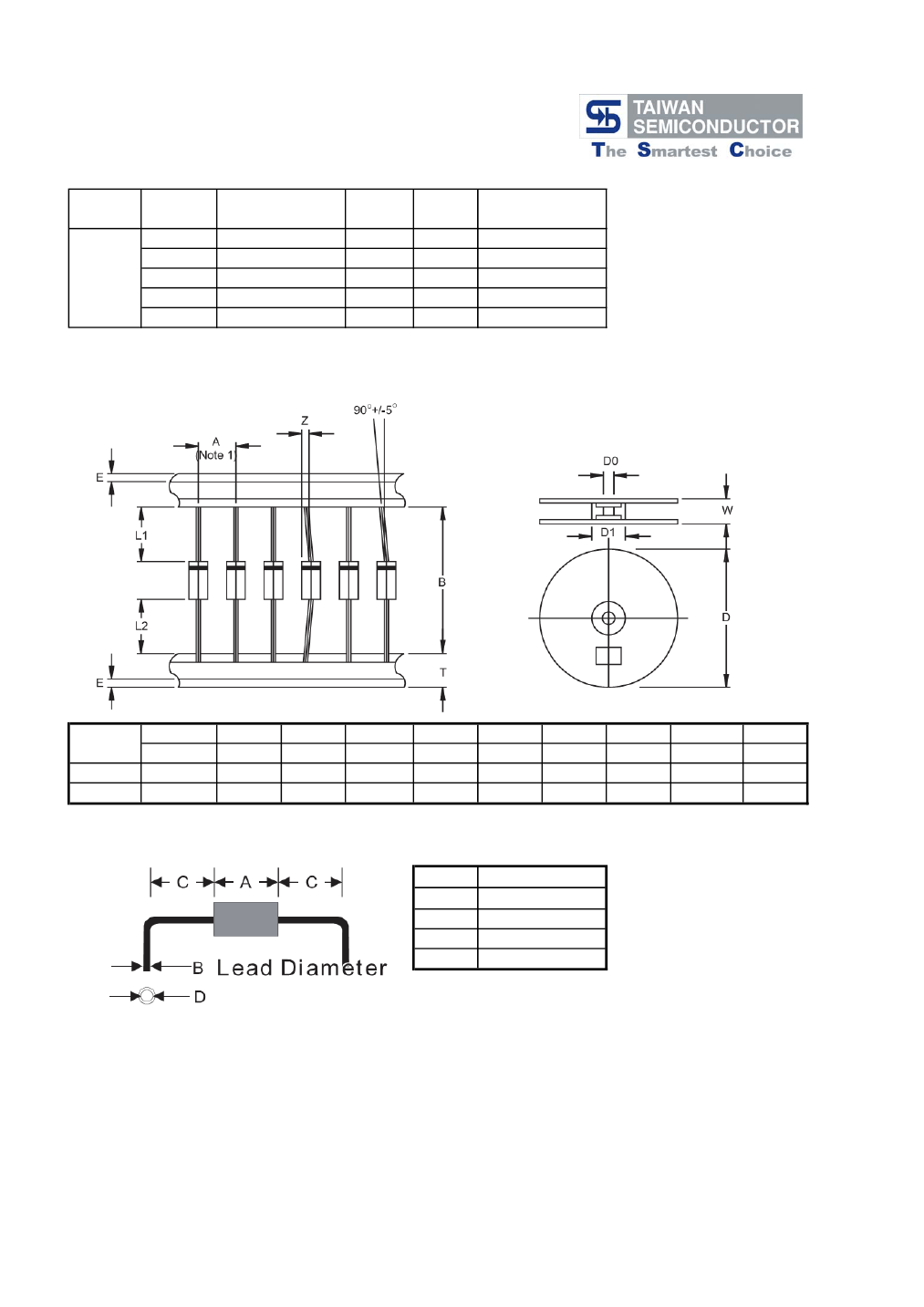

Ordering Information (example)

Part No.

BZW04-10

Package

DO-41

Packing

3K / AMMO box

INNER

TAPE

52mm

Packing

code

Packing code

(Green)

A0G

Maximum Ratings and Electrical Characteristics

Type Number

Peak Pulse Power Dissipation at T

=25℃,

Tp=1ms(Note 1)

Steady State Power Dissipation at T

=75℃

Lead Lengths .375", 9.5mm (Note 2)

Peak Forward Surge Current, 8.3ms Single Half

Sine-wave Superimposed on Rated Load

(JEDEC method)(Note 3)

Junction to leads

Junction to ambient on printed circuit

L lead=10mm

Operating and Storage Temperature Range

Note 2: Mounted on copper pad area of 0.2" x 0.2" (5 x 5mm)

Note 3: Measure on 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maxumum.

Symbol

Value

Minimum 400

Unit

Watts

FSM

θJL

θJA

, T

STG

100

-65 to +175

Amps

℃/W

℃

Note 1: Non-repetitive Current Pulse, Per derated above TA=25℃

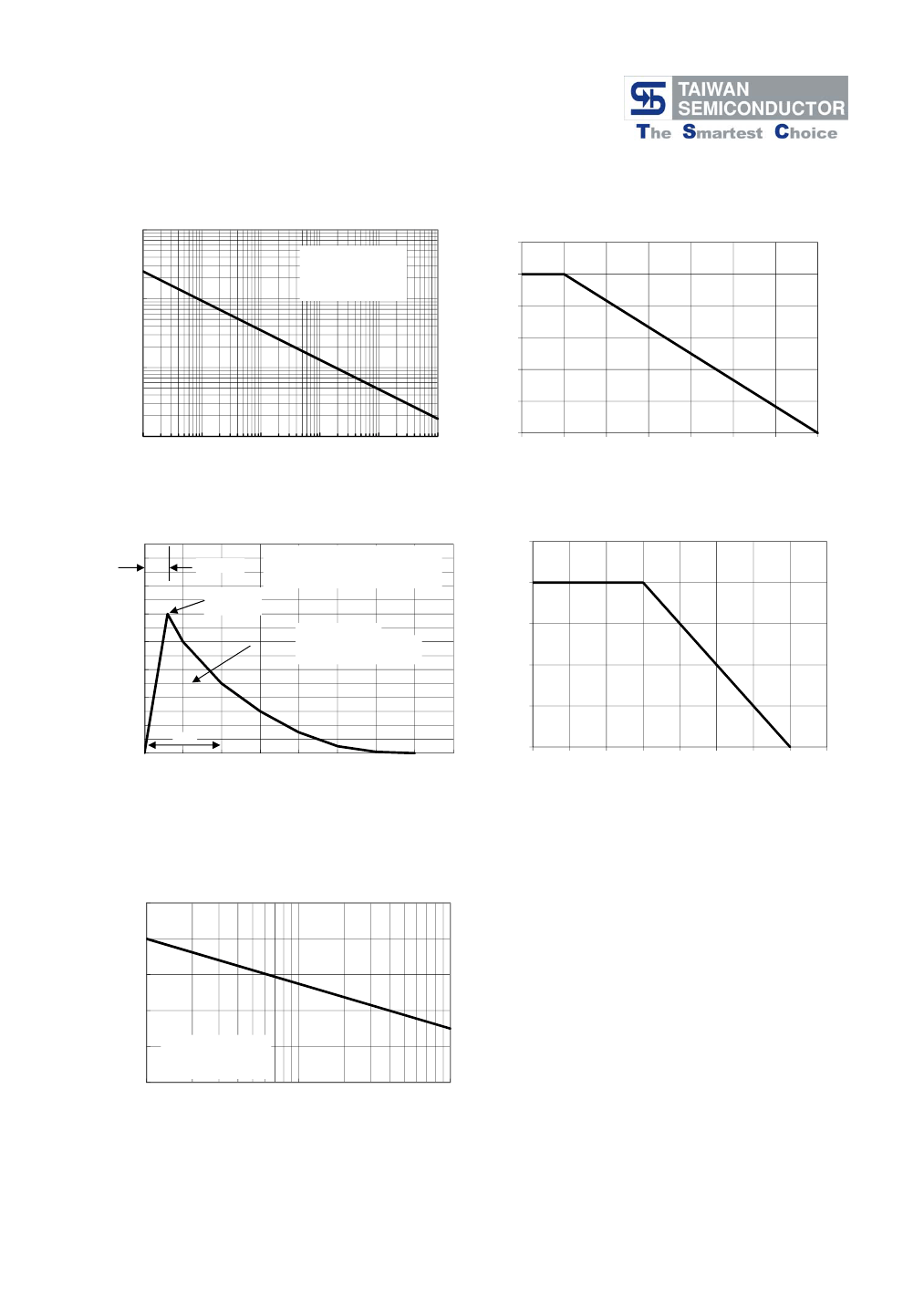

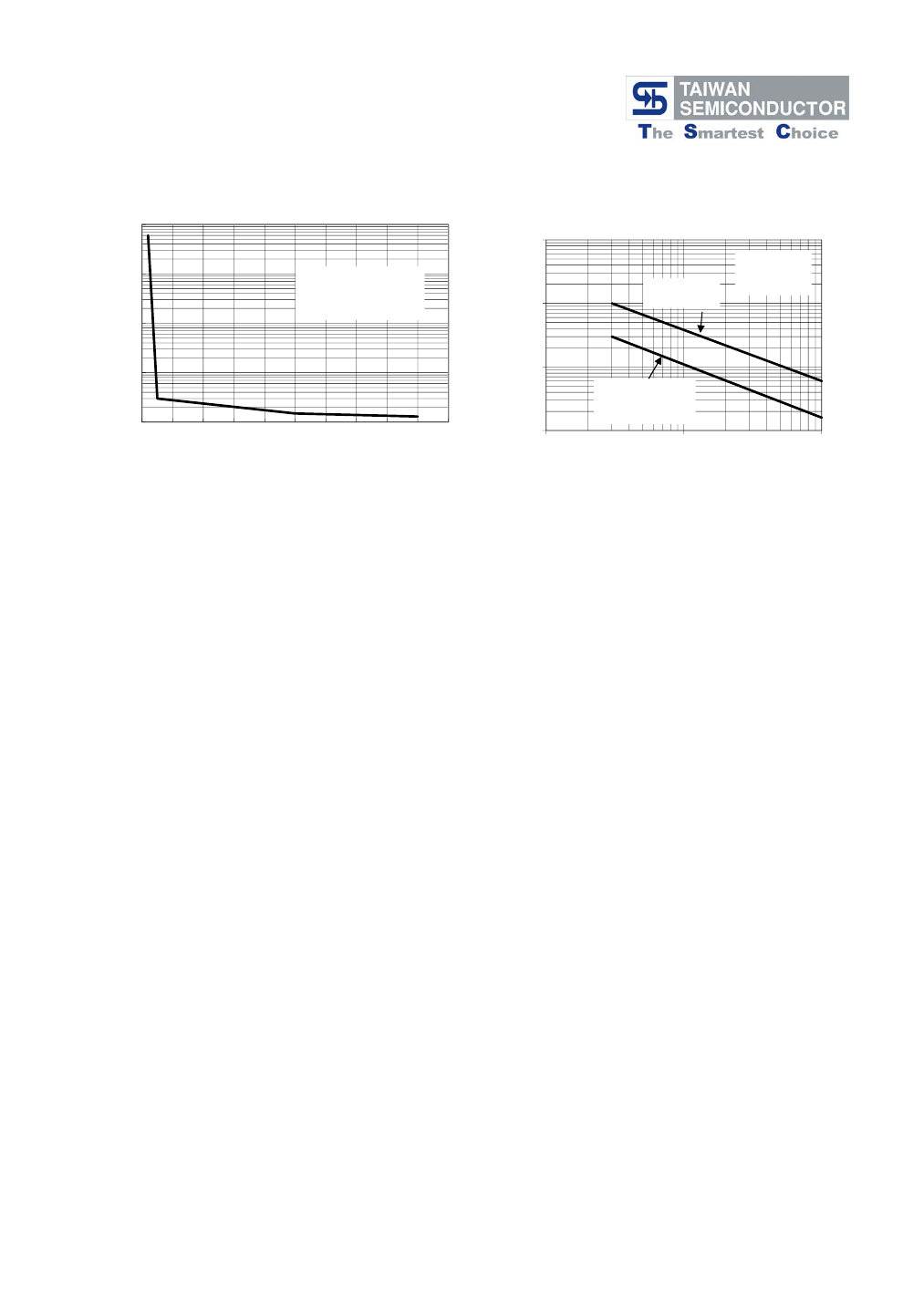

Version:F13

BZW04_13 Related Products

	BZW04_13	BZW04-7V8	BZW04-10	BZW04-136	BZW04-15
Description	400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-15	400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-41	400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-41	400 W, UNIDIRECTIONAL, SILICON, TVS DIODE	400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-41
Is it Rohs certified?	-	conform to	conform to	conform to	conform to
package instruction	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	-	compli	compli	compli	compli
ECCN code	-	EAR99	EAR99	EAR99	EAR99
Maximum breakdown voltage	-	9.55 V	12.6 V	168 V	18.9 V
Minimum breakdown voltage	-	8.65 V	11.4 V	152 V	17.1 V
Shell connection	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	-	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	-	SILICON	SILICON	SILICON	SILICON
Diode type	-	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	-	DO-41	DO-41	DO-41	DO-41
JESD-30 code	-	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Maximum non-repetitive peak reverse power dissipation	-	400 W	400 W	400 W	400 W
Number of components	-	1	1	1	1
Number of terminals	-	2	2	2	2
Maximum operating temperature	-	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-	-65 °C	-65 °C	-65 °C	-65 °C
Package body material	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	ROUND	ROUND	ROUND	ROUND
Package form	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Peak Reflow Temperature (Celsius)	-	245	245	245	NOT SPECIFIED
polarity	-	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	-	1 W	1 W	1 W	1 W
Maximum repetitive peak reverse voltage	-	7.78 V	10.2 V	136 V	15.3 V
surface mount	-	NO	NO	NO	NO
technology	-	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	-	WIRE	WIRE	WIRE	WIRE
Terminal location	-	AXIAL	AXIAL	AXIAL	AXIAL
Maximum time at peak reflow temperature	-	30	30	30	NOT SPECIFIED
Maker	-	-	Taiwan Semiconductor	Taiwan Semiconductor	Taiwan Semiconductor
