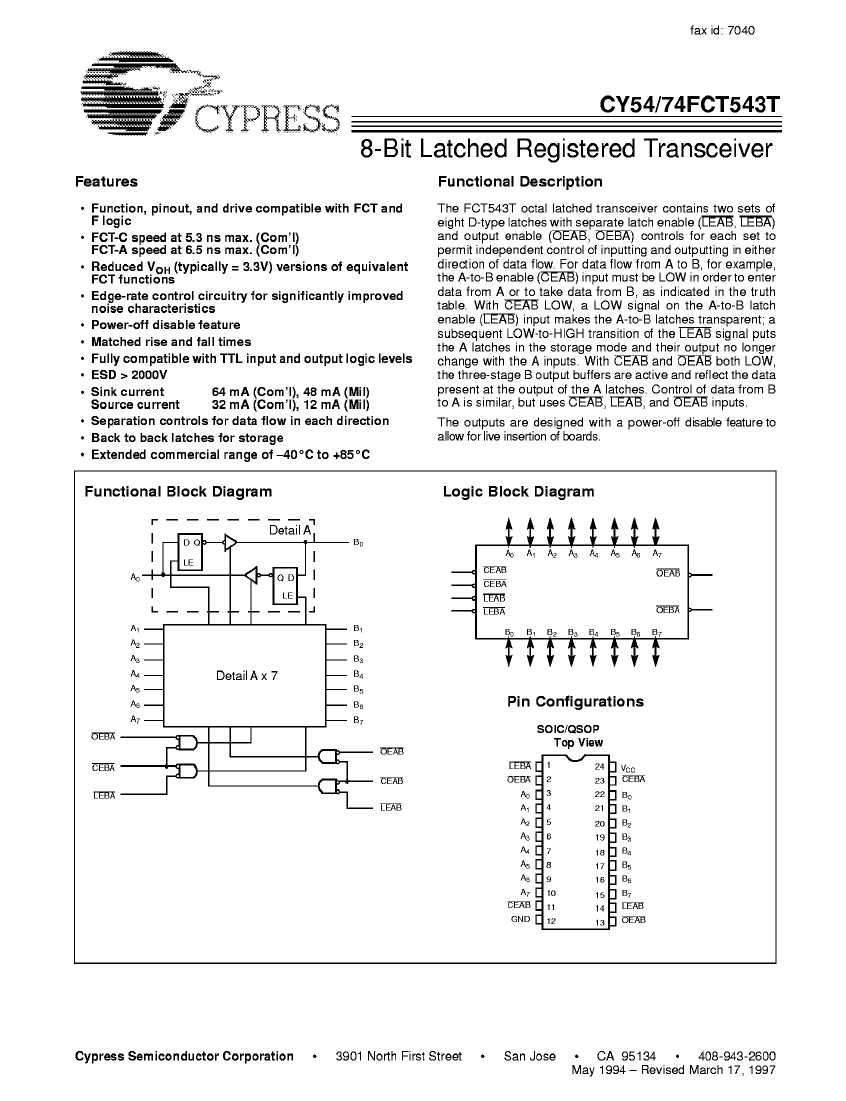

Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, CERDIP-24

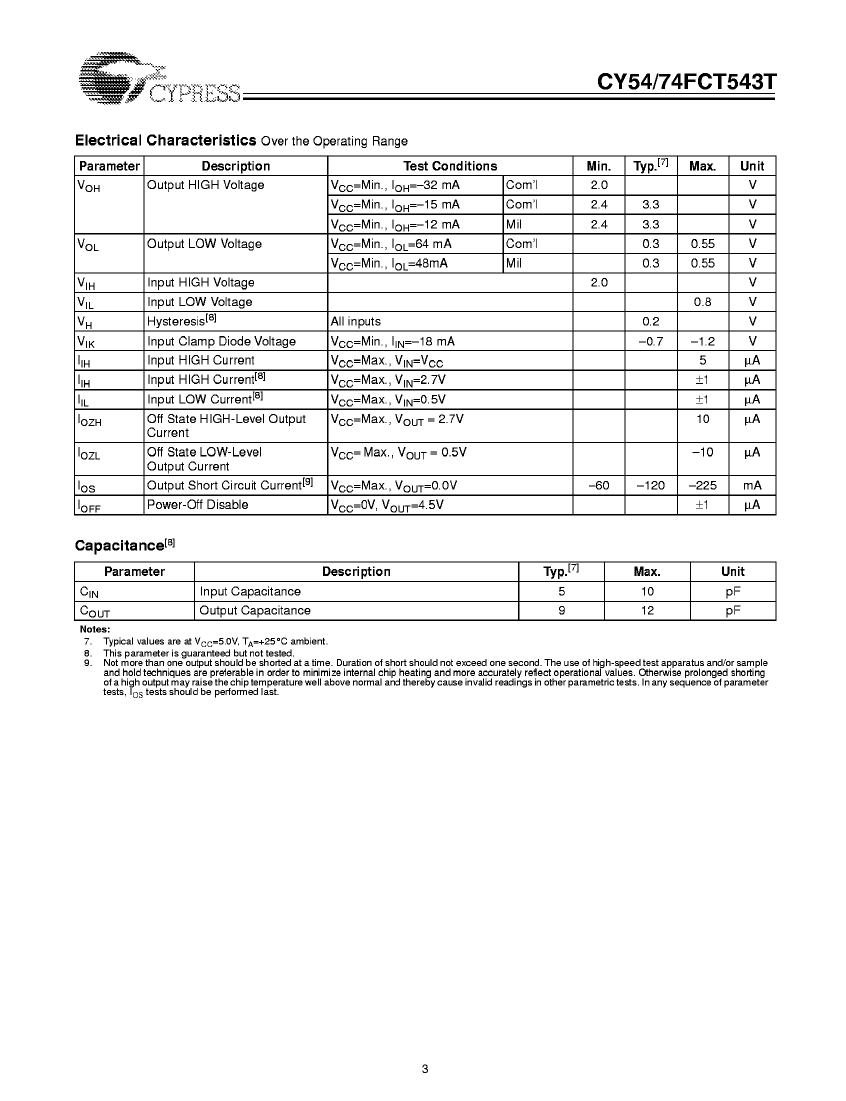

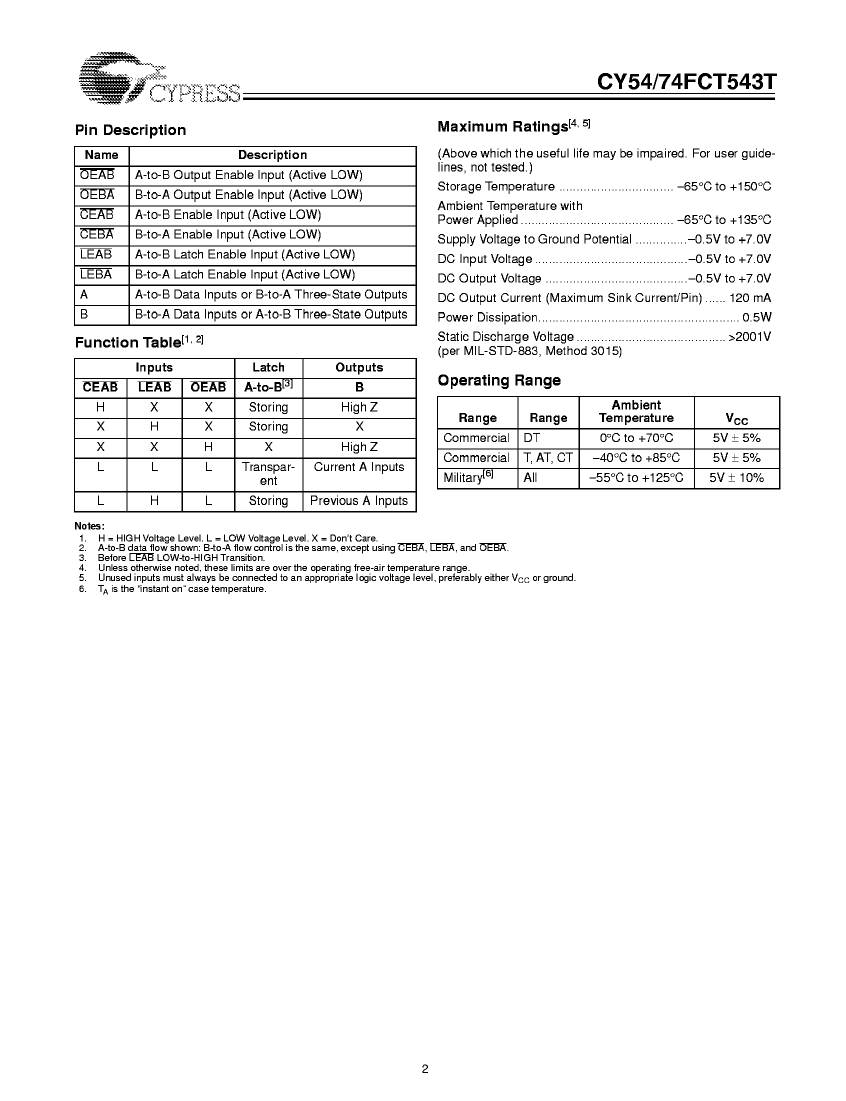

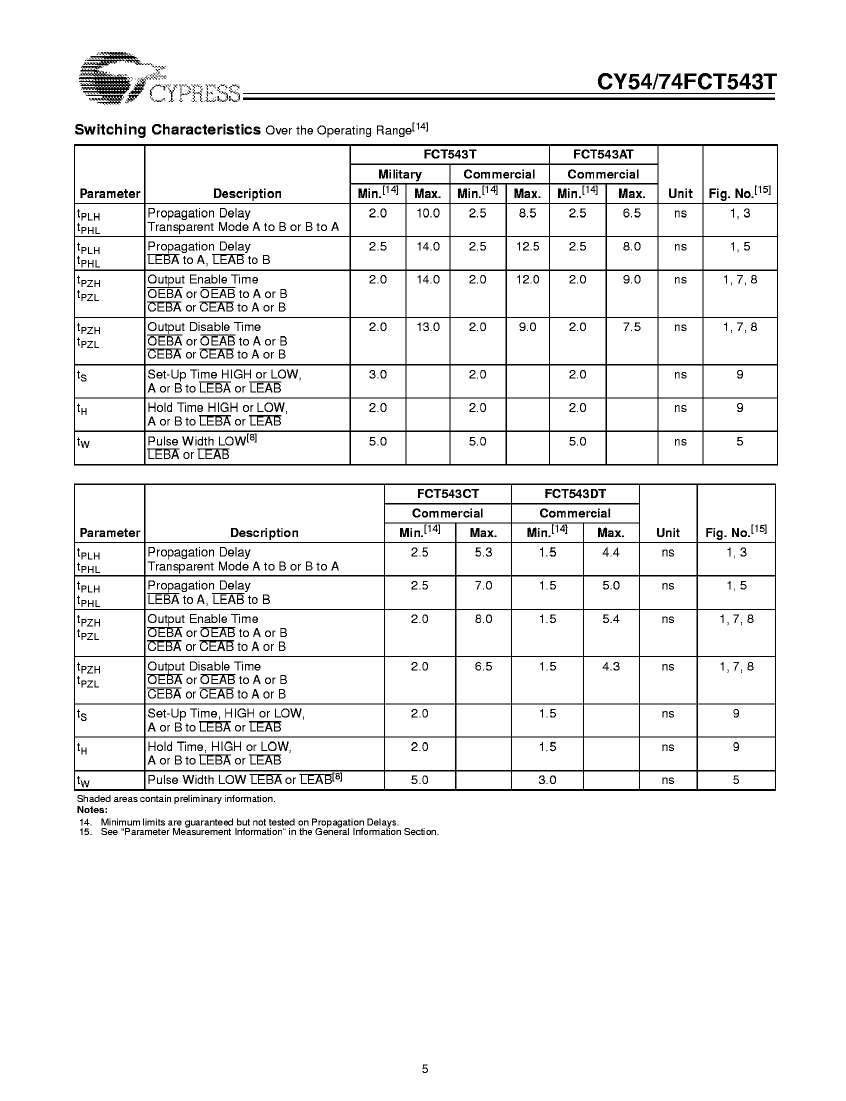

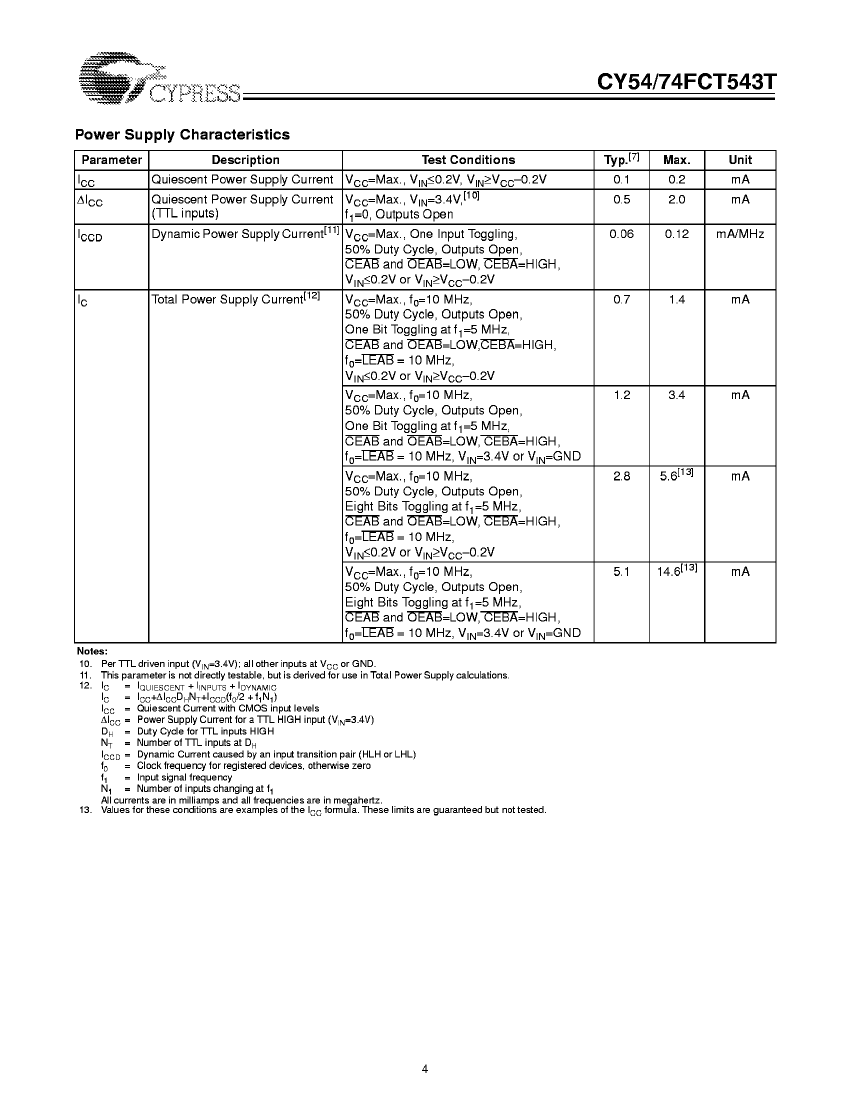

| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 24 |
| Reach Compliance Code | unknow |
| Other features | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION |
| series | FCT |
| JESD-30 code | R-GDIP-T24 |
| length | 31.877 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of ports | 2 |
| Number of terminals | 24 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | 3-STATE |
| Output polarity | TRUE |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| propagation delay (tpd) | 14 ns |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 5962-9222101MLX | CY74FCT543CTQCT | CY74FCT543ATQCT | CY74FCT543TQCT | |
|---|---|---|---|---|
| Description | Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP24, 0.300 INCH, CERDIP-24 | Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.150 INCH, QSOP-24 | Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.150 INCH, QSOP-24 | Registered Bus Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, PDSO24, 0.150 INCH, QSOP-24 |
| Parts packaging code | DIP | SOIC | SOIC | SOIC |
| package instruction | DIP, | 0.150 INCH, QSOP-24 | 0.150 INCH, QSOP-24 | 0.150 INCH, QSOP-24 |
| Contacts | 24 | 24 | 24 | 24 |
| Reach Compliance Code | unknow | not_compliant | not_compliant | not_compliant |
| Other features | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION | WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION |
| series | FCT | FCT | FCT | FCT |
| JESD-30 code | R-GDIP-T24 | R-PDSO-G24 | R-PDSO-G24 | R-PDSO-G24 |
| length | 31.877 mm | 8.65 mm | 8.65 mm | 8.65 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER | REGISTERED BUS TRANSCEIVER |
| Number of digits | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 |
| Number of ports | 2 | 2 | 2 | 2 |
| Number of terminals | 24 | 24 | 24 | 24 |
| Maximum operating temperature | 125 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -55 °C | -40 °C | -40 °C | -40 °C |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Output polarity | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | SSOP | SSOP | SSOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH |
| propagation delay (tpd) | 14 ns | 7 ns | 8 ns | 12.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 1.75 mm | 1.75 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.25 V | 5.25 V | 5.25 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.75 V | 4.75 V | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal form | THROUGH-HOLE | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 2.54 mm | 0.635 mm | 0.635 mm | 0.635 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL |
| width | 7.62 mm | 3.9 mm | 3.9 mm | 3.9 mm |
| Is it Rohs certified? | - | incompatible | incompatible | incompatible |
| Control type | - | INDEPENDENT CONTROL | INDEPENDENT CONTROL | INDEPENDENT CONTROL |
| Counting direction | - | BIDIRECTIONAL | BIDIRECTIONAL | BIDIRECTIONAL |
| JESD-609 code | - | e0 | e0 | e0 |
| MaximumI(ol) | - | 0.064 A | 0.064 A | 0.064 A |
| Encapsulate equivalent code | - | SSOP24,.24 | SSOP24,.24 | SSOP24,.24 |
| method of packing | - | TAPE AND REEL | TAPE AND REEL | TAPE AND REEL |
| power supply | - | 5 V | 5 V | 5 V |
| Prop。Delay @ Nom-Sup | - | 5.3 ns | 6.5 ns | 8.5 ns |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| translate | - | N/A | N/A | N/A |
