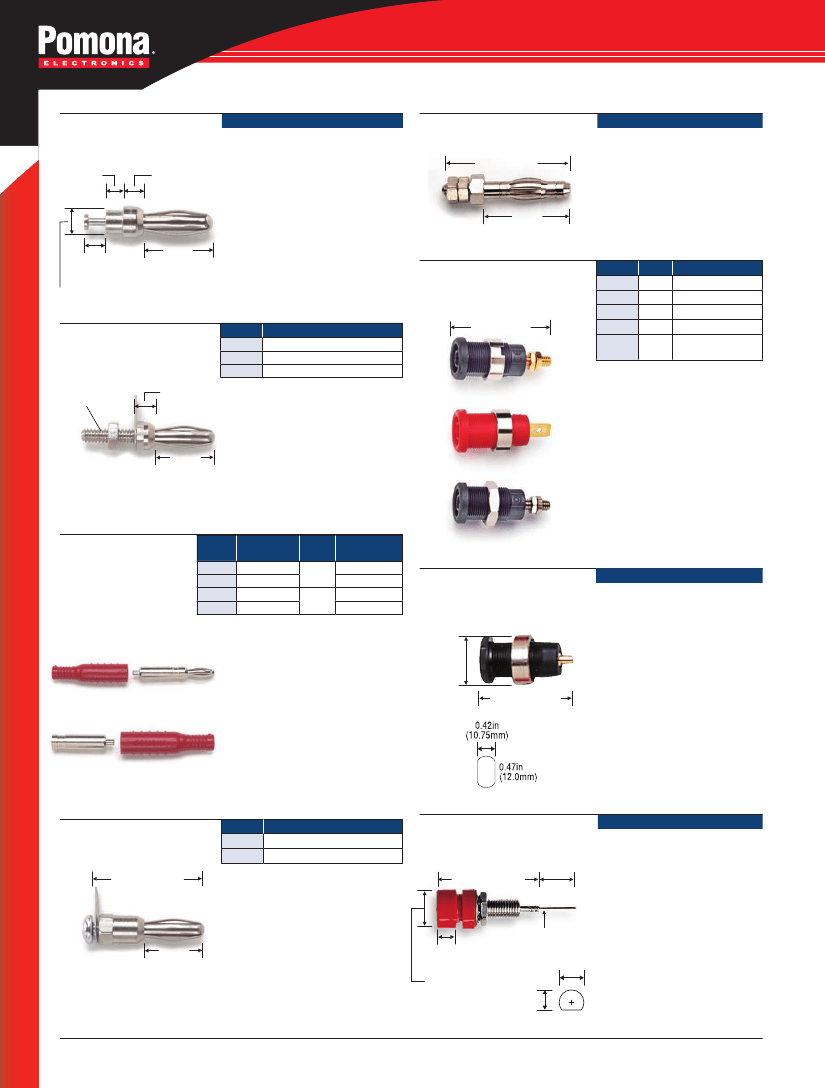

Banana Plugs and Jacks
Rivet Type Banana
Plug with Turret
16
0.135in
(3.43mm)
0.16in
(4.06mm)
Model# 3261
Excellent for riveting to panels or boards. Solder
turret for rapid attachment of wires.
Fits standard 0.166in (4.22mm) dia.
banana jack.
Material:
Banana Plug Body:
brass;
Spring:
beryllium copper;
Finish:
nickel plating.
Rating:
For CE compliance
and for personal
safety, do not hold in hand when voltages
exceed 33 Vrms/70 Vdc. Maximum voltage for
hands free use:
5000 Vdc. Do not use on circuits
where transient stresses can exceed the rated
voltage. 15A.
Sold in pkgs. of 10.
4mm Banana Plug with
Threaded M3 Stud
1.34in (34mm)
Model# 72918
4mm plug with threaded M3 stud, 2 nuts;
12mm (0.5in) stud length.
Sold unassembled, in pkgs. of 10.
Rating:
For CE compliance
and for personal
safety, do not hold in hand when voltages
exceed 33 Vrms/70 Vdc. Maximum voltage
for
hands free use:
5000 Vdc. Do not use on
circuits where transient stresses can exceed
the rated voltage. 36A.
Model#
Color
Terminal
Threaded Stud
Solder Tab
Threaded Stud,
Hexagonal Nut
0.75in
(19mm)
0.188in
(4.78mm)
0.135in (3.43mm)
0.56in
(14.22mm)
Panel Mount IEC61010
Banana Jacks for
Sheathed Plugs
1.34in (34mm)
72912-0
Black
72912-2
Red
72913-0
Black
72913-2
Red
72930*
Banana Plug with
Threaded Stud and
Solder Lug
Thread
0.16in
(4.06mm)
Model#
3263
3264
4512
Thread
6-32 x .50in (12.70mm)
8-32 x .50in (12.70mm)
8-32 x .63in (16.00mm)
Fits standard 0.166in (4.22mm) dia. banana jack.
Material:
Banana Plug Body:
brass;
Spring:
beryllium copper;
Finish:
nickel plating.
Rating:
For CE compliance
and for personal
safety, do not hold in hand when voltages exceed
33 Vrms/70 Vdc. Maximum voltage for
hands
free use:
5000 Vdc. Do not use on circuits
where transient stresses can exceed the rated
voltage.15A.
Sold unassembled, in pkgs. of 10.
72912
Material:
Gold-plated nickel
(72912 and 72913).
Rating:
1000V Cat III, 36A Max.
*Std. Colors:
-0 Black, -1 Brown, -2 Red,
-4 Yellow, -5 Green, -6 Blue, -7 Violet,
-8 Gray, -9 White.
0.56in
(14.22mm)
72913
Sold in packages of 10 per color.
Insulated Banana
Plug and Jack
with Flexible Boot,
Solder or Crimp
Model#
5167-*
5168-*
5169-*
5170-*
Accepts wire
AWG
22, 20, 18
16, 14
22, 20, 18
16, 14
Type
Jack
Plug
Mates with...
Plug 5169
Plug 5170
Jack 5167
Jack 5168
72930
Panel Mount IEC61010
4 mm (0.16in) Banana
Jack for Sheathed Plugs
0.57in
(14.5mm)
Model# 5931-*
Accepts flexible test lead sets 5907A, 5908A,
5909A.
Max. Panel Thickness:
0.28in (7.0mm).
Insulation:
Nylon.
Rating:
1000 V Cat III per IEC61010-031
and IEC61010-1, 25A.
Ideal for making patch cords or field repairs.
Snap-on flexible PVC boot allows wire to be
crimped or soldered to banana plug or jack.
Fits standard 0.166in (4.22mm) dia. banana jack.
5169/5170 Boots
Material:
Boot:
Banana Plug Body:
brass;
Spring:
beryllium copper;
Finish:
nickel plating;
Jack: nickel plated brass.
Rating:
For CE compliance
and for personal
safety, do not hold in hand when voltages exceed
33 Vrms/70 Vdc. Maximum voltage for
hands
free use:
5000 Vdc. Do not use on circuits where
transient stresses can exceed the rated voltage.
15A, +122˚F (+50˚C,) max.
*Std. Colors:
-0 Black, -2 Red.
Model#
3265
3266
Thread
6-32 x 0.25in (6.35mm)
8-32 x 0.25in (6.35mm)
1.04in (26.4mm)
*Std. Colors:
-0 Black, -2 Red, -6 Blue,
-9 White.
Sold in pkgs. of 10 per color.
5167/5168 Jacks
Panel Cut-Out
Banana Plug with
Screw and Soldering
Lug
0.97in (24.63mm)
Banana Jack with Wire
Wrap Terminal
0.45in
(11.43mm)
1.22in (30.99mm)
Model# 4005-*
Material:
Jack:
nickel-plated brass;
Terminal:
gold-plated phosphor bronze;
Insulation:
polycarbonate.
Rating:
For CE compliance
and for personal
safety, do not hold in hand when voltages
exceed 33 Vrms/70 Vdc. Maximum voltage
for
hands free use:
2500 Vdc. Do not use on
circuits where transient stresses can exceed
the rated voltage. 3A, +239˚F (+115˚C) max.
Fits standard 0.166in (4.22mm) dia. banana jack.
Material:
Banana Plug Body:
brass;
Spring:
beryllium copper;
Finish:
nickel plating.
Rating:
For CE compliance
and for personal
safety, do not hold in hand when voltages
exceed 33 Vrms/70 Vdc. Maximum voltage for
hands free use:
5000 Vdc. Do not use on circuits
where transient stresses can exceed the rated
voltage. 15A.
Sold unassembled, in pkgs. of 10.
.025in square pin
0.25in
(6.35mm)
0.50in
(12.7mm)
0.35in
(8.89mm)
Panel Cut-Out
0.56in
(14.22mm)
0.375in
*Std. Colors:
-0 Black, -2 Red.
(9.52mm)
Sold in pkgs. of 10 per color.
www.pomonaelectronics.com
*Color Code:
-0 Black, -1 Brown, -2 Red, -3 Orange, -4 Yellow,
-5 Green, -6 Blue, -7 Violet, -8 Gray, -9 White
