CFF4127-0102F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> CFF4127-0102F

CFF4127-0102F: DescriptionCard Edge Connector, 27 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size95KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric View All

CFF4127-0102F Overview

Card Edge Connector, 27 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal,

CFF4127-0102F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Maker	SMK
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR
Contact completed and terminated	TIN
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	27
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

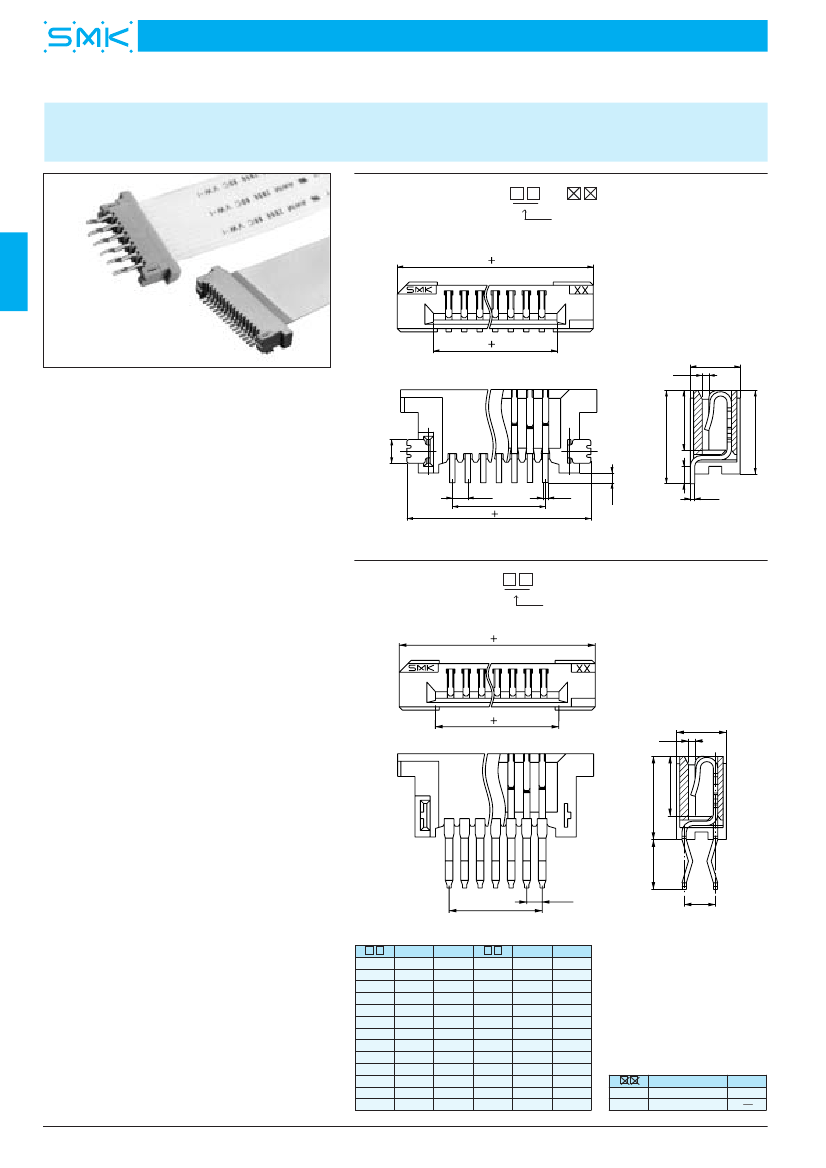

FFC Connector

FC-10

Series

1.0mm Spacing (SMT & DIP Type)

●

SMT Type CFF23

-01

No. of Pins

6.6

FPC / FFC Connectors

2.1

3.2

0.4

6.1

3.9(Inserted size)

■

Features

1. FC-10 series are FFC connectors featuring pins

at 1.0mm spacing.

2. Insertion possible with minimal force due to LIF

structure employed.

3. Choice of versions available, such as SMT and

dip types, and lower or upper contact type.

4. A lead-free product.

1.5

■

Specifications

1. Rating : 0.5A, 50V AC/DC max.

2. Contact Resistance : 30mΩ, max.

3. Insulation Resistance : 1000MΩ, min. at 500V DC

4. Withstanding Voltage : 500V AC for one minute

5. Operating Temperature Range : –25˚C to +70˚C

A 6.0

●

DIP Type

CFF61

-0101F

No. of Pins

■

Materials and Plating

●

6.6

Housing : Polyphenylene Sulfide (PPS),

Natural Color, 94V-0

●

Contact : Phosphor Bronze, Tin Plating

■

Note

Please contact our local sales agent for supply

on embossed tape.

2.1

0.4

5.5

3.9(Inserted size)

0.6

1.0

0.35

1.3

0.25

3.2

1.0

3.3

2.0

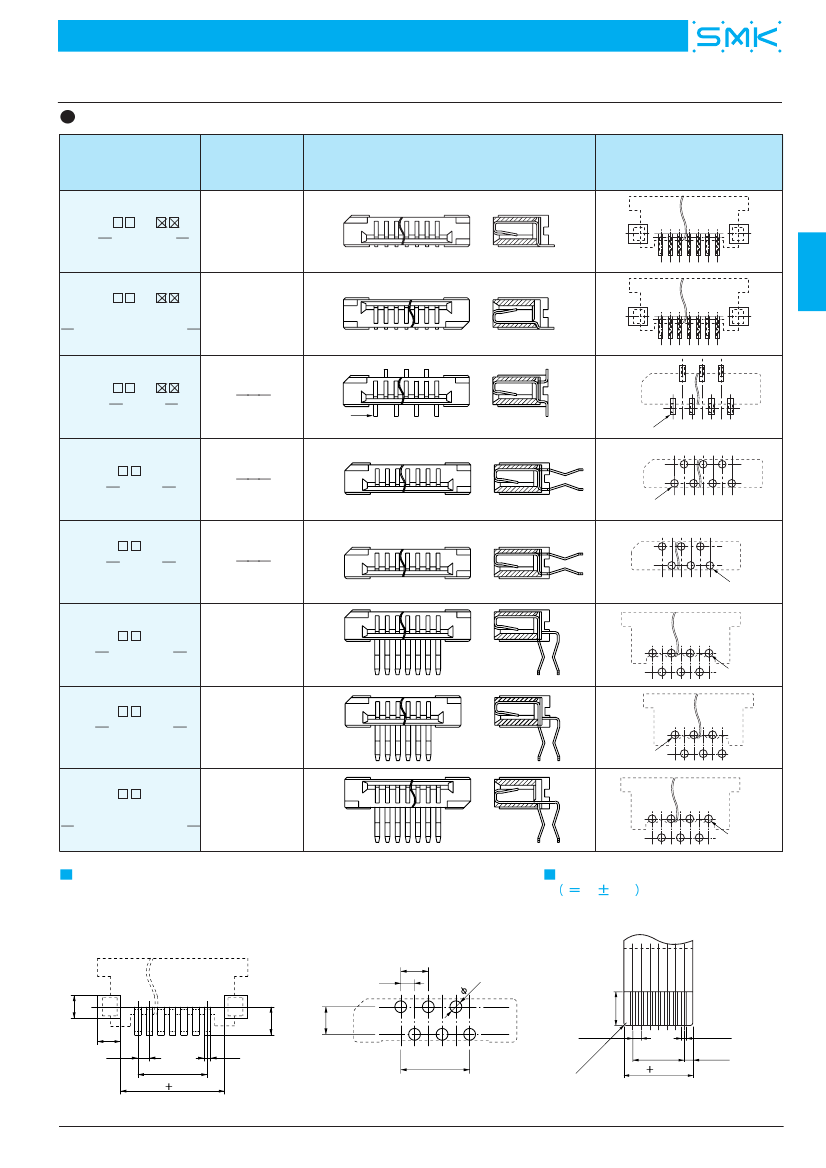

No. of Pins

4.0

5.0

6.0

7.0

8.0

9.0

10.0

11.0

12.0

13.0

14.0

15.0

16.0

No. of Pins

17.0

18.0

19.0

20.0

21.0

22.0

23.0

24.0

25.0

26.0

27.0

28.0

29.0

Packing Style pcs/reel

Embossed Taping

Pack in Bulk

1000

5.5
