MC68HC05T10B datasheet, PDF - EEWORLD Datasheet

MC68HC05T10B: Description8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PDIP56, SDIP-56; CategoryThe embedded processor and controller Microcontrollers and processors; File Size9MB，120 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

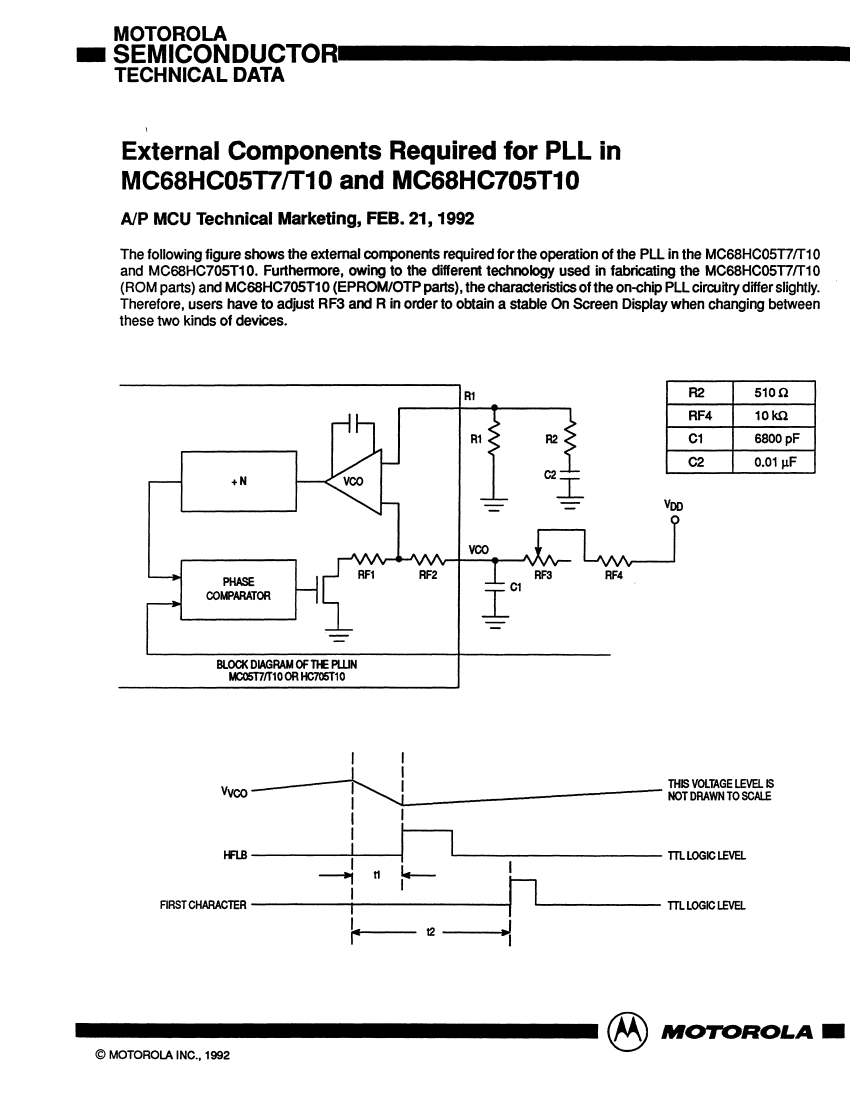

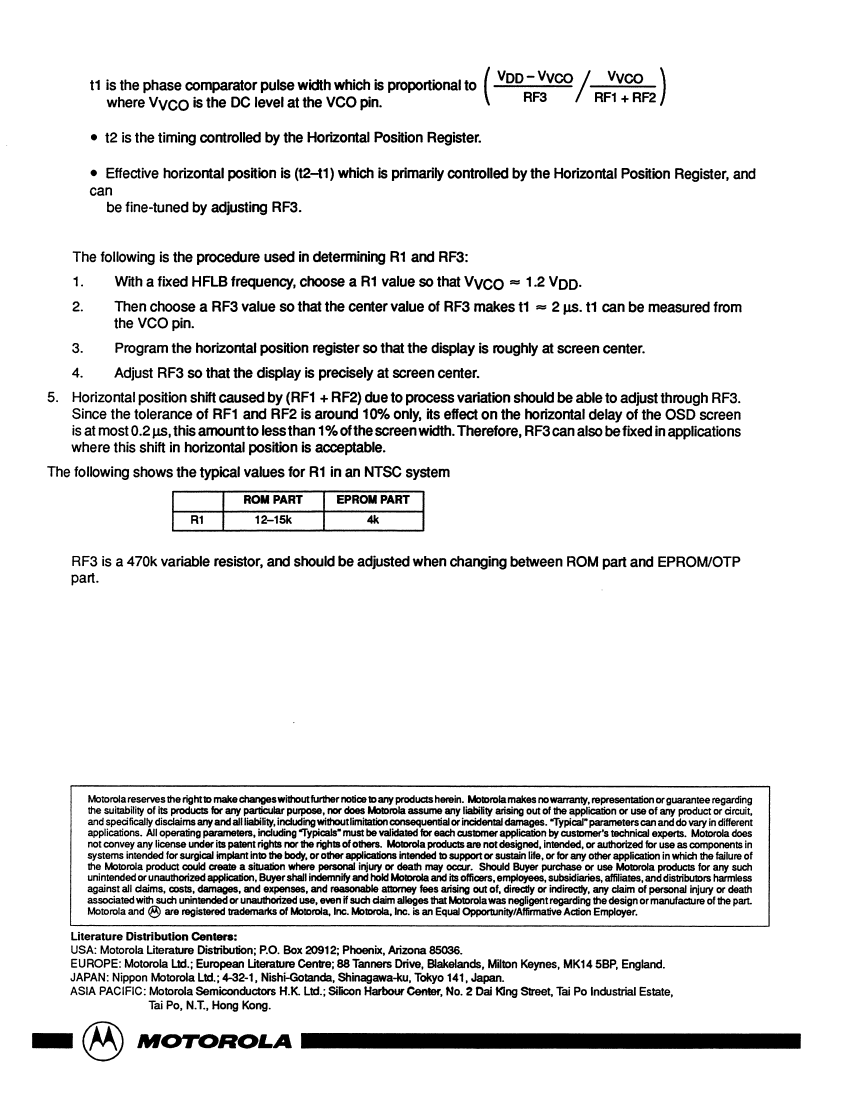

MC68HC05T10B Overview

8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PDIP56, SDIP-56

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	DIP
package instruction	SDIP,
Contacts	56
Reach Compliance Code	unknown
Has ADC	YES
Address bus width
bit size	8
maximum clock frequency	4.2 MHz
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T56
length	52.07 mm
Number of I/O lines	24
Number of terminals	56
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	5.08 mm
speed	2.1 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	HCMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

	MC68HC05T10B	MC68HC05T7B	MC68HC705T10B
Description	8-BIT, MROM, 2.1MHz, MICROCONTROLLER, PDIP56, SDIP-56	Microcontroller, 8-Bit, MROM, 2.1MHz, HCMOS, PDIP56, SDIP-56	8-BIT, OTPROM, 2.1MHz, MICROCONTROLLER, PDIP56, SDIP-56
package instruction	SDIP,	SDIP,	SDIP,
Reach Compliance Code	unknown	unknown	unknow
Has ADC	YES	YES	YES
bit size	8	8	8
maximum clock frequency	4.2 MHz	4.2 MHz	4.2 MHz
DAC channel	YES	YES	YES
DMA channel	NO	NO	NO
JESD-30 code	R-PDIP-T56	R-PDIP-T56	R-PDIP-T56
length	52.07 mm	52.07 mm	52.07 mm
Number of I/O lines	24	24	24
Number of terminals	56	56	56
Maximum operating temperature	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SDIP	SDIP	SDIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH	IN-LINE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	OTPROM
Maximum seat height	5.08 mm	5.08 mm	5.08 mm
speed	2.1 MHz	2.1 MHz	2.1 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	HCMOS	HCMOS	HCMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.778 mm	1.778 mm	1.778 mm
Terminal location	DUAL	DUAL	DUAL
width	15.24 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Motorola ( NXP )	-	Motorola ( NXP )
Parts packaging code	DIP	-	DIP
Contacts	56	-	56
