N74S32N datasheet, PDF - EEWORLD Datasheet

N74S32N: DescriptionOR Gate, S Series, 4-Func, 2-Input, TTL, PDIP14; Categorylogic logic; File Size84KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

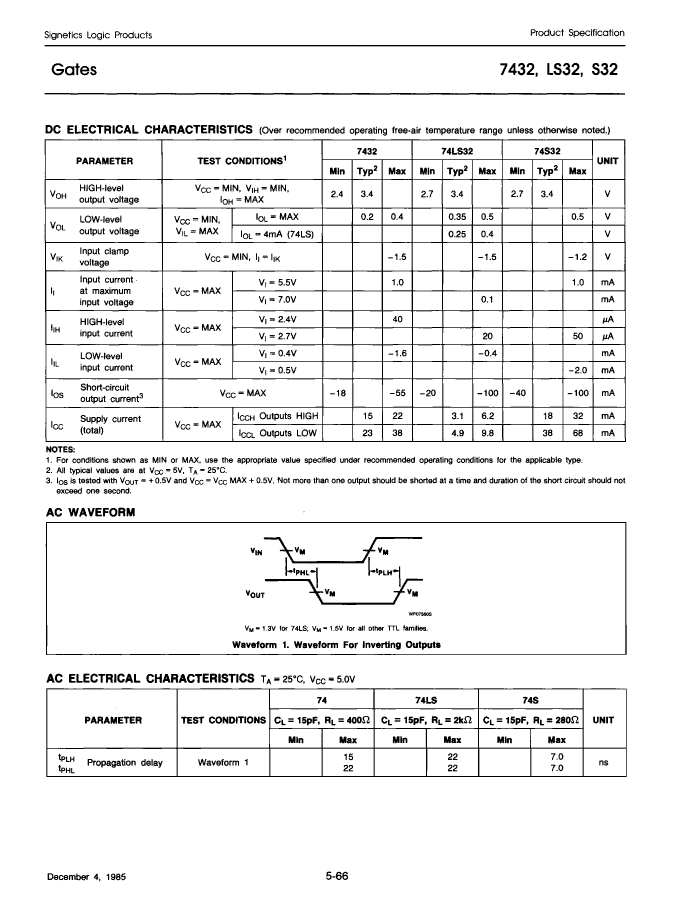

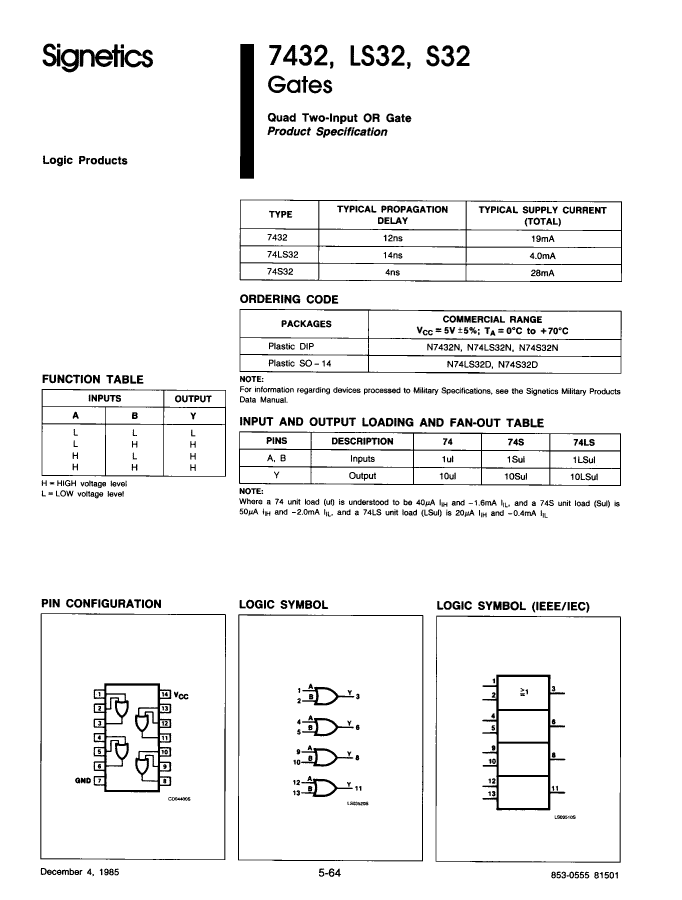

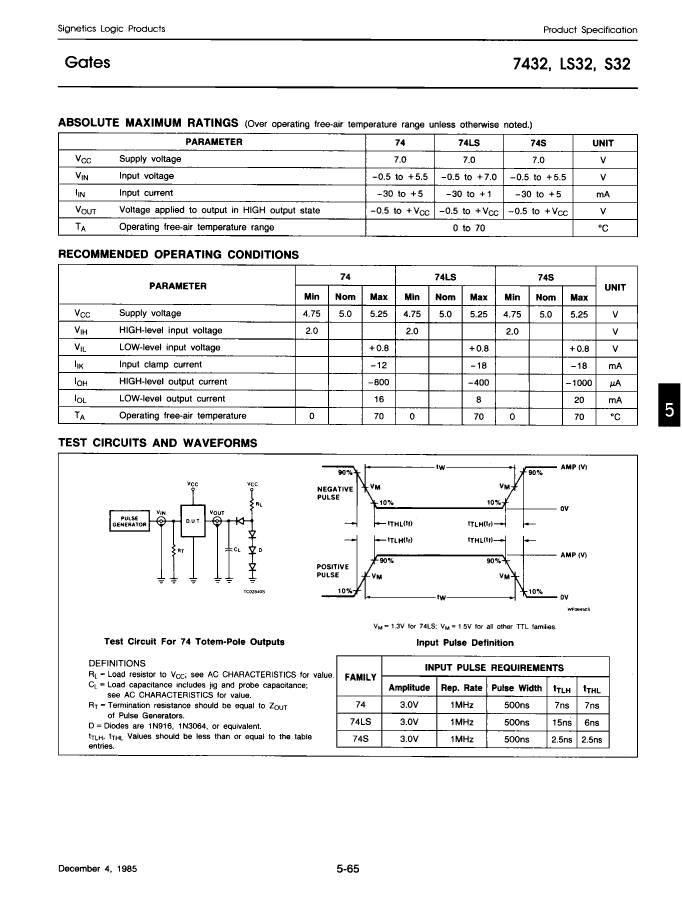

N74S32N Overview

OR Gate, S Series, 4-Func, 2-Input, TTL, PDIP14

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
series	S
JESD-30 code	R-PDIP-T14
Load capacitance (CL)	15 pF
Logic integrated circuit type	OR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	68 mA
propagation delay (tpd)	7 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	N74S32N	N7432N	ADM6319DW25ARJR7	N74LS32N	N74S32D
Description	OR Gate, S Series, 4-Func, 2-Input, TTL, PDIP14	OR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, PDIP14	Supervisory Circuits with Watchdog and Manual Reset in 5-Lead SOT-23	OR Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14	OR Gate, S Series, 4-Func, 2-Input, TTL, PDSO14
Maker	YAGEO	-	-	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	-	unknow	unknow
series	S	TTL/H/L	-	LS	S
JESD-30 code	R-PDIP-T14	R-PDIP-T14	-	R-PDIP-T14	R-PDSO-G14
Load capacitance (CL)	15 pF	15 pF	-	15 pF	15 pF
Logic integrated circuit type	OR GATE	OR GATE	-	OR GATE	OR GATE
Number of functions	4	4	-	4	4
Number of entries	2	2	-	2	2
Number of terminals	14	14	-	14	14
Maximum operating temperature	70 °C	70 °C	-	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	-	IN-LINE	SMALL OUTLINE
Maximum supply current (ICC)	68 mA	38 mA	-	9.8 mA	68 mA
propagation delay (tpd)	7 ns	22 ns	-	22 ns	7 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V	-	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	-	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V
surface mount	NO	NO	-	NO	YES
technology	TTL	TTL	-	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	GULL WING
Terminal location	DUAL	DUAL	-	DUAL	DUAL
