CAT24C02ZI.GT3A datasheet, PDF

Datasheet> All Categories > storage> CAT24C02ZI.GT3A

CAT24C02ZI.GT3A: Description4K X 1 I2C/2-WIRE SERIAL EEPROM, PBGA5; Categorystorage; File Size214KB，20 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

CAT24C02ZI.GT3A Overview

4K X 1 I2C/2-WIRE SERIAL EEPROM, PBGA5

CAT24C02ZI.GT3A Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	5
Maximum operating temperature	85 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	5.5 V
Minimum supply/operating voltage	1.7 V
Rated supply voltage	3.3 V
maximum clock frequency	0.4000 MHz
Processing package description	0.86 X 0.84 MM, HALOGEN FREE AND ROHS COMPLIANT, WLCSP-5
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	GRID ARRAY, VERY THIN PROFILE, FINE PITCH
surface mount	Yes
Terminal form	BALL
Terminal spacing	0.3000 mm
Terminal location	BOTTOM
Packaging Materials	PLASTIC/EPOXY
Temperature level	INDUSTRIAL
memory width	1
organize	4K X 1
storage density	4096 deg
operating mode	SYNCHRONOUS
Number of digits	4096 words
Number of digits	4K
Memory IC type	I2C/2-WIRE SERIAL EEPROM
serial parallel	SERIAL
Maximum TWC of write cycle	5 ms

Preview

Download Datasheet

View All

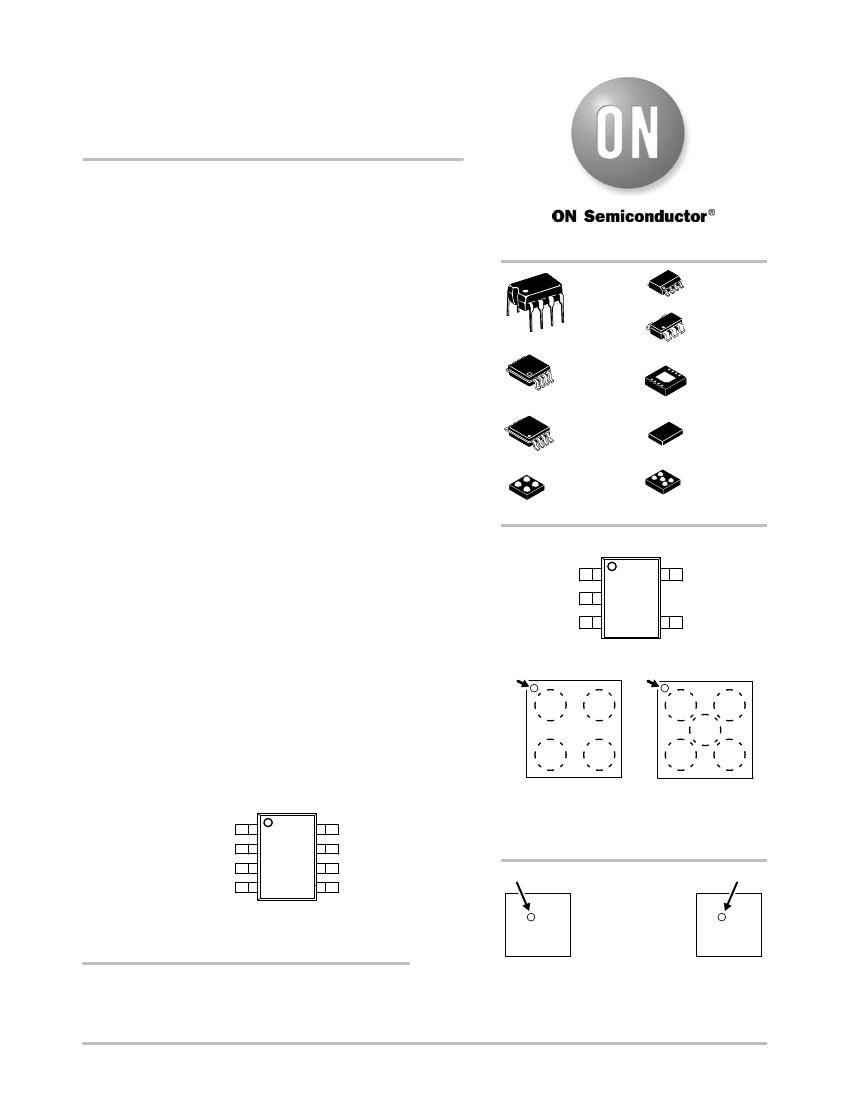

CAT24C01, CAT24C02,

CAT24C04, CAT24C08,

CAT24C16

1-Kb, 2-Kb, 4-Kb, 8-Kb and

16-Kb I

C CMOS Serial

EEPROM

Description

http://onsemi.com

SOIC−8

W SUFFIX

CASE 751BD

TSOT−23

TD SUFFIX

CASE 419AE

TDFN−8*

VP2 SUFFIX

CASE 511AK

UDFN8−EP

HU4 SUFFIX

CASE 517AZ

WLCSP−5**

C5A SUFFIX

CASE 567DD

The CAT24C01/02/04/08/16 are 1−Kb, 2−Kb, 4−Kb, 8−Kb and

16−Kb respectively CMOS Serial EEPROM devices organized

internally as 8/16/32/64 and 128 pages respectively of 16 bytes each.

All devices support both the Standard (100 kHz) as well as Fast

(400 kHz) I

C protocol.

Data is written by providing a starting address, then loading 1 to 16

contiguous bytes into a Page Write Buffer, and then writing all data to

non−volatile memory in one internal write cycle. Data is read by

providing a starting address and then shifting out data serially while

automatically incrementing the internal address count.

External address pins make it possible to address up to eight

CAT24C01 or CAT24C02, four CAT24C04, two CAT24C08 and one

CAT24C16 device on the same bus.

Features

PDIP−8

L SUFFIX

CASE 646AA

MSOP−8

Z SUFFIX

CASE 846AD

TSSOP−8

Y SUFFIX

CASE 948AL

WLCSP−4**

C4A SUFFIX

CASE 567DC

•

Supports Standard and Fast I

C Protocol

1.7 V to 5.5 V Supply Voltage Range

16−Byte Page Write Buffer

Hardware Write Protection for Entire Memory

Schmitt Triggers and Noise Suppression Filters on I

C Bus Inputs

(SCL and SDA)

Low power CMOS Technology

More than 1,000,000 Program/Erase Cycles

100 Year Data Retention

Industrial and Extended Temperature Range

These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS

Compliant

PIN CONFIGURATION

CAT24C__

16 / 08 / 04 / 02 / 01

NC / NC / NC / A

/ A

NC / NC / A

/ A

NC / A

/ A

PIN CONFIGURATIONS

SCL

SDA

TSOT−23 (TD) (Top View)

Pin 1

SDA

SCL

SDA

SCL

WLCSP−4**

(Top Views)

SCL

SDA

WLCSP−4

WLCSP−5**

** WLCSP are available for the CAT24C04,

CAT24C08 and CAT24C16 only.

For availability, please contact factory.

Pin 1

TOP MARKING FOR WLCSP

(Ball Down)

X = Specific Device

X =

Code

4 = 24C04

8 = 24C08

6 = 24C16

Pin 1

PDIP (L), SOIC (W), TSSOP (Y), MSOP (Z),

TDFN, (VP2)*, UDFN−EP (HU4) (Top View)

* The TDFN (VP2) package is not recommended for new designs.

WLCSP−5

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 18 of this data sheet.

Y = Production Year (Last Digit)

M = Production Month (1−9, O, N, D)

Semiconductor Components Industries, LLC, 2012

September, 2012

−

Rev. 22

Publication Order Number:

CAT24C01/D
