QS74LCX162H245PV datasheet, PDF

QS74LCX162H245PV: DescriptionBus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, TSSOP-48; Categorylogic logic; File Size296KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

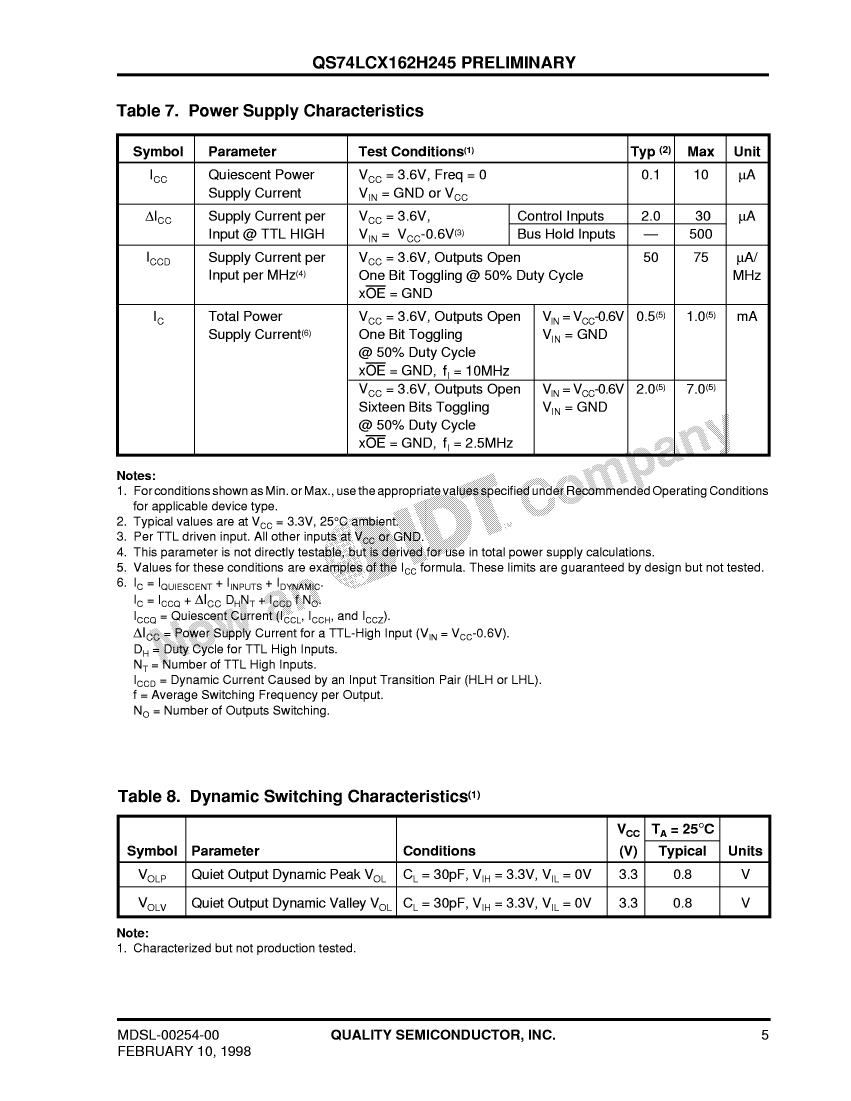

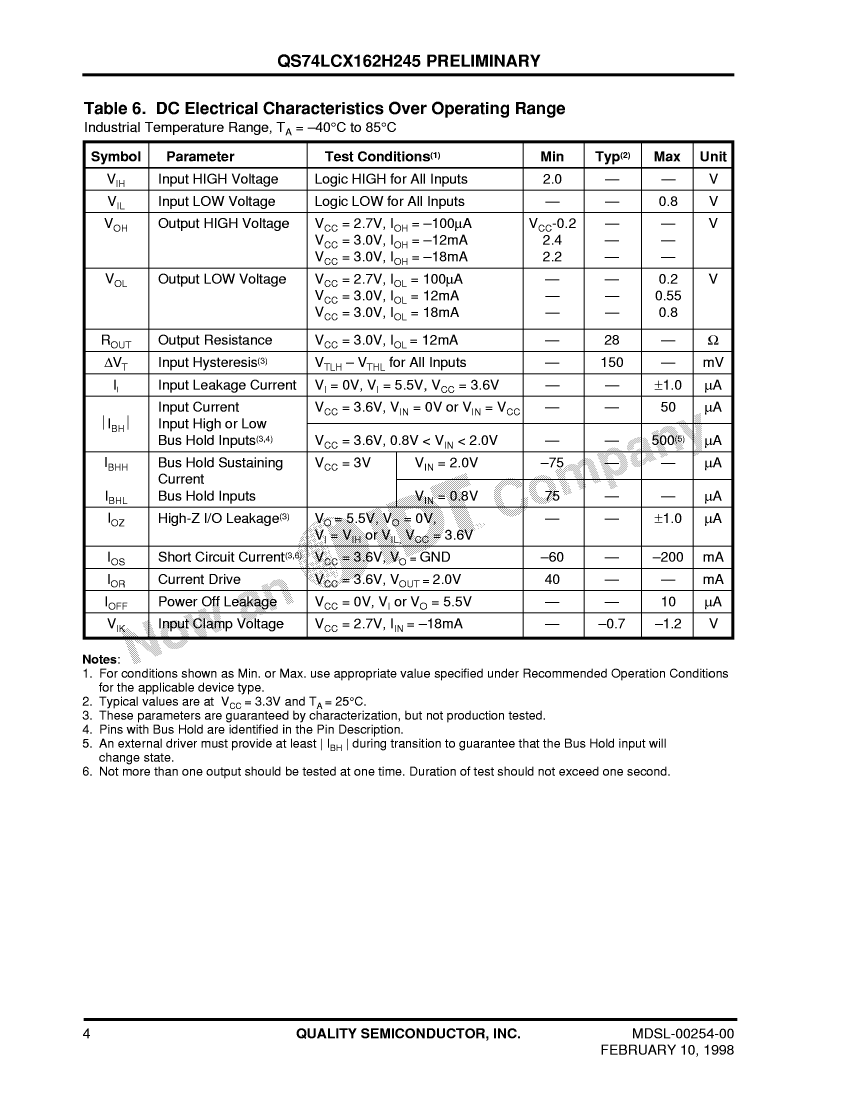

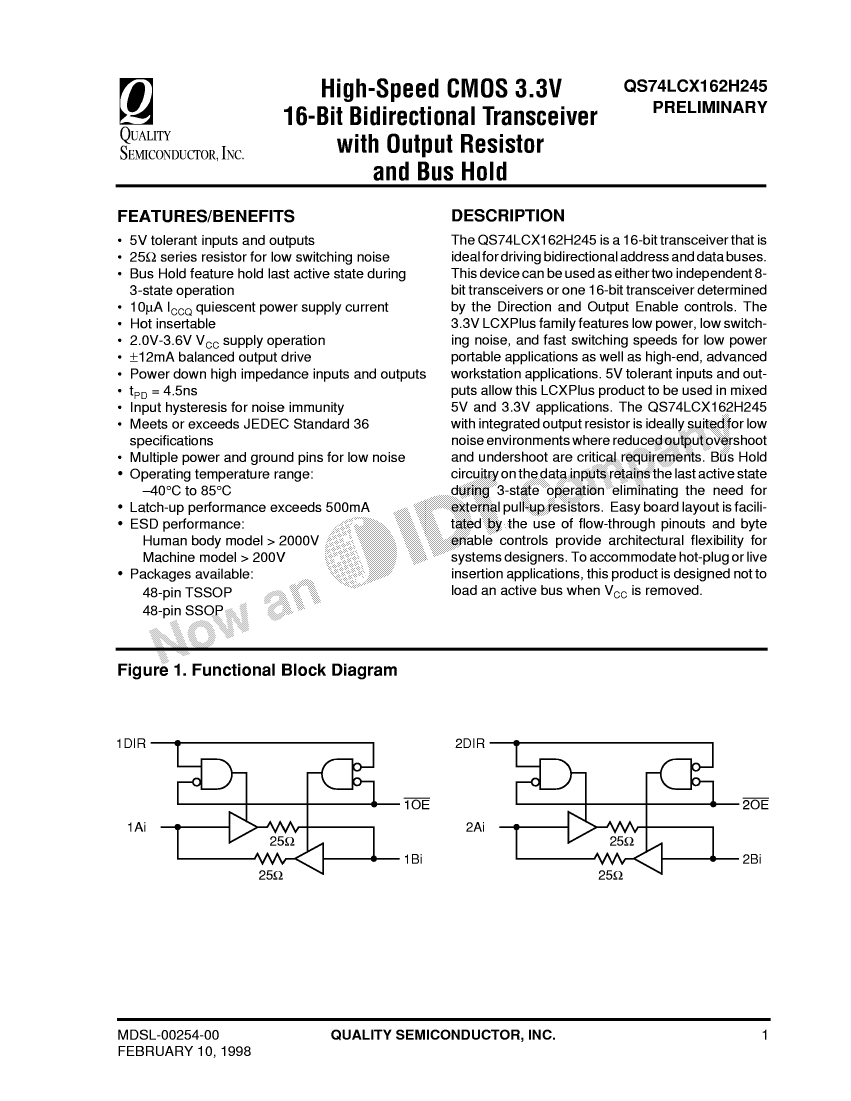

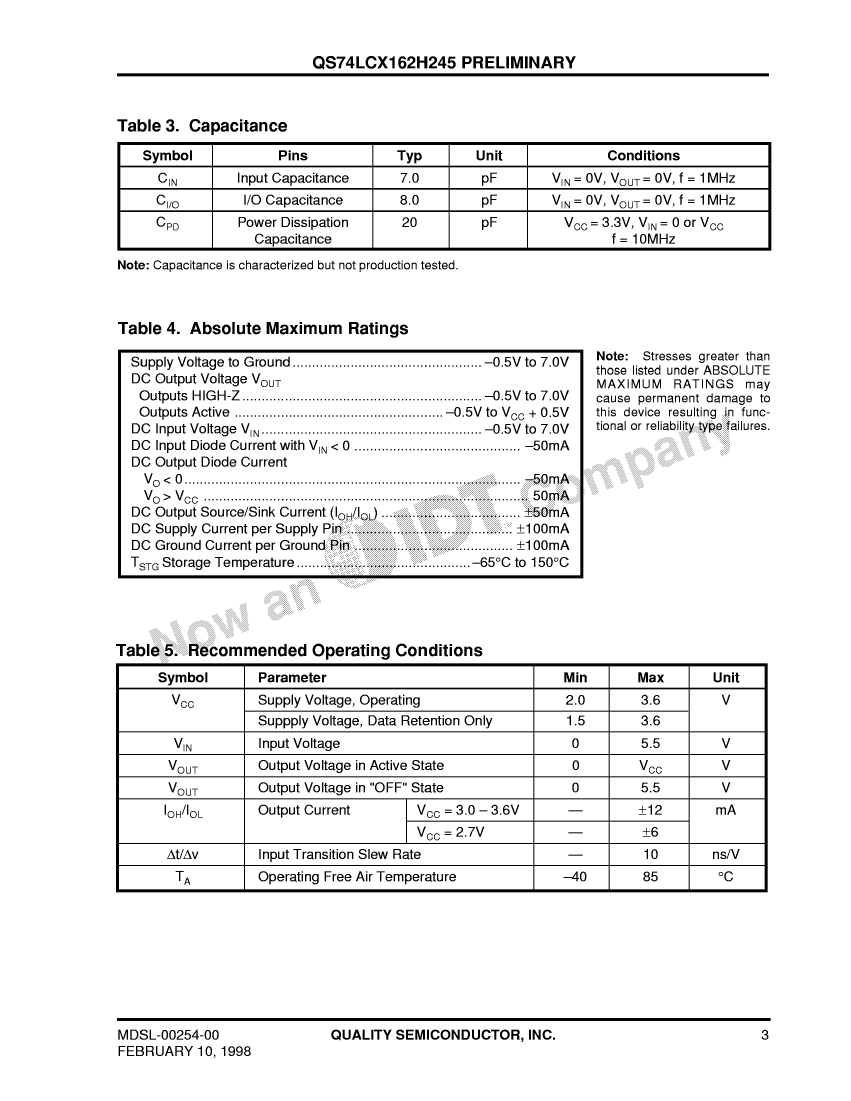

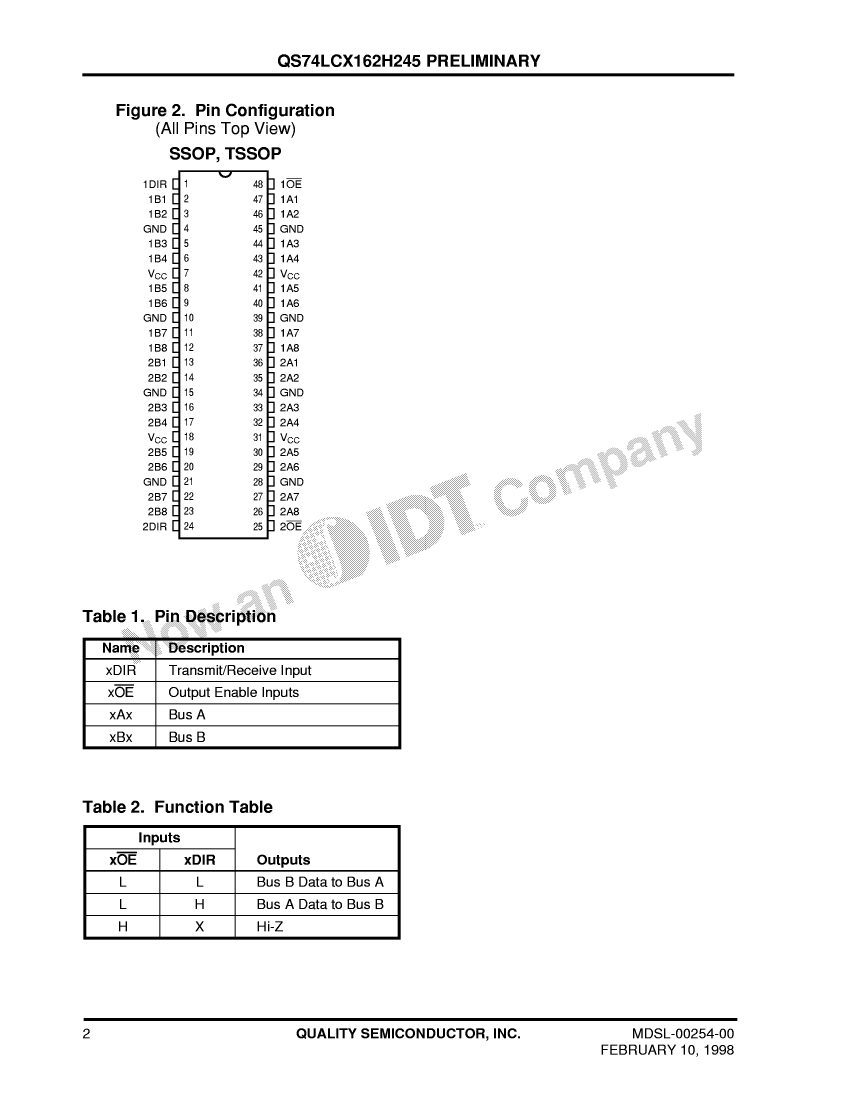

QS74LCX162H245PV Overview

Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, TSSOP-48

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	SSOP, SSOP48,.4
Contacts	48
Reach Compliance Code	not_compliant
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
Load capacitance (CL)	30 pF
MaximumI(ol)	0.018 A
Humidity sensitivity level	1
Number of digits	8
Number of functions	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP48,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	3.3 V
Prop。Delay @ Nom-Sup	4.5 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

	QS74LCX162H245PV	QS74LCX162H245PA
Description	Bus Transceiver, LVC/LCX/Z Series, 2-Func, 8-Bit, True Output, CMOS, PDSO48, TSSOP-48	Bus Driver/Transceiver, 2-Func, 8-Bit, True Output, CMOS, PDSO48
Is it Rohs certified?	incompatible	incompatible
Maker	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	TSSOP	SSOP
package instruction	SSOP, SSOP48,.4	TSSOP, TSSOP48,.3,20
Contacts	48	48
Reach Compliance Code	not_compliant	not_compliant
Control type	COMMON CONTROL	COMMON CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
Load capacitance (CL)	30 pF	30 pF
MaximumI(ol)	0.018 A	0.018 A
Humidity sensitivity level	1	1
Number of digits	8	8
Number of functions	2	2
Number of terminals	48	48
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	TSSOP
Encapsulate equivalent code	SSOP48,.4	TSSOP48,.3,20
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
power supply	3.3 V	3.3 V
Prop。Delay @ Nom-Sup	4.5 ns	4.5 ns
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn85Pb15)	Tin/Lead (Sn85Pb15)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.5 mm
Terminal location	DUAL	DUAL
