MBRB20H90CT-HE3/45 datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> MBRB20H90CT-HE3/45

MBRB20H90CT-HE3/45: DescriptionDIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode; CategoryDiscrete semiconductor diode; File Size496KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MBRB20H90CT-HE3/45 Overview

DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode

MBRB20H90CT-HE3/45 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
Parts packaging code	D2PAK
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	unknown

Preview

Download Datasheet

View All

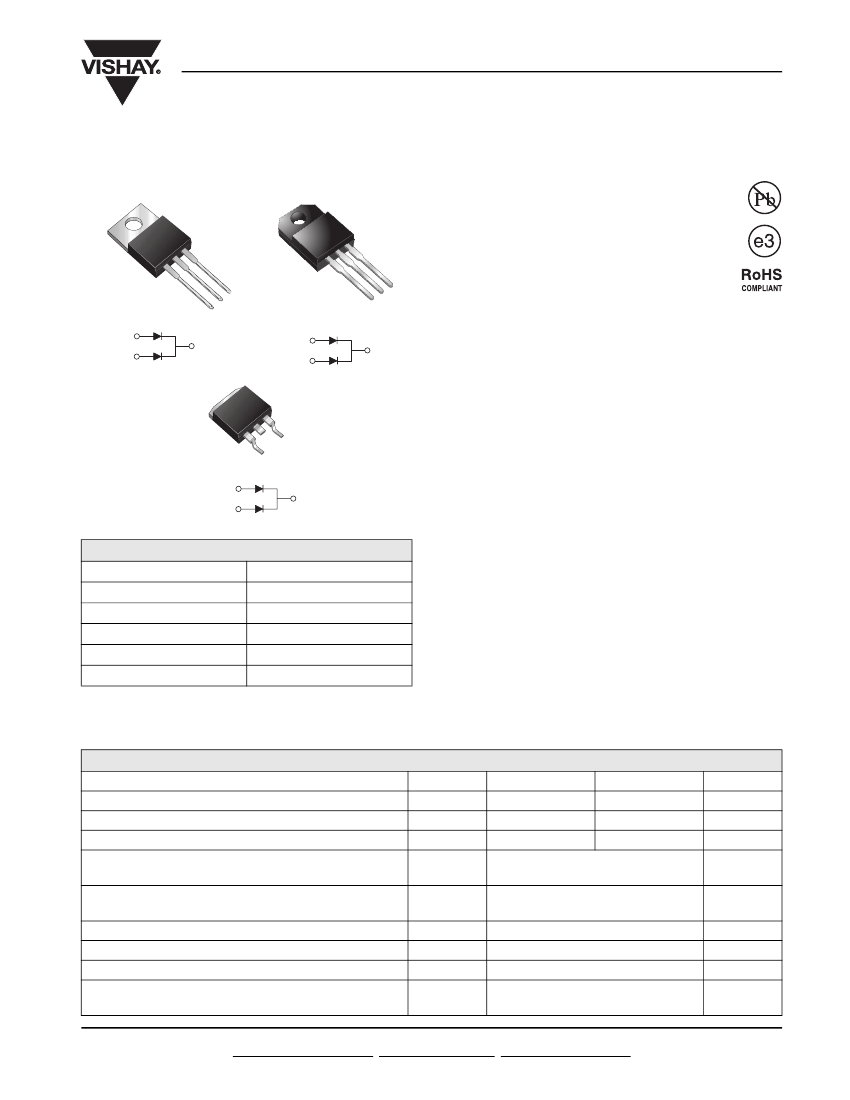

MBR(F,B)20H90CT & MBR(F,B)20H100CT

Vishay General Semiconductor

Dual Common-Cathode High-Voltage Schottky Rectifier

High Barrier Technology for Improved High Temperature Performance

TO-220AB

ITO-220AB

MBR20H90CT

MBR20H100CT

PIN 1

PIN 3

PIN 2

CASE

MBRF20H90CT

MBRF20H100CT

PIN 1

PIN 3

PIN 2

TO-263AB

FEATURES

• Guardring for overvoltage protection

• Lower power losses, high efficiency

• Low forward voltage drop

• Low leakage current

• High forward surge capability

• High frequency operation

• Meets MSL level 1, per J-STD-020, LF maximum

peak of 245 °C (for TO-263AB package)

• Solder dip 260 °C, 40 s (for TO-220AB and

ITO-220AB package)

• Component in accordance to RoHS 2002/95/EC

and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in high frequency rectifier of switching

mode power supplies, freewheeling diodes, dc-to-dc

converters or polarity protection application.

MECHANICAL DATA

Case:

TO-220AB, ITO-220AB, TO-263AB

Epoxy meets UL 94V-0 flammability rating

Terminals:

Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meets JESD 201 class

1A whisker test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity:

As marked

Mounting Torque:

10 in-lbs maximum

MBRB20H90CT

MBRB20H100CT

PIN 1

PIN 2

HEATSINK

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

10 A x 2

90 V, 100 V

250 A

4.5 µA

0.64 V

175 °C

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Working peak reverse voltage

Maximum DC blocking voltage

Maximum average forward rectified current

total device

per diode

SYMBOL

RRM

RWM

F(AV)

FSM

RRM

dV/dt

, T

STG

MBR20H90CT

250

1.0

10 000

- 65 to + 175

1500

MBR20H100CT

100

UNIT

V/µs

°C

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load per diode

Peak repetitive reverse current per diode at t

= 2 µs, 1 kHz

Voltage rate of change (rated V

)

Operating junction and storage temperature range

Isolation voltage (ITO-220AB only)

from terminal to heatsink t = 1 min

Document Number: 88673

Revision: 08-Nov-07

For technical questions within your region, please contact one of the following:

PDD-Americas@vishay.com, PDD-Asia@vishay.com, PDD-Europe@vishay.com

www.vishay.com

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Revision: 12-Mar-12

Document Number: 91000

MBRB20H90CT-HE3/45 Related Products

	MBRB20H90CT-HE3/45	MBRF20H90CT-HE3/45	MBRF20H90CTHE3/45	MBRF20H100CT-HE3/45	MBR20H90CT-HE3/45	MBRB20H100CT-HE3/45	MBRB20H100CT-HE3/81	MBR20H100CT-HE3/45	MBRB20H90CT-HE3/81
Description	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-220AB, ROHS COMPLIANT, PLASTIC, ITO-220AB, 3 PIN, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-220AB, ROHS COMPLIANT, PLASTIC, ITO-220AB, 3 PIN, Rectifier Diode	DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AB, ROHS COMPLIANT, PLASTIC, ITO-220AB, 3 PIN, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-220AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 100 V, SILICON, RECTIFIER DIODE, TO-220AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode	DIODE 10 A, 90 V, SILICON, RECTIFIER DIODE, TO-263AB, ROHS COMPLIANT, PLASTIC PACKAGE-3, Rectifier Diode
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Parts packaging code	D2PAK	TO-220AB	TO-220AB	TO-220AB	TO-220AB	D2PAK	D2PAK	TO-220AB	D2PAK
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-3	ROHS COMPLIANT, PLASTIC, ITO-220AB, 3 PIN	R-PSFM-T3	ROHS COMPLIANT, PLASTIC, ITO-220AB, 3 PIN	ROHS COMPLIANT, PLASTIC PACKAGE-3	ROHS COMPLIANT, PLASTIC PACKAGE-3	ROHS COMPLIANT, PLASTIC PACKAGE-3	ROHS COMPLIANT, PLASTIC PACKAGE-3	ROHS COMPLIANT, PLASTIC PACKAGE-3
Contacts	3	3	3	3	3	3	3	3	3
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
