RMC-E9F2S-BSLA2N-MA2: DescriptionPCMCIA Connector, 9 Contact(s), 1 Row(s), Female, Solder Terminal,; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerHonda Tsushin Kogyo Co., Ltd.

Download Datasheet Parametric Compare View All

RMC-E9F2S-BSLA2N-MA2 Overview

PCMCIA Connector, 9 Contact(s), 1 Row(s), Female, Solder Terminal,

RMC-E9F2S-BSLA2N-MA2 Parametric

Parameter Name	Attribute value
Maker	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown
Other features	POLARIZED
Connector type	PCMCIA CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	YES
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

RMC-E9F2S-BSLA2N-MA2 Preview

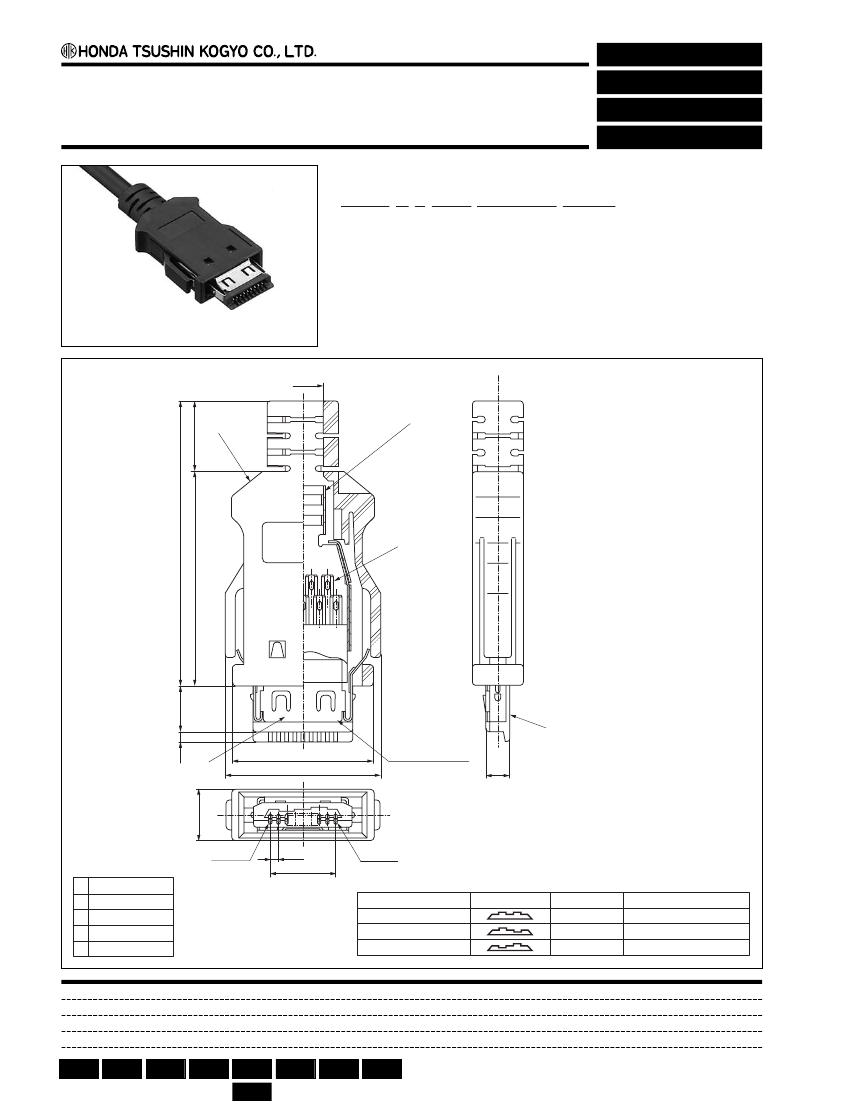

Connector for CF/PC card

Soldering type 9-contacts female cable connector

with backshell

RMC-E9F2S-BSLA2N-MA( )

●

Configuration of product Part No.

Vertical type housing

Soldering type

RMC- E 9 F2S- BSLA2N- MA( )

➀

➁ ➂

➃

➄

➅

➀

Series name

➁

E: EMI-filtered

➂

No. of contacts: 9

➃

F2S: Soldering type

➄

BSLA2N: Vertical type housing

For use with outside diameter of cable: 3.5

➅

MA( ): Forms and position of polarization key

RMC

ø4

27.9

6.9

➂

➀

➄

21

Ω Use of AWG#28 or #30 is

recommended.

Ω After soldering, cover the

soldered area with insulation

such as shrink tube.

Ω Color of the housing is black.

Ω Some models may not be

quickly supplied depending on

the contiguration of part number

(key position and off-set

dimension). For the availability

of the model reguired, consult

your supplier.

Ω The cable size are shown here

only for reference. This model

may not be applicable to some

type of cables.

Ω This small sized I/O connector

can be used for devices such

as PC cards and CF cards, etc.

4.7

➁

14

15.2

1

5

POS.#9

●

Components

➀

Metal cover A

➁

Metal cover B

➂

Housing

➃

Insulator

➄

Female contacts

0.8

0.8≈8=6.4

Mating connectors:

Refer to the table Shown

DIP

SMT

Press-in

IDC

Wire

Soldering Crimping wrapping

1

HONDA

JAPAN

9

➃

Contact POS. No.

2.4

Ω When this connector is used for LAN mode, etc., it is

suitable for high breakdown voltage between shell and

contacts (between PCB and external shield) in mating

with one cable connector. In this case, when assembling

with cable, electrical insulator is required between

soldering section and shield.

POS.#1

●

Position of polarization key

Part No.

RMC-E9F2S-BSLA2N-MA

RMC-E9F2S-BSLA2N-MA1

RMC-E9F2S-BSLA2N-MA2

Key location

Marking

-

Mating connectors

RMC-E(R)9M2Y(N)-OM( )-MA( )

RMC-E(R)9M2Y(N)-OM( )-MA2

RMC-E(R)9M2Y(N)-OM( )-MA1

A1

A2

Others

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

RMC-E9F2S-BSLA2N-MA2 Related Products

	RMC-E9F2S-BSLA2N-MA2	RMC-E9F2S-BSLA2N-MA1	RMC-E9F2S-BSLA2N-MA
Description	PCMCIA Connector, 9 Contact(s), 1 Row(s), Female, Solder Terminal,	PCMCIA Connector, 9 Contact(s), 1 Row(s), Female, Solder Terminal,	PCMCIA Connector, 9 Contact(s), 1 Row(s), Female, Solder Terminal,
Maker	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.	Honda Tsushin Kogyo Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown
Other features	POLARIZED	POLARIZED	POLARIZED
Connector type	PCMCIA CONNECTOR	PCMCIA CONNECTOR	PCMCIA CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	YES	YES	YES
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	9	9	9
UL Flammability Code	94V-0	94V-0	94V-0
