8800DFF3-04 datasheet, PDF - EEWORLD Datasheet

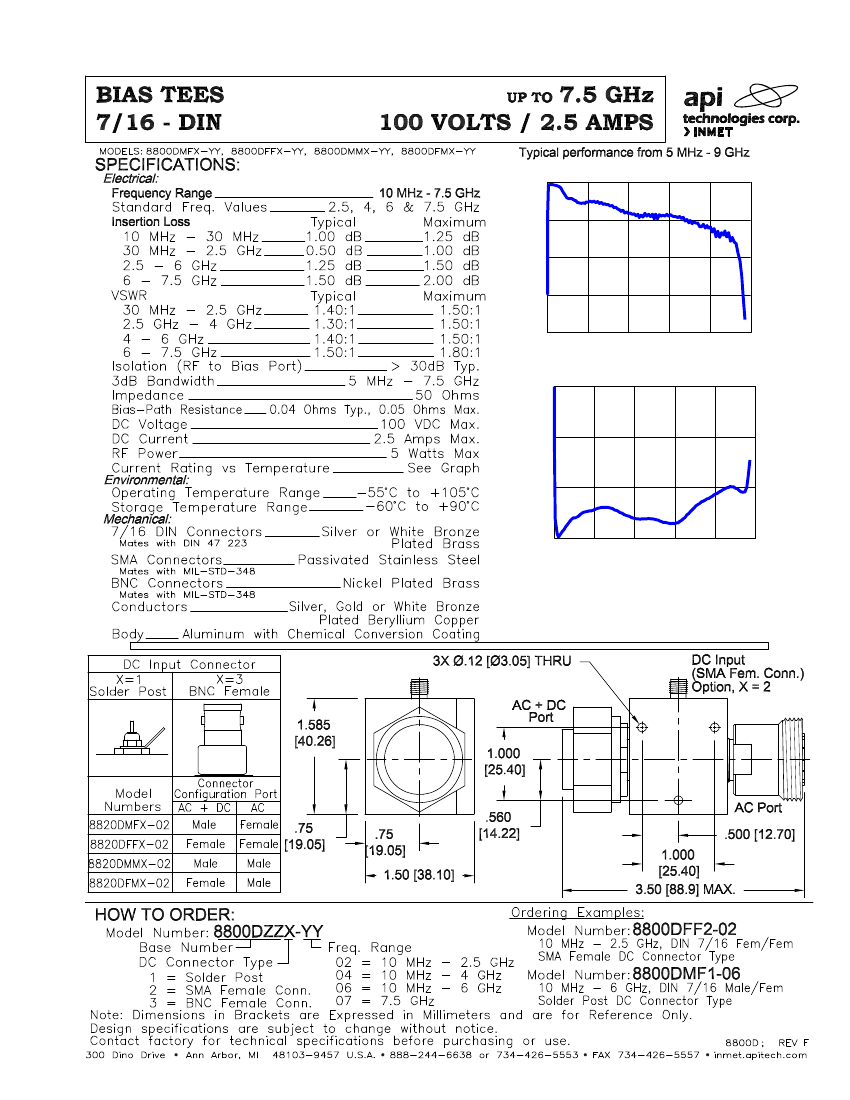

8800DFF3-04: DescriptionMonitor TEE DC Block, 10MHz Min, 4000MHz Max, 1.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size426KB，2 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric View All

8800DFF3-04 Overview

Monitor TEE DC Block, 10MHz Min, 4000MHz Max, 1.5dB Insertion Loss-Max, ROHS COMPLIANT PACKAGE

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	BNC-F
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum DC voltage	100 V
Maximum insertion loss	1.5 dB
JESD-609 code	e4
Maximum operating frequency	4000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	MONITOR TEE DC BLOCK
Terminal surface	GOLD/SILVER
Maximum voltage standing wave ratio	1.5

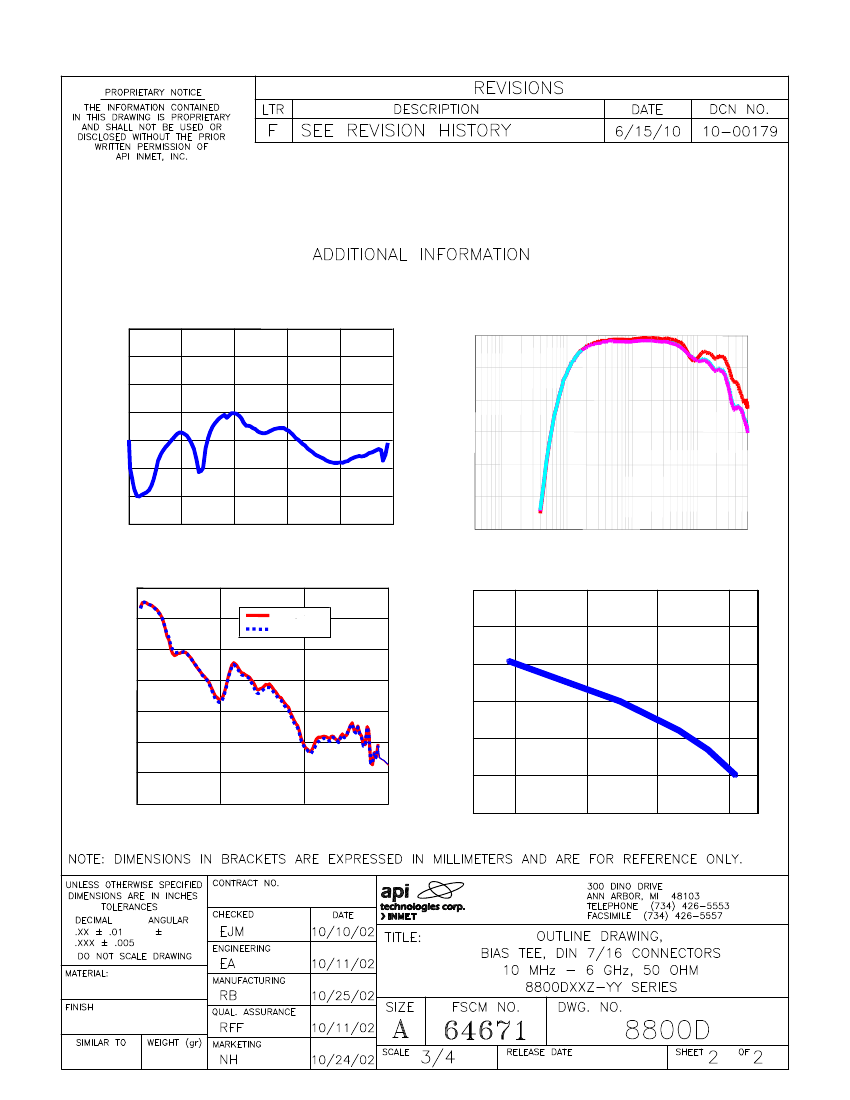

INSERTION LOSS vs. FREQUENCY

0

Insertion Loss (dB)

-1

-2

-3

-4

0

2

4

6

Frequency (GHz)

8

10

VSWR vs. FREQUENCY

2.5

2

VSWR

1.5

1

0

2

4

6

Frequency (GHz)

8

10
