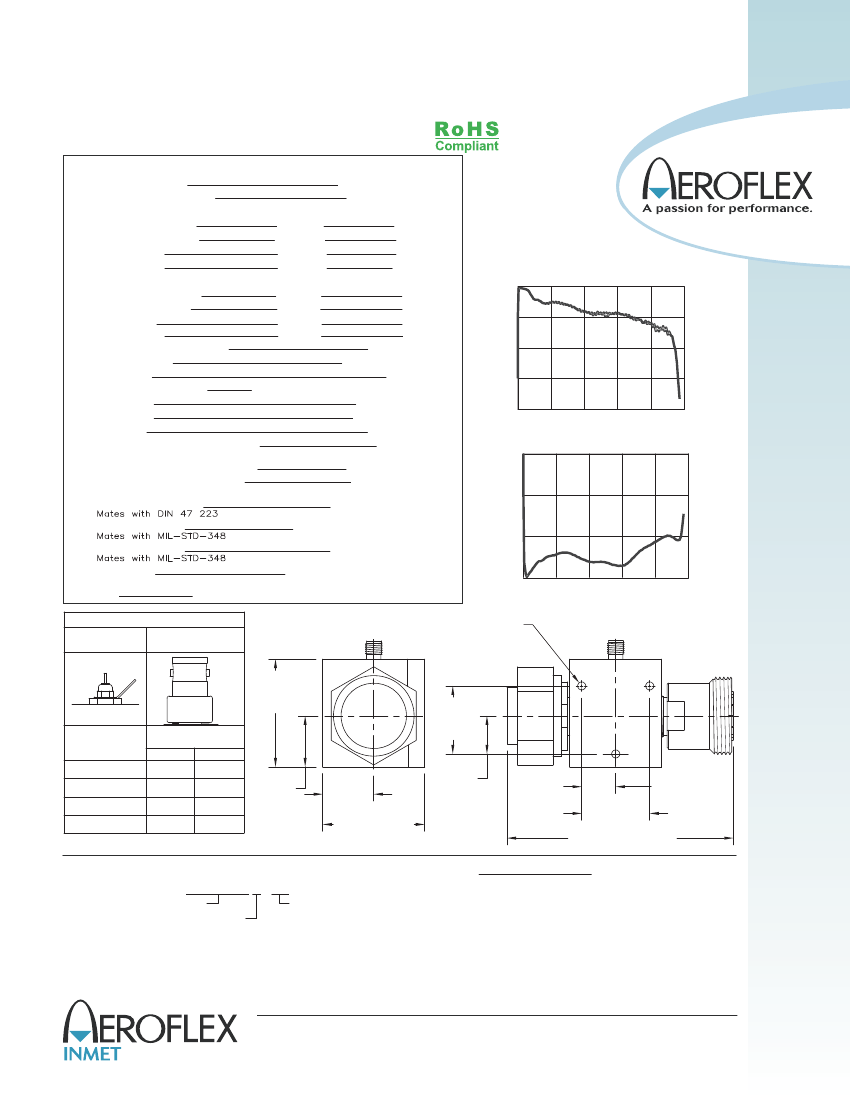

BIAS TEES
7/16 - DIN, up to 7 GHz, 100 Volts / 2.5 Amps
.5
SPECIFICATIONS:
Electrical:
Frequency Range
10 MHz - 7.5 GHz
Standard Freq. Values
2.5, 6, & 7.5 GHz
Typical
Maximum
Insertion Loss
1.00 dB
1.25 dB
10 MHz - 30 MHz
0.50 dB
1.00 dB
30 MHz - 2.5 GHz
2.5 - 6 GHz
1.25 dB
1.50 dB
6 - 7.5 GHz
2.00 dB
1.50 dB
Typical
Maximum
VSWR
1.40:1
1.50:1
30 MHz - 2.5 GHz
1.30:1
1.50:1
2.5 GHz - 4 GHz
1.40:1
1.50:1
4 - 6 GHz
6 - 7.5 GHz
1.50:1
1.80:1
> 30dB Typ.
Isolation (RF to Bias Port)
5 MHz - 7.5 GHz
3dB Bandwidth
50 Ohms
Impedance
0.04 Ohms Typ., 0.05 Ohms Max.
Bias-Path Resistance
DC Voltage
100 VDC Max.
DC Current
2.5 Amps Max.
5 Watts Max
RF Power

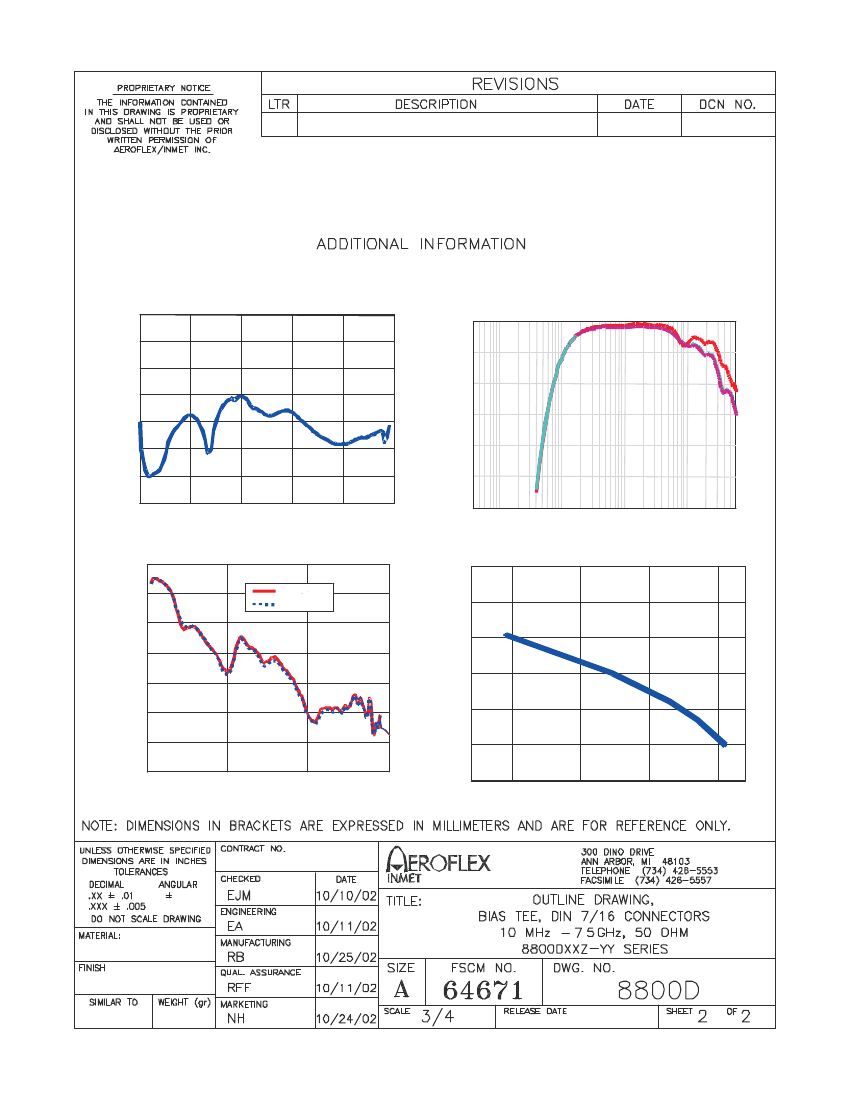

Current Rating vs Temperature
See Graph
Models: 8800DMFX-YY, 8800DFFX-YY, 8800DMMX-YY, 8800DFMX-YY
Typical performance from 5 MHz - 9 GHz
INSERTION LOSS vs. FREQUENCY
0
Insertion Loss (dB)
-1
-2
-3
-4
0
2
4
6
Frequency (GHz)
8
10
Environmental
Mechanical:
VSWR vs. FREQUENCY
2.5
Operating Temperature Range
Storage Temperature Range
-55°C to +105°C
-60°C to +90°C
VSWR
1.5
1
0
7/16 DIN Connectors
SMA Connectors
BNC Connectors
Conductors
Body
Silver Plated Brass
Passivated Stainless Steel
Nickel Plated Brass
2
Silver, Gold or White Bronze
Plated Beryllium Copper
Aluminum with Chemical Conversion Coating
2
4
6
Frequency (GHz)
8
10
DC Input Connector
X=3
X=1
BNC Female
Solder Post
3X Ø.12 [Ø3.05] THRU
AC + DC
Port
DC Input
(SMA Female Conn.)
Option, X = 2
1.585
[40.26]
Connector
Model
Configuration Port
Numbers AC + DC
AC
8820DMFX-02
Male Female
8820DFFX-02
Female Female
8820DMMX-02
1.000
[25.40]
AC Port
Male
Male
Male
.75
[19.05]
.75
[19.05]
1.50 [38.10]
.560
[14.22]
.500 [12.70]
1.000
[25.40]
3.50 [88.9] MAX.
8820DFMX-02
Female
HOW TO ORDER:
Model Number:
8800DZZX-YY
Base Number
DC Connector Type
1 = Solder Post
2 = SMA Female Conn.
3 = BNC Female Conn.
Freq. Range
02 = 10 MHz - 2.5 GHz
06 = 10 MHz - 6 GHz
07 = 7.5 GHz
Ordering Examples:
Model Number:
8800DFF2-02
10 MHz - 2.5 GHz, DIN 7/16 Fem/Fem
SMA Female DC Connector Type
Model Number:
8800DMF1-06
10 MHz - 6 GHz, DIN 7/16 Male/Fem
Solder Post DC Connector Type
8800D: REV F (M)
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only. Design, specifications are
subject to change without notice. Contact factory for technical specifications before purchasing and/or use.
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex.com/inmet • inmetsales@aeroflex.com
