Memory Module Specifications
KVR13LR9D4K3/48
48GB (16GB 2G x 72-Bit x 3 pcs.) PC3L-10600
CL9 Registered w/Parity 240-Pin DIMM Kit
DESCRIPTION
ValueRAM's KVR13LR9D4K3/48 is a kit of three 2G x 72-bit
(16GB) DDR3-1333 CL9 SDRAM (Synchronous DRAM), regis-
tered w/parity, low voltage, 2Rx4 ECC memory modules, based
on thirty-six 1G x 4-bit FBGA components per module. Total kit
capacity is 48GB. The SPDs are programmed to JEDEC
standard latency DDR3-1333 timing of 9-9-9 at 1.35V and 1.5V.
Each 240-pin DIMM uses gold contact fingers. The electrical
and mechanical specifications are as follows:
UL Rating
Operating Temperature
Storage Temperature
SPECIFICATIONS
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
Maximum Operating Power
9 cycles
49.5ns (min.)
260ns (min.)
36ns (min.)
(1.35V) = 5.526 W*
(1.50V) = 6.411 W*
94 V - 0
0
o
C to 85
o
C
-55
o
C to +100
o
C
FEATURES
•
•
•
•
•
•
•
•
•
JEDEC standard 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~
1.575V) Power Supply
VDDQ = 1.35V (1.28V ~ 1.45V) and 1.5V (1.425V ~ 1.575V)
667MHz fCK for 1333Mb/sec/pin
8 independent internal bank
Programmable CAS Latency: 9, 8, 7, 6
Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
Programmable CAS Write Latency(CWL) = 7 (DDR3-1333)
8-bit pre-fetch
Burst Length: 8 (Interleave without any limit, sequential with
starting address “000” only), 4 with tCCD = 4 which does not
allow seamless read or write [either on the fly using A12 or
MRS]
Bi-directional Differential Data Strobe
Internal(self) calibration : Internal self calibration through ZQ
pin (RZQ : 240 ohm ± 1%)
On Die Termination using ODT pin
On-DIMM thermal sensor (Grade B)
Average Refresh Period 7.8us at lower than TCASE 85°C,
3.9us at 85°C < TCASE < 95°C
Asynchronous Reset
*Power will vary depending on the SDRAM and
Register/PLL used.
•
•
•
•
•
•
•
Continued >>

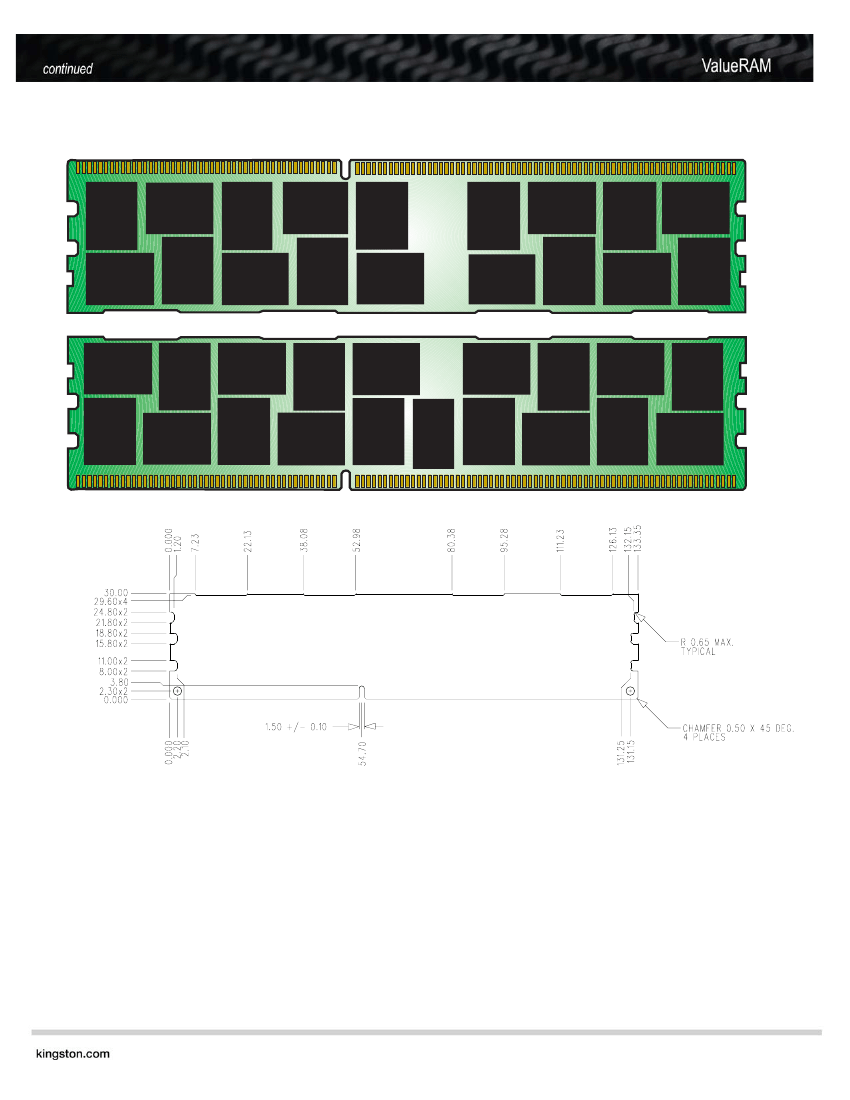

PCB : Height 1.180” (30.00mm), double sided component
Document No. VALUERAM1217-001.B00
01/22/13
Page 1
