POWER INDUCTORS < SMD Type: CLS Series >
Type: CLS5D14, CLS5D14/HP
◆
Product Description
・6.15×6.15mm
Max.(L×W),1.5mm Max. Height.(CLS5D14,CLS5D14/HP)
・Inductance
range: 4.7½100μH(CLS5D14), 4.7½47μH(CLS5D14/HP
・Rated
current range: 0.27½1.4A(CLS5D14), 0.3½1.2A(CLS5D14/HP).
・4
Terminal pins’ type gives a flexible design as inductors or transformers(SEPIC,ZETA circuit).
◆
Feature
・Magnetically
shielded construction.
・Ideally
used in portable devices such as Mobilephone,DSC/DVC,MP3,PDA, etc as DC-DC
Converter inductors, specially suitable for White LED drive.
・It
is possible to output high voltage and get sufficient accuracy which is hard to obtain with
an ordinary inductor.
・RoHS
Compliance
◆

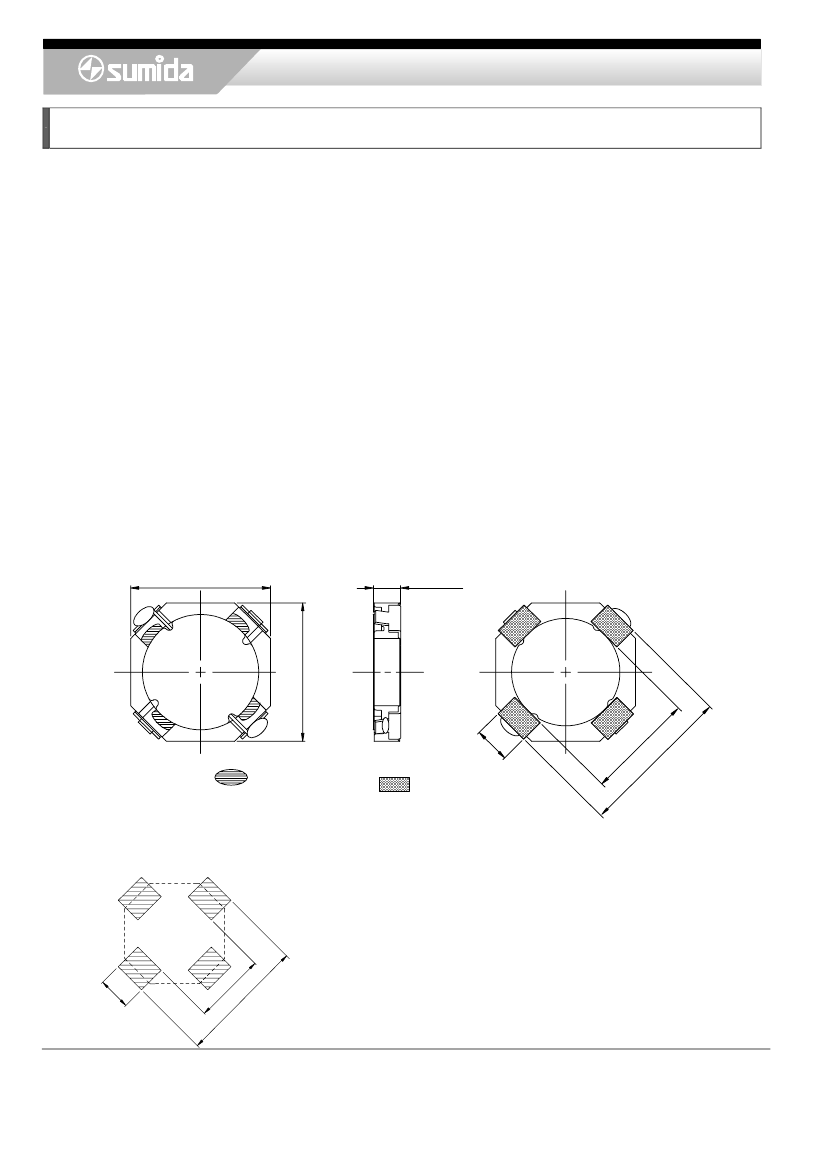

Dimensions (mm)
5.85
+0.3
-0.2
3
2
5.85
+0.3
-0.2
1.5 Max.
4
4.
5
1
Adhesive
Electrode terminal
5
1.
5
6.
◆
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
7.
3
4.
1
9
1.
www.sumida.com
1/3
POWER INDUCTORS < SMD Type: CLS Series >
Type: CLS5D14, CLS5D14/HP
◆
Schematics(Bottom)
2
CLS5D14
3
2
3
S
1
4
S
1
4
( 4.7µH½22µH)
“S”is
winding start.
(33µH½100µH)
2
CLS5D14/HP
3
2
3
S
1
4
S
1
4
(3.3μH½15μH)
“S”is
winding start.
(22μH½47μH)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
2/3
POWER INDUCTORS < SMD Type: CLS Series >
Type: CLS5D14, CLS5D14/HP
◆
Specification(CLS5D14)
Part Name
※
CLS5D14NP-4R7N□
CLS5D14NP-6R8N□
CLS5D14NP-1ØØN□
CLS5D14NP-15ØN□
CLS5D14NP-22ØN□
CLS5D14NP-33ØN□
CLS5D14NP-47ØN□
CLS5D14NP-68ØN□
CLS5D14NP-1Ø1N□
Stamp
Inductance
(μH)[Within½
100kHz/1V
4.7±30%
6.8±30%
10±30%
15±30%
22±30%
33±30%
47±30%
68±30%
100±30%
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
77(62)
105(83)
140(110)
200(160)
290(230)
490(390)
680(540)
850(680)
1450(1160)
Saturation
Current
(mA)
(at 20℃)※1
1400
1200
1000
750
600
500
400
350
300
Temperature
Rise current
(mA)
※2
1450
1200
1000
850
650
480
430
350
270
4R7
6R8
100
150
220
330
470
680
101
◆
Specification(CLS5D14/HP)
Part Name
※
CLS5D14HPNP-4R7N□
CLS5D14HPNP-6R8N□
CLS5D14HPNP-1ØØN□
CLS5D14HPNP-15ØN□
CLS5D14HPNP-22ØN□
CLS5D14HPNP-33ØN□
CLS5D14HPNP-47ØN□
Stamp
4R7
6R8
100
150
220
330
470
Inductance
[Within½
100kHz/1V
4.7µH±30%
6.8µH±30%
10µH±30%
15µH±30%
22µH±30%
33µH±30%
47µH±30%
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
110(88)
170(135)
215(180)
340(270)
525(420)
760(610)
1170(940)
Saturation
Current
(mA)
(at 20℃)※1
1900
1600
1300
1100
900
700
600
Temperature
Rise current
(A)
※2
1200
900
800
600
500
400
300
※
Description of Part Name
CLS5D14HPNP-4R7N□
B Box
C Carrier Tape
※1.
Saturation current:The DC current at which the inductance decreases to 65% of it’s nominal value.
※2
.
Temperature rise current: The DC current at which the temperature rise is
△t=40℃.(Ta=20℃).
