AEQ25F48-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> AEQ25F48-6

AEQ25F48-6: DescriptionIC 1-OUTPUT 82.5 W DC-DC REG PWR SUPPLY MODULE, QUARTER BRICK PACKAGE-8, Power Supply Module; CategoryPower/power management The power supply circuit; File Size55KB，2 Pages; ManufacturerArtysen Embedded Technologies

Download Datasheet Parametric View All

AEQ25F48-6 Overview

IC 1-OUTPUT 82.5 W DC-DC REG PWR SUPPLY MODULE, QUARTER BRICK PACKAGE-8, Power Supply Module

AEQ25F48-6 Parametric

Parameter Name	Attribute value
Maker	Artysen Embedded Technologies
Parts packaging code	MODULE
package instruction	,
Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-P8
length	57.9 mm
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature	-40 °C
Maximum output voltage	6.93 V
Minimum output voltage	0.66 V
Nominal output voltage	3.3 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal form	PIN/PEG
Terminal location	DUAL
Maximum total power output	82.5 W
Fine-tuning/adjustable output	YES
width	36.8 mm

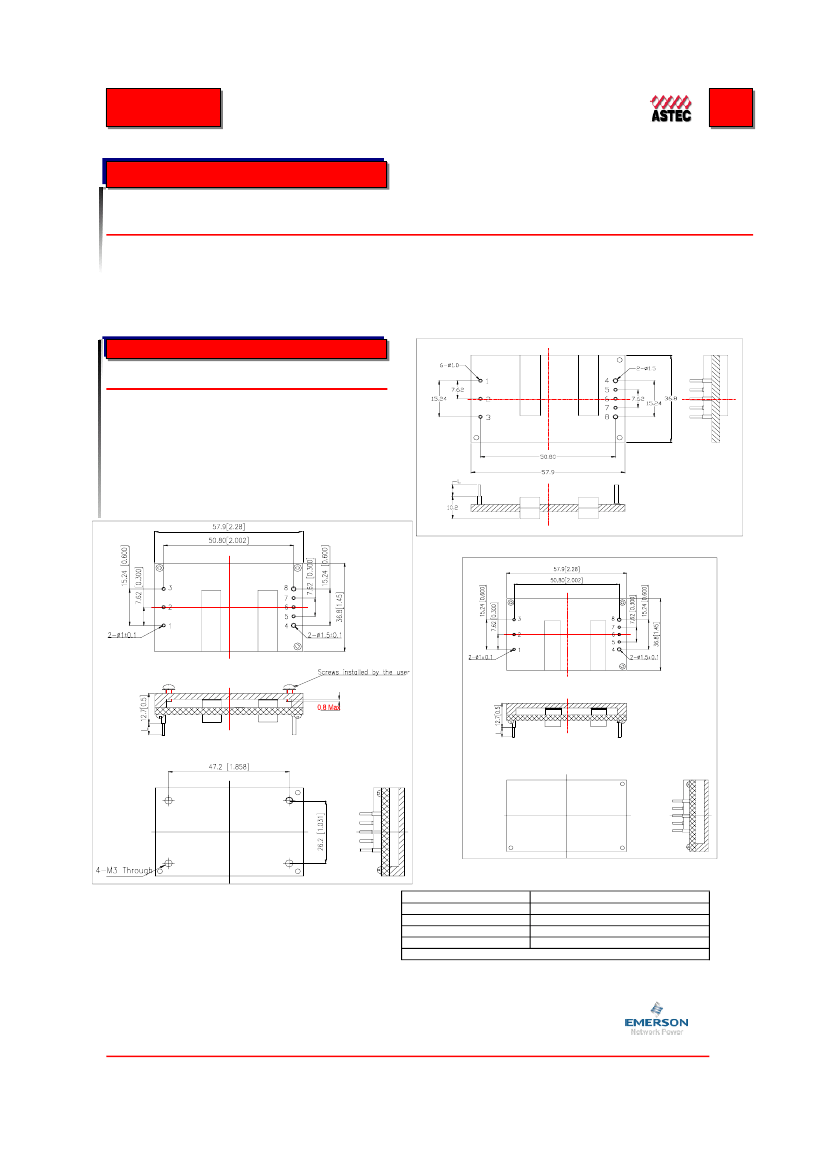

Preview

Download Datasheet

View All

Total Power:100W(5V,12V);62.5W(2.5V);82.5W(3.3V)

25 Amps,20 Amps,8.33 Amps

Astec Industry Standard

Input Voltage :48V

No.of Outputs:Single output

ALQ25 Series

High Efficiency Quarter Brick

Electrical Specs

Input

Input Range

Input Surge

Efficiency (Typ)

36 to 75 VDC

100V /100ms

90% (5V,12V);

88%(2.5V);89.5%(3V)

Output

Special Features

• High efficiency(Typ) :90% (5V,12V);

88%(2.5V); 89.5%(3V)

• -40°C to +70°C Ambient Air Operation

• Industry standard package

2.28" x 1.45" x 0.5"(baseplated)

2.28" x1.45"x 0.4"(open frame)

• High capacitive load limit on start-up

• Basic insulation

Voltage Tolerance

(line, load, temp)

Ripple&Noise

Transient Response

<1.9%

120mV Max.

Load change 25% of Io max from 50%Io max

,<200mv,<400µs

(di/dt =1A/µs,output cap = 1000µF aluminium

electrolyte)

6V to 7.5V (5V)

3V to 3.8V(2.5V)

3.9V to 5V(3.3V)

14.4V to 18V(12V)

>22A (5V)

>9.2A(12V)

>27A(2.5V,3.3V)

Overvoltage Protection

(Hiccup)

Current Limit(Hiccup)

• Regulation to zero load

Environmental

Ambient air operating temperature range:

-40°C to +70°C

Overtemperature protection: 115°C typ

MTBF: > 2 million hours

Overtemperature Protection Auto-recovery

Switching Frequency

300k

Control

Trim range(%)

80 to 110

Enable

Positive & negative enable options

Safety

Thermal Derating

UL,CSA,EN

The module can deliver up to full power at 55°C ambient, Vin: 48V,with

200LFM forced air(output to input).

1 North America (USA): 1-888-41-ASTEC

Europe(UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662
