BTH-040-01-L-D-DPEM2 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BTH-040-01-L-D-DPEM2

BTH-040-01-L-D-DPEM2: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size434KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTH-040-01-L-D-DPEM2 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,

BTH-040-01-L-D-DPEM2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	80

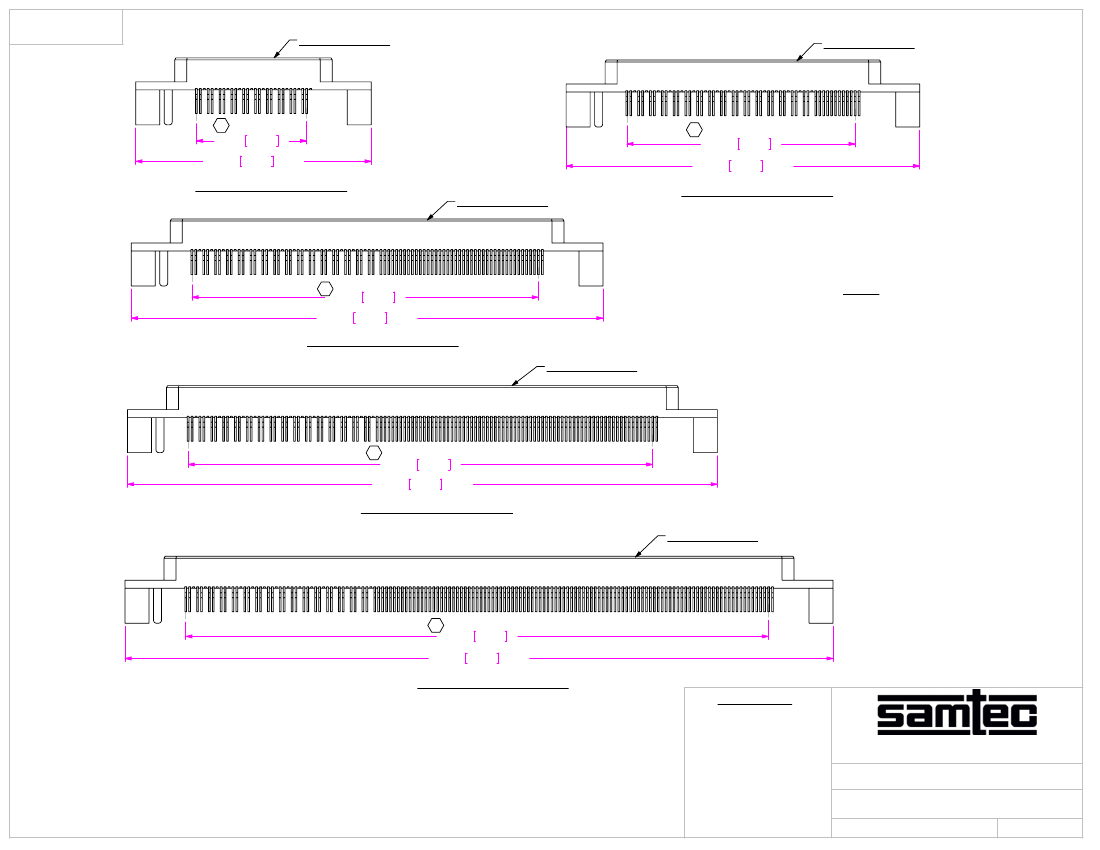

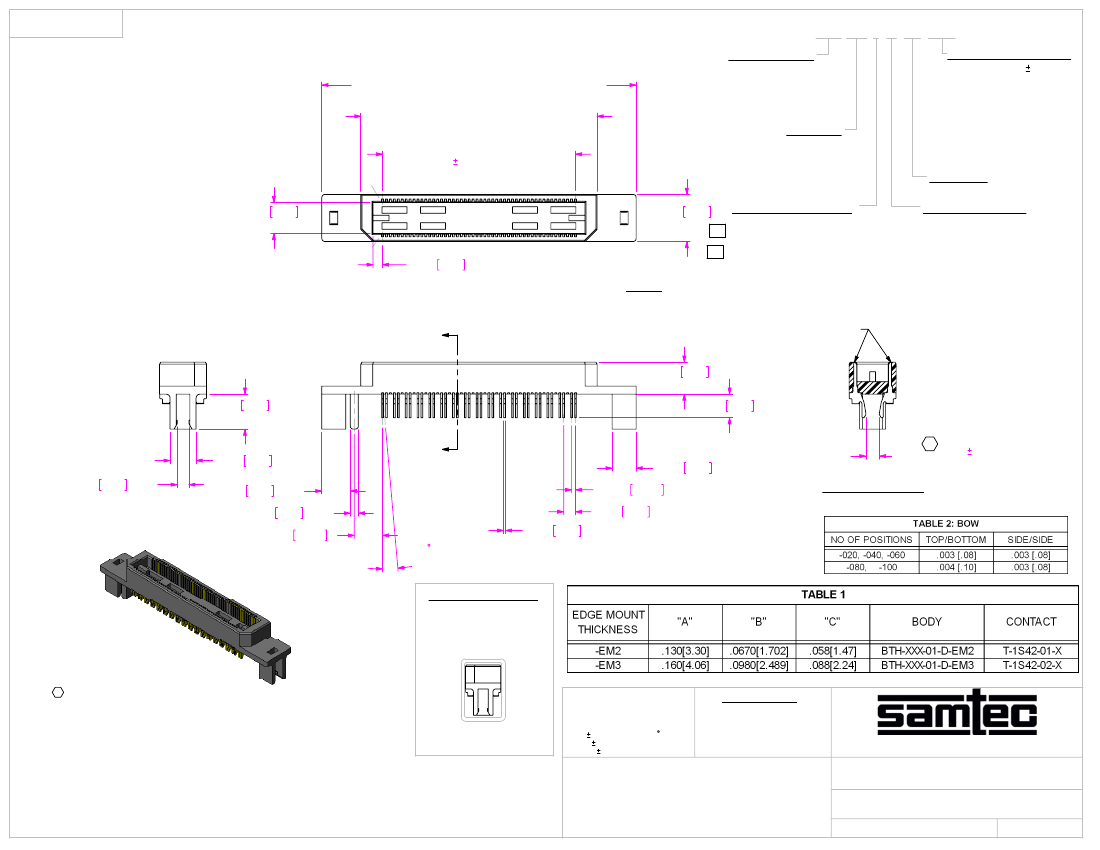

BTH-040-01-L-D-DPEM2 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BTH-040-01-L-D-DPEM2 Related Products

	BTH-040-01-L-D-DPEM2	BTH-020-01-F-D-DPEM2	BTH-020-01-L-D-DPEM2	BTH-040-01-F-D-DPEM2	BTH-080-01-F-D-DPEM2	BTH-080-01-L-D-DPEM2	BTH-100-01-F-D-DPEM2	BTH-100-01-L-D-DPEM2	BTH-060-01-F-D-DPEM2
Description	Board Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 40 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal	Board Connector, 80 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 160 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 160 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 200 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 200 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,	Board Connector, 120 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal,
Maker	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC	SAMTEC
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD	GOLD FLASH	GOLD	GOLD FLASH	GOLD FLASH	GOLD	GOLD FLASH	GOLD	GOLD FLASH
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn)	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN	MATTE TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	80	40	40	80	160	160	200	200	120
