Mini SMP Female Connector Solder Attachment
for PE-047SR, PE-SR047FL
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Attachment Method (Shield/Contact)
Body Style
Mini SMP Female
MIL-STD-348
PE-047SR, PE-SR047FL
Solder
Straight
PE44971
Electrical Specifications
Impedance
50 Ohms
Mechanical Specifications
Size
Length
Width/Dia.
.
0.29 in [7.37 mm]
0.125 in [3.18 mm]
0.082 lbs [37.19 g]
Mini SMP Female
Beryllium Copper, Gold
MIL-G-45204
Beryllium Copper, Gold
MIL-G-45204
PTFE
Weight
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Mini SMP Female Connector Solder Attachment for PE-047SR, PE-SR047FL PE44971
PE44971 REV 1.0
1
Mini SMP Female Connector Solder Attachment
for PE-047SR, PE-SR047FL
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
PE44971
Mini SMP Female Connector Solder Attachment for PE-047SR, PE-SR047FL from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Mini SMP Female Connector Solder Attachment for PE-047SR, PE-SR047FL PE44971
URL:
http://www.pasternack.com/mini-smp-female-standard-pe-047sr-pe-sr047fl-connector-pe44971-p.aspx
PE44971 REV 1.0
2
Mini SMP Female Connector Solder Attachment for PE-047SR, PE-SR047FL
PE44971

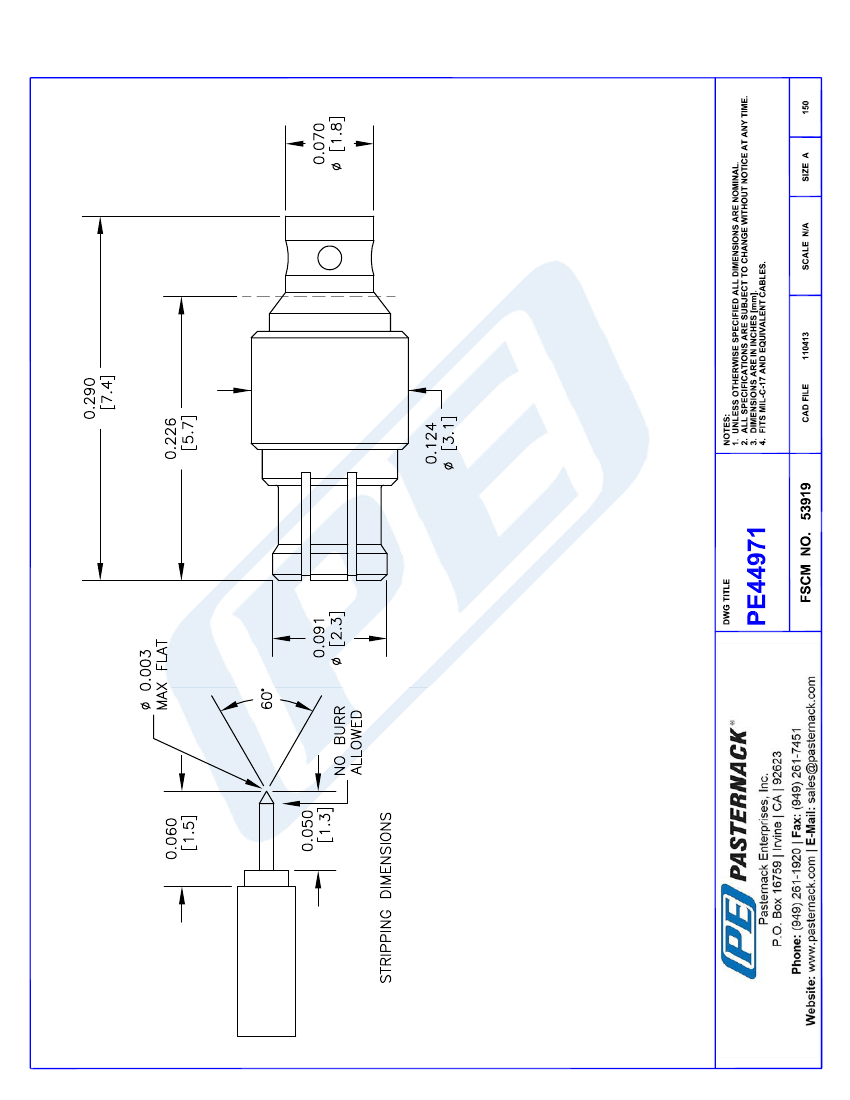

CAD Drawing
© 2014 Pasternack Enterprises All Rights Reserved
PE44971 REV 1.0
3
