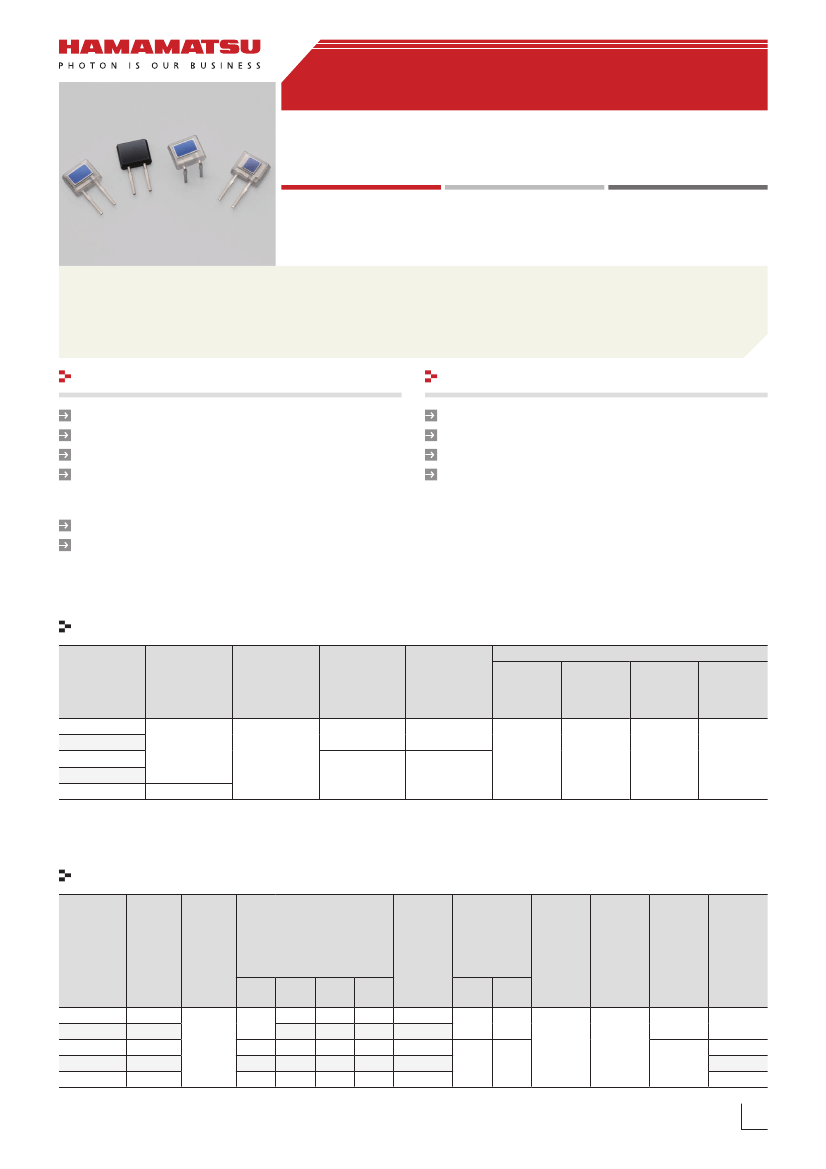

Si PIN photodiodes
S8385/S8729 series
SIP plastic package
The S8385/S8729 series is a family of large area Si PIN photodiodes molded into a miniature plastic SIP package (75%
smaller in cubic volume than conventional types). Also available are lead forming types that save space when mounted on
a PC board.
Features
Small plastic package: 4 × 4.8 × 1.8
t
mm
2-pin SIP lead type (lead length: 4.9 mm)
High sensitivity, high-speed response
2 types of spectral response characteristics available
S8385, S8729, S8729-10: for visible to infrared range (λ=320 to 1100 nm)
S8385-04, S8729-04: for infrared (λ=760 to 1100 nm)
Lead forming type also available (S8729-10)
Photosensitive area
S8385 series: 2 × 2 mm
S8729 series: 2 × 3.3 mm
Applications
Barcode scanners
FSO
Optical switches
Laser radar, etc.
Structure / Absolute maximum ratings
Dimensional
outline
Effective
Photosensitive
photosensitive
area size
area
(mm)
S8385
S8385-04
S8729
S8729-04
S8729-10
2×2
Plastic
2 × 3.3
6.6
(mm
2
)
4
20
50
-25 to +85 -40 to +100
Reverse
voltage
V
R
max
(V)
Absolute maximum ratings
Operating
Storage
Power
dissipation temperature temperature
Topr
Tstg
P
(°C)
(°C)
(mW)
Type no.
Package
Note) Exceeding the absolute maximum ratings even momentarily may cause a drop in product quality. Always be sure to use the
product within the absolute maximum ratings.
Electrical and optical characteristics
Short
circuit
current
Isc
100
lx
(μA)
4.2
2.8
7.5
5
7.5
Cutoff
frequency
Dark current Temperature
Terminal
fc
I
D
capacitance
coefficient of V
R
=5 V
NEP
V
R
=5 V
Ct
I
D
λ=780
nm
λ=λp
V
R
=5 V
T
CID
R
L
=50
Ω
f=1 MHz
Typ. Max.
-3 dB
(pF)
(W/Hz
1/2
)
(nA) (nA) (times/°C) (MHz)
0.1
0.2
1.0
1.15
2.0
25
16
12
1.0 × 10
-14
1.1 × 10
-14
1.2 × 10
-14
1.1 × 10
-14
1
Type no.
Peak
Spectral
response sensitivity
range wavelength
λp
λ
(nm)
320 to 1100
760 to 1100
320 to 1100
760 to 1100
320 to 1100
(nm)
λp
0.56
960
0.7
0.68
0.7
Photosensitivity
S
(A/W)
660
780
nm
nm
0.4
0.48
-
-
0.45 0.55
-
-
0.45 0.55
S8385
S8385-04
S8729
S8729-04
S8729-10
830
nm
0.5
0.44
0.6
0.52
0.6
www.hamamatsu.com

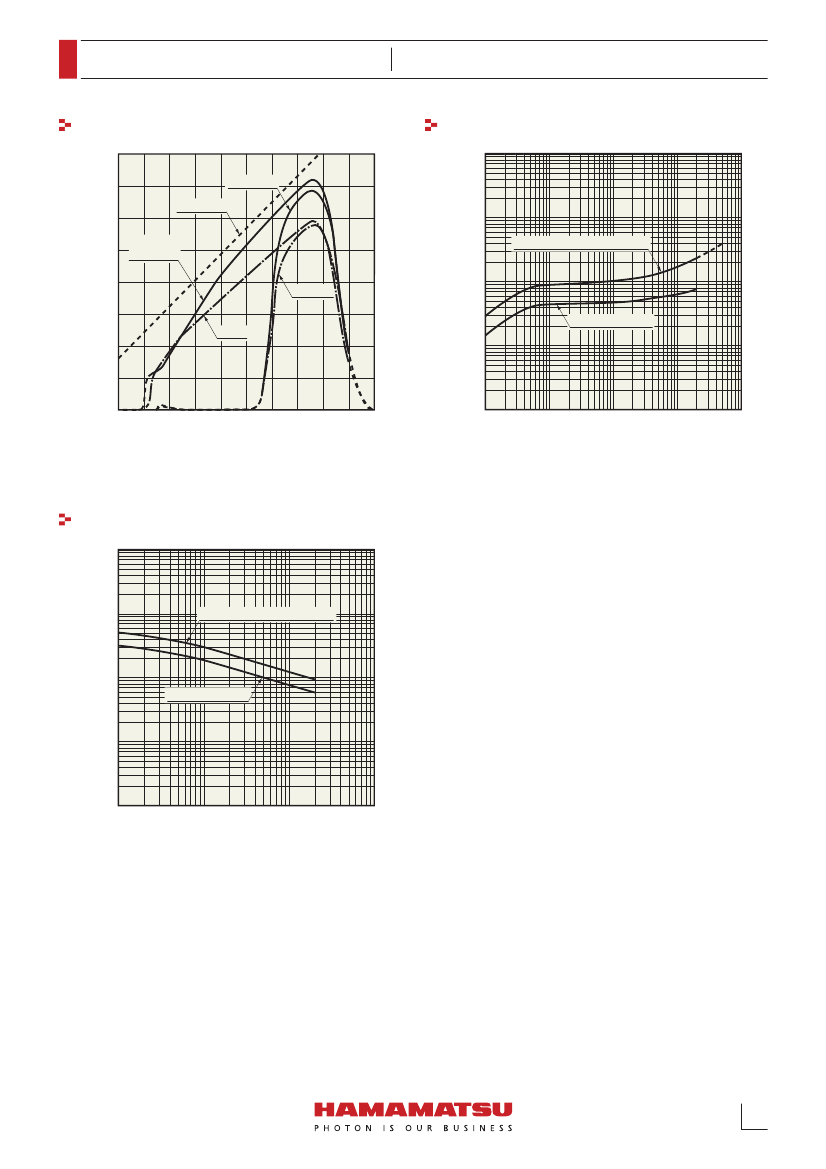

Si PIN photodiodes
S8385/S8729 series

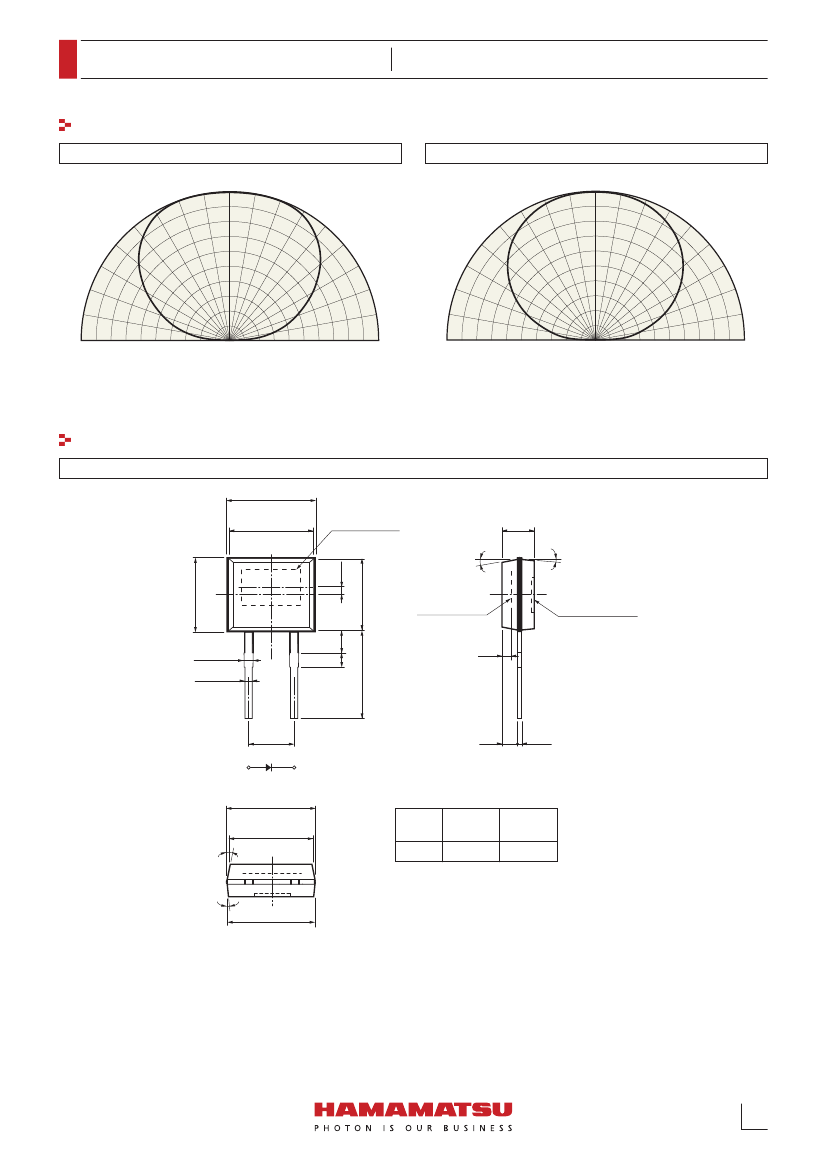

S8729-10
1.8
5.0 max.
(including burr)
4.7*
Photosensitive
area
2 × 3.3
0.45
0.8
0.5
(2 ×) 10°
(2 ×) 5°
ɸ2.0
Depth 0.15 max.
(2 ×) 10°± 5°
(2 ×) 4.5 ± 0.4
(2 ×) 0.25
4.2 ± 0.2
(including burr)
4.0*
Photosensitive
surface
5.0 max.
(including burr)
4.7*
(2 ×) 10°
2.6 ± 0.2
(2 ×) 5°
(2 ×) 0.5
(2 ×) 0.4
Tolerance unless otherwise noted: ±0.1, ±2°
Chip position accuracy with respect to the
package dimensions marked
*
X, Y≤±0.2,
θ≤±2°
Standard packing: stick (50 pcs/stick)
2.54
4.8*
KPINA0091EC
Related information
www.hamamatsu.com/sp/ssd/doc_en.html
Precautions
∙
Disclaimer
∙
Metal, ceramic, plastic package products
Technical information
∙
Si photodiode/Application circuit examples
Information described in this material is current as of September, 2015.
Product specifications are subject to change without prior notice due to improvements or other reasons. This document has been carefully prepared and the
information contained is believed to be accurate. In rare cases, however, there may be inaccuracies such as text errors. Before using these products, always
contact us for the delivery specification sheet to check the latest specifications.
The product warranty is valid for one year after delivery and is limited to product repair or replacement for defects discovered and reported to us within that
one year period. However, even if within the warranty period we accept absolutely no liability for any loss caused by natural disasters or improper product use.
Copying or reprinting the contents described in this material in whole or in part is prohibited without our prior permission.
www.hamamatsu.com
HAMAMATSU PHOTONICS K.K., Solid State Division
1126-1 Ichino-cho, Higashi-ku, Hamamatsu City, 435-8558 Japan, Telephone: (81) 53-434-3311, Fax: (81) 53-434-5184
U.S.A.: Hamamatsu Corporation: 360 Foothill Road, Bridgewater, N.J. 08807, U.S.A., Telephone: (1) 908-231-0960, Fax: (1) 908-231-1218
Germany: Hamamatsu Photonics Deutschland GmbH: Arzbergerstr. 10, D-82211 Herrsching am Ammersee, Germany, Telephone: (49) 8152-375-0, Fax: (49) 8152-265-8
France: Hamamatsu Photonics France S.A.R.L.: 19, Rue du Saule Trapu, Parc du Moulin de Massy, 91882 Massy Cedex, France, Telephone: 33-(1) 69 53 71 00, Fax: 33-(1) 69 53 71 10
United Kingdom: Hamamatsu Photonics UK Limited: 2 Howard Court, 10 Tewin Road, Welwyn Garden City, Hertfordshire AL7 1BW, United Kingdom, Telephone: (44) 1707-294888, Fax: (44) 1707-325777
North Europe: Hamamatsu Photonics Norden AB: Torshamnsgatan 35 16440 Kista, Sweden, Telephone: (46) 8-509-031-00, Fax: (46) 8-509-031-01
Italy: Hamamatsu Photonics Italia S.r.l.: Strada della Moia, 1 int. 6, 20020 Arese (Milano), Italy, Telephone: (39) 02-93581733, Fax: (39) 02-93581741
China: Hamamatsu Photonics (China) Co., Ltd.: B1201, Jiaming Center, No.27 Dongsanhuan Beilu, Chaoyang District, Beijing 100020, China, Telephone: (86) 10-6586-6006, Fax: (86) 10-6586-2866
Cat. No. KPIN1064E06 Sep. 2015 DN
