DATASHEET
To request the full datasheet, please visit
www.intersil.com/products/TW6874
Quad (SD/HD) SDI Receiver with Adaptive Equalizer,
VC-2 Decoder and Audio CODEC
TW6874
The TW6874 is a quad (SD/HD) SDI receiver. It has four
independent channels, each consisting of an adaptive
equalizer, clock data recovery, audio decoder and VC-2
decompression engine. Each channel receives high speed
serial data over extended coaxial cable lengths and deserialize
the data into video/audio streams for the back-end device.
The video streams are output as: 8-bit BT.656 for SD; BT.1120
in 8/16 bit mode for HD. The audio streams are output
through an I2S audio digital interface in a multichannel
interleaving format. In addition to the extraction of embedded
SDI audio, the TW6874 incorporates a 5-channel audio ADC
decoder to decode analog audio inputs and output them
through the same I2S interface.
A visually lossless VC-2 (Dirac) compression/decompression
engine is implemented in the TW6872/TW6874 SDI Tx/Rx
pair to extend the reach of HD-SDI to that of SD-SDI. An
interrupt pin can be used to signal the host processor of
ancillary data packet detection. Finally, integrated audio test
patterns and PRBS checker ease system design and
implementation.
Features
• Quad (SD/HD) SDI receiver for standard (SD) and high (HD)
definition 10-bit component video
• Automatic SDI detection of SMPTE 259M Level C (SD-SDI),
SMPTE ST 292 (1.5G SDI) signals
• Each SDI input standard supported with ITU-R BT.656 (SD) or
ITU-R BT.1120 (1.5G) interface
• Converts 10-bit serial digital component video input to 8-bit
parallel video output
• Adaptive equalizer/clock data recovery/VC-2 decompression
engine for each channel
• 4 separate video output ports with BT.656/BT.1120 output
format
• 5-channel audio ADC (Analog-to-Digital Converter)
• Single multiplexed audio output DAC (Digital-to-Analog
Converter)
• Supports I2S master/slave interface for record output and
playback input with cascade
• I
2
C and SPI interface
• Pb-free (RoHS compliant) 256 ball LFBGA
Applications
• SD/HD DVR
TERMINATION NETWORK
R
C
L
75
R
2.2µF
d
u
m
m
y
1.0V
AIN5
SDI1P
1.8V
3.3V
VO1
18
R
C
VO2
18
VO3
18
VO4
18
SDI1N
BACK-END
CHIP (CODEC,
VIDEO MUX)
d
u
m
m
y
AIN1
4.7k
I2S record
I2S play
3
3
TW6874
TERMINATION
NETWORK
SDI2P
SDI2N
AIN2
IRQ
HOST
PROCESSOR
I2C/SPI
TERMINATION
NETWORK
SDIP3
SDIN3
AIN3
22pF
XTI
XTO
27MHz
22pF
3.7k
8.2nF
TERMINATION
NETWORK
SDIP4
SDIN4
AIN4
AOUT
TESTEN
0

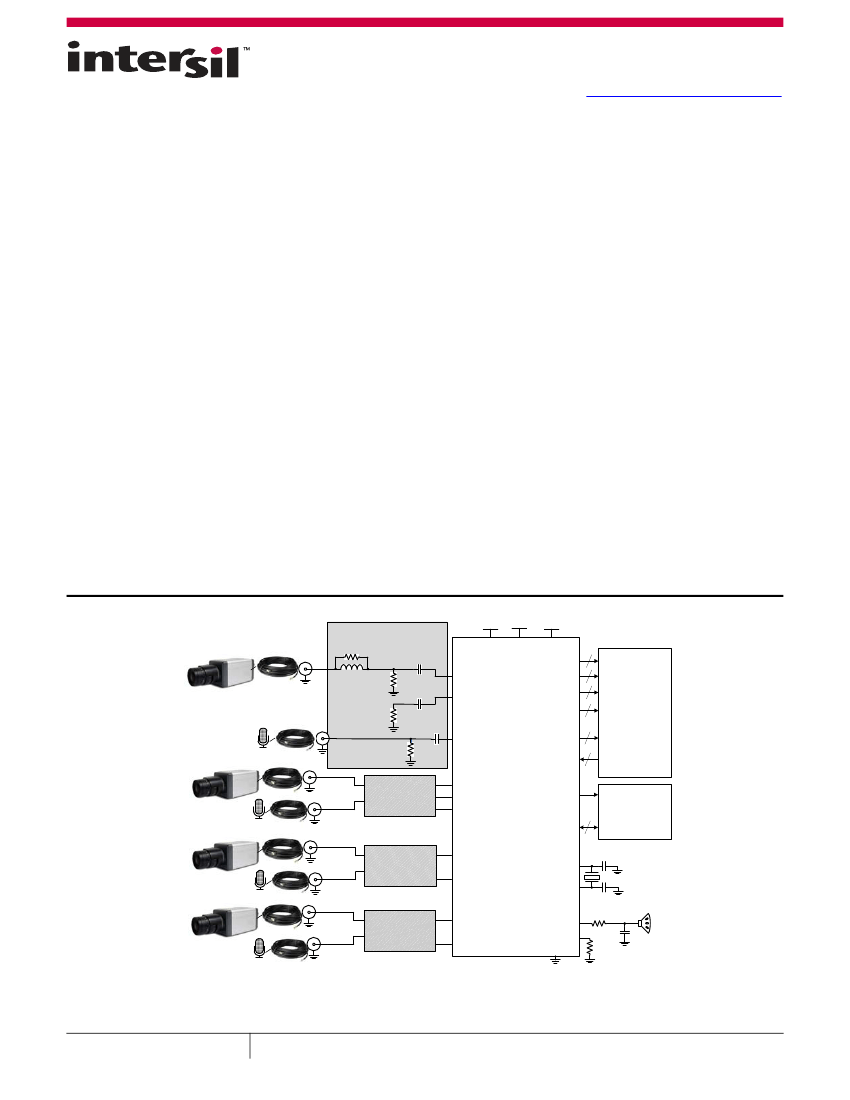

FIGURE 1. TW6874 TYPICAL APPLICATION
March 25, 2015
FN8430.1
1
