SHEET 1 OF 1
n
19.00
[.748 in]

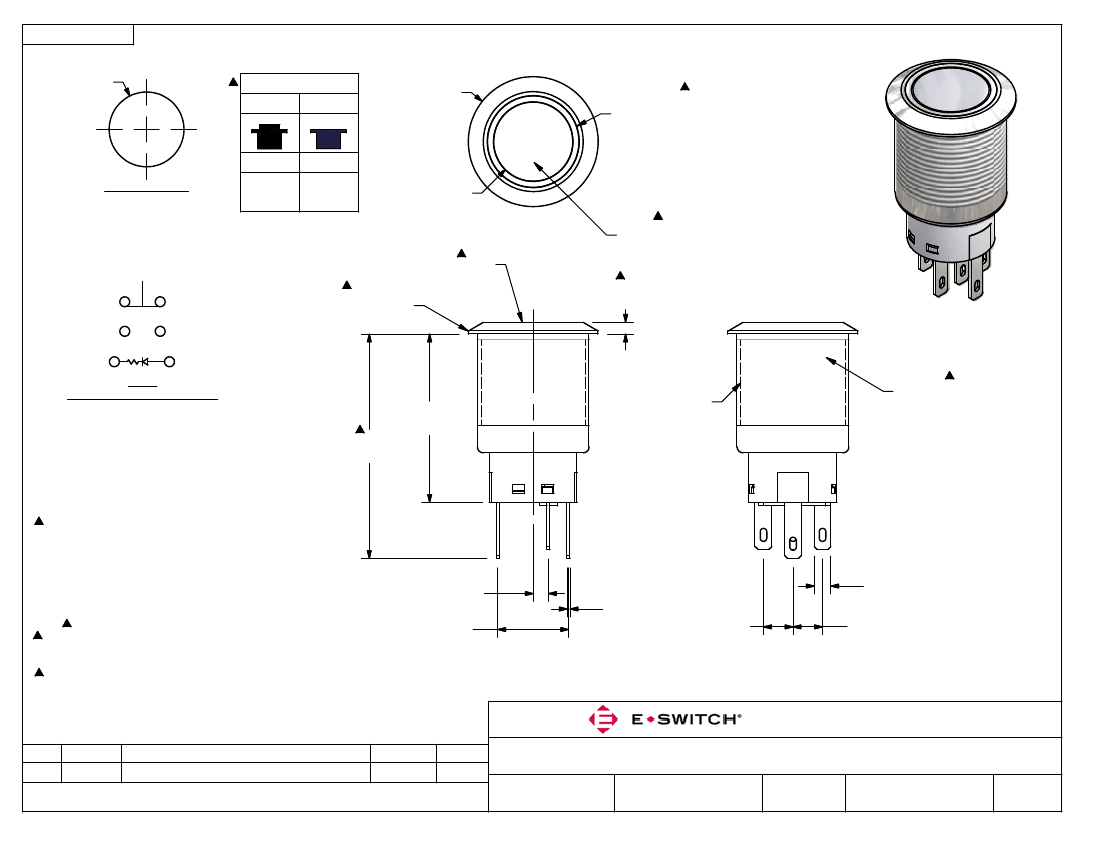

SWITCH FUNCTION
POS. 1
POS. 2
n
22.00
[.866 in]
RING ILLUMINATION
COLOR: CLEAR
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
11.0mm [.433]
1-3
(ON)
1-2
n
13.40
[.528 in]
(ON) = MOMENTARY
ACTUATOR FINISH
MACHINED STAINLESS
FLAT ACTUATOR
1
1
(-)
3
2
BODY FINISH
MACHINED STAINLESS
2.00
[.079 in]
(+)
SPDT
CONTACT CONFIGURATION
28.50
`
.50
[1.122
`
.020
in]
M19x1.0
NOTE 15
HARDWARE SUPPLIED
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 48VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 MΩ MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50mΩ MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20°C to 55°C
11. DENOTES CRITICAL PARAMETER.
12. LAMP VOLTAGE: 24V
13. INGRESS PROTECTION: IP65
14. HARDWARE SUPPLIED: O-RING AND HEXNUT
15. ILLUMINATION COLOR: WHITE
38.00
`
.50
[1.496
`
.020
in]
(-)
2.60
[.102 in]
12.00
[.472 in]
1
(+)
1
(+)
.50
[.020 in]
3
2.80
[.110 in]
5.00
[.197 in]
5.00
[.197 in]
A
REV
20310
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
11/28/11
DATE
BGL
BY
TITLE
SCALE
PV4F2B0SS-305
1.5:1
DATE
