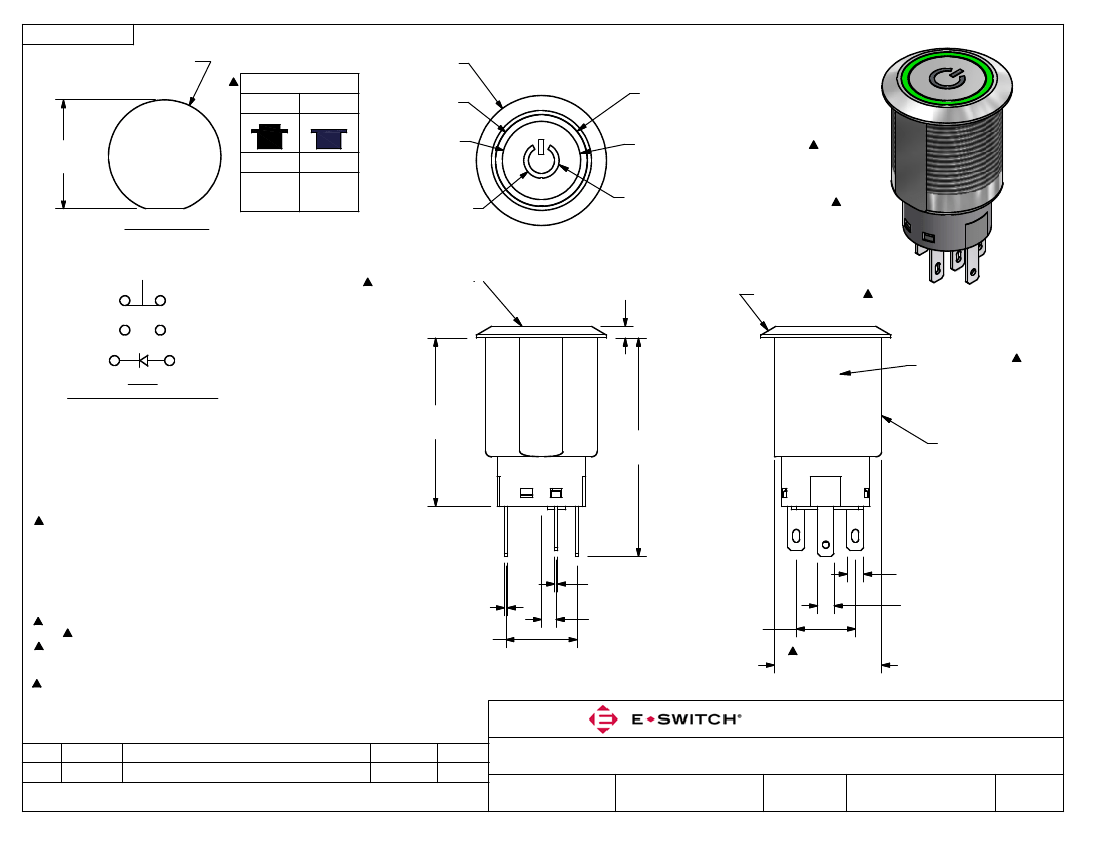

SHEET 1 OF 1
n
19.00
n
22.00
[.748 in]
SWITCH FUNCTION
POS. 1
POS. 2
[.866 in]
n
15.50
RING ILLUMINATION
[.610 in]
n
13.25
18.45
`
.15
[.726
`
.006
in]
[.522 in]
ON
1-3
(ON)
1-2
n
6.00
STAINLESS STEEL ACTUATOR
LASER ETCHED M01 MARKING
NON-ILLUMINATED POWER SYMBOL
(ON) = MOMENTARY
PANEL CUTOUT
MAX. PANEL THICKNESS:
11.0 [.43in]
[.236 in]
FLAT ACTUATOR
1
1
(-)
3
2
(+)
2.00
[.079 in]
STAINLESS STEEL
BODY
GRN
SPDT
CONTACT CONFIGURATION
28.5
[1.12 in]
SEE NOTE 15
FOR HARDWARE
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. CONTACT MATERIAL: SILVER
5. RATING: 2A 24VDC
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
10. OPERATING TEMP.: -20° to 55°
C
C
11. TRAVEL: 2.8mm
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 12V
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: GREEN
37.0
[1.46 in]
M19 X 1.0
1
-
+
.50
[.020 in]
.50
[.020 in]
12.00
[.472 in]
2.50
[.098 in]
10.00
[.394 in]
1
+
3
2.80
[.110 in]
2.80
[.110 in]
18.15
`
.15
[.715
`
.006
in]
ACROSS FLAT
A
REV
21507
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
7/9/14
DATE
EBP
BY
TITLE
SCALE
PV4F2B0SS-334-M01
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
7/9/2014
DR
EBP
DWG
52-PV4F2B0SS334M01
REV
A
