52-PV4F2B0SSG341_15 datasheet, PDF

Datasheet> All Categories > 52-PV4F2B0SSG341_15

Preview

52-PV4F2B0SSG341_15: DescriptionALL DIMENSIONS IN MM [INCH]; File Size162KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV4F2B0SSG341_15 Overview

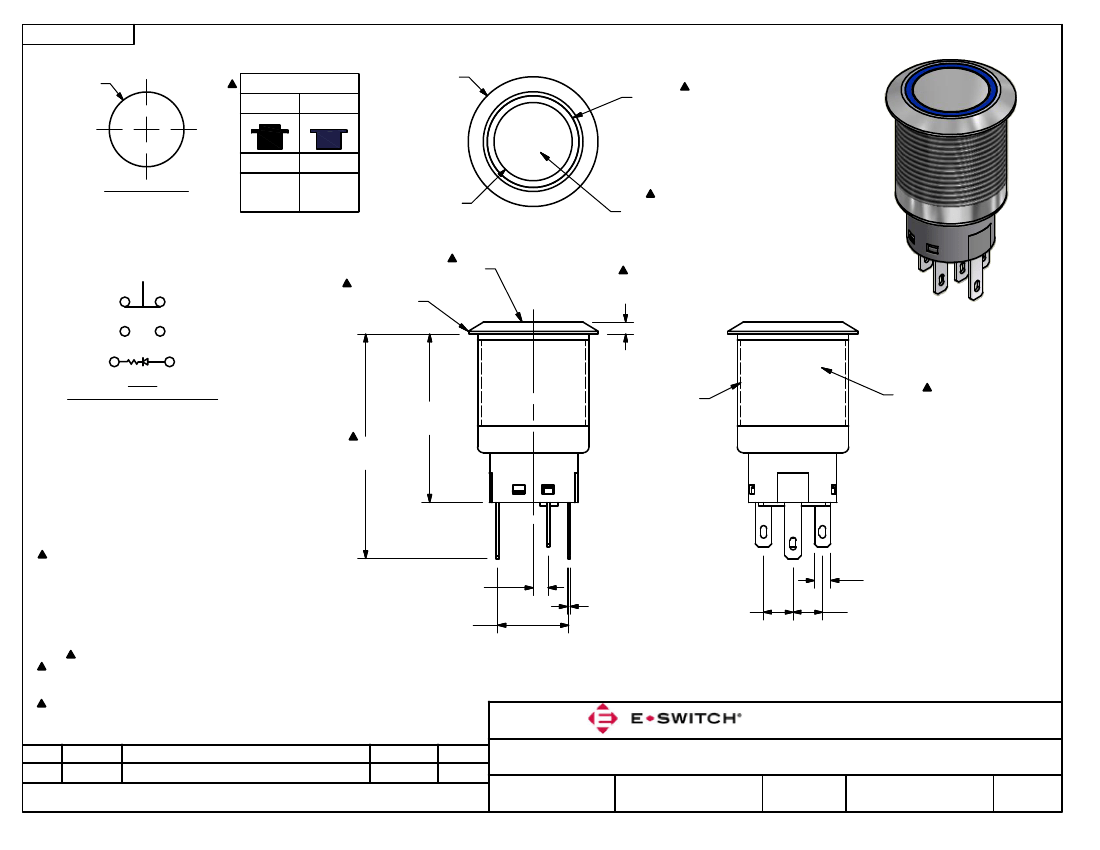

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

19.00

[.748 in]

22.00

[.866 in]

RING ILLUMINATION

SWITCH FUNCTION

POS. 1

POS. 2

PANEL CUTOUT

MAX. PANEL THICKNESS

11.0mm [.433]

1-3

(ON)

1-2

13.40

[.528 in]

(ON) = MOMENTARY

ACTUATOR FINISH

STAINLESS STEEL

FLAT ACTUATOR

(-)

BODY FINISH

STAINLESS STEEL

2.00

[.079 in]

(+)

SPDT

CONTACT CONFIGURATION

28.50

.50

[1.122

.020

in]

38.00

.50

[1.496

.020

in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X= 0.4

X.XX= 0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: GOLD

5. RATING: 2A 48VDC

6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 M MIN.

8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC

10. OPERATING TEMP.: -20 C to 55 C

11. DENOTES CRITICAL PARAMETER.

12. LAMP VOLTAGE: 20mA 2.8V

13. INGRESS PROTECTION: IP65

14. HARDWARE SUPPLIED: O-RING AND HEXNUT

15. ILLUMINATION COLOR: BLUE

16. TRAVEL: 2.8mm

M19x1.0

NOTE 14

HARDWARE SUPPLIED

(-)

2.50

[.098 in]

12.00

[.472 in]

(+)

.50

[.020 in]

2.80

[.110 in]

5.00

[.197 in]

5.00

[.197 in]

REV

21813

PCR NO

RELEASE FOR PRODUCTION

DESCRIPTION

03/25/15

DATE

TITLE

SCALE

PV4F2B0SSG-341

2/1

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

3/25/2015

DWG

52-PV4F2B0SSG341

REV
