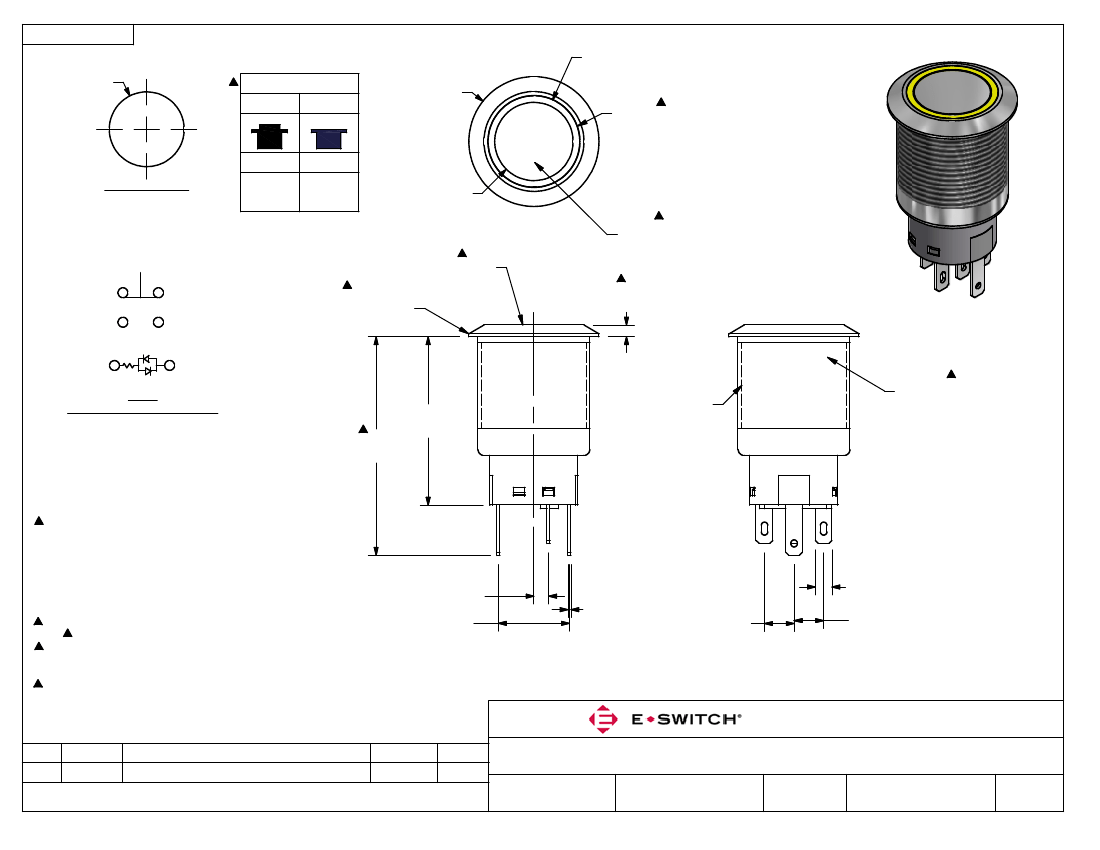

SHEET 1 OF 1
n
19.00
n
22.00
[.866 in]
n
15.50
[.610 in]
SWITCH FUNCTION
POS. 1
POS. 2
[.748 in]
RING ILLUMINATION
ON
PANEL CUTOUT
MAX. PANEL THICKNESS
10.0 mm [.39 in]
1-3
(ON)
1-2
n
13.40
[.528 in]
(ON) = MOMENTARY
ACTUATOR FINISH
MACHINED STAINLESS
FLAT ACTUATOR
1
1
3
2
BODY FINISH
MACHINED STAINLESS
2.00
[.079 in]
(-)
(+)
M19x1.0
SPDT
CONTACT CONFIGURATION
NOTE 15
HARDWARE SUPPLIED
28.50
`
.50
[1.122
`
.020
in]
37.00
`
.50
[1.457
`
.020
in]
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. INTERNAL CONTACT MATERIAL: GOLD
5. RATING: 2A 48VDC
(-)
6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES
AT FULL LOAD.
7. INSULATION RESISTANCE: 1,000 M MIN.
8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE
2.50
9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC
[.098 in]
10. OPERATING TEMP.: -20° to 55°
C
C
12.00
11. TRAVEL: 2.8mm
[.472 in]
12. DENOTES CRITICAL PARAMETER.
13. LAMP VOLTAGE: 12V
14. INGRESS PROTECTION: IP65
15. HARDWARE SUPPLIED: O-RING AND HEXNUT
16. ILLUMINATION COLOR: YELLOW ( YELLOW FORWARD / YELLOW REVERSE)
1
(+)
1
(+)
3
2.80
[.110 in]
.50
[.020 in]
5.00
[.197 in]
5.00
[.197 in]
A
REV
21102
PCR NO
RELEASE FOR PRODUCTION
DESCRIPTION
4/18/13
DATE
EBP
BY
TITLE
SCALE
PV4F2B0SSG-354
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
4/18/2013
DR
EBP
DWG
52-PV4F2B0SSG354
REV
A
