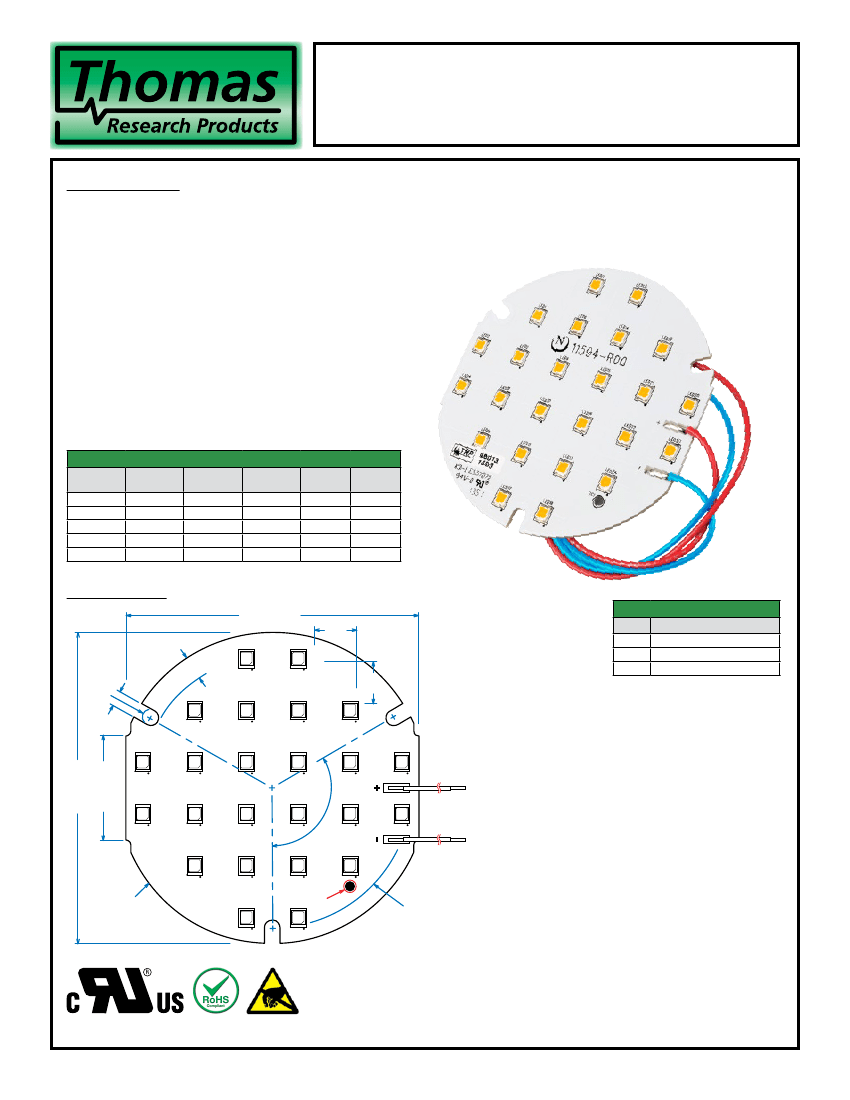

LED Light Engine, 3.0” Round Module
Constant-Current DC Array, 6 LED Series x 4 Parallel Strings
Engineered by Norlux
24 Nichia LEDs
5 yr. Warranty
Specifications
Driver Type:
Drive Current:
Nom. Forward Voltage:
Total Board Power:
Life:
Max Junction Temp:
Max Test Point Temp:
Operating Temp:
Storage Temp:
Viewing Angle (FWHM):
CRI:
Constant-Current
350mA Nominal
17.9V
6.3W Nominal
50,000 Hrs, 70% lumen maint.
@ Ta max 40ºC, used as specified
90°C
80°C
-40ºC to +60ºC Ambient
-40ºC to +80ºC
120° Lambertian distribution
83 typical
• Designed for easy use in standard luminaires
• Tight LED pitch eliminates pixelization, no complex lens or optics required
• Color: ¼ ANSI Binning, 3 Step MacAdam Ellipse
• Suggested Applications: Commercial or Residential Downlights
• Customizable: Engines can be modified to your application. Contact us.
3.0 Inch Round DC LED Module @ 350mA
Model
Number
98013
98014
98015
98016
98031
Total Board
Power
(W)
6.3
6.3
6.3
6.3
6.3
Total
Current
(mA)
350
350
350
350
350
Color
Temp
(K)
2700
3000
3500
4000
5000
Lumens
(± 15%)
769
820
860
883
910
Board
LPW
123
131
137
141
144
Dimensions:
2.83 [71.88]
0.23 [5.84]
R 0.07
[1.78]
0.15
[3.81]
LED 3
LED 2
LED 9
LED 15
LED 21
LED 20
LED 7
LED 13
Connectivity Options
0.50
[12.7]
0.50
[12.7]
Suffix
(blank)
-01
-02
Connection
12 IN, #22 AWG Stranded Leads
No Leads
Push-in Connectors
LED 1
LED 8
LED 14
LED 19
For Poke-In Connectors, use
#24-18 AWG stranded or solid wire
3.00 [76.2]
1.00 [25.4]
LED 4
LED 5
LED 10
LED 16
LED 22
LED 23
120
DC IN
Red (+) 12” #22AWG
Blue (-) 12” #22AWG
°
LED 6
LED 11
LED 17
LED 24
Ø 3.00 [76.2]
LED 12
LED 18
Tc
Height:
0.062 [1.58] FR-4 PCB
0.020 [0.5] LEDs
0.082 [2.08] TOTAL
Ø 2.7 [68.58] B.C.
For Cutouts
Drawing N0900-0163-R02
IN [mm]
MADE
IN USA
Of Imported And Domestic Components
Specifications subject to change without notice. Trademarks are property of their respective owners.
Rev 5-14-15
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
3” Round Std. DC
LED Light Engine Module
SSL Solutions Faster Than The Speed Of Light
®
Pg 2 of 2
CIE Chromaticity Coordinates:
2700K
X
0.4576
0.4698
0.4478
0.4591
3 Step Macadams Ellipse
Y
0.4183
0.4212
0.3999
0.4025
3000K
X
3 Step Macadams Ellipse
Y
0.4101
0.4146
0.3923
0.3965
0.4325
0.4452
0.4244
0.4362
3500K
X
3 Step Macadams Ellipse
Y
0.3975
0.4044
0.3819
0.3875
0.4045
0.4189
0.3989
0.412
4000K
X
3 Step Macadams Ellipse
Y
0.3836
0.3906
0.3687
0.3757
0.3783
0.3909
0.3746
0.3864
5000K
X
3 Step Macadams Ellipse
Y
0.3461
0.3520
0.3585
0.3644
0.3408
0.3485
0.3416
0.3499
1.20
1.15
1.10
1.05
1.00
0.95
0.90
0.85
0.80
0
Relative Luminous Flux / Tc Temperature
Compatible TRP Drivers:
The drivers listed here are all compatible with this module.
Choose the best driver for your application.
• BLED12W-036-C0350
• LED12W-24-C0350
Step Dimming:
This Light Engine can be step-dimmed, with a recommended
TRP dimmable driver and SD series step-dimming module.
See the SD2 or SD3 data sheet for wiring information.
20
40
Tc
(°C)
60
80
100
65mA/LED
120
Series/Parallel Configurations
Parallel:
The positive and negative of one board is connected
to the respective positive and negative of the next.
Current adds, so the supply must be 2x the current
for 2 boards.
Series:
The negative of one board is connected to the
positive of the next. Voltage adds, so the supply
must be 2x the voltage for 2 boards.
Parallel
Constant
Current
Driver
Series
Constant
Current
Driver
Maximum Run Lengths
The max number of boards wired in a chain
(series)
is limited by the
max current rating of the first board wired to the driver. The sum of the
board currents, in the chain, funnels through the first board. Multiple
chains can connect directly to the power supply in parallel. See table
for max chain length.
Product
3” Round
Series/Parallel
Series
Max Allowable Boards
High Current
(Nom)
Low Current
Thermal Application Notes
This board requires additional heat sinking to run above 45ºC
ambient
at nominal specifications. Heat sink is also required when
operated above specified drive currents.
Maximum Current
Max Current: 720mA
Voltage at max current: 20V, Power at max current: 14.4W
The total maximum current reflects the LED maximum forward current
only, without considering thermal needs. Driving the LEDs this hard will
likely violate their thermal limits, depending on the application.
Tc point
must remain at or below the max temperature, or the warranty will
be voided.
Temperature is directly correlated to LED current.
10
N/A
Mounting Notes
The LED assembly is supplied with mounting holes, per the dimensional
drawing. It is important to mount the board in such a way as to maintain
the Tc point below the max. The steady state thermals in application
will dictate if the board needs to be mounted directly to metallic housing
and/or include a thermal pad. For example fully enclosed recessed
fixture will require better thermal mounting than an open air pendant.
Static Sensitive Device
Handle only at static-safe work stations.
Packaging
50 per box standard.
Thomas Research Products • 1215 Bowes Rd • Elgin, IL 60123 • T 847-515-3057 • F 847-515-3047 • www.trpssl.com
