QBPP390C-XXD
Feature:
Water Clear Lens
3 mm lens Piranha
Package in Tube
AlInGaP technology for R/Y
Super Flux Output
90 º Viewing angle
XX= Color
Application:
Automotive lighting
General lighting
Super Flux LED
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant
Description:
This Super Flux LED has 3 mm lens height. It is
ideal for automotive lighting applications.

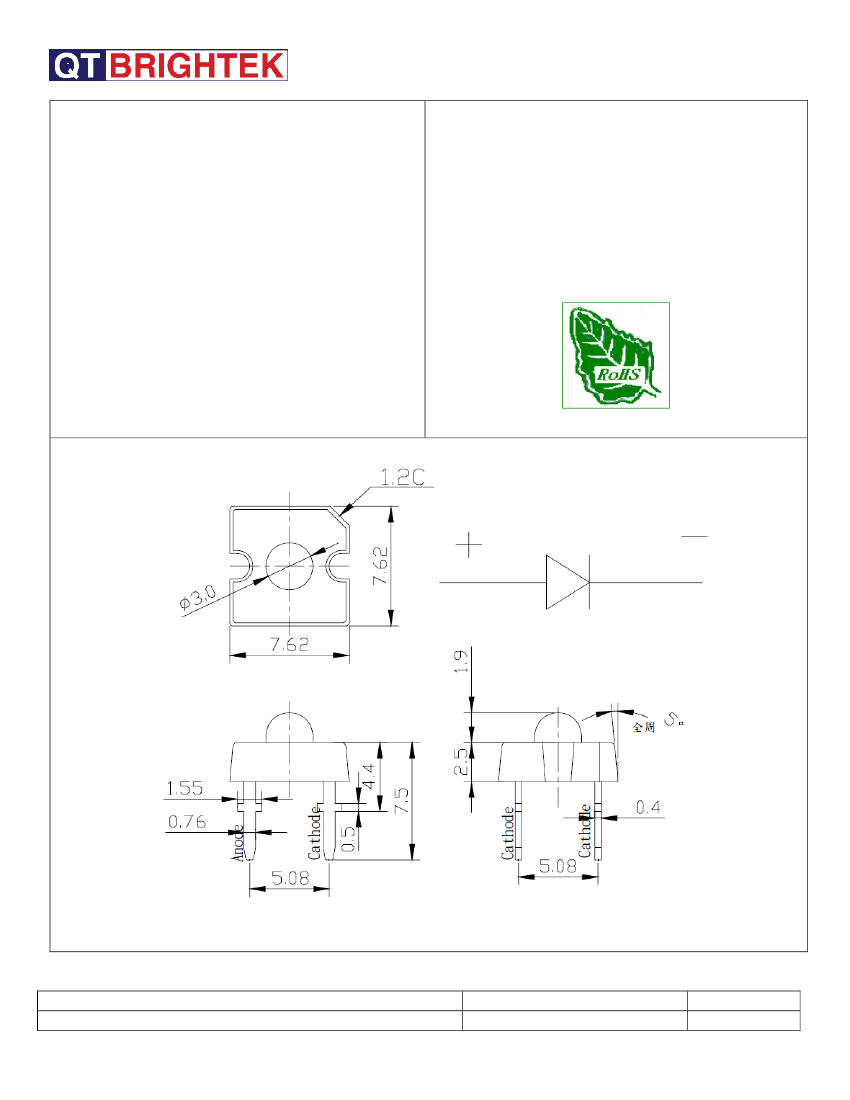

Dimension:
Units: mm / tolerance = +/-0.2mm
Product: QBPP390C-XXD
Date: June 25, 2011
Version# 1.0
Page 1 of 6
QBPP390C-XXD
Super Flux LED
Electrical / Optical Characteristic
(T
A
=25
o
C)
Product
QBPP390C-RD
QBPP390C-YD
Color
Red
Yellow
I
F
(mA)
50
50
V
F
(V)
Typ.
max
2.3
2.7
2.3
2.7
λ
D
(nm)
Min.
Typ.
Max.
620
---
630
585
---
597
Φ
V
(mlm)
Min
Typ.
2760
6000
3590
6000
Absolute Maximum Rating
Material
AlInGaP
P
d
(mW) I
F
(mA) I
FP
(mA)* V
R
(V)
180
60
100
8
T
OP
(
o
C)
-30 to +80
T
ST
(
o
C)
-40 to +100
T
SOL
(
o
C)**
260
*Duty 1/10 @0.1ms Pulse Width
** IR Reflow for no more than 5 sec @ 260
o
C
Product: QBPP390C-XXD
Date: June 25, 2011
Version# 1.0
Page 2 of 6
QBPP390C-XXD
Super Flux LED

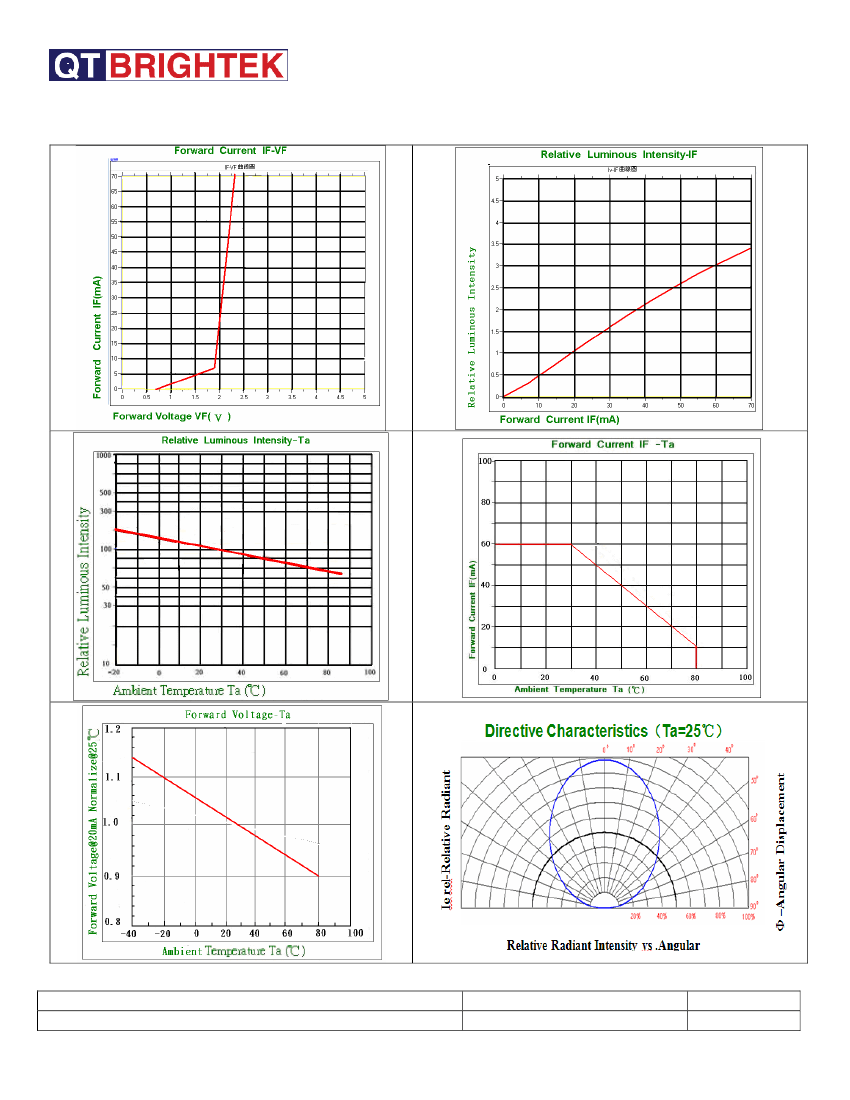

Characteristic Curves For AlInGaP:
Product: QBPP390C-XXD
Date: June 25, 2011
Version# 1.0
Page 3 of 6
QBPP390C-XXD
Super Flux LED

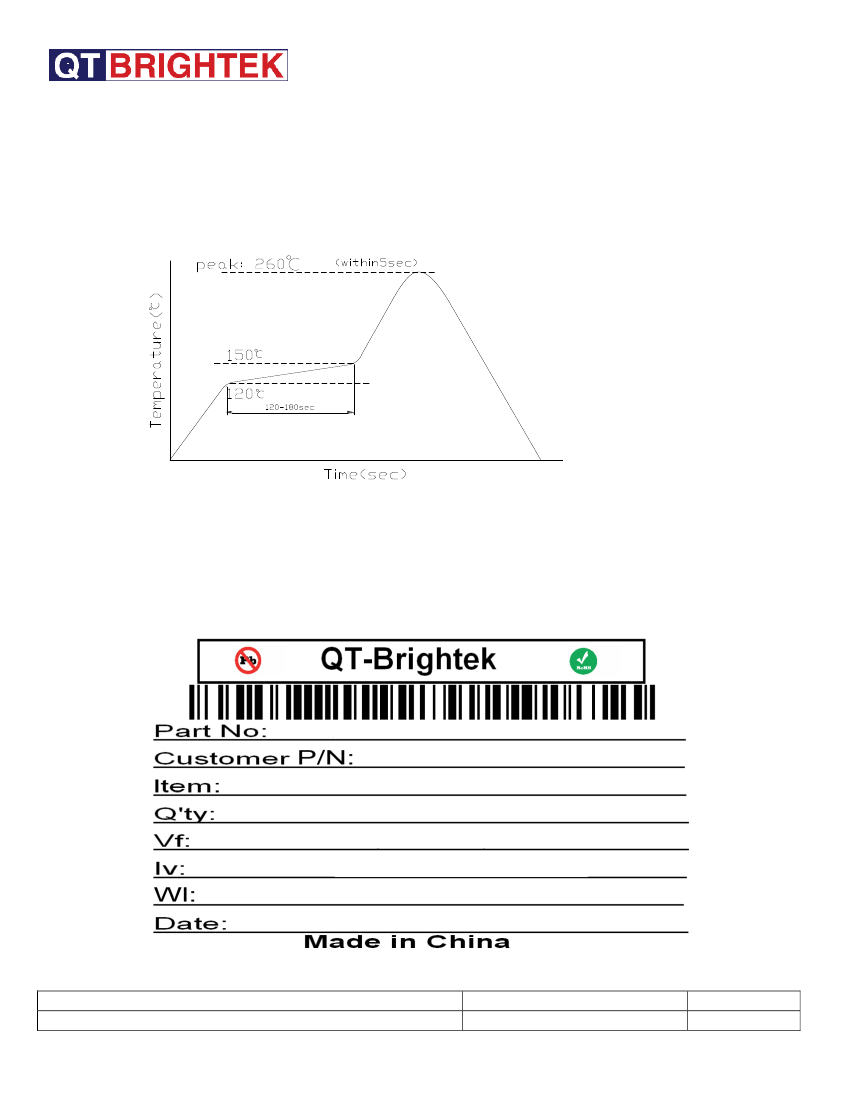

Solder Profile & Footprint:
WAVE SOLDERING PROFILE FOR LEAD FREE PROCESS:
Packing: TBD
Labeling:
Product: QBPP390C-XXD
Date: June 25, 2011
Version# 1.0
Page 4 of 6
QBPP390C-XXD
Super Flux LED
Ordering Information:
Part #
QBPP390C-RD
QBPP390C-YD
Orderable Part #
QBPP390C-RD
QBPP390C-YD
Spec Range
Φ v = 6000 mlm typ. @ I
F
=50mA
λ
D
=620-630nm
Φ v = 6000 mlm typ. @ I
F
=50mA
λ
D
=585-597nm
Quantity per Tube
TBD
TBD
Product: QBPP390C-XXD
Date: June 25, 2011
Version# 1.0
Page 5 of 6
