ACT5026 datasheet, PDF - EEWORLD Datasheet

ACT5026: DescriptionBrushless DC Motor Controller, 1.700 X 1.300 INCH, 0.275 INCH HEIGHT, PACKAGE-20; CategoryOther integrated circuit (IC) The signal circuit; File Size197KB，2 Pages; ManufacturerCobham PLC

Download Datasheet Parametric Compare View All

ACT5026 Overview

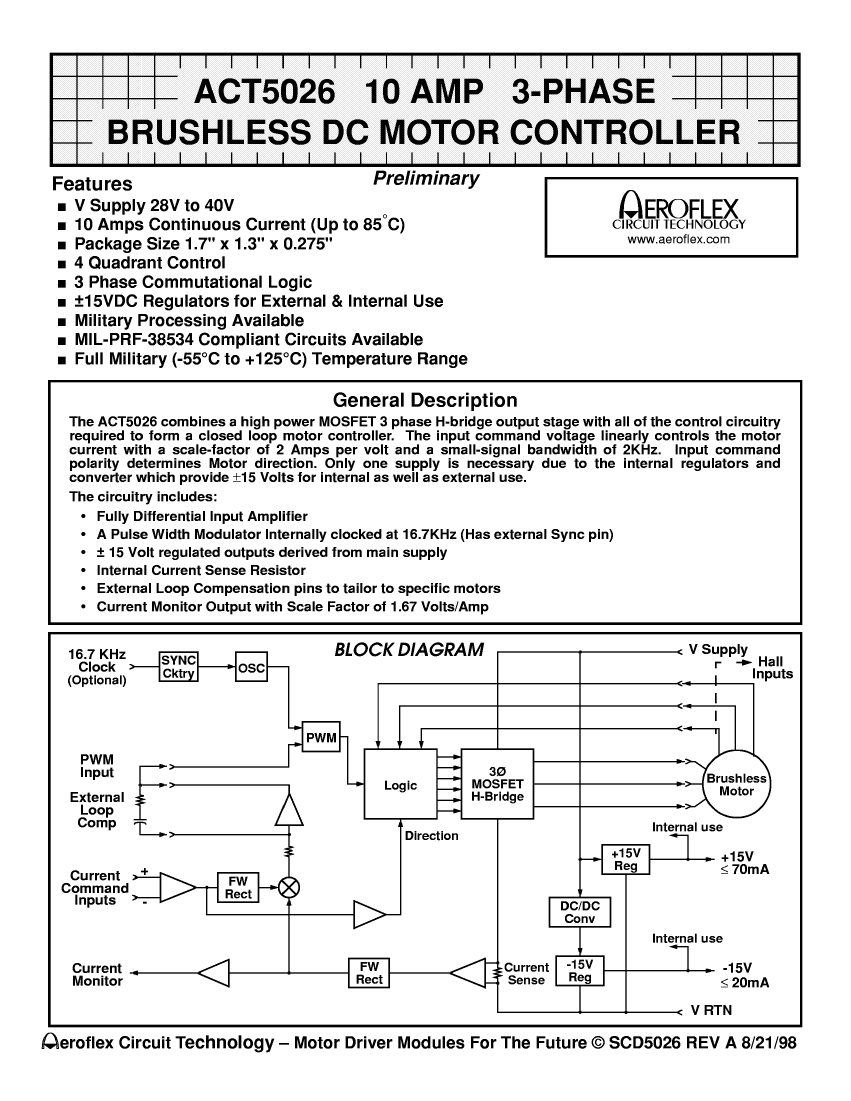

Brushless DC Motor Controller, 1.700 X 1.300 INCH, 0.275 INCH HEIGHT, PACKAGE-20

Parameter Name	Attribute value
Maker	Cobham PLC

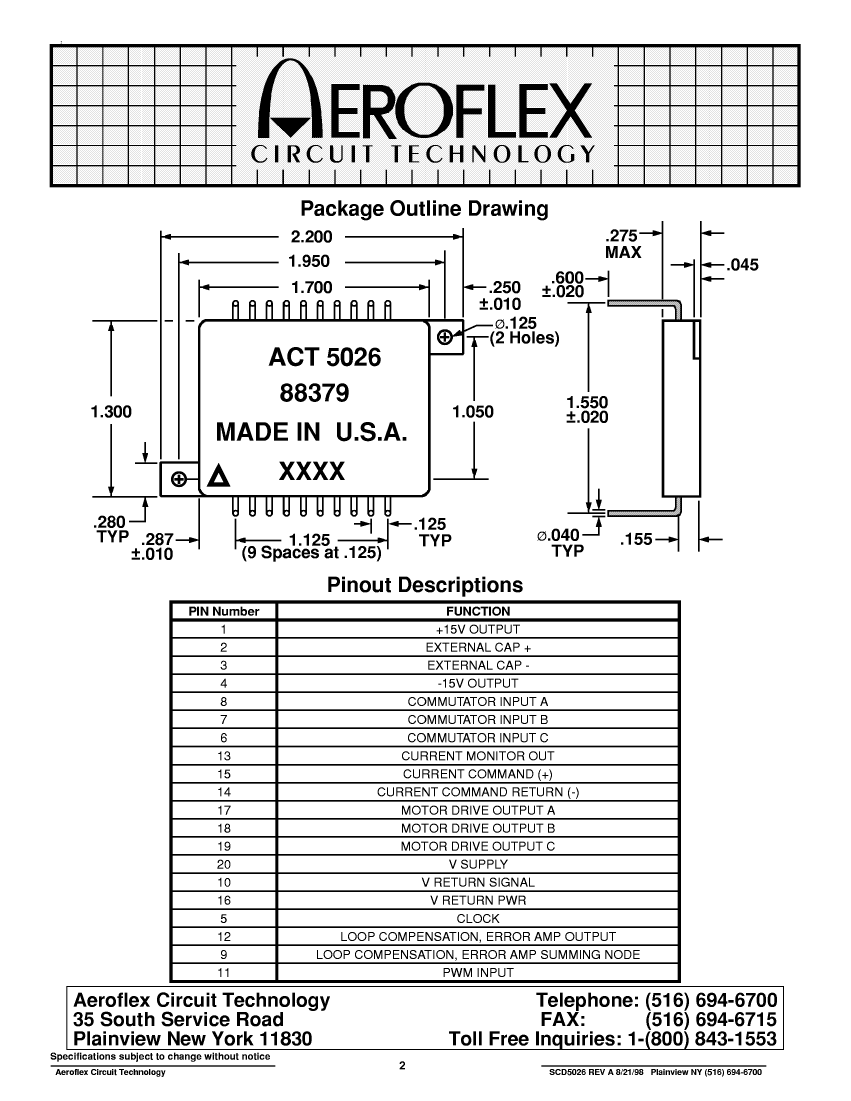

package instruction	1.700 X 1.300 INCH, 0.275 INCH HEIGHT, PACKAGE-20
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-XDFM-P20
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum supply voltage (Vsup)	40 V
Minimum supply voltage (Vsup)	28 V
surface mount	NO
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	DUAL

	ACT5026
Description	Brushless DC Motor Controller, 1.700 X 1.300 INCH, 0.275 INCH HEIGHT, PACKAGE-20
Maker	Cobham PLC
package instruction	1.700 X 1.300 INCH, 0.275 INCH HEIGHT, PACKAGE-20
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-XDFM-P20
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum supply voltage (Vsup)	40 V
Minimum supply voltage (Vsup)	28 V
surface mount	NO
Temperature level	MILITARY
Terminal form	PIN/PEG
Terminal location	DUAL
