QBS39XXZ_series
0.39” Single Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
QT-Brightek Display Series
0.39” Single Digit Display
Part No.: QBS39XXZ
XX= Color
Z= 1: Common Cathode
Z = 0: Common Anode
Product: QBS39XXZ_series
Date: June 25, 2015
Version# 2.2
Page 1 of 11
QBS39XXZ_series
0.39” Single Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Table of Contents:
Introduction ........................................................................................................................................... 3
Electrical / Optical Characteristic (Ta=25
o
C) ........................................................................................ 4
Absolute Maximum Rating .................................................................................................................... 4
Pin Configuration .................................................................................................................................. 5
Characteristic Curves ............................................................................................................................ 6
Solder Profile ........................................................................................................................................ 8
Packing ................................................................................................................................................. 9
Ordering Information ........................................................................................................................... 10
Revision History .................................................................................................................................. 11
Disclaimer ........................................................................................................................................... 11
Product: QBS39XXZ_series
Date: June 25, 2015
Version# 2.2
Page 2 of 11
QBS39XXZ_series
0.39” Single Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Introduction
Feature:
0.39” Single digit seven segments display
Low power consumption
Packed in foam
AlInGaP Technology R/S/Y/AG/O
InGaN Technology IB/IG
Z= 1: Common Cathode or 0:Common Anode
XX= color
Description:
These 0.39” Single-digit, seven-segment displays are
made with white segments and a grey surface. The
viewing distance is up to seven meters.
Application:
Instrument panels
Indoor/Outdoor display board
Audio equipment
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant
Dimension:
Units: mm / tolerance = +/-0.25mm
Product: QBS39XXZ_series
Date: June 25, 2015
Version# 2.2
Page 3 of 11
QBS39XXZ_series
0.39” Single Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Electrical / Optical Characteristic (Ta=25
o
C)
Product
Material
CC
QBS39R1
QBS39S1
QBS39Y1
QBS39O1
CA
QBS39R0
QBS39S0
QBS39Y0
QBS39O0
Red
Deep
AlInGaP
Red
AllnGaP Yellow
AllnGaP
20
20
20
20
20
20
20
Color I
F
(mA)
Typ.
2.0
2.0
2.0
2.0
2.0
3.2
3.2
Max.
2.6
2.6
2.6
2.6
2.6
4.0
4.0
Min.
-
-
-
-
-
-
-
Typ.
624
639
590
606
571
525
465
Max.
-
-
-
-
-
-
-
Typ.
40
25
40
40
10
100
40
V
F
(V)
λ
D
(nm)
I
V
(mcd)
AlInGaP Orange
Yellow
QBS39AG1 QBS39AG0 AllnGaP
Green
True
QBS39IG1 QBS39IG0 InGaN
Green
QBS39IB1 QBS39IB0 InGaN
Blue
Absolute Maximum Rating
Material P
d
(mW)
AllnGaP
70
Derating liner from 25
I (mA) I
PF
(mA)*
o
C per dice (mA/
o
C)
F
0.33
0.4
25
30
90
100
V
R
(V)
5
5
T
OP
(
o
C)
-25 to +85
-25 to +85
T
ST
(
o
C)
-25 to +85
-25 to +85
InGaN
120
*Duty 1/10 @ 1KHz
Product: QBS39XXZ_series
Date: June 25, 2015
Version# 2.2
Page 4 of 11
QBS39XXZ_series
0.39” Single Digit Display
---------------------------------------------------------------------------------------------------------------------------------------

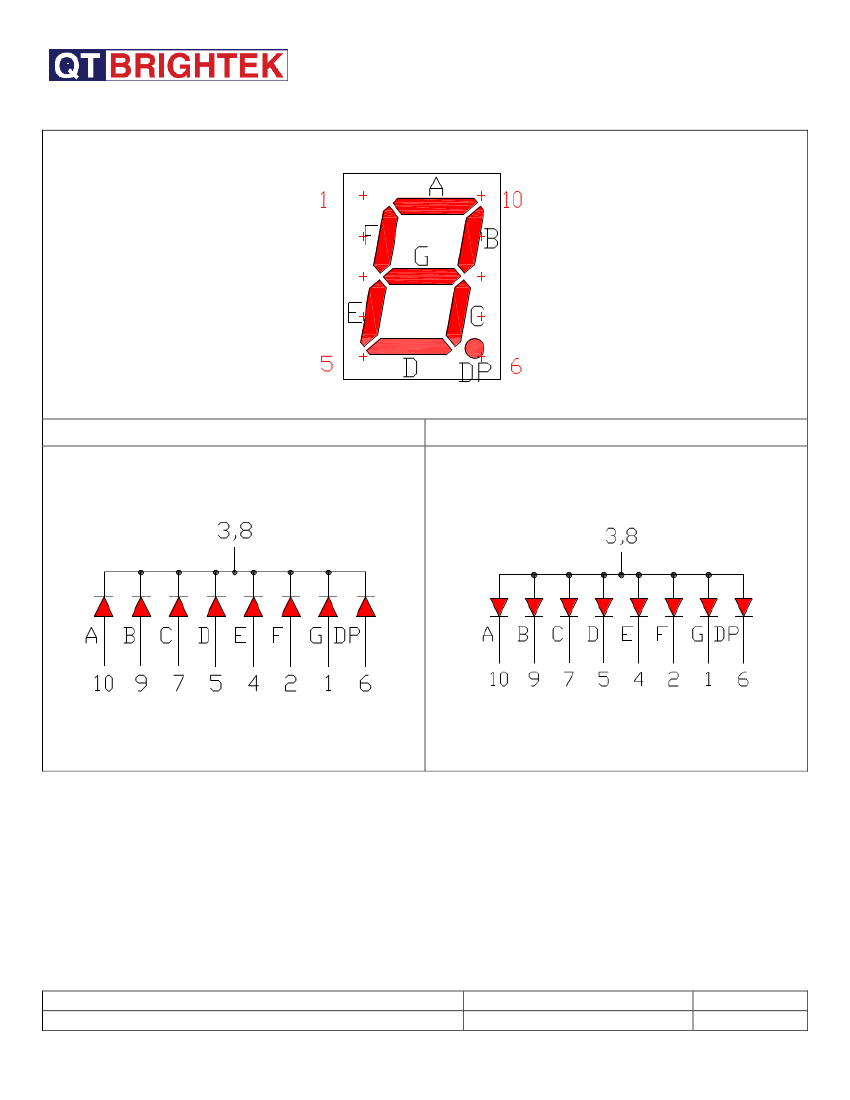

Pin Configuration
CC
CA
Product: QBS39XXZ_series
Date: June 25, 2015
Version# 2.2
Page 5 of 11
