QBT40XXZ_series
0.4” Three Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
QT-Brightek Display Series
0.40” Three Digit Display
Part No.: QBT40XXZ
XX= Color
Z= 1: Common Cathode
Z = 0: Common Anode
Product: QBT40XXZ_series
Date: September 14, 2015
Version# 1.2
Page 1 of 12
QBT40XXZ_series
0.4” Three Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Table of Contents:
Introduction ........................................................................................................................................... 3
Electrical / Optical Characteristic (Ta=25
o
C) ........................................................................................ 4
Absolute Maximum Rating .................................................................................................................... 4
Pin Configuration .................................................................................................................................. 5
Characteristic Curves ............................................................................................................................ 6
Solder Profile ........................................................................................................................................ 8
Packing ................................................................................................................................................. 9
Ordering Information ........................................................................................................................... 10
Revision History .................................................................................................................................. 11
Disclaimer ........................................................................................................................................... 11
Product: QBT40XXZ_series
Date: September 14, 2015
Version# 1.2
Page 2 of 12
QBT40XXZ_series
0.4” Three Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Introduction
Feature:
0.4” three digit seven segments display
Low power consumption
Packed in foam
AlInGaP Technology R/S/Y/AG/O
InGaN Technology IB/IG
Z= 1: Common Cathode or 0:Common Anode
XX= color
Description:
These 0.4” Single-digit, seven-segment displays are
made with white segments and a grey surface. The
viewing distance is up to seven meters.
Application:
Instrument panels
Indoor/Outdoor display board
Audio equipment
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant

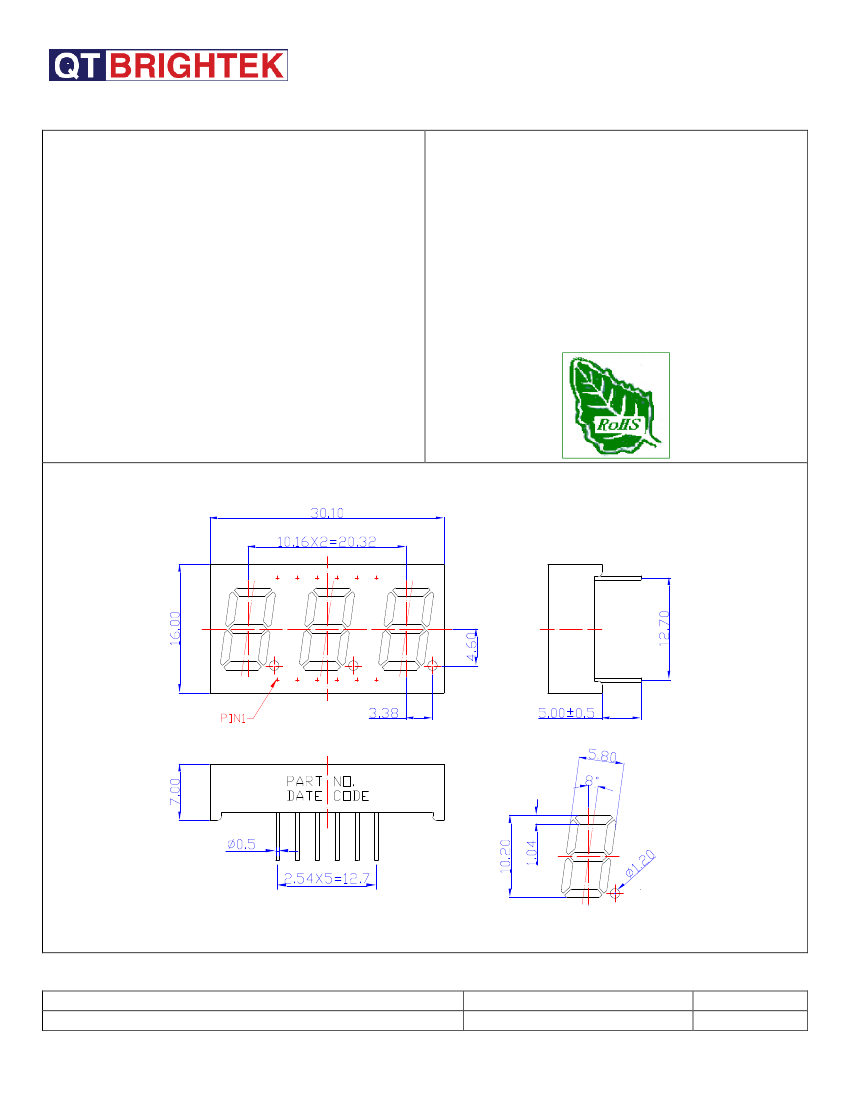

Dimension:
Units: mm / tolerance = +/-0.25mm
Product: QBT40XXZ_series
Date: September 14, 2015
Version# 1.2
Page 3 of 12
QBT40XXZ_series
0.4” Three Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Electrical / Optical Characteristic (Ta=25
o
C)
Product
CC
QBT40R1
QBT40S1
QBT40Y1
QBT40O1
CA
Material Color I
F
(mA)
20
20
20
20
20
20
20
V
F
(V)
Typ.
2.0
2.0
2.0
2.0
2.1
3.2
3.0
Max.
2.6
2.6
2.6
2.6
2.6
4.0
4.0
Min.
-
-
-
-
-
-
-
λ
D
(nm)
Typ.
625
639
590
606
571
525
470
Max.
-
-
-
-
-
-
-
I
V
(mcd)
Typ.
40
25
60
60
25
200
40
QBT40R0 AllnGaP
Red
Deep
QBT40S0 AlInGaP
Red
QBT40Y0 AllnGaP Yellow
QBT40O0 AlInGaP Orange
Yellow
QBT40AG1 QBT40AG0 AllnGaP
Green
True
QBT40IG1 QBT40IG0 InGaN
Green
QBT40IB1 QBT40IB0 InGaN
Blue
Absolute Maximum Rating
Material P
d
(mW)
AllnGaP
70
Derating liner from 25
I (mA) I
PF
(mA)*
o
C per dice (mA/
o
C)
F
0.33
0.4
25
30
90
100
V
R
(V)
5
5
T
OP
(
o
C)
-25 to +85
-25 to +85
T
ST
(
o
C)
-25 to +85
-25 to +85
InGaN
120
*Duty 1/10 @ 1KHz
Product: QBT40XXZ_series
Date: September 14, 2015
Version# 1.2
Page 4 of 12
QBT40XXZ_series
0.4” Three Digit Display
---------------------------------------------------------------------------------------------------------------------------------------
Pin Configuration
CC
CA
Product: QBT40XXZ_series
Date: September 14, 2015
Version# 1.2
Page 5 of 12
