Datasheet> All Categories > Wireless rf/communication> Telecom circuit> AM7943-2DC

Preview

AM7943-2DC: DescriptionSLIC, 2-4 Conversion, CDIP22, CERAMIC, DIP-22; CategoryWireless rf/communication Telecom circuit; File Size291KB，17 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

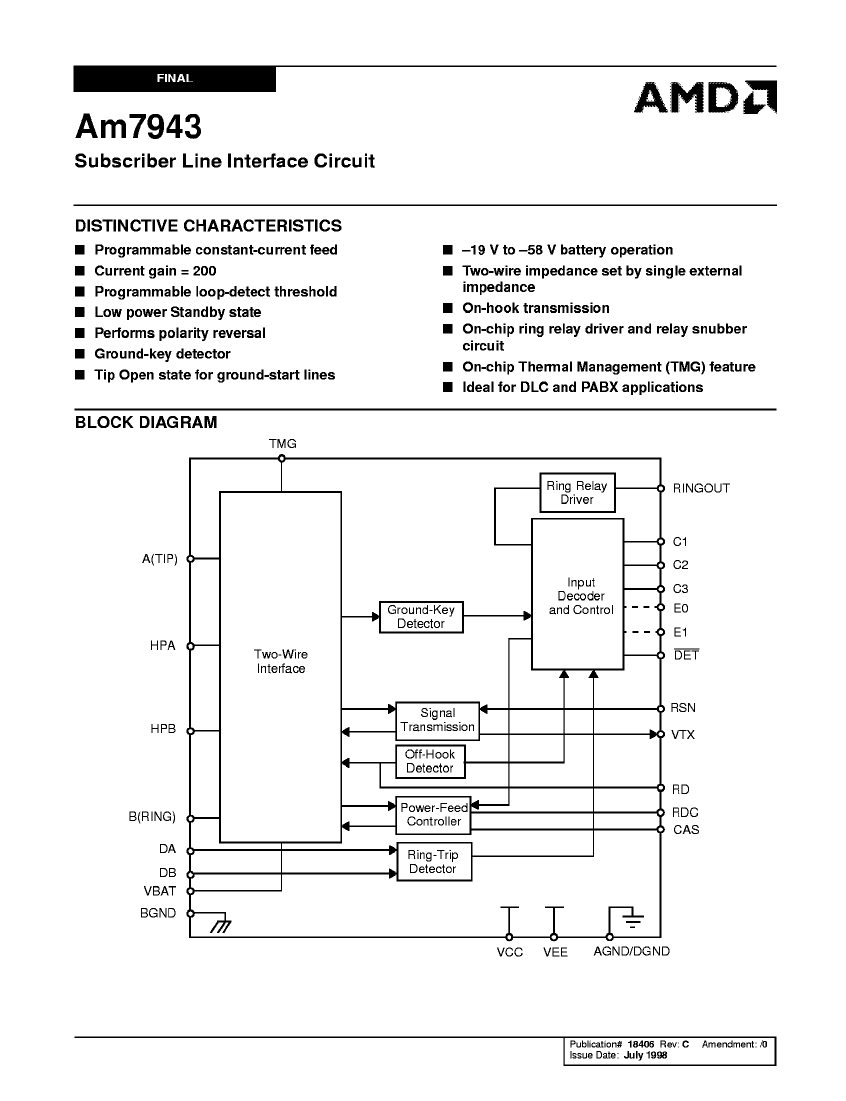

AM7943-2DC Overview

SLIC, 2-4 Conversion, CDIP22, CERAMIC, DIP-22

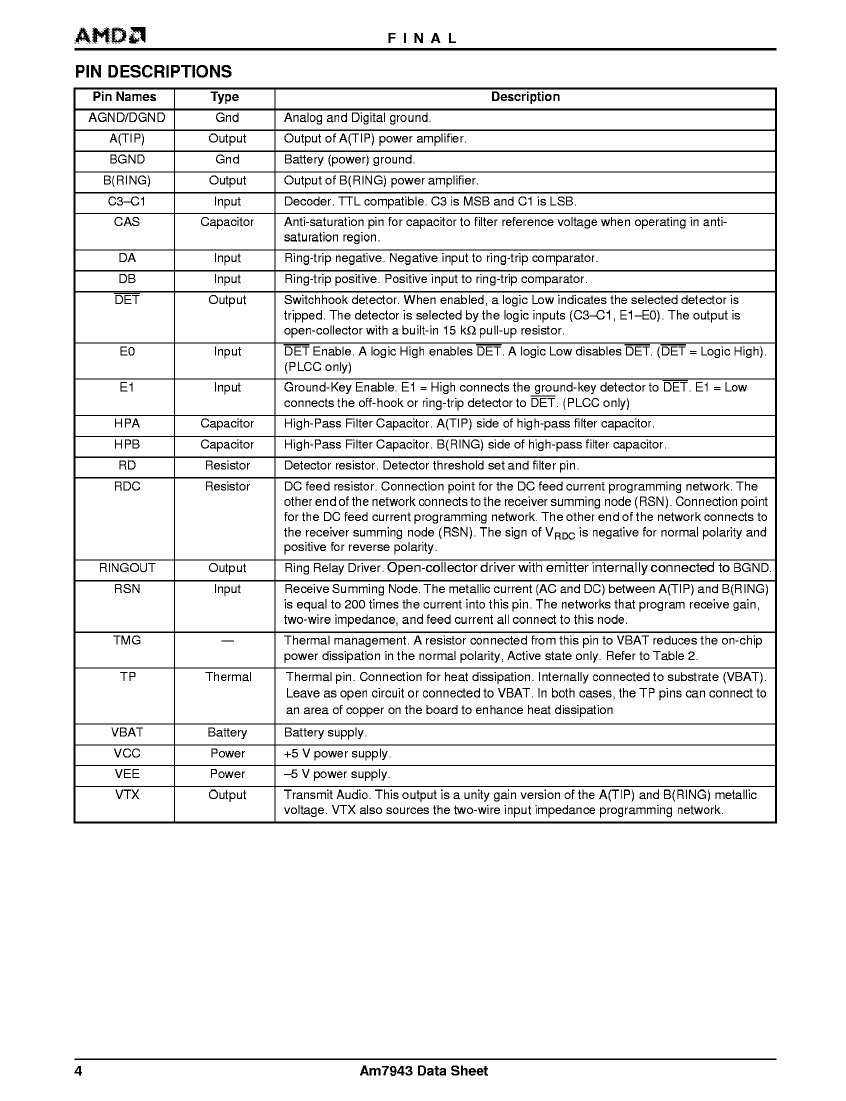

AM7943-2DC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD

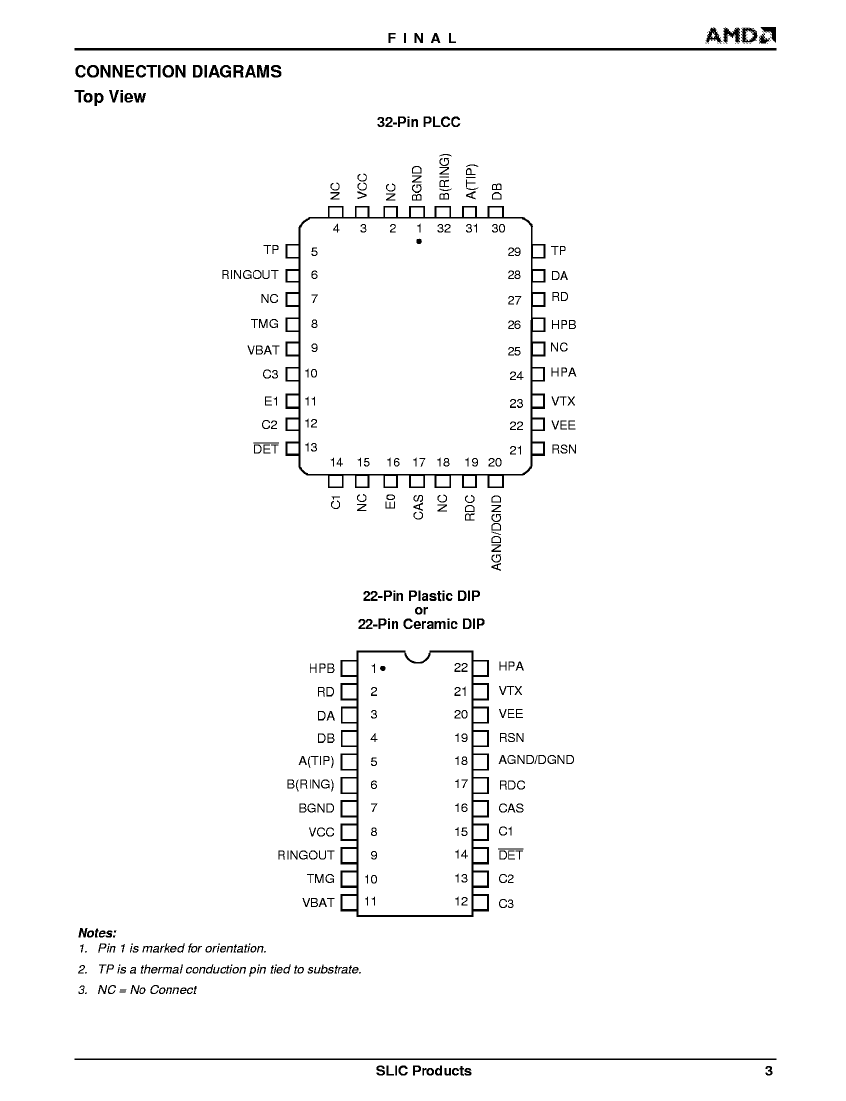

Parts packaging code	DIP
package instruction	DIP, DIP22,.3
Contacts	22
Reach Compliance Code	unknown

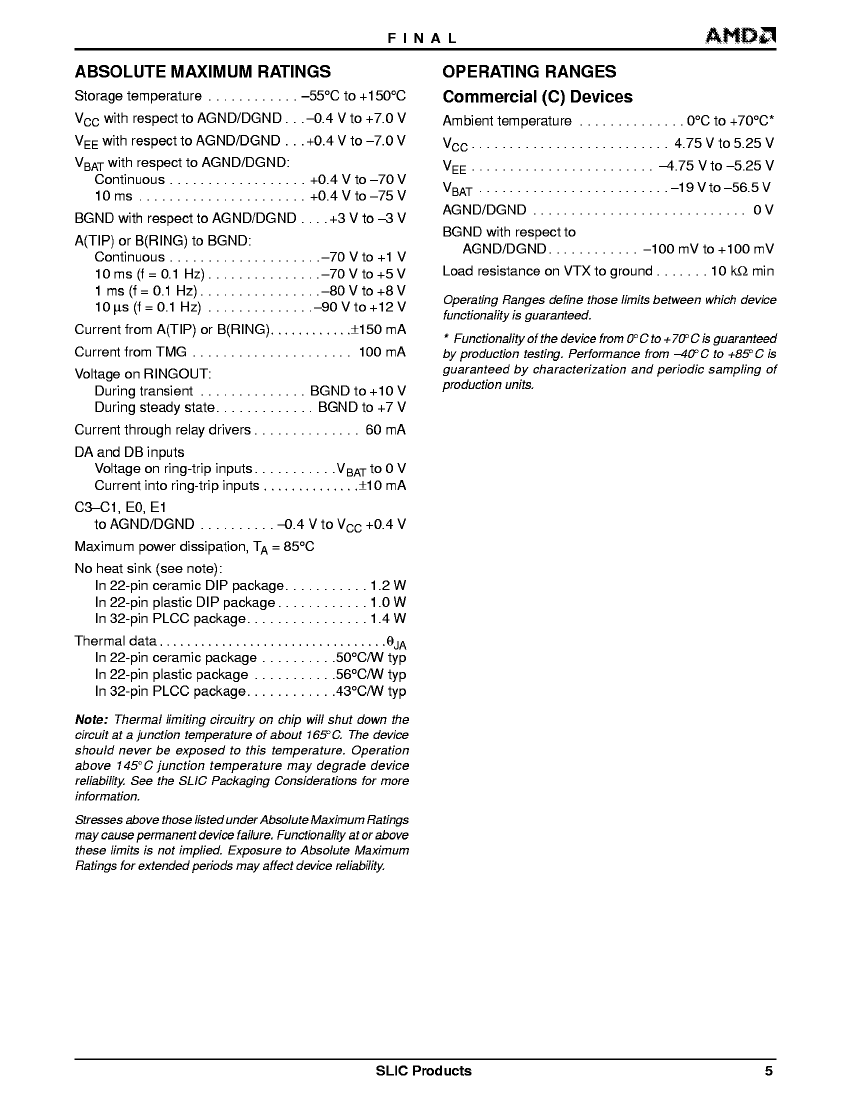

battery fed	CONSTANT CURRENT
Battery powered	-19 TO -56.5 V
mix	2-4 CONVERSION
JESD-30 code	R-CDIP-T22
JESD-609 code	e0
length	27.4955 mm
Negative supply voltage rating	-5 V
maximum noise	10 dBrnC
Number of functions	1
Number of terminals	22
Maximum operating temperature	70 °C
Minimum operating temperature
PSRR-Min	30 dB
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	8.5 mA
Nominal supply voltage	5 V
surface mount	NO
Telecom integrated circuit types	SLIC
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

AM7943-2DC Related Products

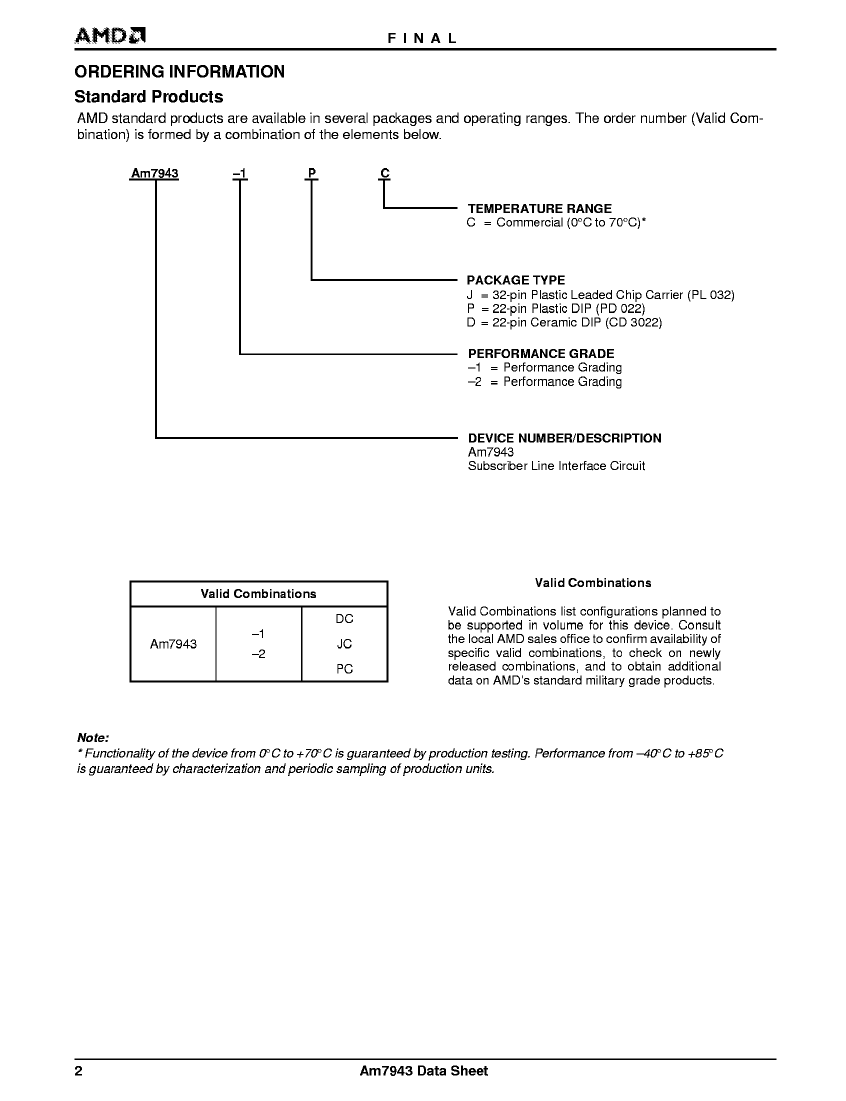

	AM7943-2DC	AM7943-2PC	AM7943-2JC	AM7943-1DC	AM7943-1PC
Description	SLIC, 2-4 Conversion, CDIP22, CERAMIC, DIP-22	SLIC, 2-4 Conversion, PDIP22, PLASTIC, DIP-22	SLIC, 2-4 Conversion, PQCC32, PLASTIC, LCC-32	SLIC, 2-4 Conversion, CDIP22, CERAMIC, DIP-22	SLIC, 2-4 Conversion, PDIP22, PLASTIC, DIP-22
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	AMD	AMD	AMD	AMD	AMD
Parts packaging code	DIP	DIP	QFJ	DIP	DIP
package instruction	DIP, DIP22,.3	DIP, DIP22,.3	QCCJ, LDCC32,.5X.6	DIP, DIP22,.3	DIP, DIP22,.3
Contacts	22	22	32	22	22
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
battery fed	CONSTANT CURRENT	CONSTANT CURRENT	CONSTANT CURRENT	CONSTANT CURRENT	CONSTANT CURRENT
Battery powered	-19 TO -56.5 V	-19 TO -56.5 V	-19 TO -56.5 V	-19 TO -56.5 V	-19 TO -56.5 V
mix	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION	2-4 CONVERSION
JESD-30 code	R-CDIP-T22	R-PDIP-T22	R-PQCC-J32	R-CDIP-T22	R-PDIP-T22
JESD-609 code	e0	e0	e0	e0	e0
length	27.4955 mm	28.067 mm	13.97 mm	27.4955 mm	28.067 mm
Negative supply voltage rating	-5 V	-5 V	-5 V	-5 V	-5 V
maximum noise	10 dBrnC	10 dBrnC	10 dBrnC	10 dBrnC	10 dBrnC
Number of functions	1	1	1	1	1
Number of terminals	22	22	32	22	22
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
PSRR-Min	30 dB	30 dB	30 dB	30 dB	30 dB
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	DIP	DIP
Encapsulate equivalent code	DIP22,.3	DIP22,.3	LDCC32,.5X.6	DIP22,.3	DIP22,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE
power supply	+-5 V	+-5 V	+-5 V	+-5 V	+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	3.556 mm	5.08 mm	5.08 mm
Maximum slew rate	8.5 mA	8.5 mA	8.5 mA	8.5 mA	8.5 mA
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	NO
Telecom integrated circuit types	SLIC	SLIC	SLIC	SLIC	SLIC
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	DUAL	DUAL
width	7.62 mm	10.16 mm	11.43 mm	7.62 mm	10.16 mm
