Features
■
Compact design, long life and high
■
■
■
■
CO
M
T
reliability
Vertical and horizontal mount versions
Momentary switch
Dual LED design
Flatted and knurled shaft styles
*R
oH
S
PEL12D - 12 mm Encoder with Switch and Illuminated Shaft
Electrical Characteristics
Output ...................................................................................................................................................................................2-bit quadrature code
Closed Circuit Resistance ........................................................................................................................................................... 3 ohms maximum
Contact Rating .............................................................................................................................................................................. 0.5 mA @ 5 VDC
Insulation Resistance .....................................................................................................................................................100 megohms @ 250 VDC
Dielectric Withstanding Voltage
Sea Level ................................................................................................................................................................................ 300 VAC minimum
Electrical Travel...................................................................................................................................................................................... Continuous
Contact Bounce (15 RPM).........................................................................................................................................................2.0 ms. maximum**
RPM (Operating) ............................................................................................................................................................................. 100 maximum**
Environmental Characteristics
Operating Temperature Range .......................................................................................................................-10 °C to +70 °C (+14 °F to +158 °F)
Storage Temperature Range .......................................................................................................................... -40 °C to +85 °C (-40 °F to +185 °F)
Operating Humidity ................................................................................................................................................................... 25 % to 85 % R.H.
Rotational Life ....................................................................................................................................................................30,000 cycles minimum
Switch Life ..........................................................................................................................................................................20,000 cycles minimum
IP Rating .......................................................................................................................................................................................................... IP 40
Mechanical Characteristics
Mechanical Angle ......................................................................................................................................................................... 360 ° continuous
Detent Torque ................................................................................................................................................. 30 to 200 g-cm (0.42 to 2.77 oz.-in.)
Running Torque .....................................................................................................................................................50 g-cm (0.69 oz.-in.) maximum
Shaft Strength (Push-Pull) ............................................................................................................................................................... 5 kgf (11.0 lbs.)
Weight ............................................................................................................................................................................... 3 gm (0.1 oz.) maximum
Terminals ................................................................................................................................................................. Printed circuit board terminals
Soldering Condition
Wave Soldering ....................................................................Sn95.5/Ag2.8/Cu0.7 solder with no-clean flux: 260 °C max. for 5 ± 1 seconds
Hand Soldering ..................................................................................................................................................................Not recommended
Hardware .............................................................................................................................................................................. No hardware supplied
Switch Characteristics
Switch Type .................................................................................................................................................... Contact Push ON Momentary SPST
Power Rating (Resistive Load) ...................................................................................................................................................... 10 mA at 5 V DC
Contact Resistance ............................................................................................................................................................................100 milliohms
Switch Travel ................................................................................................................................................................................0.5 +0.0/-0.3 mm
Switch Actuation Force ................................................................................................................................................450 ± 200 gf (15.9 ±7.0 oz.)
How To Order
PEL12D - 4 0 21 F - S 1 024
Model
Terminal Configuration

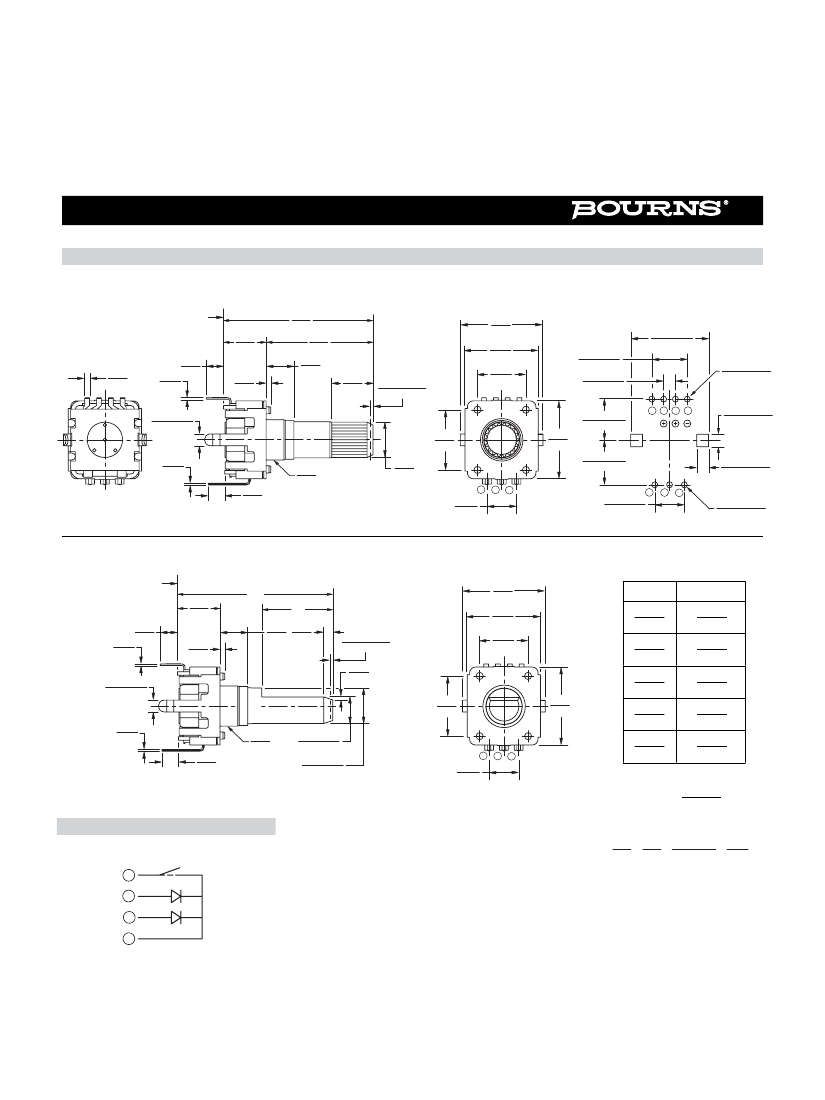

2 = Vertical Mount/Side Exit PC Pin
Detent Option
0 = No Detents
2 = 24 Detents
Standard Shaft Length
Flatted:
16 = 16.0 mm
26 = 26.0 mm
18 = 18.5 mm
31 = 31.0 mm
21 = 21.0 mm
Shaft Style
F = Insulated Flatted Shaft
Switch Configuration
S = Push Momentary Switch
LED Color
Dual:
1 = Blue/Orange
2 = Green/Red
3 = Blue/Green
Resolution
024 = 24 Pulses per 360 ° Rotation

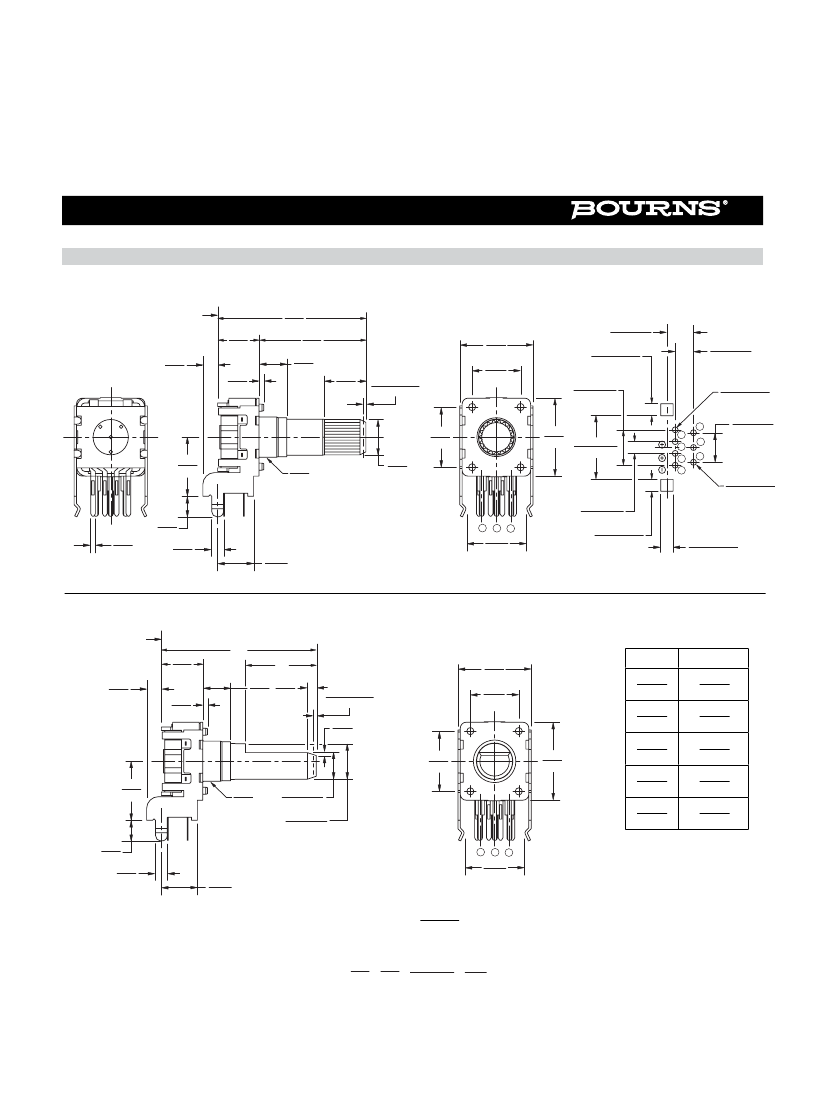

4 = Horizontal Mount/Rear Exit PC Pin
Knurled:
25 = 25.0 mm
S = Insulated Knurled Shaft (18 Teeth)
*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.
**Devices are tested using standard noise reduction filters. For optimum performance, designers should use noise reduction filters in their circuits.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
