CBTE-040-06-C-D datasheet, PDF

Datasheet> All Categories > The connector> The connector> CBTE-040-06-C-D

CBTE-040-06-C-D: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size599KB，3 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

CBTE-040-06-C-D Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal

CBTE-040-06-C-D Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	CBTE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	80

Preview

Download Datasheet

View All

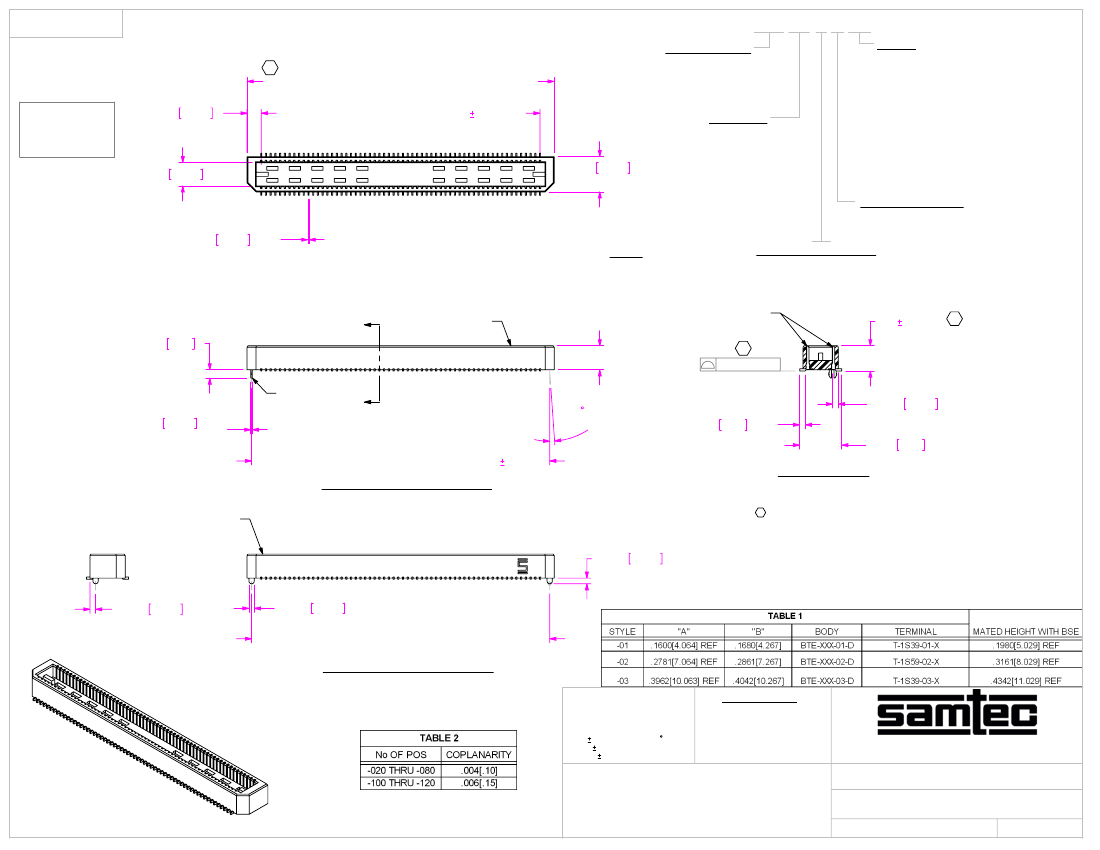

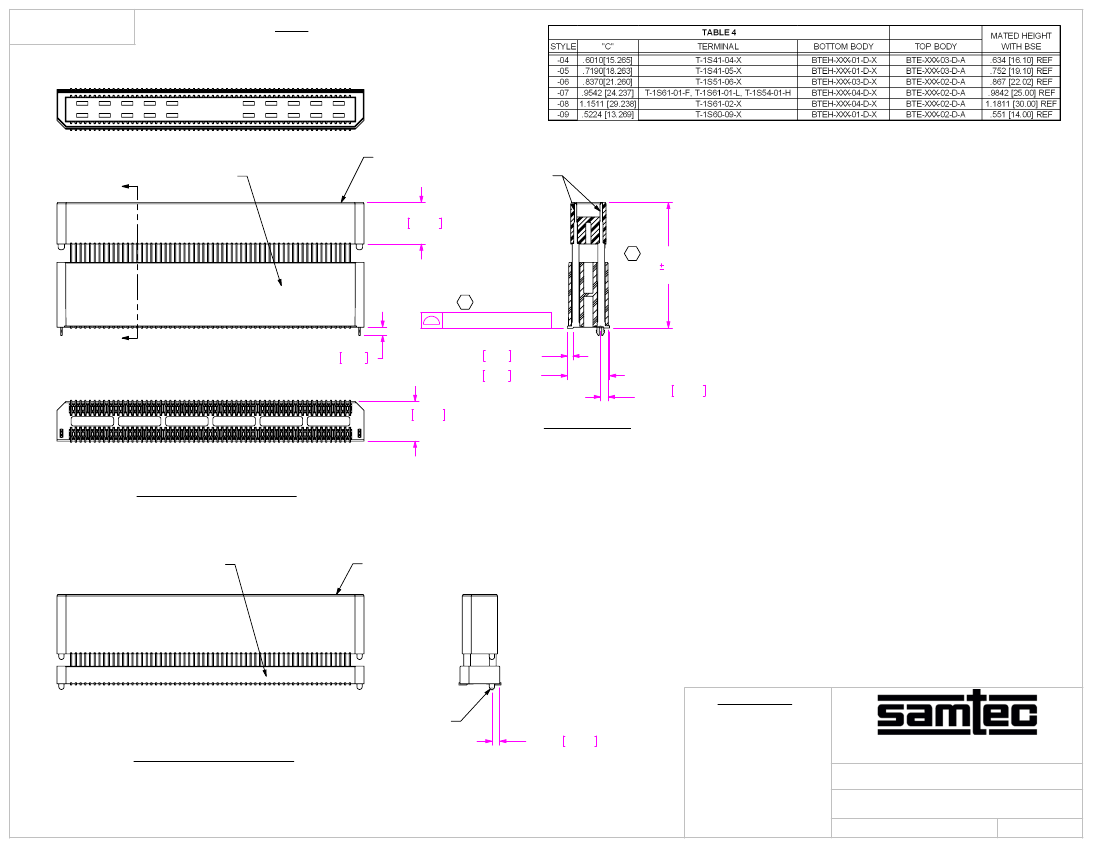

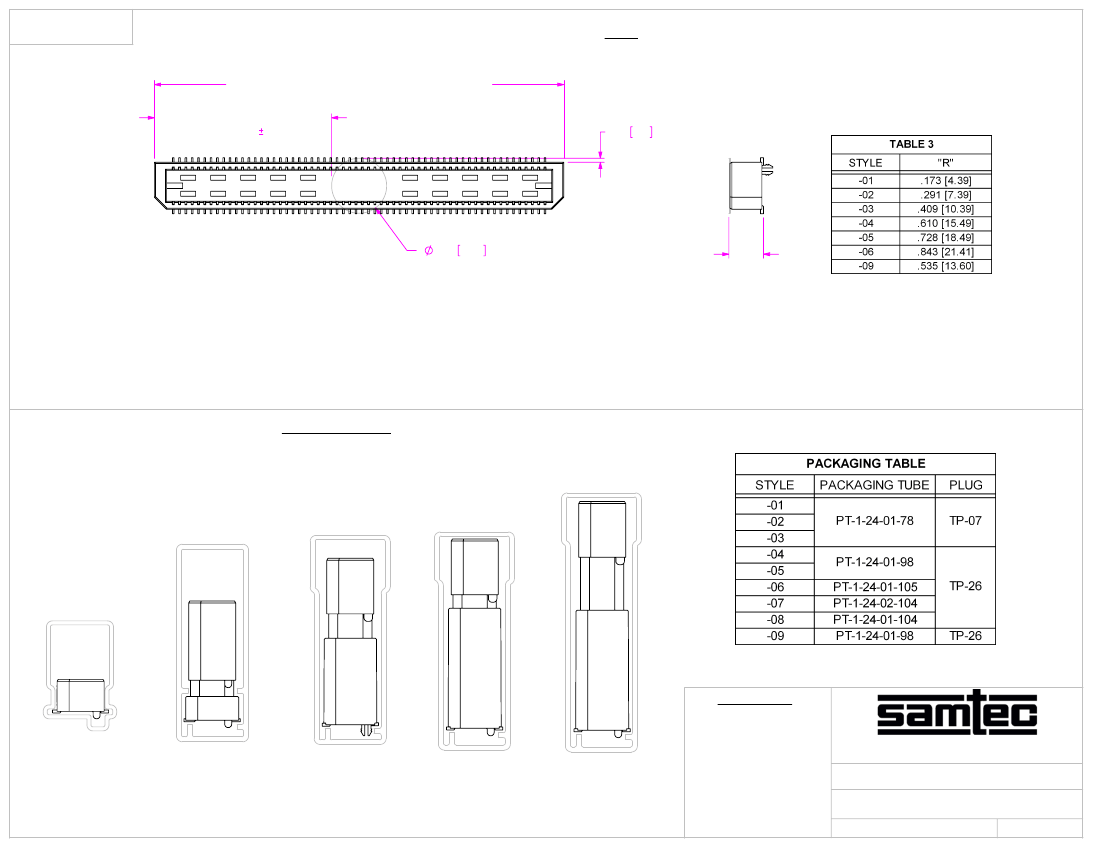

REVISION B

CBTE-XXX-XX-X-D-XX

((No OF POSITIONS x .0315[.800]) +.1575[4.000]) REF

No OF POSITIONS

-020, -040, -060, -080

-100, -120

*-090

(PER ROW)

*-03 BODY STYLE ONLY

BODY STYLE

-01: .1680[4.267]

-02: .2861[7.264]

-03: .4042[1.123]

-04: .6010[15.265]

-05: .7190[18.263]

-06: .8370[21.260]

-07: .9542 [24.237]

-08: 1.1511[29.238]

-09: .5224 [13.269]

OPTION

-A: ALIGNMENT PINS

(USE BTE-XXX-XX-D-A)

-LC: LOCKING CLIPS

(USE LC-08-TM-01)

-K: POLYIMIDE FILM

(N/A ON STYLES -07 & -08)

(USE K-500-300, SEE FIG. 2)

DO NOT

SCALE FROM

THIS PRINT

.0945 2.400

((No OF POSITIONS -1) x .0315[.800]) .003[.08]

.1550 3.937 REF

.2350 5.969

REF

.0080 0.203 REF

CBTE-060-01-X-D-LC SHOWN

FIG. 1

"A"

.055 1.40

BTE-XXX-XX-D

LC-08-TM-01

.010 0.254 REF

(-LC WIDTH)

"A"

((No OF POSITIONS x .0315[.800]) + .0975[2.477]) .003[.08]

-LC: LOCKING CLIP OPTION

BTE-XXX-XX-D-A

.0375 0.953 REF

.0350 0.889 DIA REF

((No OF POSITIONS x .0315[.800]) + .0975[2.477]) REF

-A: ALIGNMENT PIN OPTION

UNLESS OTHERWISE SPECIFIED,

DIMENSIONS ARE IN INCHES.

TOLERANCES ARE:

DECIMALS

"A"

2 MAX SWAY

(TYP)

.XX: .01 [.3]

.XXX: .005 [.13]

.XXXX: .0020 [.051]

MATERIAL:

T-1S39-XX-X

PLATING SPECIFICATION

-C: ELECTRO-POLISHED SELECTIVE

(USE T-1SXX-XX-C)

ROW SPECIFICATION

-D: DOUBLE (USE BTE-XXX-XX-D-X

& BTEH-XXX-XX-D-X)

"B"

.001[.03]

(SEE NOTE 5)

.003[.08]

SEE TABLE 2

.0375 0.953

.280 7.11 REF

.037 0.94 REF

SECTION "A"-"A"

NOTES:

REPRESENTS A CRITICAL DIMENSION.

2. BURR ALLOWANCE: .0015[.038] MAX.

3. MINIMUM PUSHOUT FORCE: 6 OZ.

4. PARTS TO BE MOLD TO POSITION.

5. MAX VARIANCE OF .002[.05].

6. BTE-XXX-03-D BODY CAN BE SUBSTITUTED FOR BTE-XXX-03-D-A.

.0375 0.952 REF

PROPRIETARY NOTE

THIS DOCUMENT CONTAINS INFORMATION

CONFIDENTIAL AND PROPRIETARY TO

SAMTEC, INC. AND SHALL NOT BE REPRODUCED

OR TRANSFERRED TO OTHER DOCUMENTS OR

DISCLOSED TO OTHERS OR USED FOR ANY

PURPOSE OTHER THAN THAT WHICH IT WAS

OBTAINED WITHOUT THE EXPRESSED WRITTEN

CONSENT OF SAMTEC, INC.

ANGLES

520 PARK EAST BLVD, NEW ALBANY, IN 47150

PHONE: 812-944-6733

FAX: 812-948-5047

e-Mail: info@SAMTEC.com

code: 55322

DESCRIPTION:

DWG. NO.

DO NOT SCALE DRAWING

SHEET SCALE: 1.5:1

INSULATOR: LCP, COLOR: BLACK

TERMINAL: PHOS BRONZE

.8mm DOUBLE ROW TERMINAL ASSEMBLY

CBTE-XXX-XX-X-D-XX

10/04/2007

SHEET

F:\DWG\MISC\MKTG\CBTE-XXX-XX-X-D-XX-MKT.SLDDRW

BY:

B. PERRY
