LR3791X datasheet, PDF - EEWORLD Datasheet

LR3791X: DescriptionMicrocontroller, 4-Bit, MROM, 4MHz, CMOS, PDIP52, SHRINK, DIP-52; CategoryThe embedded processor and controller Microcontrollers and processors; File Size829KB，9 Pages; ManufacturerSHARP; Websitehttp://sharp-world.com/products/device/

Download Datasheet Parametric View All

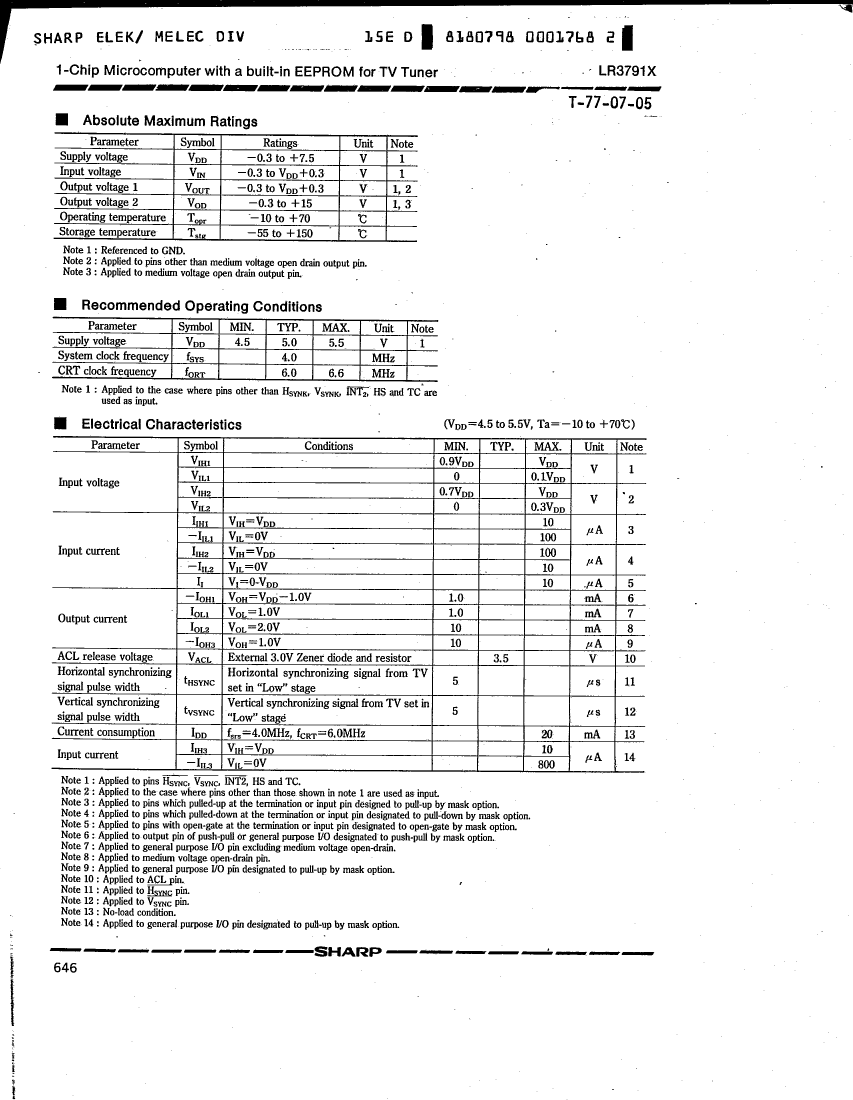

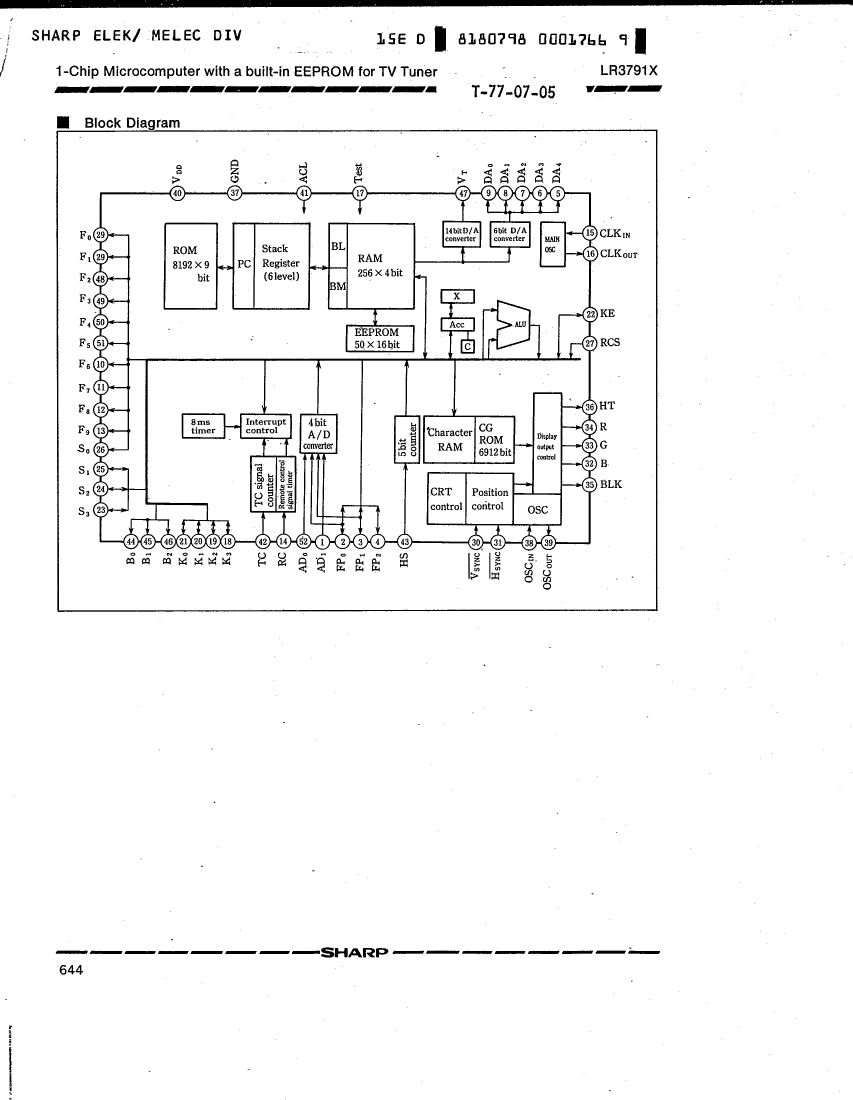

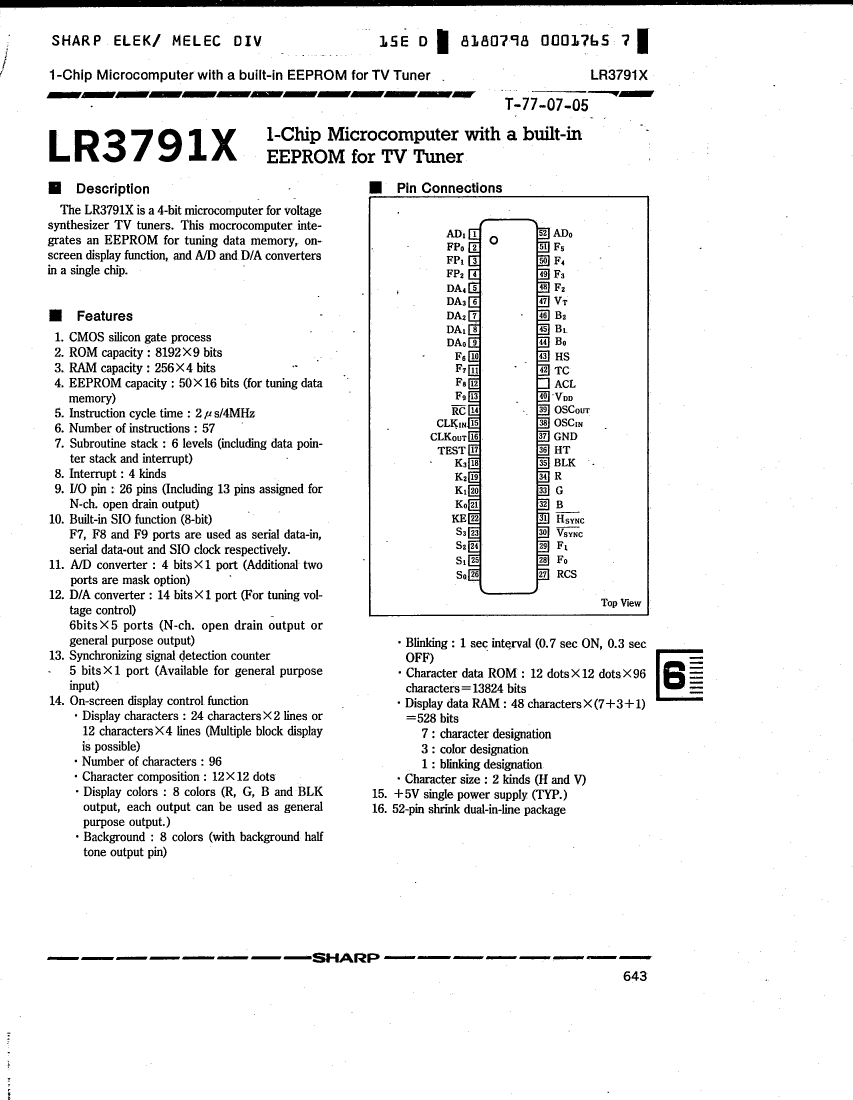

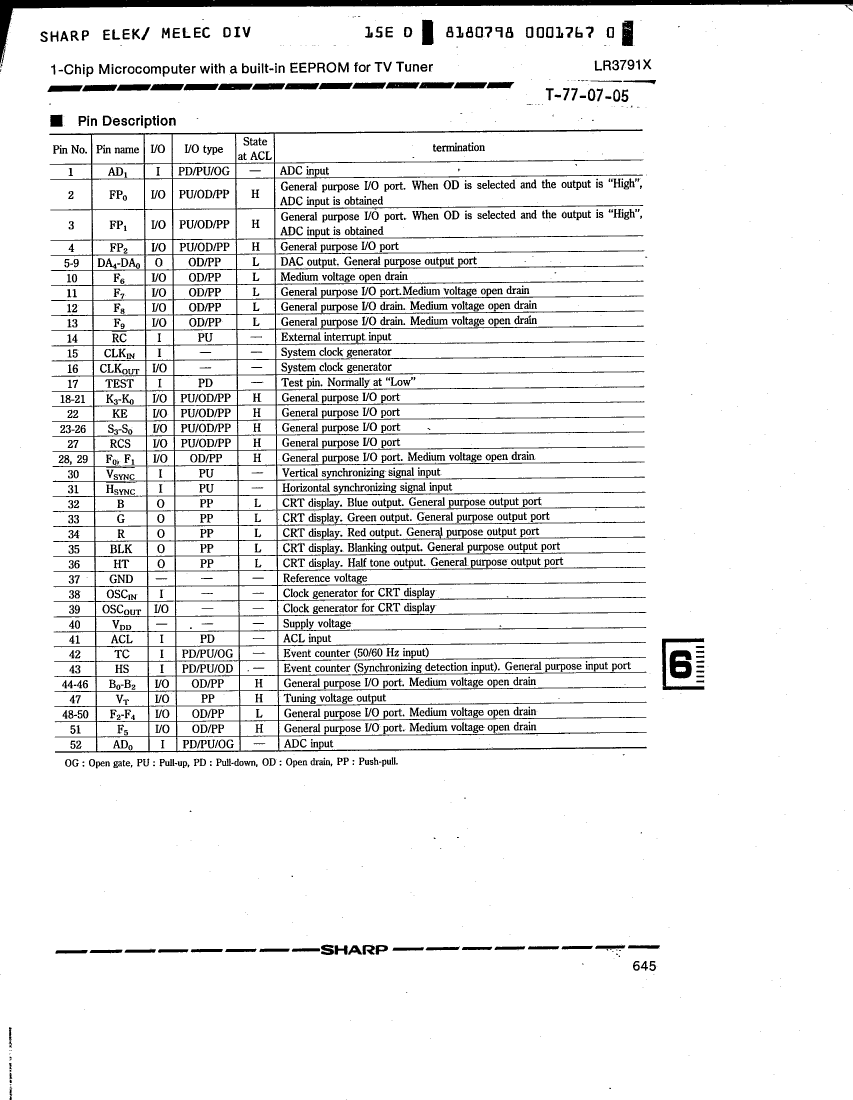

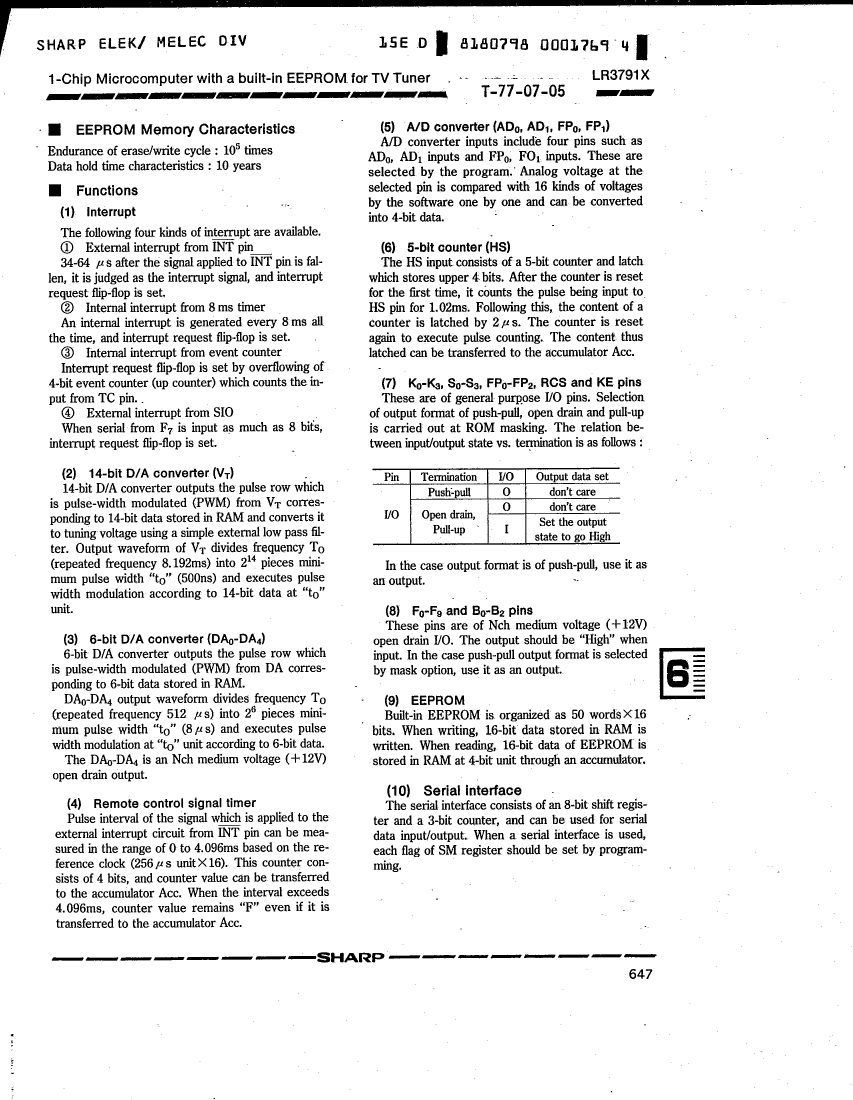

LR3791X Overview

Microcontroller, 4-Bit, MROM, 4MHz, CMOS, PDIP52, SHRINK, DIP-52

Parameter Name	Attribute value
Maker	SHARP
package instruction	SHRINK, DIP-52
Reach Compliance Code	unknown
Has ADC	YES
Address bus width
bit size	4
maximum clock frequency	4 MHz
DAC channel	YES
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T52
length	47 mm
Number of I/O lines	36
Number of terminals	52
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	SDIP
Package shape	RECTANGULAR
Package form	IN-LINE, SHRINK PITCH
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	5.4 mm
speed	4 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	1.778 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
