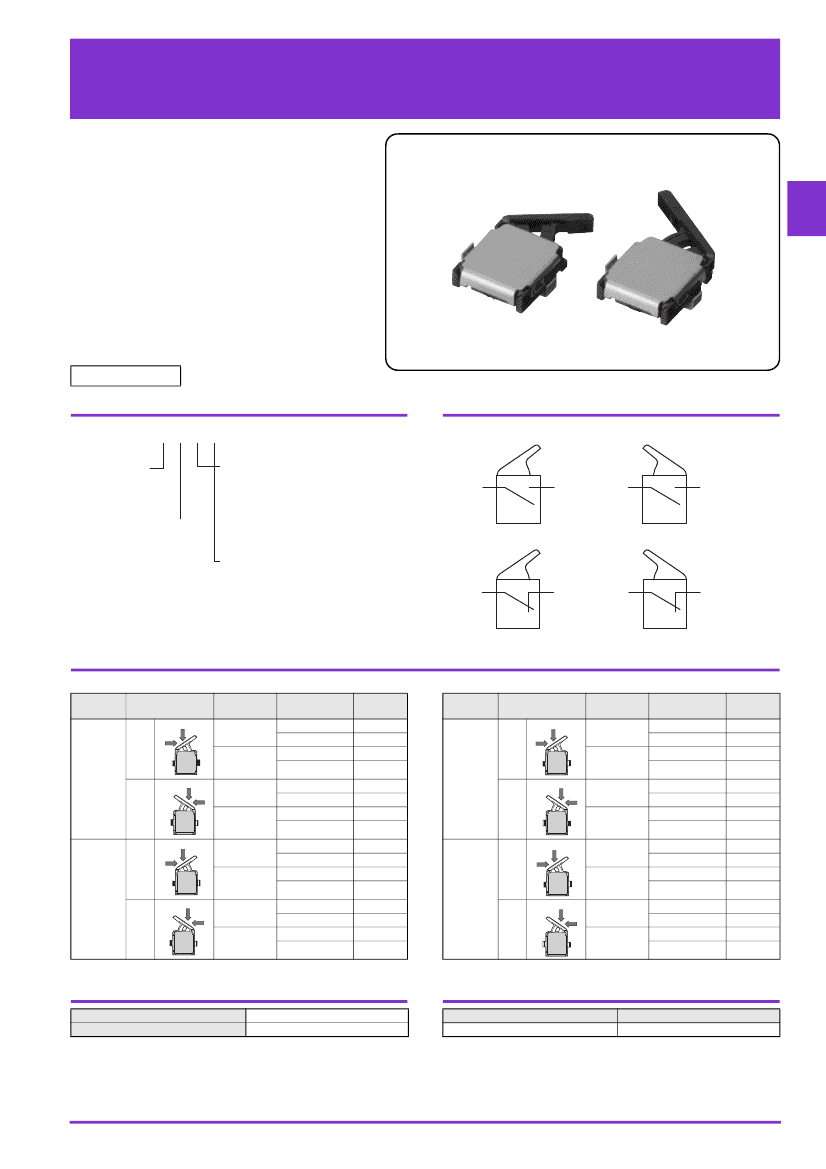

D3SH
Surface Mount Switch
The smallest detection
switch in the world. Ideal for
miniature mobile devices
(OMRON's data as of September 2007)
●
Ultra small size and ultra low profile contributing
to down-sizing of sets devices.
(3.0 × 3.4 × 0.9 mm (W × D × H))
●
A unique mechanism enables high contact
reliability and high precision operation.
●
Horizontal 2-way detection and long stroke for
easy installation are available.
●
Meet a variety of applications by contact and
lever variations
RoHS Compliant
3
S
H
Model Number Legend
1 2 3 4
D3SH
@@@@
1. Contact form
A: SPST-NO
B: SPST-NC
2. Boss of Positioning
0: without Boss
1: with Boss
3. Lever and Direction of Operation
R : Right operating standard lever
L : Left operating standard lever
R1: Right operating long lever
L1 : Left operating long lever
4. Packaging Specifications
None : 1,000 pcs.
-6 : 6,000 pcs.
Contact Form
●SPST-NO
COM
N.O
COM
N.O
●SPST-NC
COM
N.C
COM
N.C
Note: The cover has the same electric potential as the COM terminal.
List of Models
●Standard
Lever Models
Contact
form
Direction of
Operation
Boss of
Positioning
With Boss
Right
Without Boss
SPST-NO
With Boss
Left
Without Boss
With Boss
Right
SPST-NC
Without Boss
With Boss
Left
Without Boss
Model
D3SH-A1R
D3SH-A1R-6
D3SH-A0R
D3SH-A0R-6
D3SH-A1L
D3SH-A1L-6
D3SH-A0L
D3SH-A0L-6
D3SH-B1R
D3SH-B1R-6
D3SH-B0R
D3SH-B0R-6
D3SH-B1L
D3SH-B1L-6
D3SH-B0L
D3SH-B0L-6
Packing
form*
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
SPST-NC
●Long
Lever Models
Contact
form
Direction of
Operation
Boss of
Positioning
With Boss
Right
Without Boss
SPST-NO
With Boss
Left
Without Boss
With Boss
Right
Without Boss
With Boss
Left
Without Boss
Model
D3SH-A1R1
D3SH-A1R1-6
D3SH-A0R1
D3SH-A0R1-6
D3SH-A1L1
D3SH-A1L1-6
D3SH-A0L1
D3SH-A0L1-6
D3SH-B1R1
D3SH-B1R1-6
D3SH-B0R1
D3SH-B0R1-6
D3SH-B1L1
D3SH-B1L1-6
D3SH-B0L1
D3SH-B0L1-6
Packing
form*
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
1,000 pcs.
6,000 pcs.
* Products are packed with embossed tape.
* Products are packed with embossed tape.
Contact Specifications
Contact Specifications
Minimum applicable load
Slide
15
μA
at 3 VDC
Ratings
Rated voltage
5 VDC
Resistive load
1 mA
Note. The ratings values apply under the following test conditions:
(1) Ambient temperature: 20±2°C
(2) Ambient humidity: 65
±
5%
(3) Operating frequency: 20 operations/min
1
D3SH
Characteristics
Permissible operating speed
Permissible operating frequency
Insulation resistance
Contact resistance (initial value)
Dielectric strength
Vibration resistance *1
Shock resistance
Durability *2
Mechanical
Electrical
Surface Mount Switch
3
S
H
Between terminals of the same polarity
Malfunction
Durability
Malfunction *1
Mechanical
Electrical
Ambient operating temperature
Ambient operating humidity
Weight
1 mm to 300 mm/s
60 operations/min
60 operations/min
100 MΩ min. (at 100 VDC with insulation tester)
3Ω max.
100 VAC (50/60 Hz for 1 min)
10 to 55 Hz, 1.5 mm double amplitude
1000 m/s
2
{approx. 100G} max.
300 m/s
2
{approx. 30G} max.
150,000 operations min. (20 operations/min)
100,000 operations min. (20 operations/min)
-25 to
+85°C
(at ambient humidity 60% max.) (with no icing or condensation)
85% max. (for
+5
to
+35°C)
Approx. 0.02 g
Note: The data given above are initial values.
*1. The given values apply for Total Travel Position. Close or open circuit of the contact is 1ms max.
*2. For testing conditions, consult your OMRON sales representative.
Dimensions
(Unit: mm)
and Operating Characteristics

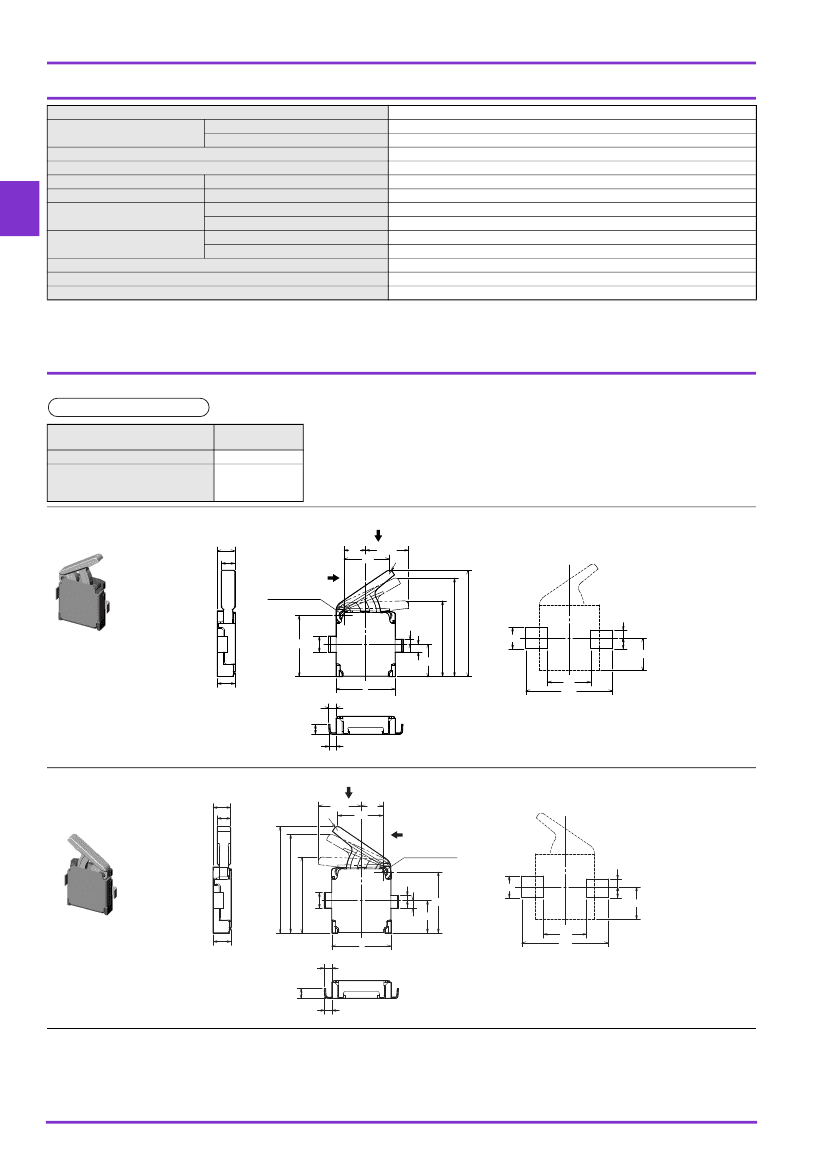

The
@
is replaced with the code for the contact form that you need. See the "List of Models" for available combinations of models.
Standard Lever Models
Model
Operating Characteristics
Operating Force
Free Position
Operating Position
Total Travel Position
OF Max.
FP
OP
TTP
D3SH-@@R
D3SH-@@L
0.3 N {31 gf}
5.4±0.2 mm
5.0±0.2 mm
3.8±0.15 mm
A
●Right
operating - without Boss
D3SH-@0R
0.9
1.1
2.3
B
0.68
(2.2)
R0.2
PCB Land Dimensions (Reference)
(TOP VIEW)
Total Travel Position
Operating Position
Center of rotation
0.25
3.1 0.8
0.4
1.65
Free Position
1.1
0.4
0.55
1.65
0.9
±0.05
0.39
3
2.2
4.4
0.5
0.36
●Left
operating - without Boss
D3SH-@0L
（0.9）
0.68
A
（2.2）
1.1
R0.2
2.3
B
Operating Position
Center of rotation
Total Travel Position
PCB land dimensions (reference)
(TOP VIEW)
Free Position
0.25
0.8
0.4
3.1
1.1
0.4
0.55
1.65
1.65
2.2
4.4
0.9
±0.05
0.39
3
0.5
0.36
Note 1. Unless otherwise specified, a tolerance of
±0.15
mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ($) and B direction (",
!)
has the same operation characteristic values as of the A direction.
2
D3SH

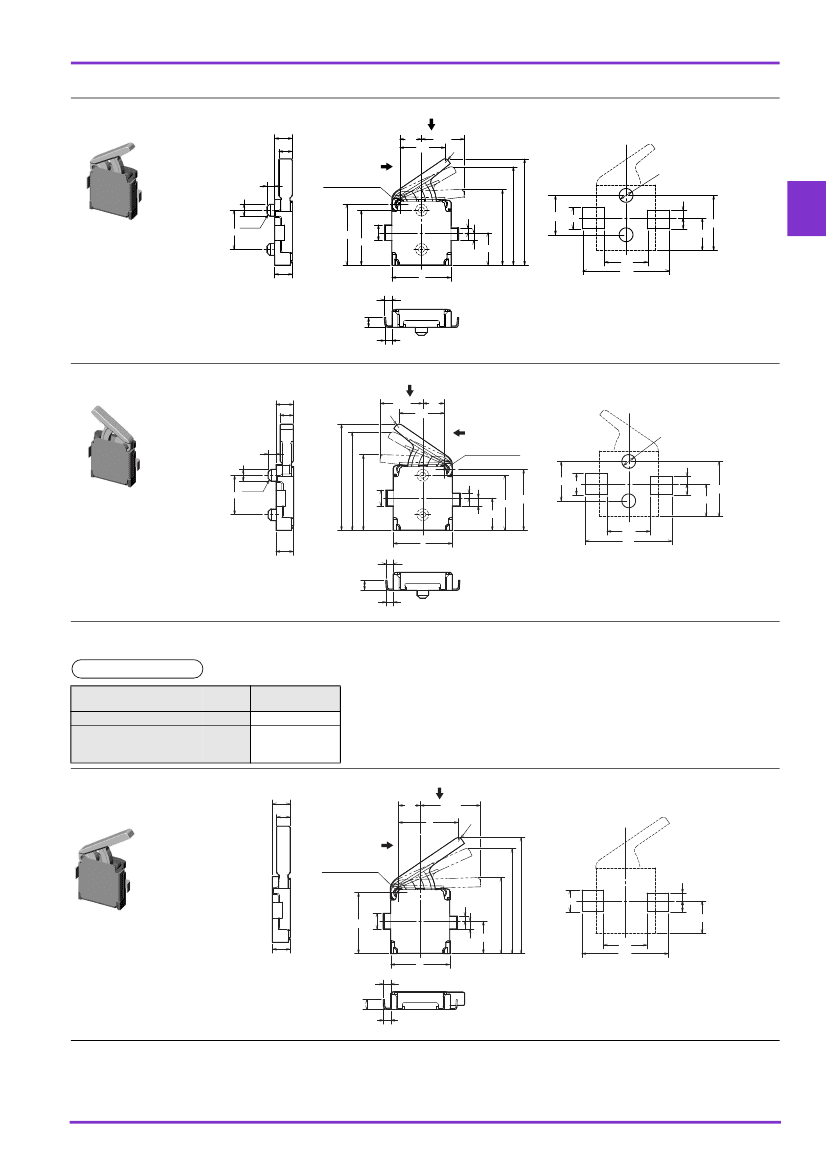

●Right
operating - with Boss
D3SH-@1R
A
0.9
0.68
B
0.4
0.6
±0.05
dia.
Center of rotation
Total Travel Position
Operating Position
Free Position
Surface Mount Switch
1.1
2.3
(2.2)
R0.2
PCB mounting hole and land dimensions (reference)
(TOP VIEW)
2-0.7
+0.07
0
dia.
0.25
C0.15
2
±0.1
0.8
3.1
2.8
±0.07
0.4
1.65
2
±0.05
1.1
0.4
0.55 2.8
1.65
2.2
4.4
0.9
±0.05
0.39
3
3
S
H
0.5
0.36
●Left
operating - with Boss
D3SH-@1L
A
（0.9）
0.68
（2.2）
1.1
R0.2
2.3
B
Operating Position
PCB mounting hole and land dimensions (reference)
(TOP VIEW)
2-0.7
+0.05
dia.
0
Free Position
Total Travel Position
0.4
0.6
±0.05
dia.
Center of rotation
0.25
0.8
0.4 2.8
±0.07
3.1
1.65
C0.15
2
±0.1
2
±0.05
1.1
0.4
2.8
0.55
1.65
3
0.9
±0.05
0.39
2.2
4.4
0.5
0.36
Note 1. Unless otherwise specified, a tolerance of
±0.15
mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ($) and B direction (",
!)
has the same operation characteristic values as of the A direction.

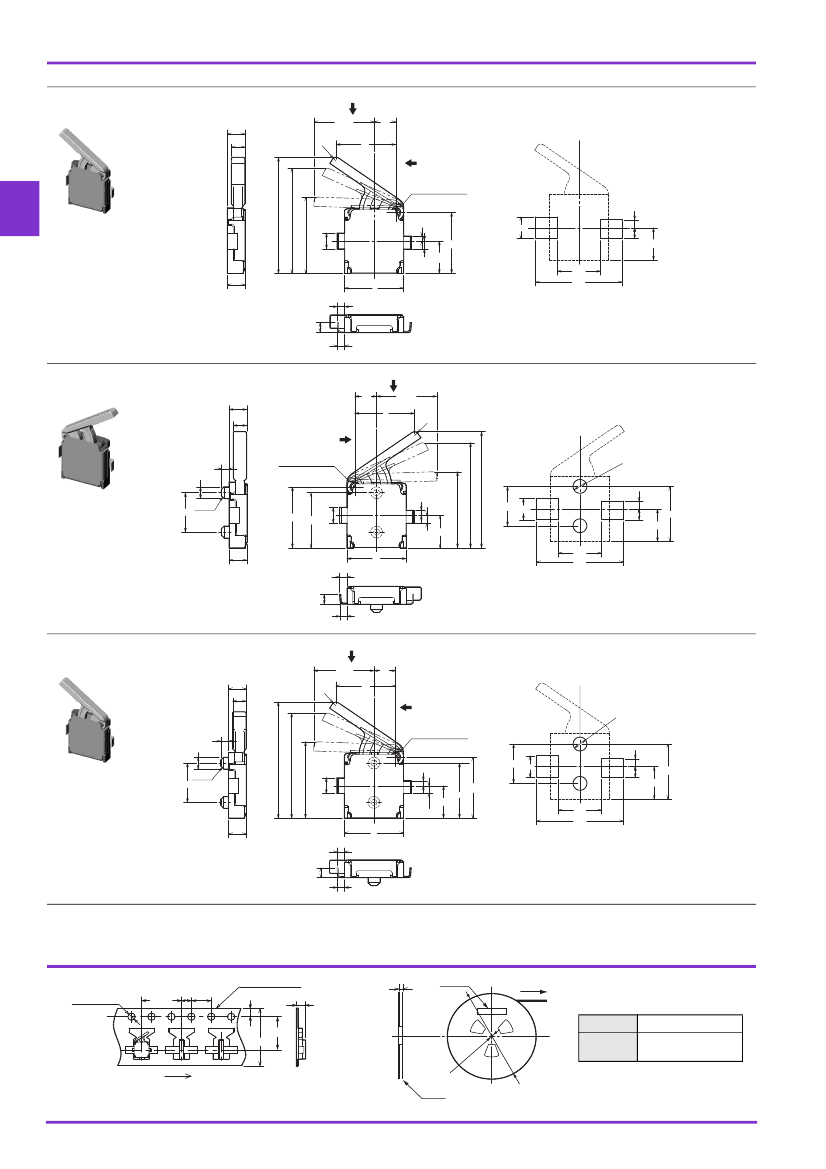

Long Lever Models
Model
Operating Characteristics
Operating Force
Free Position
Operating Position
Total Travel Position
OF Max.
FP
OP
TTP
D3SH-@@R1
D3SH-@@L1
0.24 N {24 gf}
5.9±0.3 mm
5.4±0.3 mm
3.8±0.2 mm
A
0.9
0.68
1.1
3
B
Center of rotation
Total Travel Position
Operating Position
Free Position
(3.1)
R0.2
●Right
operating - without Boss
D3SH-@0R1
PCB land dimensions (reference)
(TOP VIEW)
0.25
3.1 0.8
0.4
1.65
0.9
±0.05
3
0.39
1.1
0.4
0.55
1.65
2.2
4.4
0.5
0.36
Note 1. Unless otherwise specified, a tolerance of
±
0.15 mm applies to all dimensions.
Note 2. The operating characteristics are for operation in the A direction ($) and B direction (",
!)
has the same operation characteristic values as of the A direction.
3
D3SH
Precautions
★
Please refer to "Common Precautions" for correct use.
Surface Mount Switch
Caution
●Electrical
Ratings
• Confirm the contact load in order to select an appropriate
switch rating.
• Do not apply an excessive electrical load to the contacts,
otherwise the contacts may weld, resulting in a short circuit or
burning.
• Do not use flow soldering or hand soldering to solder
terminals.
• Conduct reflow soldering within the range shown in the
terminal temperature profile below.
Some reflow soldering devices have extremely high peak
values. Do a test in advance to confirm proper soldering
conditions.
• Do not conduct reflow soldering more than twice. Also provide
a time interval of at least five minutes between the first and
second reflow soldering processes to allow the Switch to
return to room temperature.
Heating the Switch continuously (without an interval) may
cause the edges of the Switch to melt and degrade the
characteristics.
• When printing for a cream solder process, a 0.13 mm screen
thickness is recommended.
• Be sure to provide local ventilation.
MAX255°C
220°C
180°C
150°C
Correct Use
●Mounting
• The cover has the same electric potential as the COM
terminal. Do not short-circuit the cover with a NO or NC
terminal when mounting the cover.
●Terminal
Connection
Cover
3
S
H
• Be careful of the following points. Incorrect handling may lead
to insufficient actuator return, Switch damage, or reduced
durability.
- Set the operating body in line with the direction of the
actuator movement, and make sure that the operating
body is completely separate from the actuator when the
Switch is in the free position (FP). When the actuator is
operated from the crosswise direction of the Switch, make
sure that the corner of the operating body has a minimum
radius of R1.
R1 min.
Operating body
Preheating time
90 to 120 s
Heating time
40 s max.
●Printed
Circuit Boards
Special attention must be paid to the handling of printed circuit
boards after a Switch has been mounted onto them. Airborne
PCB particles may penetrate the interior of the Switch when
printed circuit boards are separated by cutting. Also, do not stack
printed circuit boards that have Switches mounted on them.
●Product
Specification Details
- Set the Switch stroke to 70% to 100% of the overtravel
(the difference between the operating position and the
total travel position).
- Do not subject the Switch to operations that involve strong
impact.
- Do not use the Switch as a stopper.
- Do not apply excessive loads to the cover or operate the
actuator from a direction other than a specified operating
direction.
- Do not use an adhesive to secure the Switch.
• A lubricant is used in the Switch. Some of the lubricant may
seep out because the Switch does not have an airtight
construction. Consider this possibility with respect to the
usage conditions when designing or using the Switch.
• This document provides only a partial list of specifications. It is
recommended that you request complete drawings and
specifications prior to purchasing or using the product.
●Application
Environment
Do not use the Switch in locations that are subject to toxic gas,
silicon, excessive dust, excessive dirt, high temperatures, high
humidity, sudden temperature changes, water splashes, or oil
splashes.
Otherwise, damage resulting by faulty contact of the Switch
contacts, corrosion, or other causes, or other functional faults
may occur.
●Insulation
and Wiring
Be sure that the installation conditions provide a sufficient
insulation distance between Switch terminals and other metal
parts, lands, etc.
●Cleaning
The Switch does not have an airtight construction, and it must
not be cleaned with cleaning fluids. Malfunctions may occur if the
cleaning fluid penetrates the interior of the Switch together with
flux or foreign matter from the surface of the PCB.
●Confirmation
with Actual Equipment
Be sure to confirm the quality of the product under the load and
environmental conditions that will be used during actual
applications.
5
Embedded System
京公网安备 11010802033920号
EEWORLD
