BU8329 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Telecom circuit> BU8329

BU8329: DescriptionTelephone Dialer Circuit, CMOS, PDIP22, DIP-22; CategoryWireless rf/communication Telecom circuit; File Size209KB，12 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

BU8329 Overview

Telephone Dialer Circuit, CMOS, PDIP22, DIP-22

BU8329 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP22,.3
Contacts	22
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T22
JESD-609 code	e0
length	26.3 mm
damage rate	1:2
Number of functions	1
Number of terminals	22
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP22,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2.5 V
Certification status	Not Qualified
reserve	REPERTORY
Maximum seat height	4.45 mm
Maximum slew rate	0.002 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Telecom integrated circuit types	TELEPHONE DIALER CIRCUIT
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

BU8329 Preview

Communication ICs

13-station repertory pulse / tone dialer

for telephone set

BU8329 / BU8329F

The BU8329 and BU8329F are large scale integrated circuits designed for use with telephones, with all of the

pulse / tone dialer functions necessary for basic telephone operation. These ICs are equipped with an internal repertory

memory containing 13 stations and 16 digits.

FApplications

Telephones

FFeatures

1) The chip includes both a pulse and tone dialer, mak-

ing it possible to dial in either pulse or tone mode.

2) Wide operating voltage range of 2.0V to 5.5V.

3) Internal on-hook dial control function and hold control

function.

4) A built-in memory enables redialing of up to 32 digits.

5) Repertory dial function

: 3 stations and 16 digits for 1-touch,

: 10 stations and 16 digits for 2-touch.

6) Ceramic resonator of 3.579545MHz used.

7) Internal digital pause timer.

8) Internal flash function.

9) Compact SOP 24 pin and DIP 22 pin packages used.

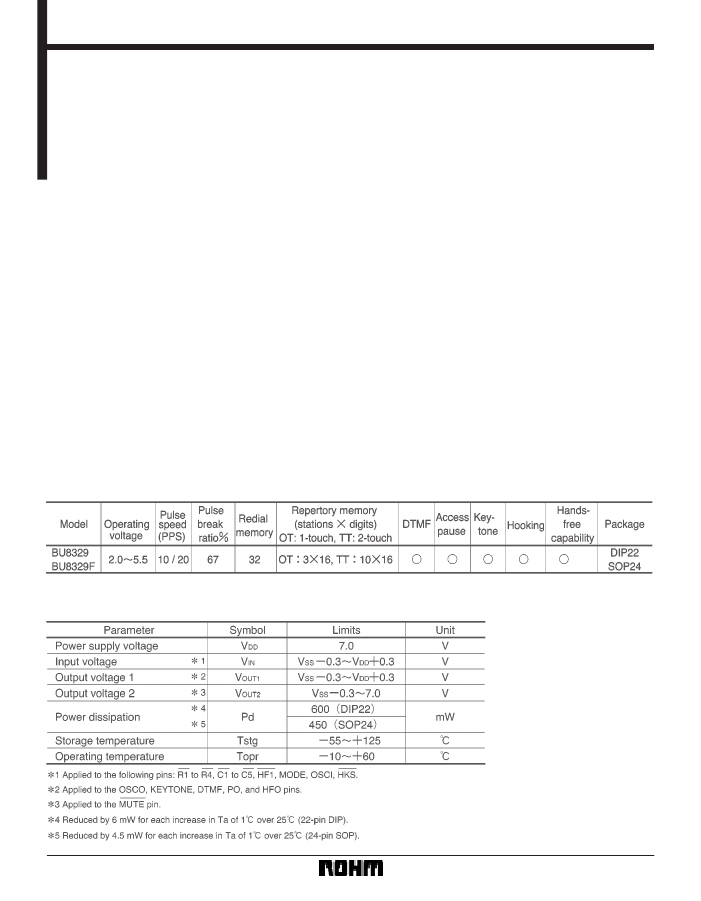

FSelection

guide

FAbsolute

maximum ratings (Ta=25_C)

151

Communication ICs

FRecommended

operating conditions (Ta=25_C)

BU8329 / BU8329F

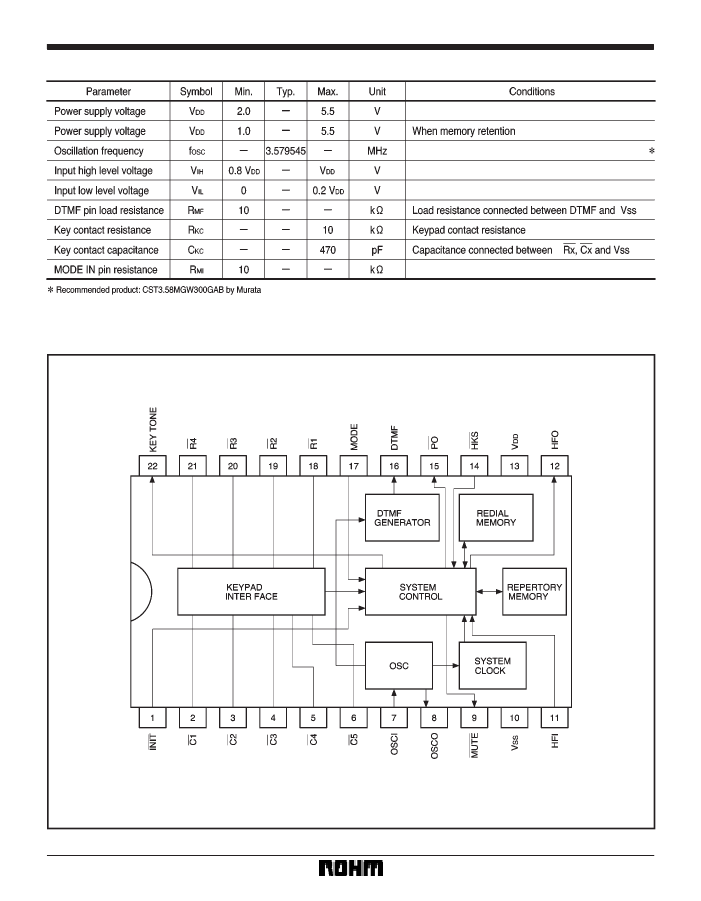

FBlock

diagram

152

Communication ICs

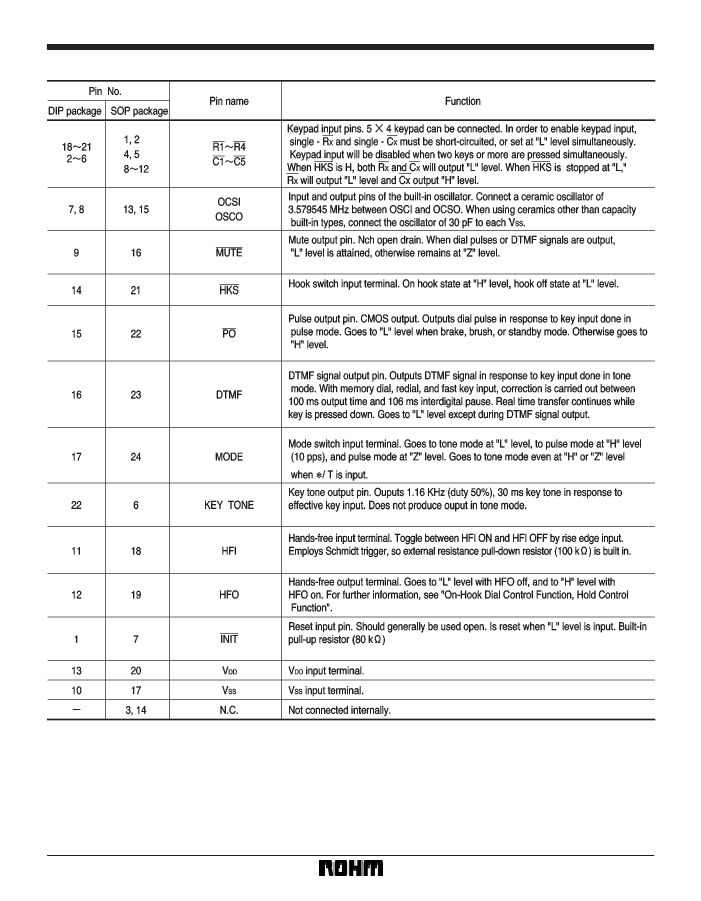

FPin

descriptions

BU8329 / BU8329F

153

Communication ICs

BU8329 / BU8329F

154

Communication ICs

BU8329 / BU8329F

155

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BU8329 Related Products

	BU8329	BU8329F
Description	Telephone Dialer Circuit, CMOS, PDIP22, DIP-22	Telephone Dialer Circuit, CMOS, PDSO24, SOP-24
Is it Rohs certified?	incompatible	incompatible
Maker	ROHM Semiconductor	ROHM Semiconductor
Parts packaging code	DIP	SOIC
package instruction	DIP, DIP22,.3	SOP, SOP24,.3
Contacts	22	24
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDIP-T22	R-PDSO-G24
JESD-609 code	e0	e0
length	26.3 mm	15 mm
damage rate	1:2	1:2
Number of functions	1	1
Number of terminals	22	24
Maximum operating temperature	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP22,.3	SOP24,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	2.5 V	2.5 V
Certification status	Not Qualified	Not Qualified
reserve	REPERTORY	REPERTORY
Maximum seat height	4.45 mm	1.9 mm
Maximum slew rate	0.002 mA	0.002 mA
Nominal supply voltage	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Telecom integrated circuit types	TELEPHONE DIALER CIRCUIT	TELEPHONE DIALER CIRCUIT
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	5.4 mm
