BU903 datasheet, PDF - EEWORLD Datasheet

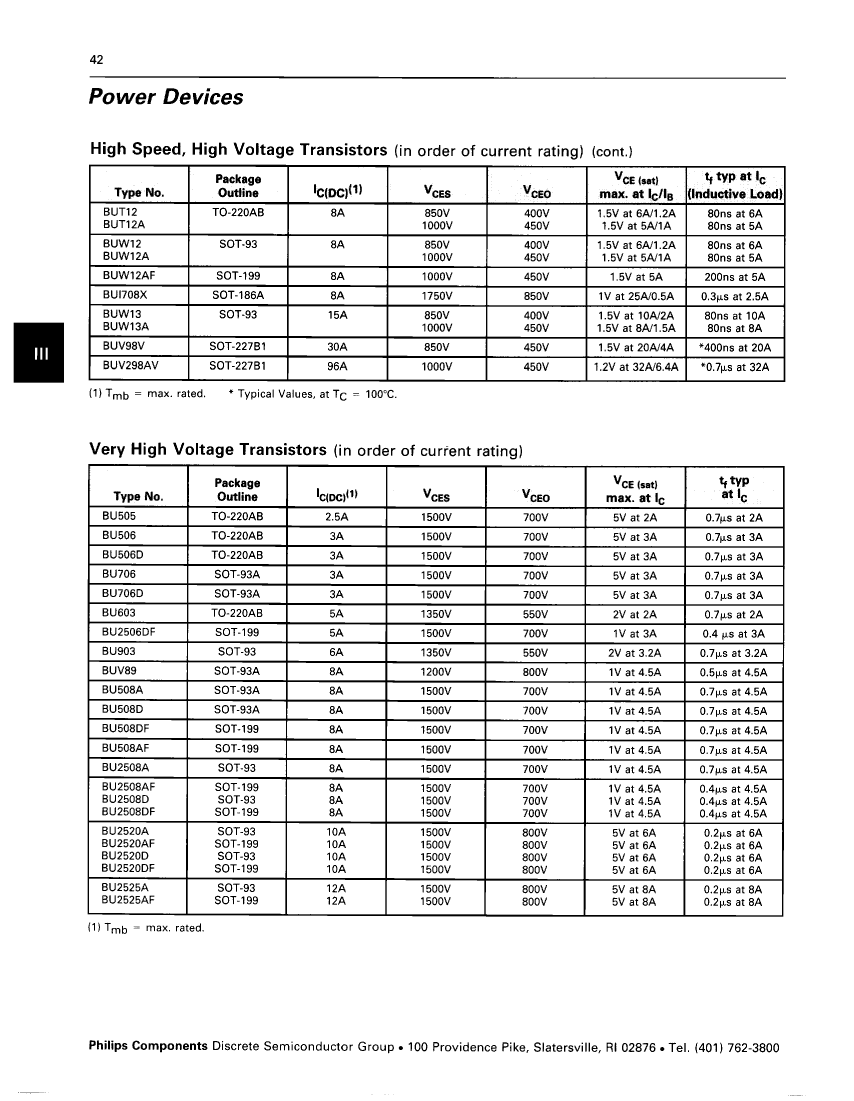

BU903: DescriptionTRANSISTOR 6 A, 550 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size47KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BU903 Overview

TRANSISTOR 6 A, 550 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power

Parameter Name	Attribute value
Maker	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknown
Maximum collector current (IC)	6 A
Collector-emitter maximum voltage	550 V
Configuration	SINGLE
JESD-30 code	R-PSFM-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
VCEsat-Max	2 V

	BU903	BUI708X	BUV298AV	BUV98V
Description	TRANSISTOR 6 A, 550 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power	TRANSISTOR 8 A, 850 V, NPN, Si, POWER TRANSISTOR, BIP General Purpose Power	96A, 450V, NPN, Si, POWER TRANSISTOR	30A, 450V, NPN, Si, POWER TRANSISTOR
Maker	NXP	NXP	NXP	NXP
package instruction	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PSFM-T3	FLANGE MOUNT, R-PUFM-D3	FLANGE MOUNT, R-PUFM-D3
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum collector current (IC)	6 A	8 A	96 A	30 A
Collector-emitter maximum voltage	550 V	850 V	450 V	450 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
JESD-30 code	R-PSFM-T3	R-PSFM-T3	R-PUFM-D3	R-PUFM-D3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	SOLDER LUG	SOLDER LUG
Terminal location	SINGLE	SINGLE	UPPER	UPPER
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON
VCEsat-Max	2 V	1 V	1.2 V	1.5 V
