2DC79PF171 datasheet, PDF - EEWORLD Datasheet

2DC79PF171: DescriptionD Type Connector, 79 Contact(s), Male, 0.075 inch Pitch, #4-40, Receptacle; CategoryThe connector The connector; File Size857KB，6 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

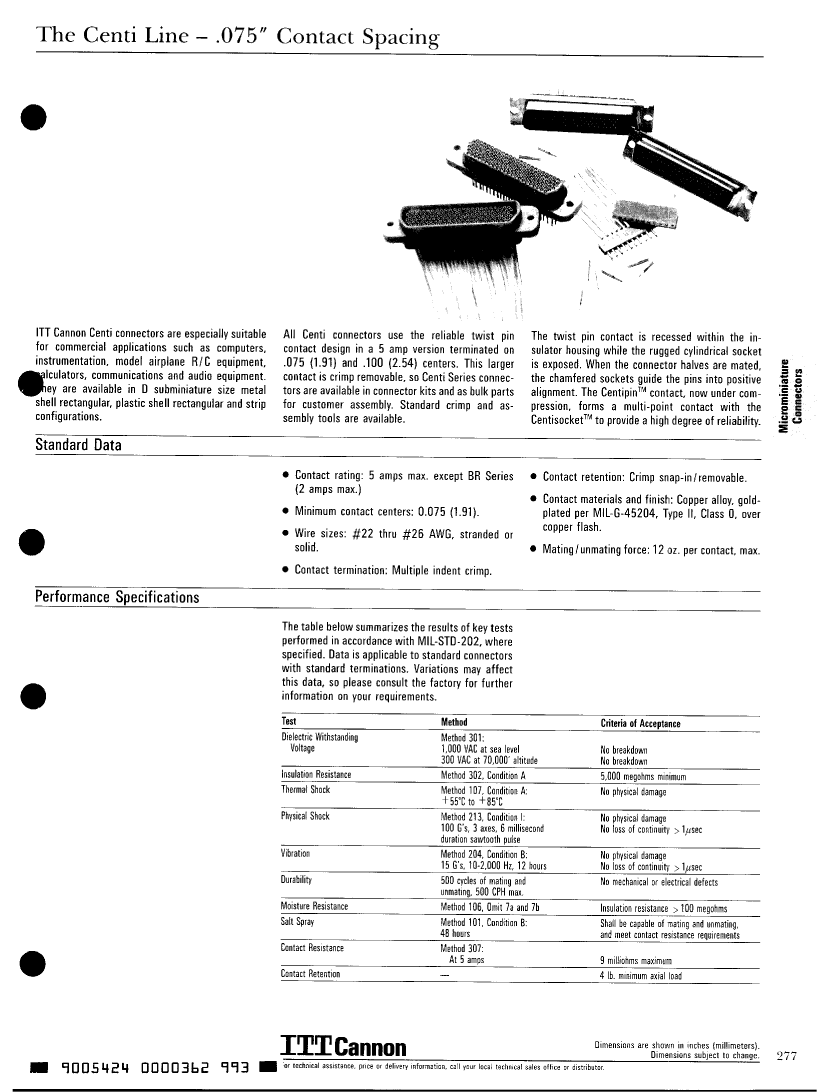

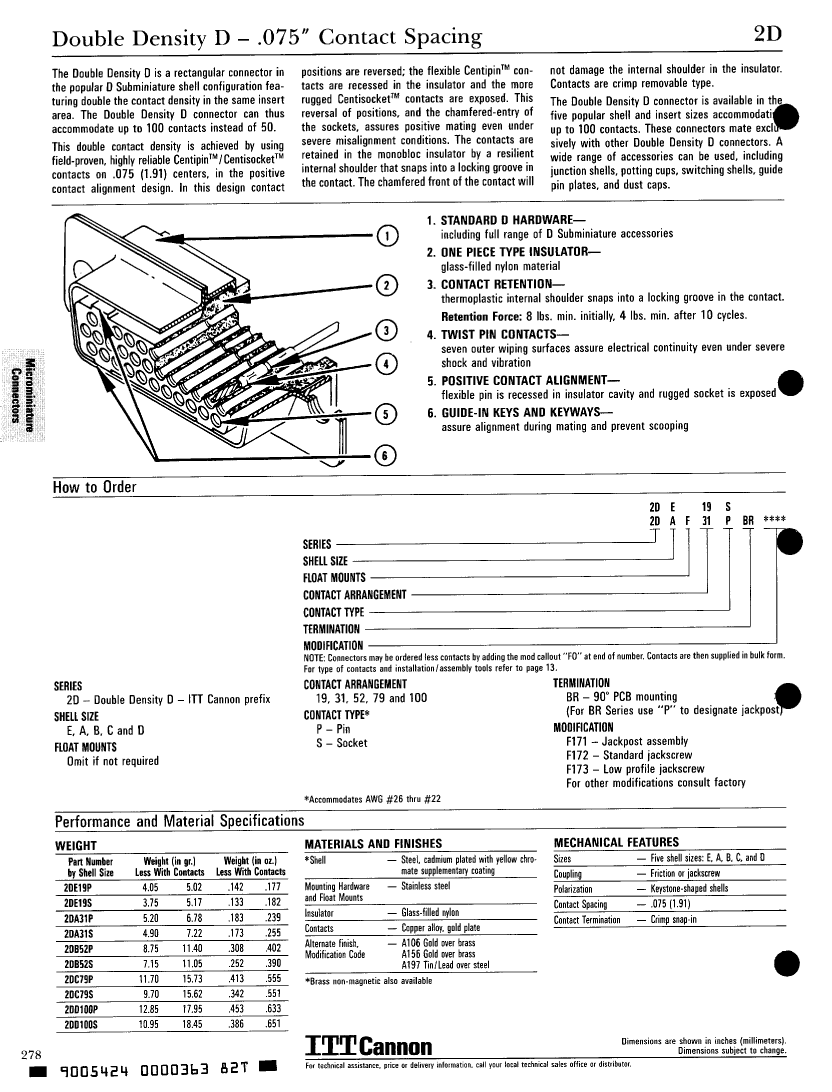

2DC79PF171 Overview

D Type Connector, 79 Contact(s), Male, 0.075 inch Pitch, #4-40, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99

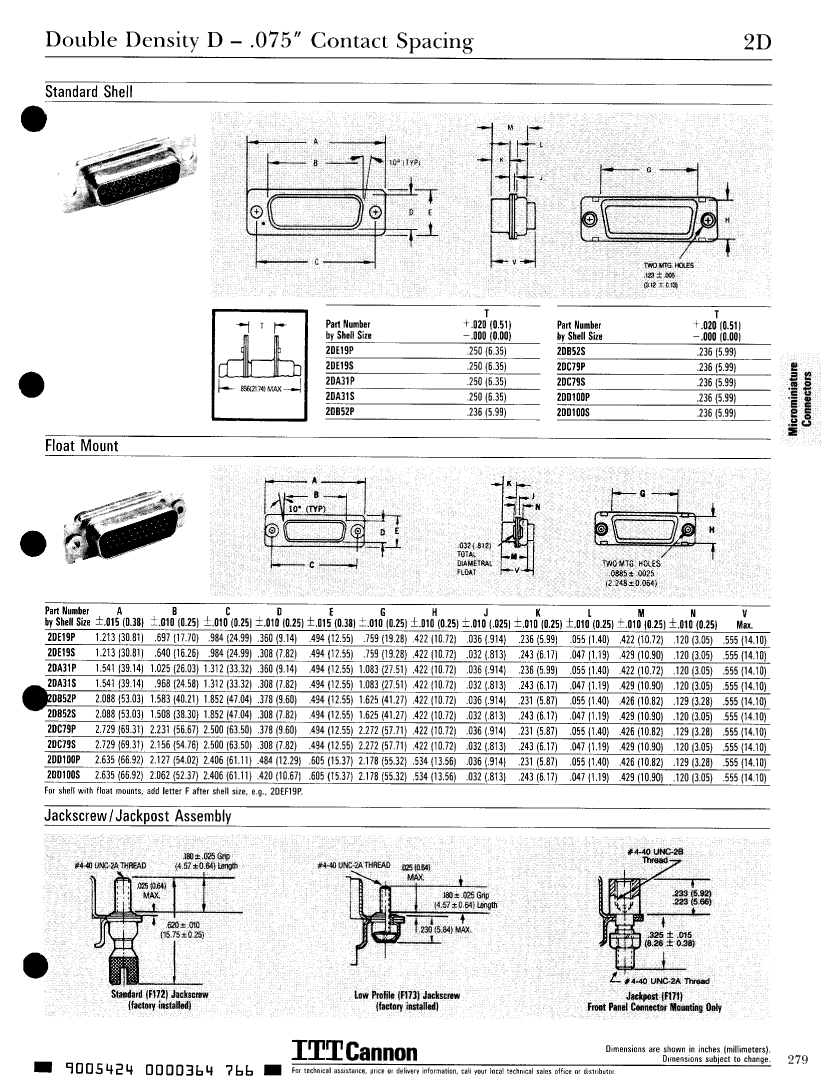

body width	0.494 inch
subject depth	0.324 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY

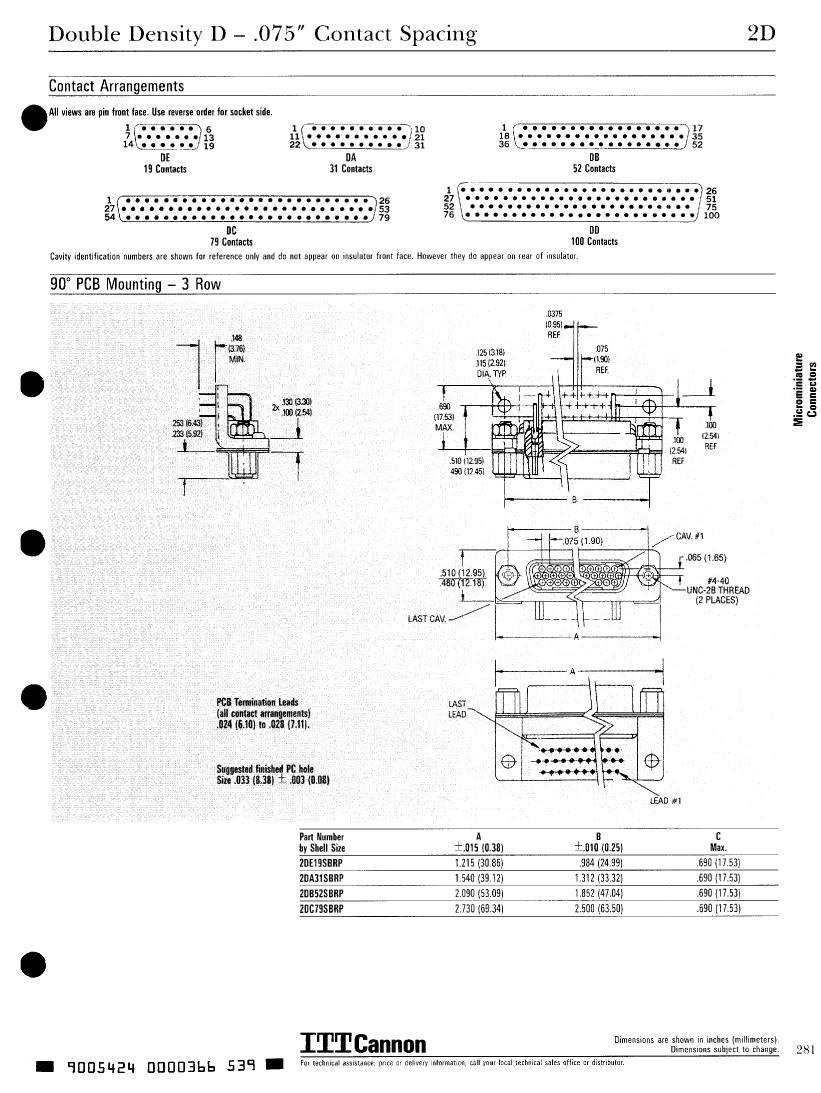

contact mode	STAGGERED
Contact resistance	9 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	2D

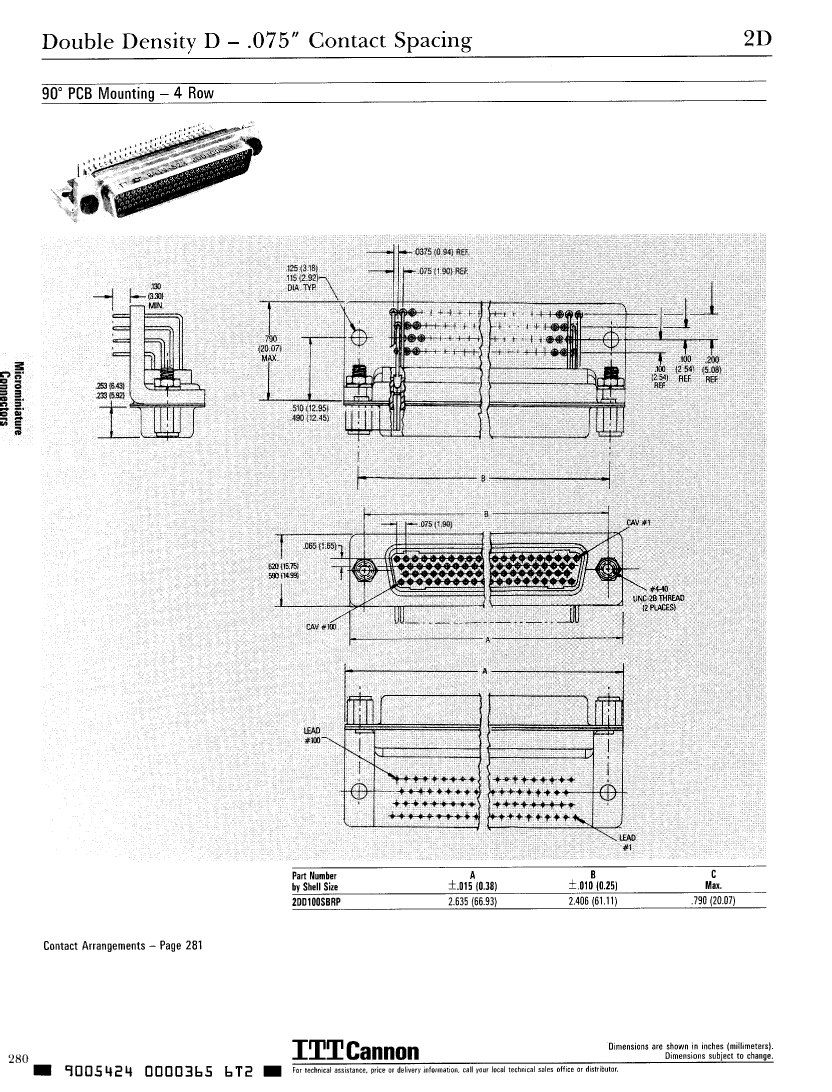

Plug contact pitch	0.075 inch
Match contact row spacing	0.075 inch
Installation option 1	#4-40
Installation option 2	JACKPOST
Number of rows loaded	3
Maximum operating temperature	85 °C
Rated current (signal)	5 A
reliability	COMMERCIAL
Shell surface	CADMIUM/YELLOW CHROMATE
Shell material	STEEL
Total number of contacts	79
Maximum wire diameter	22 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	3.336 N
Base Number Matches	1
