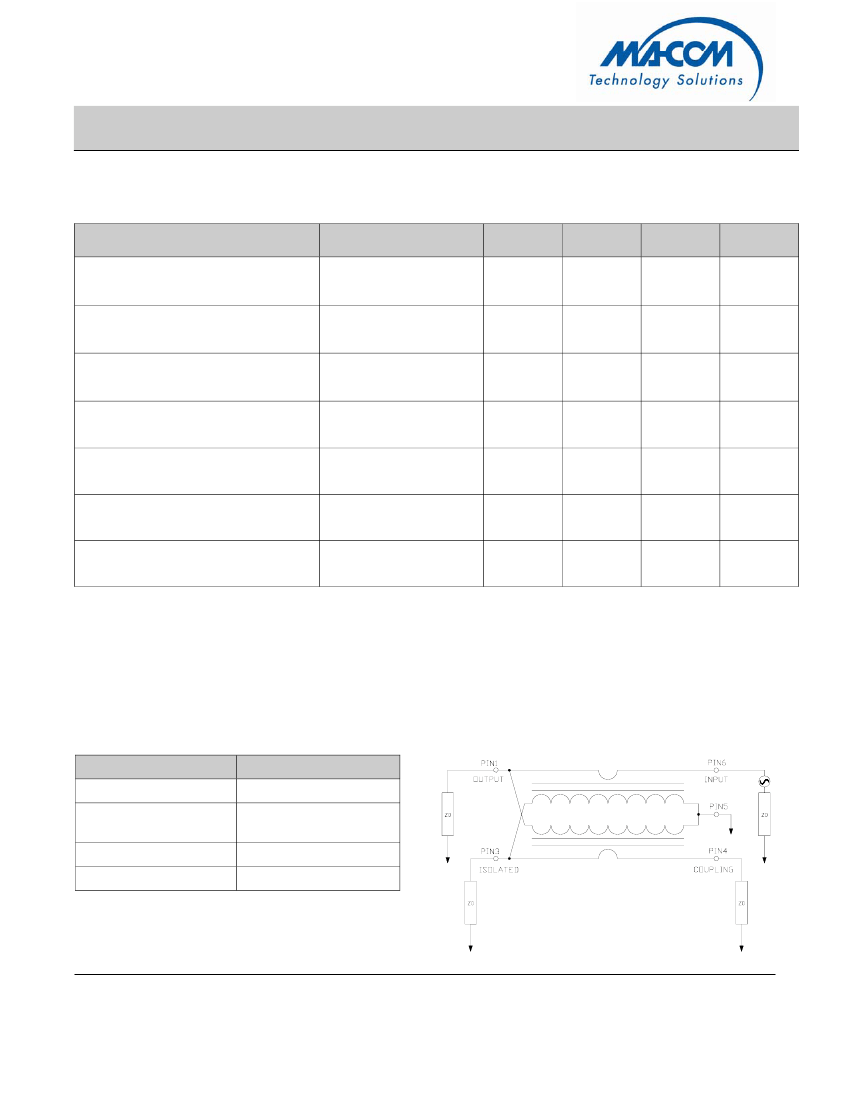

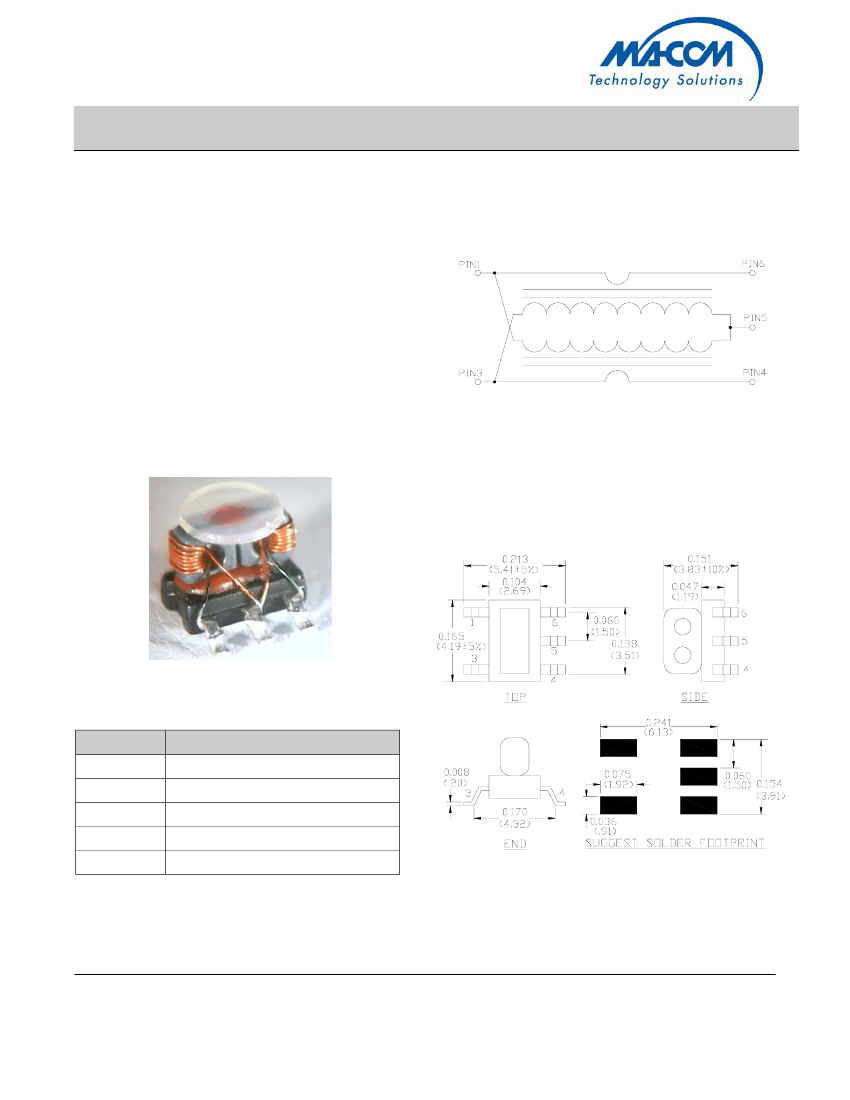

MACP-010249-CI08A0
Coupler, 18dB Coupler
5 to 1200 MHz
Rev. V1
Features
•
•
•
•
•
•
•
•
18dB Impedance ratio
Excellent Insertion Loss
Surface mount
Available on tape and reel
260°C reflow compatible
RoHS* compliant and lead free
Excellent temperature stability
Can be used in both 50Ω and 75Ω systems
Schematic
Description
M/A-Com Technology Solutions MACP-010249-
CI08A0 is a 18 dB Coupler in a low cost, surface
mount package. Ideally suited for broadband CATV
applications.
Component Dimensions
Pin Configuration
Pin no.
1
3
4
5
6
Function
Output
Isolated port (Z
0
termination)
Coupling
Ground
Input
Dimensions in inches [mm] Tolerance: .xx ± .02, .xxx ± .010,
unless otherwise stated
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MACP-010249-CI08A0
Coupler, 18dB Coupler
5 to 1200 MHz
Rev. V1
Electrical Specifications: T
A
= 25°C, 0dBm, Z
0
= 75Ω, P
in
= 0dBm
Parameter
Coupling
(Pin 6 to Pin 4)
Main Line Loss
(Pin 6 to Pin 1)
Input Return Loss
(Pin6)
Output Return Loss
(Pin1)
Coupling Return Loss
(Pin4)
Isolation Return Loss
(Pin3)
Isolation
(Pin6 - Pin3)
Frequency
5 - 1200MHz
5 - 1200MHz
5 - 1200MHz
5 - 1200MHz
5 - 1200MHz
5 - 1200MHz
5 - 50MHz
50 - 1200MHz
Units
dB
dB
dB
dB
dB
dB
dB
dB
Min
-
-
18
18
18
18
35
24
Typ
18
0.6
34
33
28
34
42
32
Max
±1.0
0.9
-
-
-
-
-
-
Recommended Maximum Ratings
Parameter
Input power
DC current
(tested at 5V)
Operating Temperature
Storage Temperature
Value
At least 250mW
At least 30mA
-40°C to +85°C
-55°C to +100°C
Application Circuit
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MACP-010249-CI08A0
Coupler, 18dB Coupler
5 to 1200 MHz

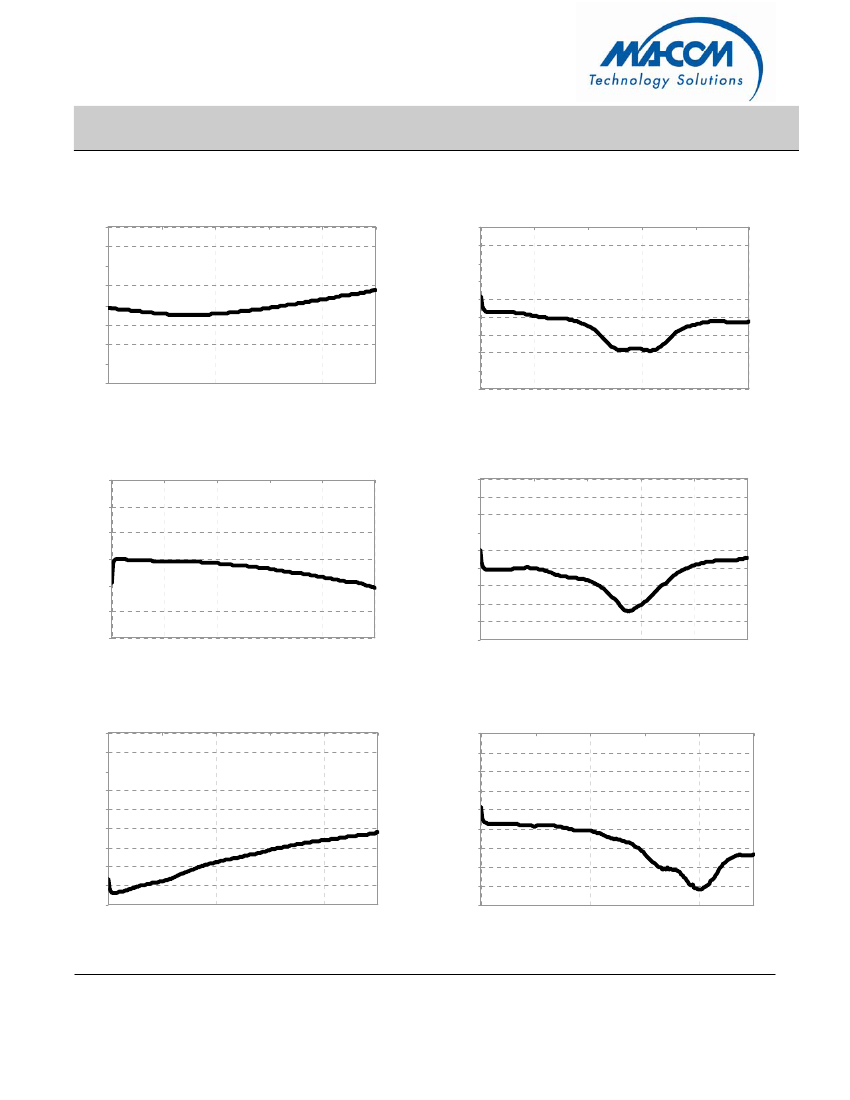

Typical Performance Curves: T
A
= 25°C, 0dBm, Z
0
= 75Ω, P
in
= 0dBm
Coupling: (Pin 6 to 4)
-14
-15
-16
-17
Rev. V1
Return Loss: Input (Pin6)
0
-5
-10
-15
-20
-25
-30
-35
-40
-45
5
244
483
722
961
1200
dB
-18
-19
-20
-21
-22
5
244
483
722
961
1
200
Frequency (MHz)
dB
Frequency (MHz)
Main Line Loss: (Pin 6 to 1)
0.0
-0.2
-0.4
Return Loss: Output (Pin1)
0
-5
-10
-15
-20
-25
-30
-35
-40
-45
dB
-0.6
-0.8
-1.0
-1.2
5
244
483
722
961
1200
dB
5
244
483
722
961
1200
Frequency (MHz)
Fre que ncy (M Hz)
Isolation (Pin6 to 3)
0
-5
-10
-15
Return Loss: Coupling (Pin4)
0
-5
-10
-15
dB
-2 5
-3 0
-3 5
-4 0
-4 5
5
244
483
72 2
961
12 0 0
dB
-2 0
-20
-25
-30
-35
-40
-45
5
244
48 3
722
961
12 00
Fre que ncy (M Hz)
3
Fre que ncy (M Hz)
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MACP-010249-CI08A0
Coupler, 18dB Coupler
5 to 1200 MHz
Rev. V1

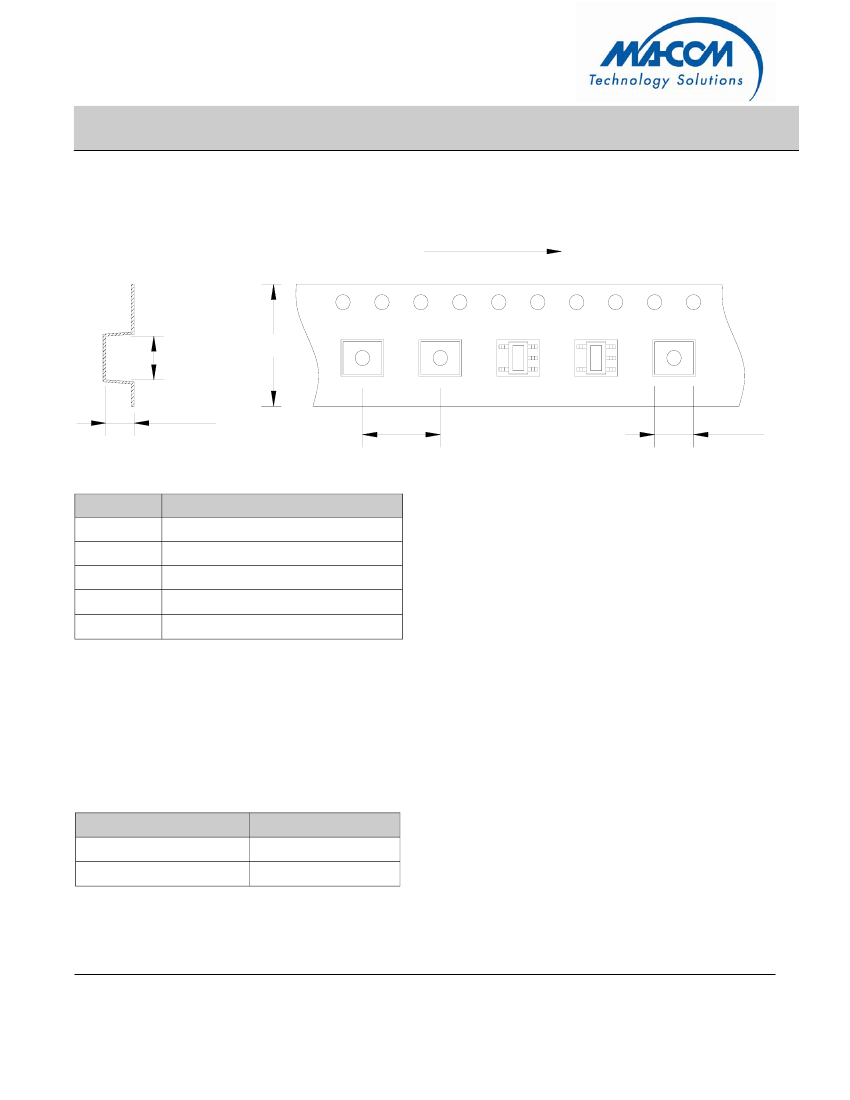

Tape & Reel Information
DIRECTION OF FEED
B
0
W
K
0
P1
A
0
Item
Ao
Bo
Ko
Dimension
6.1mm +/- 0.1mm
4.6mm +/- 0.1mm
4.0mm +/- 0.1mm
W
P1
12.0mm +/- 0.3mm
8.00mm +/- 0.1mm
Ordering Information
Part number
MACP-010249-CI08A0
MACP-010249-CI08TB
Description
2000 piece reel
Customer Test Board
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
