IDT72423L10SO8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT72423L10SO8

IDT72423L10SO8: DescriptionFIFO, 64X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24; Categorystorage storage; File Size463KB，16 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT72423L10SO8 Overview

FIFO, 64X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24

IDT72423L10SO8 Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	SOIC
package instruction	SOP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
period time	10 ns
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	15.4 mm
memory density	64 bit
memory width	1
Number of functions	1
Number of terminals	24
word count	64 words
character code	64
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64X1
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

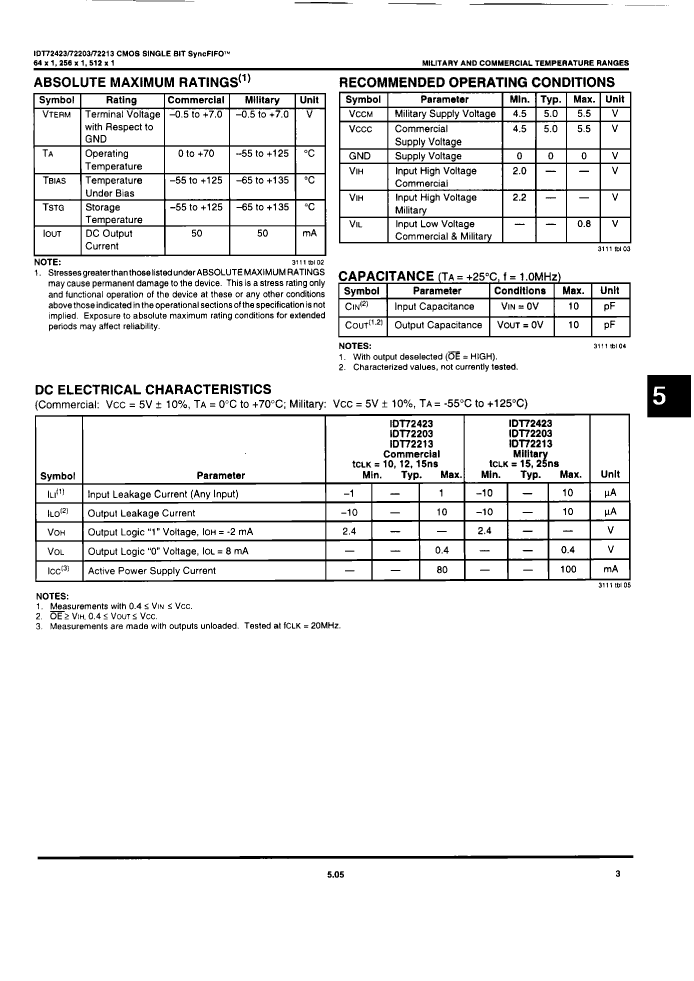

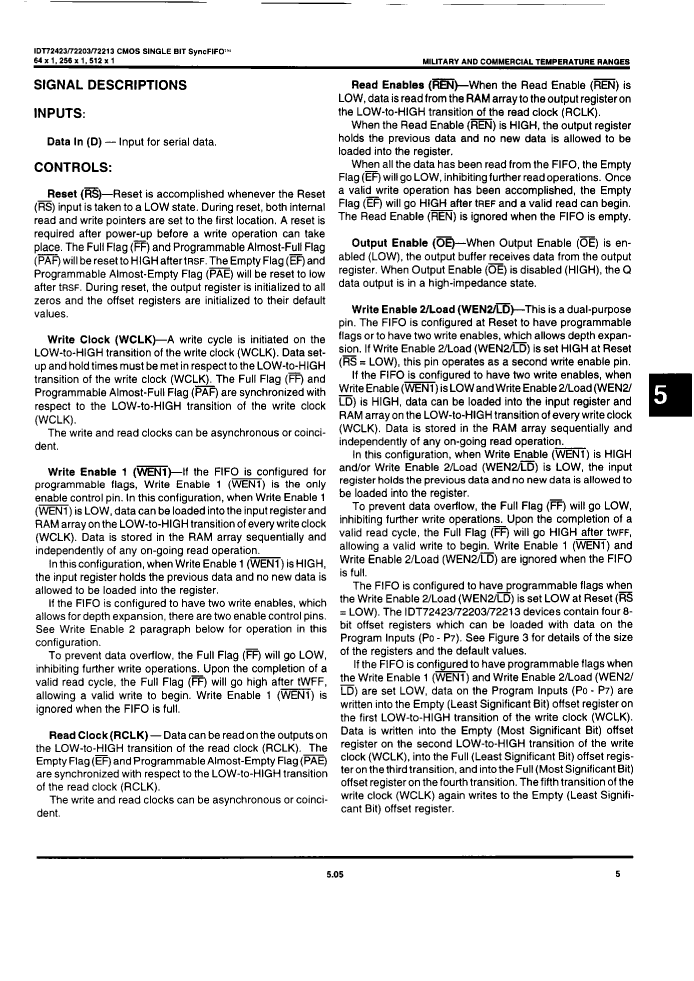

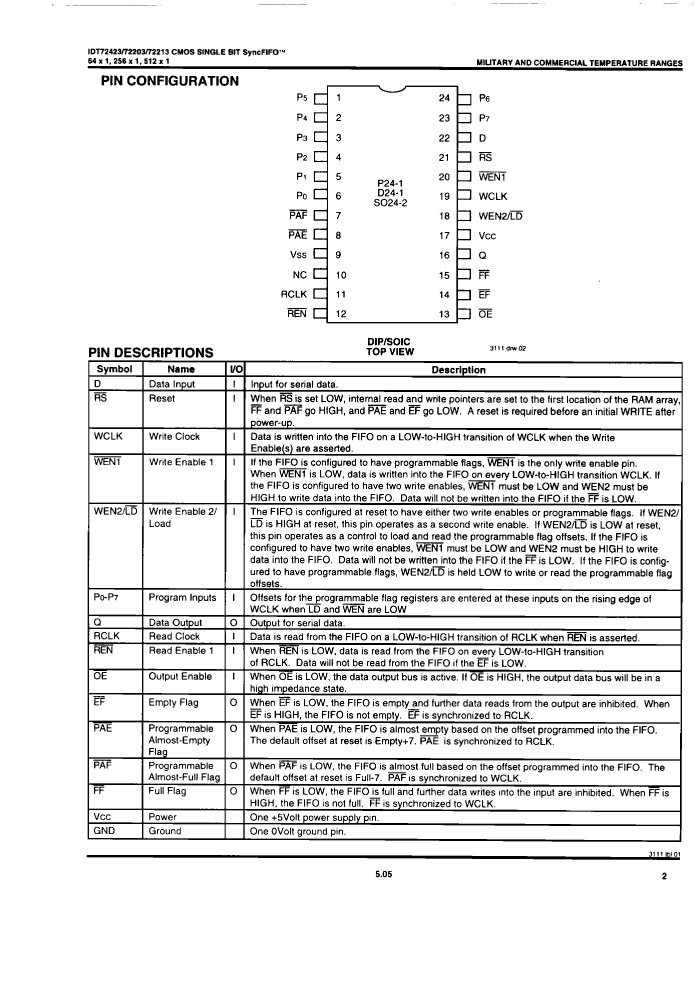

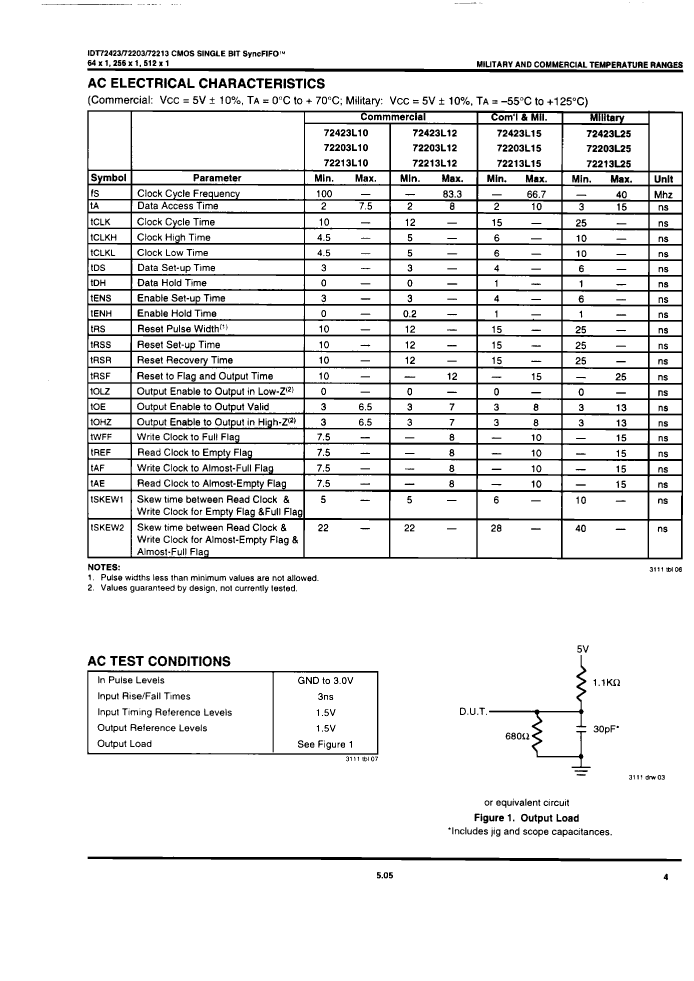

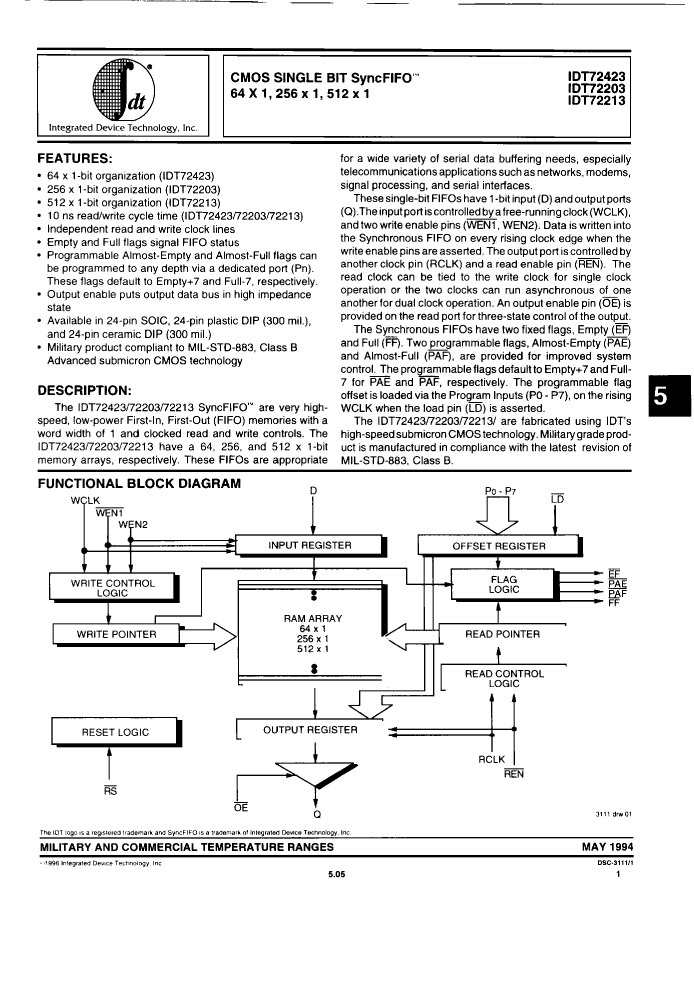

Preview

Download Datasheet

View All

IDT72423L10SO8 Related Products

	IDT72423L10SO8	IDT72203L15SO8	IDT72213L12SO8	2SD2114	IDT72213L15SO8	IDT72213L10SO8	IDT72203L12SO8	IDT72203L10SO8	IDT72423L15SO8
Description	FIFO, 64X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24	FIFO, 256X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24	FIFO, 512X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24	SOT-23 Plastic-Encapsulate Transistors	FIFO, 512X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24	FIFO, 512X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24	FIFO, 256X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24	FIFO, 256X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24	FIFO, 64X1, Synchronous, CMOS, PDSO24, 0.300 INCH, 0.050 INCH PITCH, SOIC-24
Maker	IDT (Integrated Device Technology)	-	-	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
Parts packaging code	SOIC	SOIC	SOIC	-	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	-	SOP,	SOP,	SOP,	SOP,	SOP,
Contacts	24	24	24	-	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
period time	10 ns	15 ns	12 ns	-	15 ns	10 ns	12 ns	10 ns	15 ns
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	-	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24	R-PDSO-G24
JESD-609 code	e0	e0	e0	-	e0	e0	e0	e0	e0
length	15.4 mm	15.4 mm	15.4 mm	-	15.4 mm	15.4 mm	15.4 mm	15.4 mm	15.4 mm
memory density	64 bit	256 bit	512 bit	-	512 bit	512 bit	256 bit	256 bit	64 bit
memory width	1	1	1	-	1	1	1	1	1
Number of functions	1	1	1	-	1	1	1	1	1
Number of terminals	24	24	24	-	24	24	24	24	24
word count	64 words	256 words	512 words	-	512 words	512 words	256 words	256 words	64 words
character code	64	256	512	-	512	512	256	256	64
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	-	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	-	70 °C	70 °C	70 °C	70 °C	70 °C
organize	64X1	256X1	512X1	-	512X1	512X1	256X1	256X1	64X1
Output characteristics	3-STATE	3-STATE	3-STATE	-	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	-	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	-	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL	SERIAL	-	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm	2.65 mm	-	2.65 mm	2.65 mm	2.65 mm	2.65 mm	2.65 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	-	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	-	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	GULL WING	GULL WING	GULL WING	-	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	-	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	7.5 mm	7.5 mm	-	7.5 mm	7.5 mm	7.5 mm	7.5 mm	7.5 mm
