NG80386SX-20F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> NG80386SX-20F

NG80386SX-20F: Description32-BIT, 20MHz, MICROPROCESSOR, PQFP100, PLASTIC, QFP-100; CategoryThe embedded processor and controller Microcontrollers and processors; File Size443KB，16 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

NG80386SX-20F Overview

32-BIT, 20MHz, MICROPROCESSOR, PQFP100, PLASTIC, QFP-100

NG80386SX-20F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD
Parts packaging code	QFP
package instruction	PLASTIC, QFP-100
Contacts	100
Reach Compliance Code	unknown
Address bus width	23
bit size	32
boundary scan	NO
maximum clock frequency	40 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQFP-F100
JESD-609 code	e0
length	19 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	100
On-chip data RAM width
Maximum operating temperature	100 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	GQFF
Encapsulate equivalent code	TAPEPAK,100P,.025
Package shape	SQUARE
Package form	FLATPACK, GUARD RING
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.8 mm
speed	20 MHz
Maximum slew rate	305 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	0.65 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	19 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

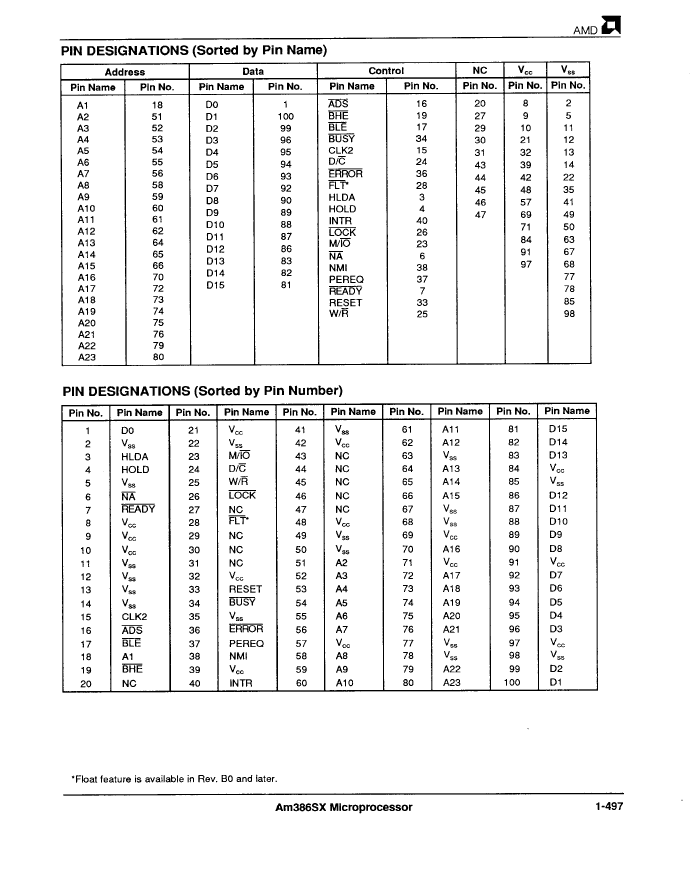

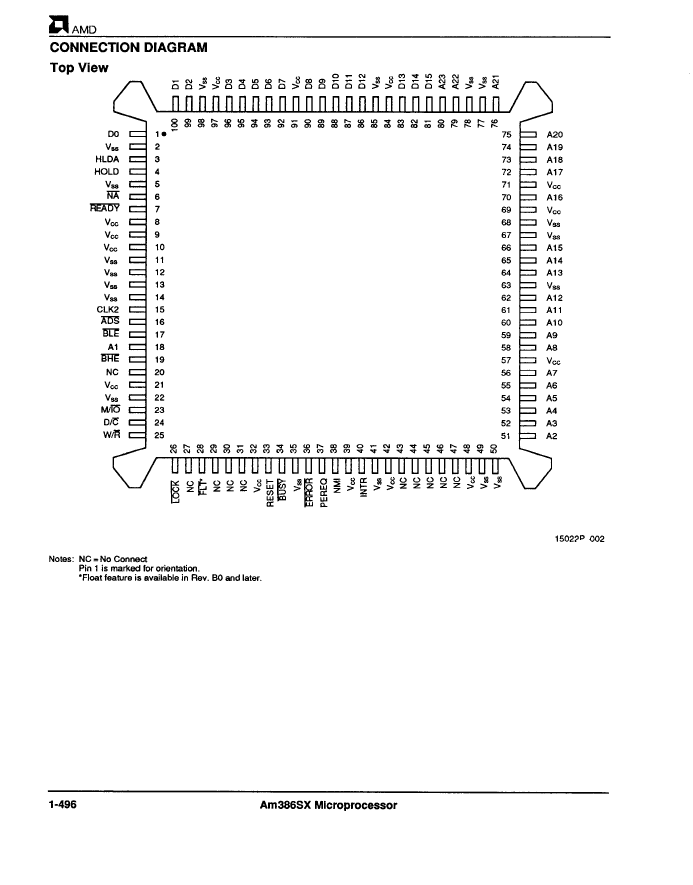

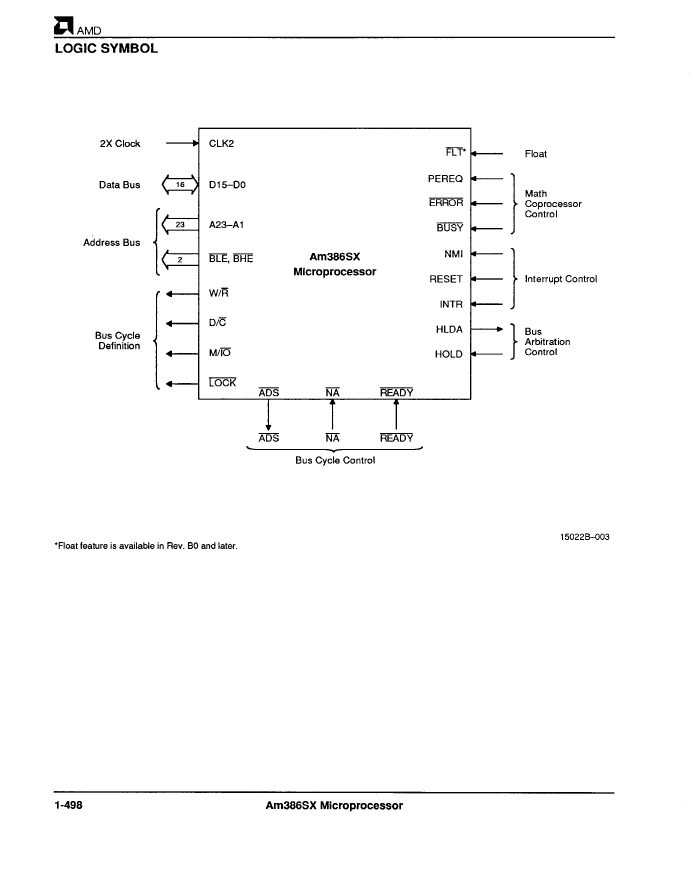

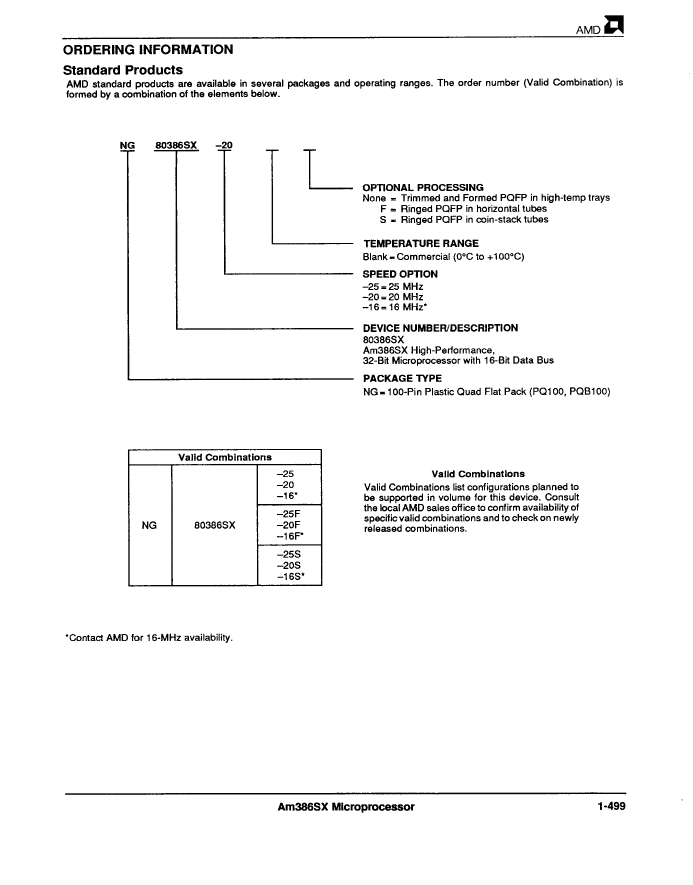

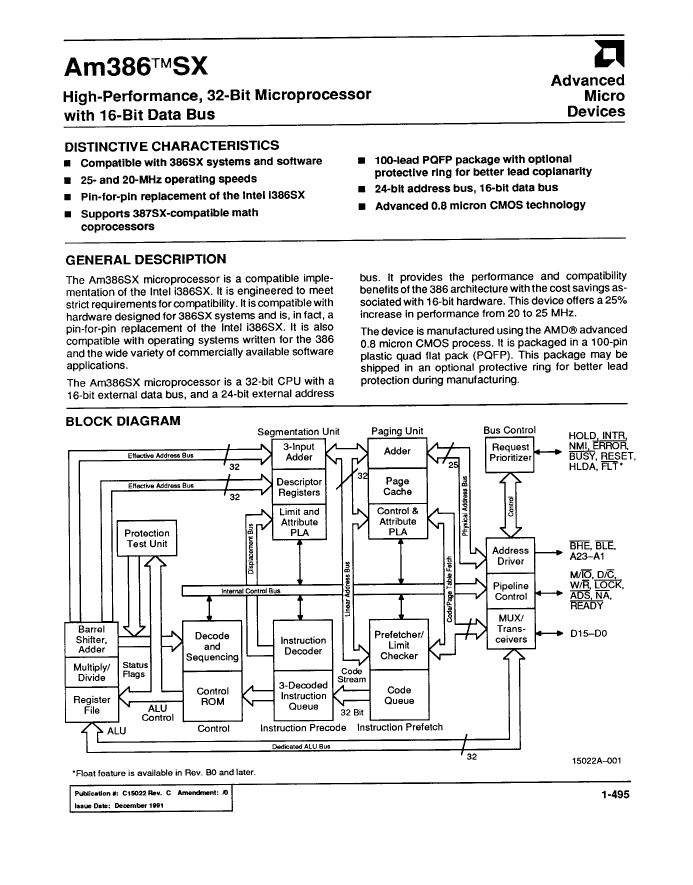

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

NG80386SX-20F Related Products

	NG80386SX-20F	NG80386SX-16F	NG80386SX-16	NG80386SX-16S	NG80386SX-25S	NG80386SX-20S
Description	32-BIT, 20MHz, MICROPROCESSOR, PQFP100, PLASTIC, QFP-100	32-BIT, 16MHz, MICROPROCESSOR, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 16MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 16MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 25MHz, CMOS, PQFP100, PLASTIC, QFP-100	Microprocessor, 32-Bit, 20MHz, CMOS, PQFP100, PLASTIC, QFP-100
Maker	AMD	AMD	AMD	AMD	AMD	AMD
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	PLASTIC, QFP-100	PLASTIC, QFP-100	BQFP, SPQFP100,.9SQ	GQFF,	GQFF,	GQFF,
Contacts	100	100	100	100	100	100
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow
Address bus width	23	23	24	23	23	23
bit size	32	32	32	32	32	32
boundary scan	NO	NO	NO	NO	NO	NO
maximum clock frequency	40 MHz	32.26 MHz	32 MHz	32.26 MHz	50 MHz	40 MHz
External data bus width	16	16	16	16	16	16
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQFP-F100	S-PQFP-F100	S-PQFP-G100	S-PQFP-F100	S-PQFP-F100	S-PQFP-F100
length	19 mm	19 mm	19.05 mm	19 mm	19 mm	19 mm
low power mode	NO	NO	NO	NO	NO	NO
Number of external interrupt devices	2	2	2	2	2	2
Number of terminals	100	100	100	100	100	100
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	GQFF	GQFF	BQFP	GQFF	GQFF	GQFF
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLATPACK, GUARD RING	FLATPACK, GUARD RING	FLATPACK, BUMPER	FLATPACK, GUARD RING	FLATPACK, GUARD RING	FLATPACK, GUARD RING
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.8 mm	4.8 mm	4.572 mm	4.8 mm	4.8 mm	4.8 mm
speed	20 MHz	16 MHz	16 MHz	16 MHz	25 MHz	20 MHz
Maximum slew rate	305 mA	275 mA	275 mA	275 mA	335 mA	305 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal form	FLAT	FLAT	GULL WING	FLAT	FLAT	FLAT
Terminal pitch	0.65 mm	0.65 mm	0.635 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	19 mm	19 mm	19.05 mm	19 mm	19 mm	19 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR
ECCN code	-	-	3A991.A.2	3A991.A.2	3A001.A.3	3A991.A.2
