Self-Locking or Non-Self-Locking
CONNECTOR DESIGNATOR:
Basic
Part Number
A
AS50151 Series AS34001 Crimp,
MIL-DTL-26482 Series II,
SAE-AS1703 Crimp Series III,
MIL-DTL-83723 Series I & III
Dash No.
M85049/52
S
10
W
FOR NEW DESIGN
USE AS85049/118
Superseded Part Number
MS3417-10 A
Basic
Part No.
(Non-Self-
Locking)
Dash
No.
Metal and Finish Designator
A = Aluminum 1000 Hour Cadmium Olive
Drab over Electroless Nickel
C = Aluminum, Cadmium Olive Drab
G = Aluminim Black Anodize
N = Aluminum, Electroless Nickel
S
= Self-Locking
-1
= Non-Self-Locking
N
= Non-Detented
Material and Finish Designator
A
= Aluminum, Black Anodize
N
= Aluminum, Electroless Nickel
S
= Stainless Steel, Passivate
W
= Aluminum, 1000 Hr. Cadmium O.D.
over Electroless Nickel
B
APPLICATION NOTES
1.
Cable
Entry
A Thread
F
Self Locking
Only
2.
3.
E Dia
Self Locking
Only
G
4.
5.
Assembly to be identified with
manufacturer’s name and part
number, space permitting.
Cable Entry is defined as the
accommodation entry for the
wire bundle or cable.
Dimensions are not intended for
inspection criteria.
For complete dimensions, see the
applicable Military Specification.
Metric dimensions (mm) are in
parentheses.

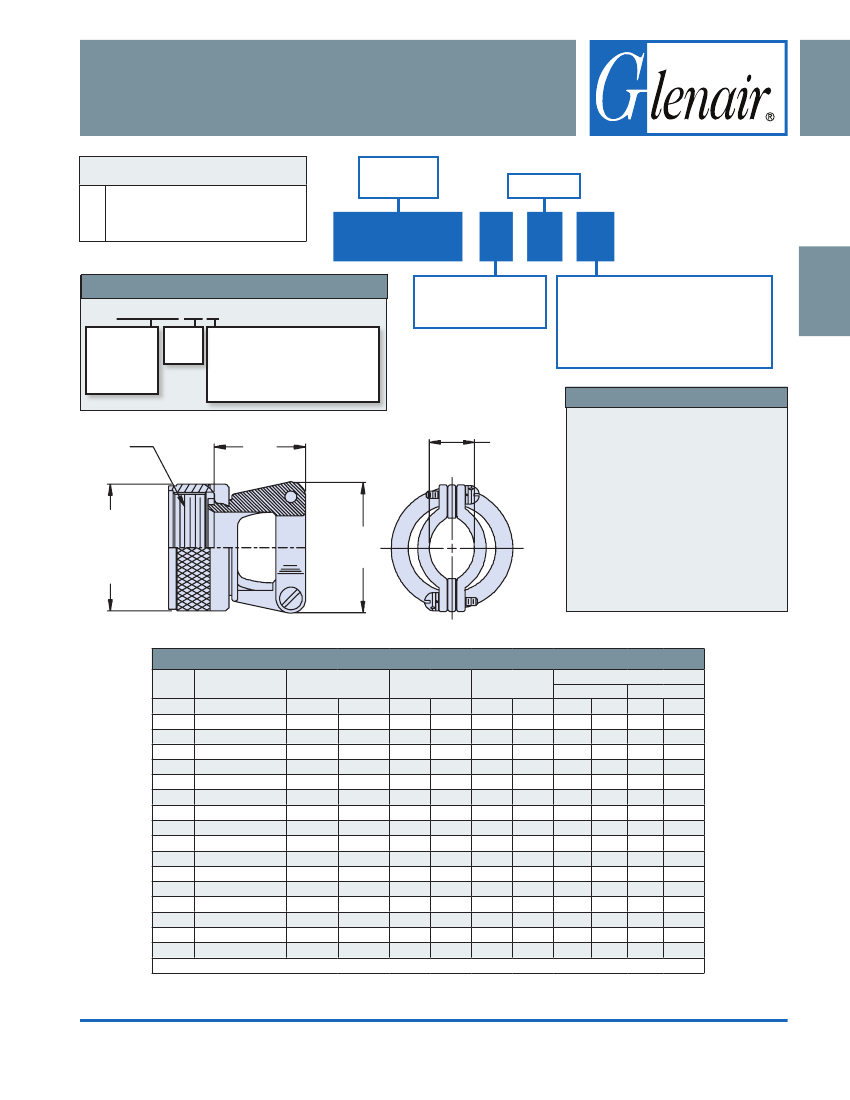

TABLE I: Shell Size, Cable Entry and Backshell Dimensions
Dash
No.
3*+
8
10
12
14
16
18
20
22
24
28+
32+
36+
40+
44+
48+
61*+
A Thread
Class 2B
.562 - 24 UNEF
.500 - 20 UNF
.625 - 24 UNEF
.750 - 20 UNEF
.875 - 20 UNEF
1.000 - 20 UNEF
1.062 - 18 UNEF
1.188 - 18 UNEF
1.313 - 18 UNEF
1.438 - 18 UNEF
1.750 - 18 UNS
2.000 - 18 UNS
2.250 - 16 UN
2.500 - 16 UN
2.750 - 16 UN
3.000 - 16 UN
1.500 - 18 UNEF
Ø E Max
Self-Locking
-
-
.885
(22.5)
1.010
(25.7)
1.135
(28.8)
1.260
(32.0)
1.385
(35.2)
1.510
(38.4)
1.635
(41.5)
1.760
(44.7)
1.885
(47.9)
2.135
(54.2)
2.395
(60.8)
2.635
(66.9)
2.885
(73.3)
3.135
(79.6)
3.385
(86.0)
-
-
F Max
Self-Locking
-
-
.73
(18.5)
.85
(21.6)
.98
(24.9)
.98
(24.9)
1.10 (27.9)
1.35 (34.3)
1.98 (50.3)
2.73 (69.3)
2.88 (73.2)
2.528 (64.2)
2.591 (65.8)
2.13 (54.1)
2.44 (62.0)
3.00 (76.2)
3.40 (86.4)
-
-
Cable Entry
G
Max
Min
Max
.782 (19.9) .125 (3.2) .204 (5.2)
.782 (19.9) .125 (3.2) .204 (5.2)
.862 (21.9) .187 (4.7) .286 (7.3)
1.003 (24.6) .291 (7.4) .416 (10.6)
1.061 (25.5) .351 (8.9) .476 (12.1)
1.234 (26.9) .501 (12.7) .626 (15.9)
1.466 (35.4) .518 (13.2) .706 (17.9)
1.572 (37.2) 581 (14.8) .831 (21.1)
1.688 (39.9) .644 (16.4) .956 (24.3)
1.790 (43.1) .706 (17.9) 1.081 (27.5)
2.035 (45.5) .750 (19.1) 1.187 (30.1)
2.386 (51.7) .875 (22.2) 1.250 (31.8)
2.446 (60.6) .938 (23.8) 1.375 (34.9)
2.566 (65.2) .938 (23.8) 1.500 (38.1)
2.860 (72.6) 1.188 (30.2) 1.750 (44.5)
3.344 (84.9) 1.312 (33.3) 1.875 (47.6)
1.775 (45.1) .706 (17.9) 1.081 (27.5)
* Not Available in Self Locking
+ Not Available under M83723/15S
