Contact Dia.: 1.6 mm (0.063in)
Bucket Dia.: 1.9 mm (0.075in)
Min. Conductor: 1 mm^2 (AWG 18)
Max. Conductor: 1.5 mm^2 (AWG 14)
R (max): 3.5 mOhm
Vtest (contact-shell): 1950 V (AC), 2750 V (DC)
Vtest (contact-contact): 1900 V (AC), 2700 V (DC)
Others
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

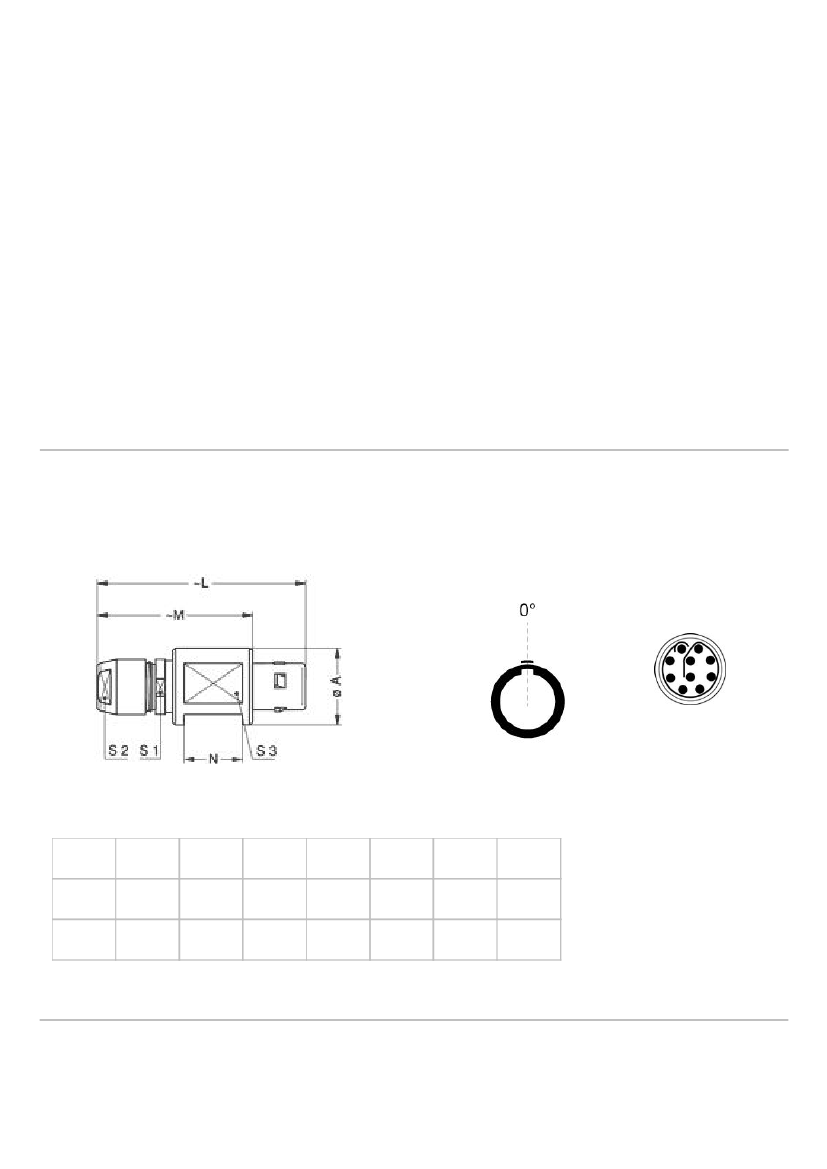

DRAWINGS
Draws
Dimensions
A
mm.
in.
30
1,18
L
75
2,95
M
57
2,24
N
25
0,98
S1
21
0,83
S2
20
0,79
S3
25
0,98
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
Crimp Tool: DPC.91.101.A
Crimp settings: AWG/Selector = 14-16-18/7-6-5
Positionner: DCE.91.164.BVCM
Extractor: DCF.91.163.5LT
Replacement contact: FGG.4B.570.ZZC
