Multilayer Power Inductors

積層パワーインダクタ

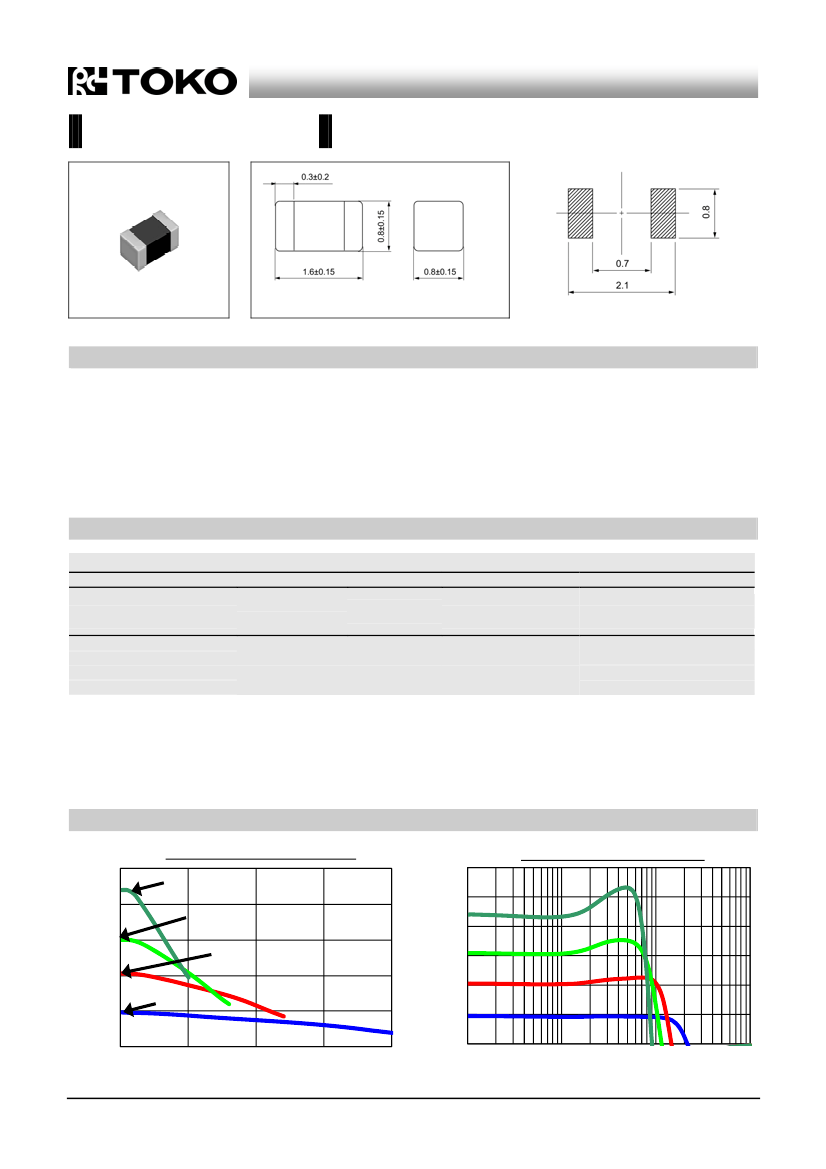

MDT1608-CH

Recommended patterns

推奨パターン図

(Unit: mm)

FEATURES

特長



小型薄型½状（1.6mm×0.8mm、高さ0.8mm）



閉磁路構造



各種機器のDC-DCコンバータ用インダクタに最適

（DVC,DSC,Cellular

phone,PDA）



動½温度範囲：－40½＋85°C



RoHS指令対応



Miniature size: 1608 footprint (1.6mm×0.8mm) and low

profile(0.8mm Height)



Magnetically shielded



Ideal for a variety of DC-DC converter Inductor application

（DVC,DSC,Cellular

phone,PDA）



Operating temperature:-40½+85°C



RoHS compliant

TOKO STANDARD PART NUMBERS

(1)

東光標準品一覧

(2)

(3)

TYPE MDT1608-CH,(Quantity/reel; 4,000 PCS)

東光品番

TOKO

Part

Number

MDT1608-CHR47M

MDT1608-CH1R0M

MDT1608-CH1R5M

MDT1608-CH2R2M

インダクタンス

Inductance

(H)at 1MHz

0.47

1.0

1.5

2.2

(1)

許容差

Tolerance

（％）

±20

直流抵抗

温度上昇許容電流

(2)

Resistance

(m)

±30％

110

230

260

300

Temperature

(3)

Rise Current

T=40C

(A) Max.

1.85

1.35

1.25

1.15

(1) Inductance is measured with a |Z| Analyzer 4291A/ B (Agilent

Technologies) or equivalent. Test frequency at 1MHz, 0.5V

(2) DC Resistance is measured with a milliohmmeter 4338B (Agilent

Technologies) or equivalent.

(3) Maximum allowable DC current is that causes coil temperature to

rise by 40C . (The ambient reference temperature:20C)

(1)

インダクタンスはインピーダンスアナライザ4291A/

B(Agilent

Technologies)または同等品により測定する。 1MHz, 0.5V

(2)

直流抵抗はミリオームメータ4338B

(Agilent Technologies)

または同等品により測定する。

(3)

最大許容電流は直流を流した時の温度上昇が40Cに達する電流

値。（周囲温度：20C)

EXAMPLES OF CHARACTERISTICS

2.5

代表特性例

Inductance vs DC Current

2R2

Inductance(μH)

Inductance vs Frequency

2R2

1R5

1R0

R47

1R5

1R0

R47

Inductance(μH)

1.5

0.5

2.5

1.5

0.5

500

1000

1500

DC Current(mA)

2000

100

Frequency(MHz)

1000
