FR11FF520K0-1553.0: DescriptionCircular Connector, 20 Contact(s), Female/Male, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size88KB，2 Pages; ManufacturerPositronic Industries

Download Datasheet Parametric View All

FR11FF520K0-1553.0 Overview

Circular Connector, 20 Contact(s), Female/Male, Solder Terminal, Receptacle

FR11FF520K0-1553.0 Parametric

Parameter Name	Attribute value
Maker	Positronic Industries
Reach Compliance Code	unknown
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact point gender	FEMALE/MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	FR
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

F

ront

R

unner

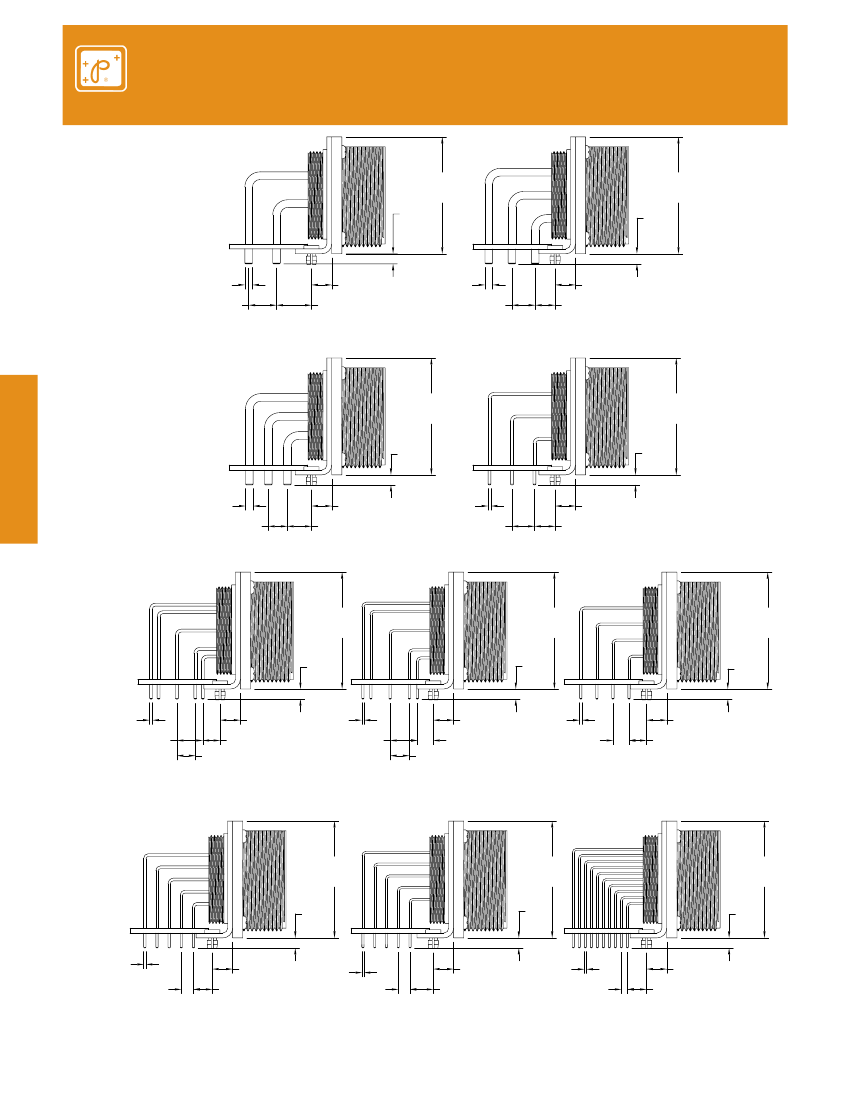

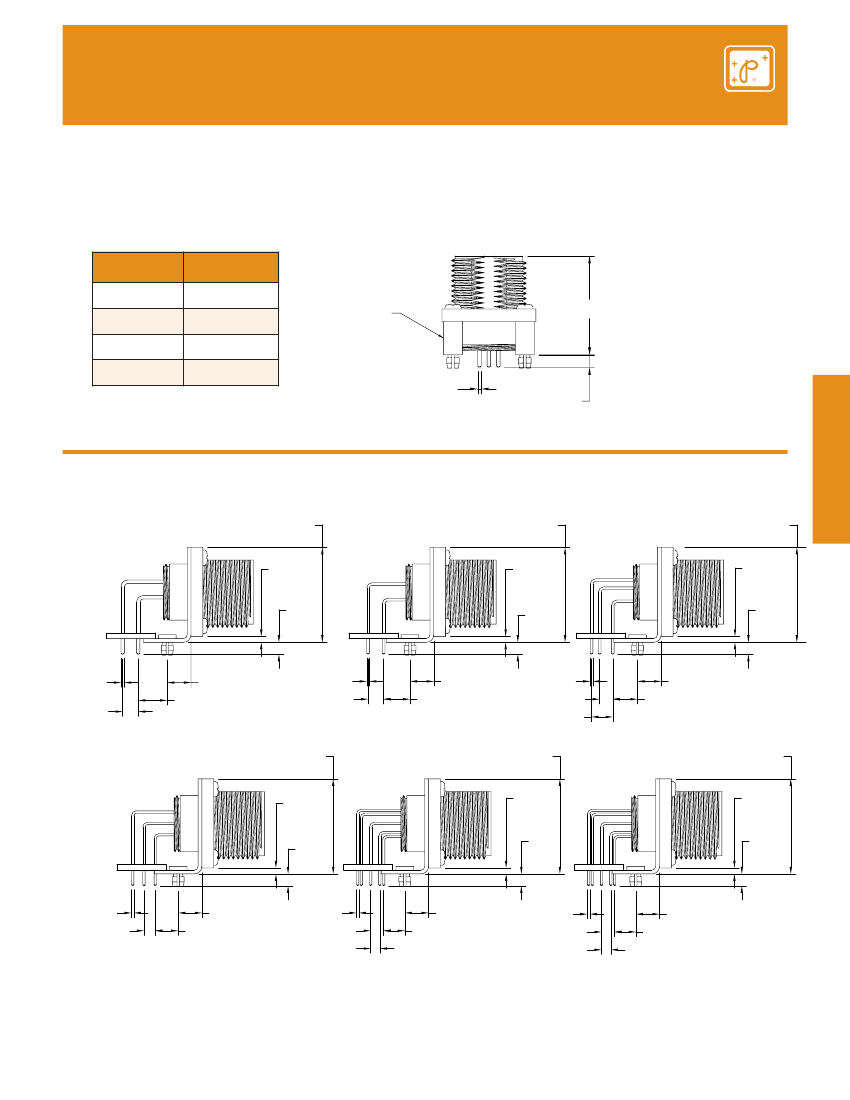

STRAIGHT AND 90° PRINTED

BOARD CONNECTORS

Positronic Industries

connectpositronic.com

STRAIGHT PRINTED BOARD MOUNT CONNECTOR

RECEPTACLE HOUSING, MALE OR FEMALE CONTACTS

CONTACT SIZE

12

16

20

22

ØD

0.094 [2.39]

0.035 [0.89]

0.028 [0.71]

0.025 [0.64]

Push-on fastener,

phosphor bronze

receptacle housing only

0.990 [25.15]

Typical Part Number:

FR11FF316K0-1554.0

ØD

90° PRINTED BOARD MOUNT CONNECTOR

1.001 [25.43]

0.063

[1.60]

0.125

[3.18]

TYP.

1.001 [25.43]

0.063

[1.60]

0.125

[3.18]

TYP.

1.001 [25.43]

0.063

[1.60]

0.125

[3.18]

TYP.

ø0.035 [0.89]

TYP.

0.164 [4.17]

0.250 [6.35]

0.305 [7.75]

ø0.028 [0.71] TYP.

0.164 [4.17]

0.250 [6.35]

0.278 [7.06]

Typical Part Number:

FR11FF420K0-1553.0

ø0.028 [0.71] TYP.

0.138 [3.51]

0.223 [5.66]

1.001 [25.43]

0.063

[1.60]

0.125

[3.18]

TYP.

0.250 [6.35]

0.260 [6.60]

Typical Part Number:

FR11FF520K0-1553.0

Typical Part Number:

FR11FF316K0-1553.0

1.001 [25.43]

0.063

[1.60]

0.125

[3.18]

TYP.

1.001 [25.43]

0.063

[1.60]

0.125

[3.18]

TYP.

ø0.025 [0.64] TYP.

0.119 [3.02] TYP.

0.250 [6.35]

0.241 [6.12]

ø0.025 [0.64] TYP.

0.137 [3.48] TYP.

0.097 [2.46] TYP.

0.250 [6.35]

0.223 [5.66]

Typical Part Number:

FR11FF822K0-1553.0

ø0.025 [0.64] TYP..

0.137 [3.48] TYP.

0.097 [2.46] TYP.

0.250 [6.35]

0.223 [5.66]

Typical Part Number:

FR11FF922K0-1553.0

Typical Part Number:

FR11FF722K0-1553.0

DIMENSIONS ARE IN INCHES [MILLIMETERS].

ALL DIMENSIONS ARE SUBJECT TO CHANGE.

8

DIMENSIONS

0.125 [3.18] Nominal
