LX5115CDW datasheet, PDF - EEWORLD Datasheet

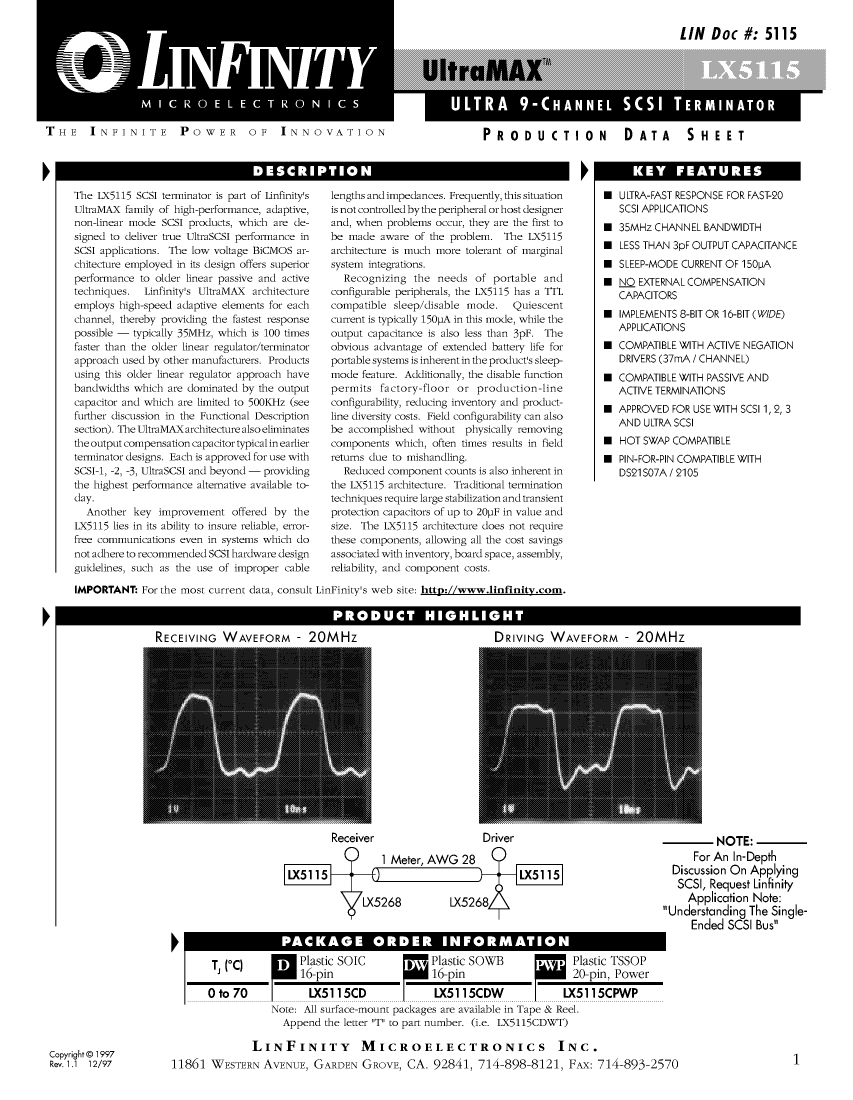

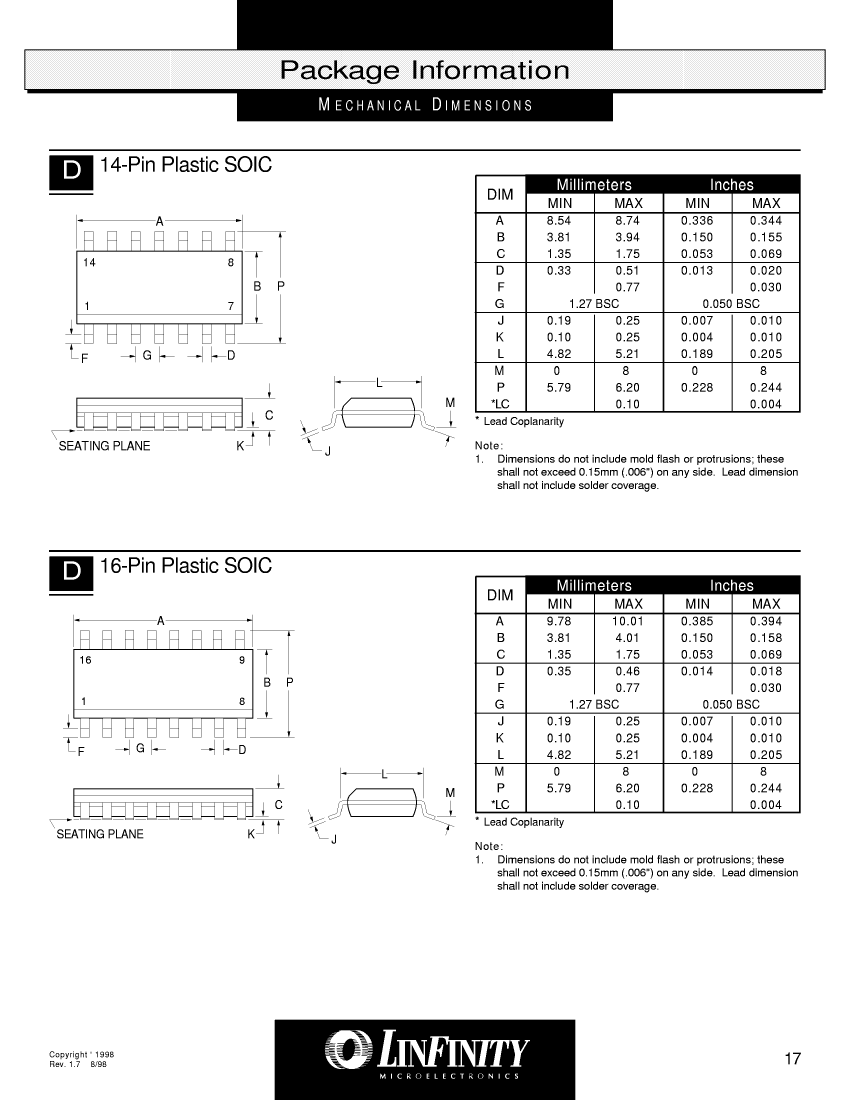

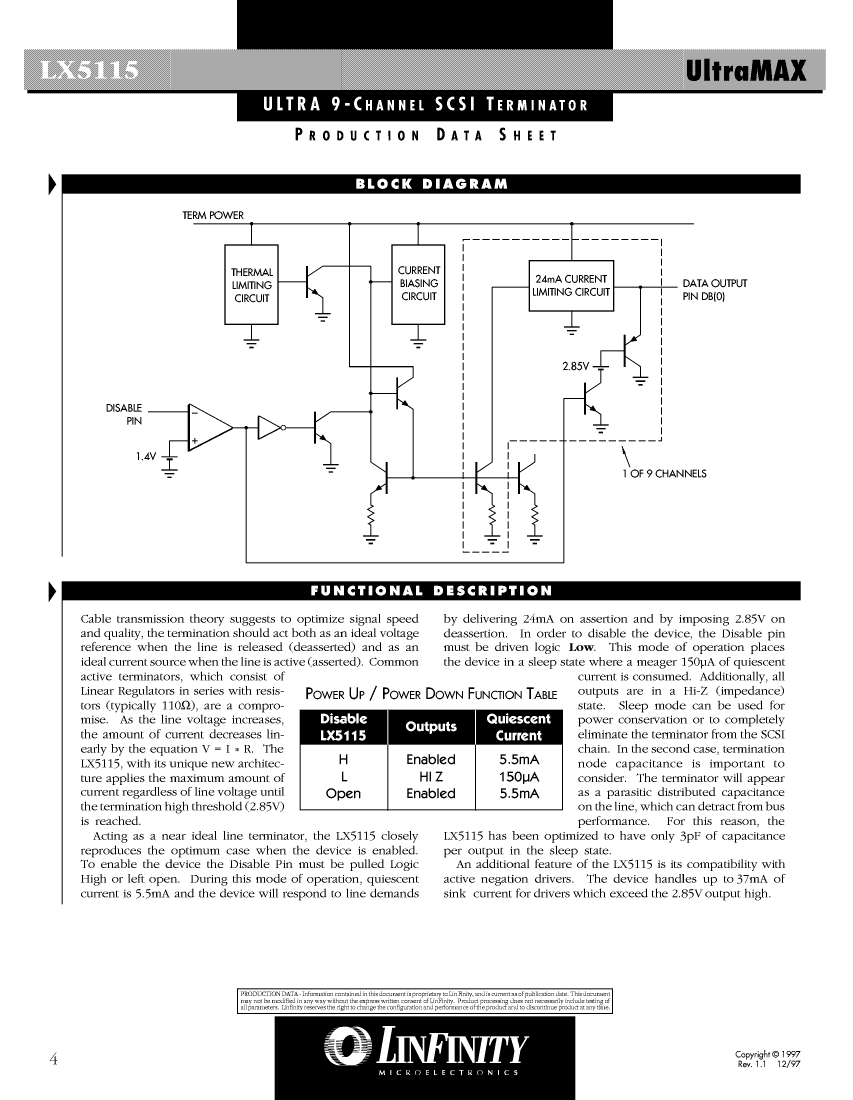

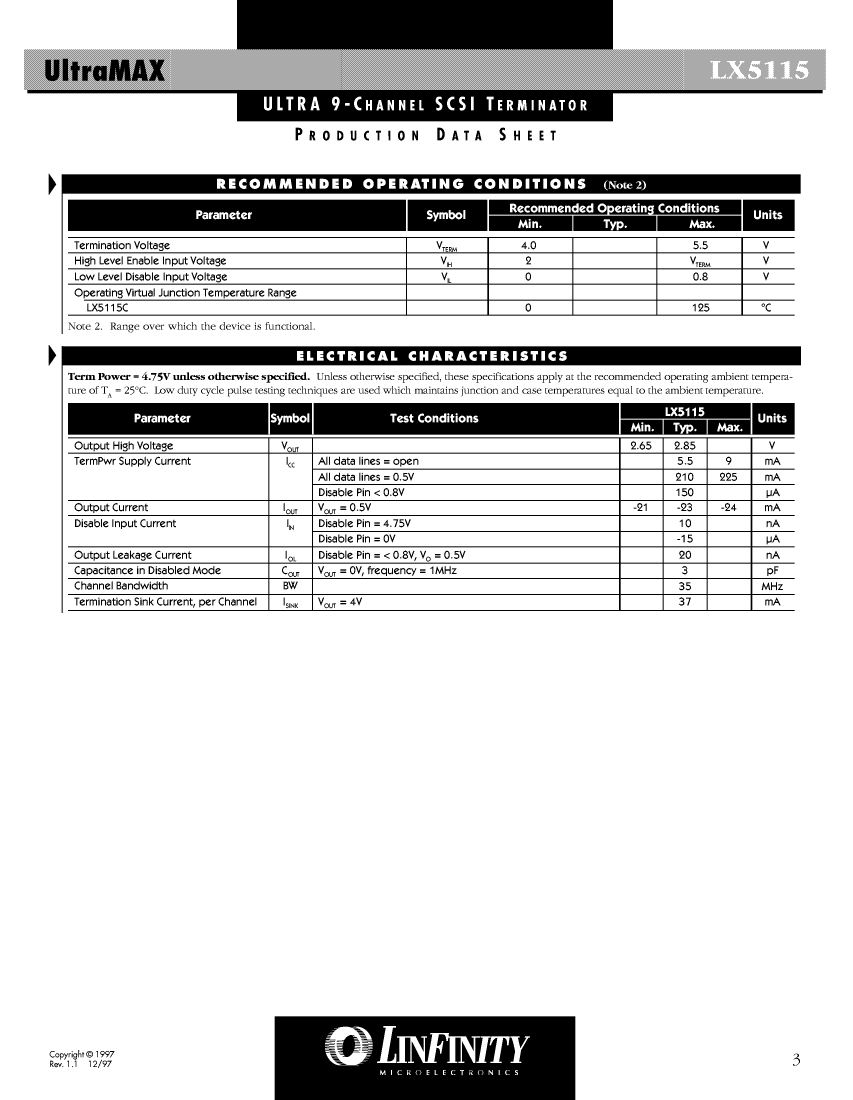

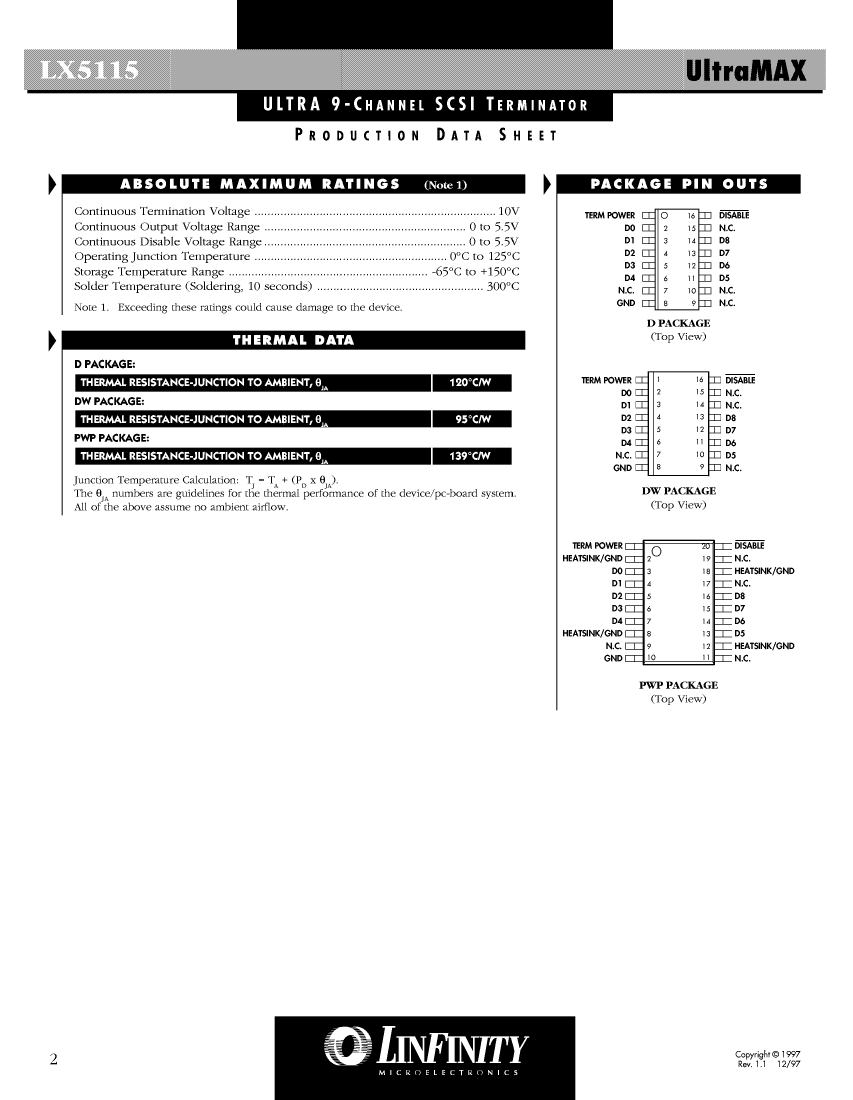

LX5115CDW: DescriptionSCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOWB-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size482KB，7 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

LX5115CDW Overview

SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOWB-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
package instruction	PLASTIC, SOWB-16
Reach Compliance Code	unknown
Differential output	NO
Interface integrated circuit type	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of functions	1
Number of signal lines	9
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	4.75 V
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4 V
Nominal supply voltage	4.75 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

	LX5115CDW	LX5115CD	LX5115CPWP
Description	SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOWB-16	SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOIC-16	SCSI Terminator, 9-Line, BICMOS, PDSO20, PLASTIC, TSSOP-20
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
package instruction	PLASTIC, SOWB-16	PLASTIC, SOIC-16	PLASTIC, TSSOP-20
Reach Compliance Code	unknown	unknown	unknown
Differential output	NO	NO	NO
Interface integrated circuit type	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G20
JESD-609 code	e0	e0	e0
Number of functions	1	1	1
Number of signal lines	9	9	9
Number of terminals	16	16	20
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SSOP
Encapsulate equivalent code	SOP16,.4	SOP16,.25	SSOP20,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	4.75 V	4.75 V	4.75 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4 V	4 V	4 V
Nominal supply voltage	4.75 V	4.75 V	4.75 V
surface mount	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL
