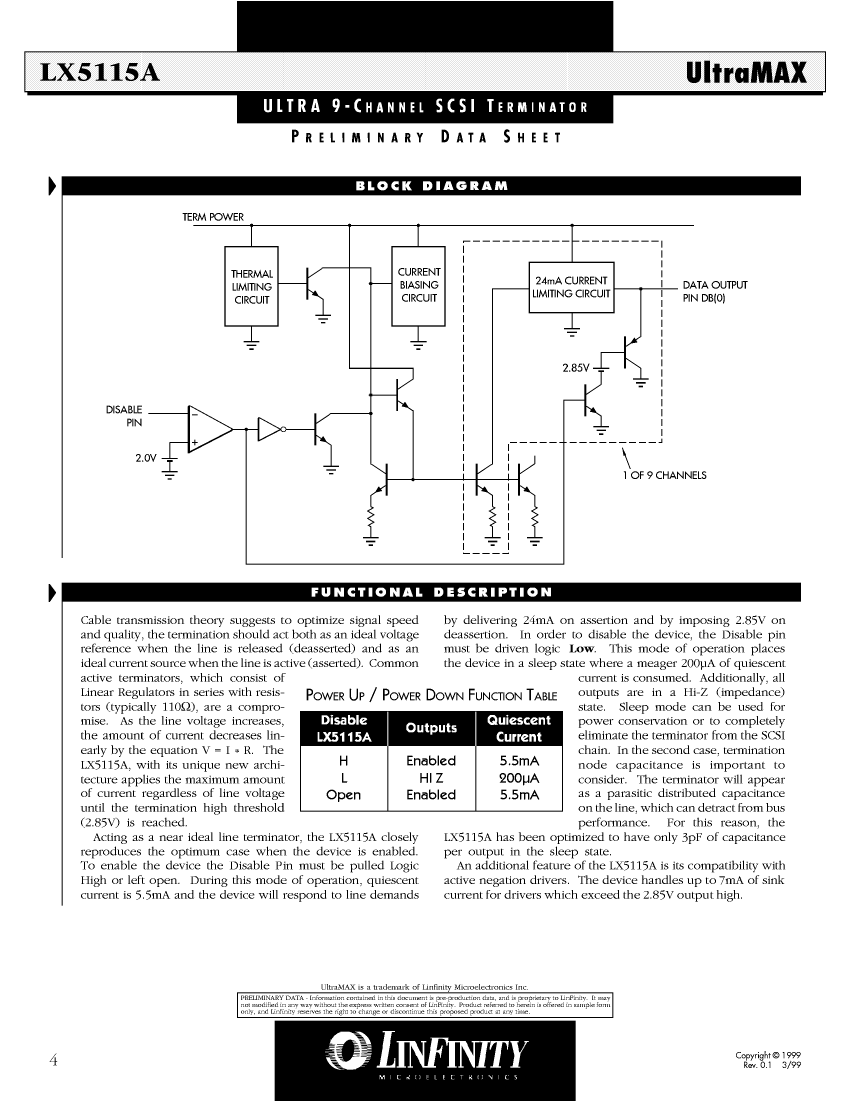

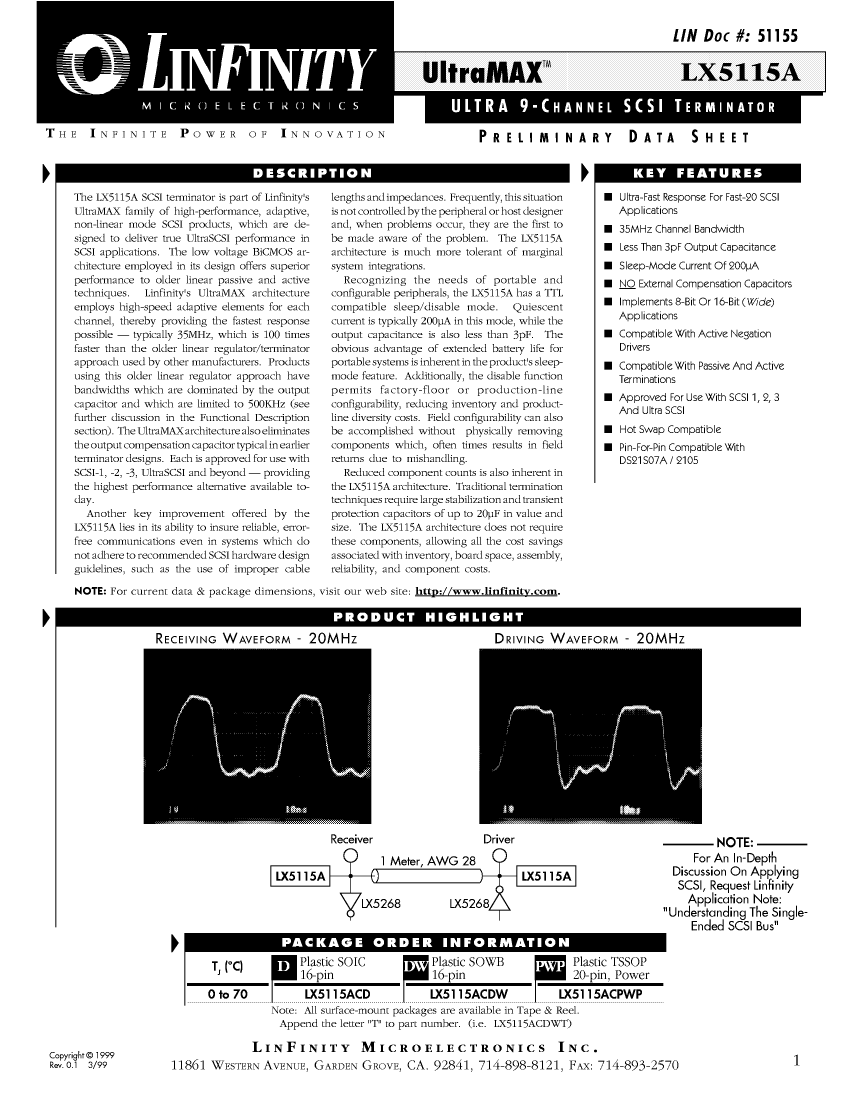

SCSI Terminator, 9-Line, BICMOS, PDSO20, PLASTIC, TSSOP-16

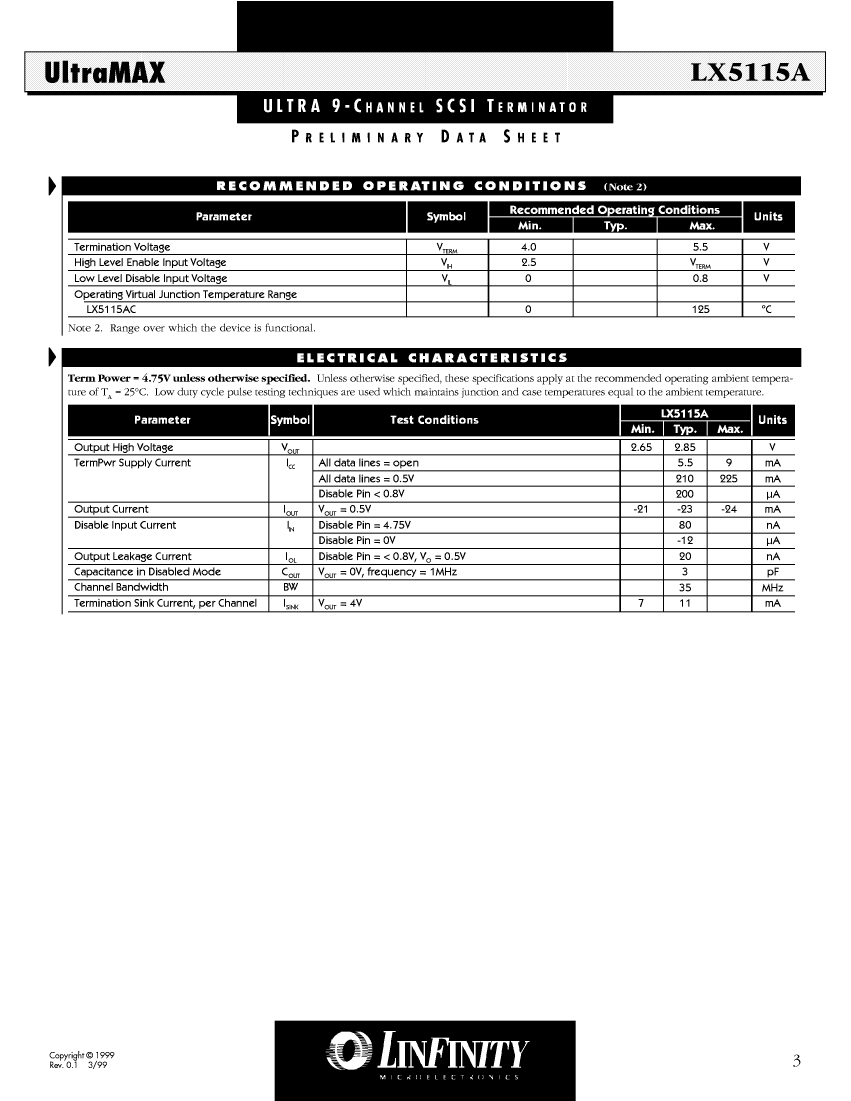

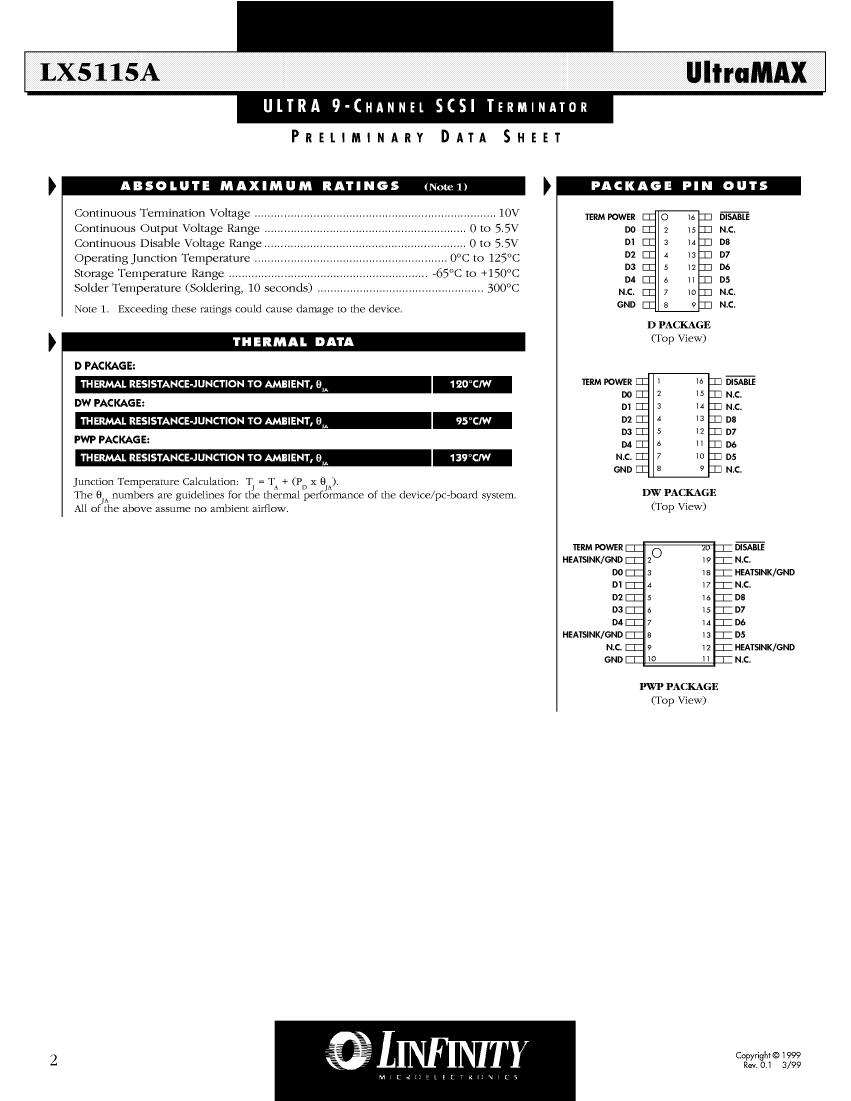

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Linfinity Microelectronics |
| package instruction | PLASTIC, TSSOP-16 |
| Reach Compliance Code | unknown |
| Differential output | NO |
| Interface integrated circuit type | SCSI BUS TERMINATOR |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| Number of functions | 1 |
| Number of signal lines | 9 |
| Number of terminals | 20 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Encapsulate equivalent code | SSOP20,.3 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| power supply | 4.75 V |
| Certification status | Not Qualified |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 3 V |
| Nominal supply voltage | 4.75 V |
| surface mount | YES |
| technology | BICMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| LX5115ACPWP | LX5115ACPWPT | LX5115ACDW | LX5115ACDWT | LX5115ACD | LX5115ACDT | |
|---|---|---|---|---|---|---|
| Description | SCSI Terminator, 9-Line, BICMOS, PDSO20, PLASTIC, TSSOP-16 | SCSI Terminator, 9-Line, BICMOS, PDSO20, PLASTIC, TSSOP-16 | SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOWB-16 | SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOWB-16 | SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOIC-16 | SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOIC-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics | Linfinity Microelectronics |
| package instruction | PLASTIC, TSSOP-16 | PLASTIC, TSSOP-16 | PLASTIC, SOWB-16 | PLASTIC, SOWB-16 | PLASTIC, SOIC-16 | PLASTIC, SOIC-16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Differential output | NO | NO | NO | NO | NO | NO |
| Interface integrated circuit type | SCSI BUS TERMINATOR | SCSI BUS TERMINATOR | SCSI BUS TERMINATOR | SCSI BUS TERMINATOR | SCSI BUS TERMINATOR | SCSI BUS TERMINATOR |
| JESD-30 code | R-PDSO-G20 | R-PDSO-G20 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of signal lines | 9 | 9 | 9 | 9 | 9 | 9 |
| Number of terminals | 20 | 20 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | SSOP | SOP | SOP | SOP | SOP |
| Encapsulate equivalent code | SSOP20,.3 | SSOP20,.3 | SOP16,.4 | SOP16,.4 | SOP16,.25 | SOP16,.25 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| power supply | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 3 V | 3 V | 3 V | 3 V | 3 V | 3 V |
| Nominal supply voltage | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V | 4.75 V |
| surface mount | YES | YES | YES | YES | YES | YES |
| technology | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS | BICMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.635 mm | 0.635 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
