LX5112ACPWPT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> LX5112ACPWPT

LX5112ACPWPT: DescriptionSCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size269KB，4 Pages; ManufacturerLinfinity Microelectronics

Download Datasheet Parametric Compare View All

LX5112ACPWPT Overview

SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24

LX5112ACPWPT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linfinity Microelectronics
package instruction	PLASTIC, TSSOP-24
Reach Compliance Code	unknown
Differential output	NO
Interface integrated circuit type	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
Number of functions	1
Number of signal lines	9
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP24,.24
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	4.75 V
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	3 V
Nominal supply voltage	4.75 V
surface mount	YES
technology	BICMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

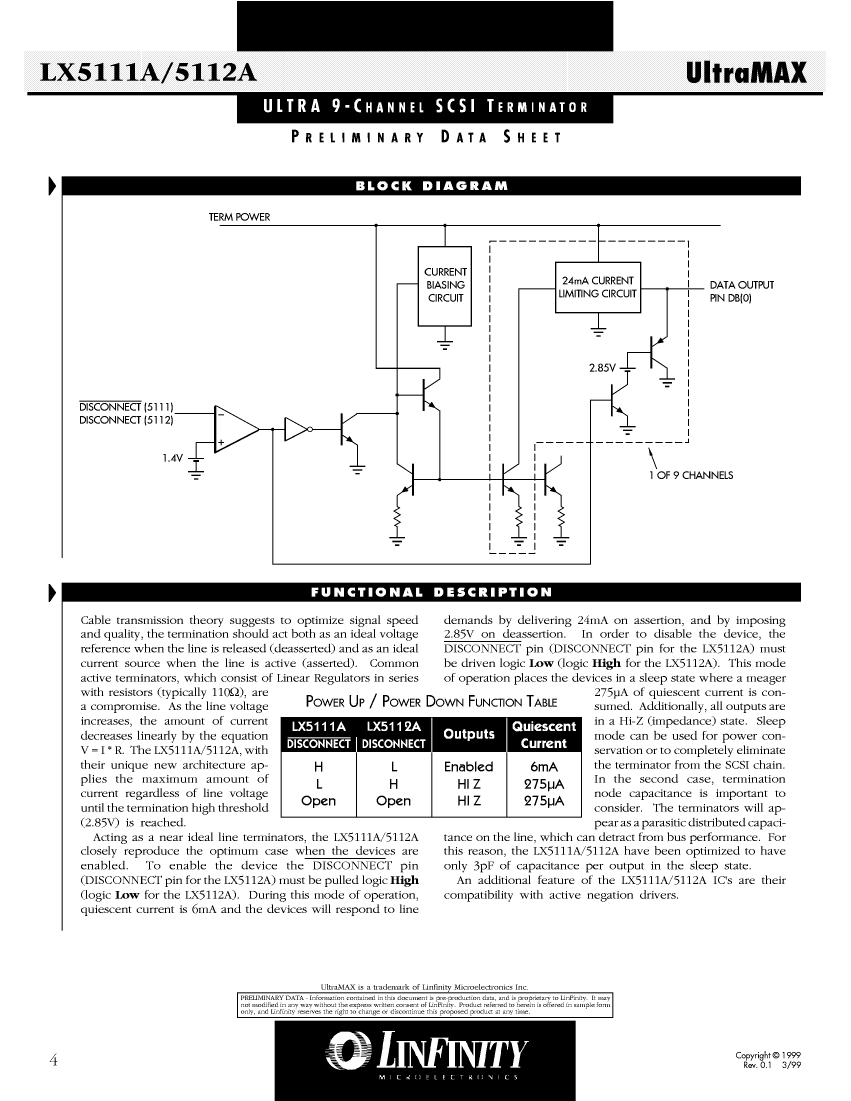

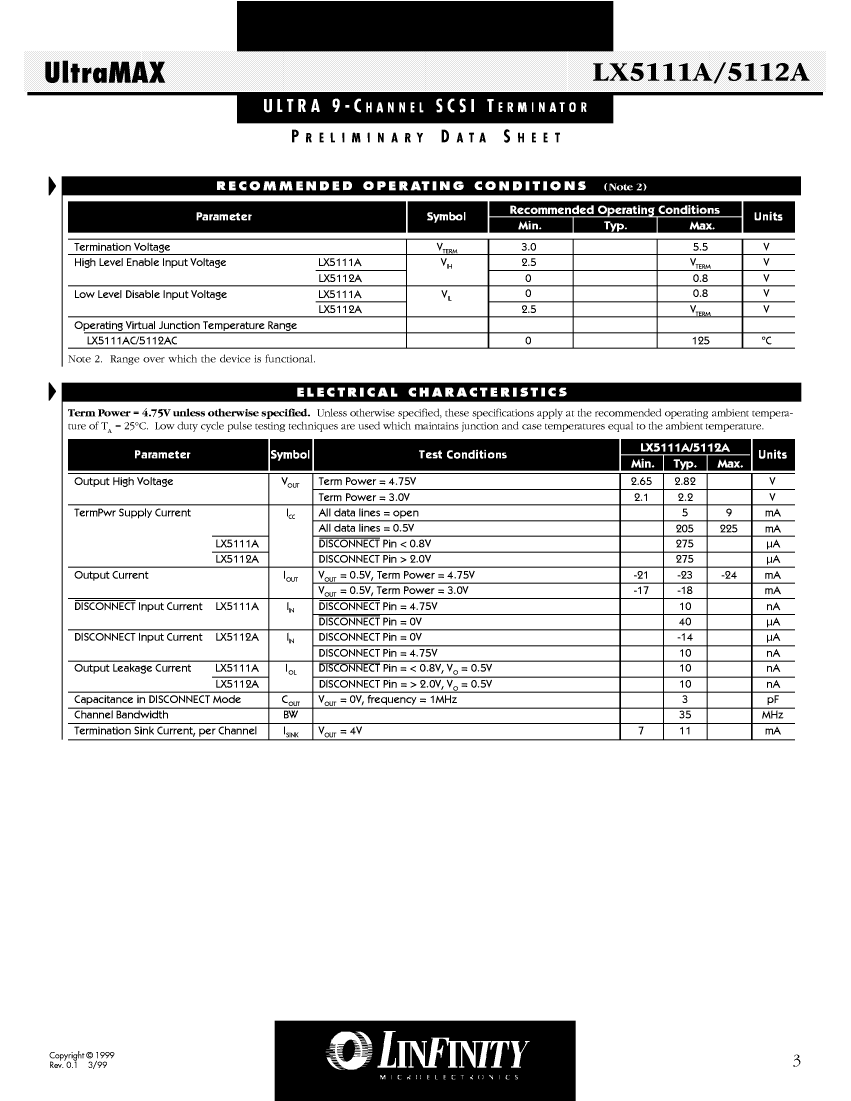

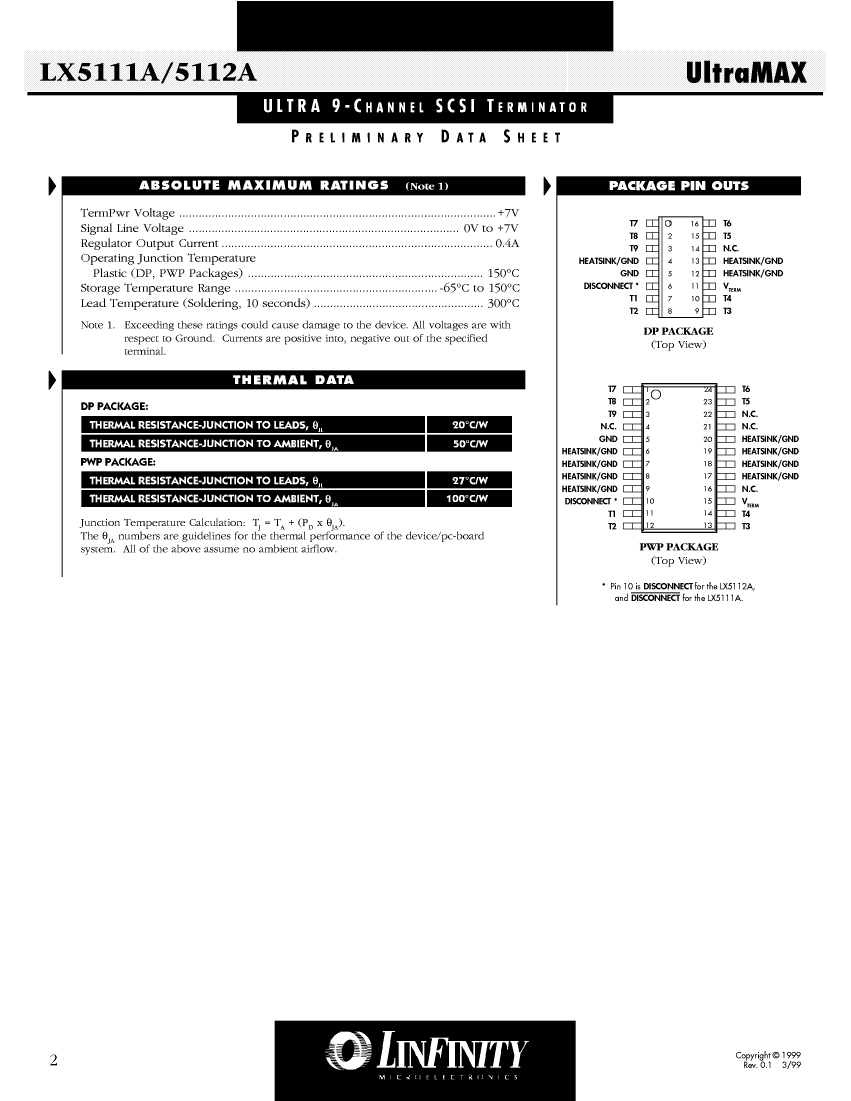

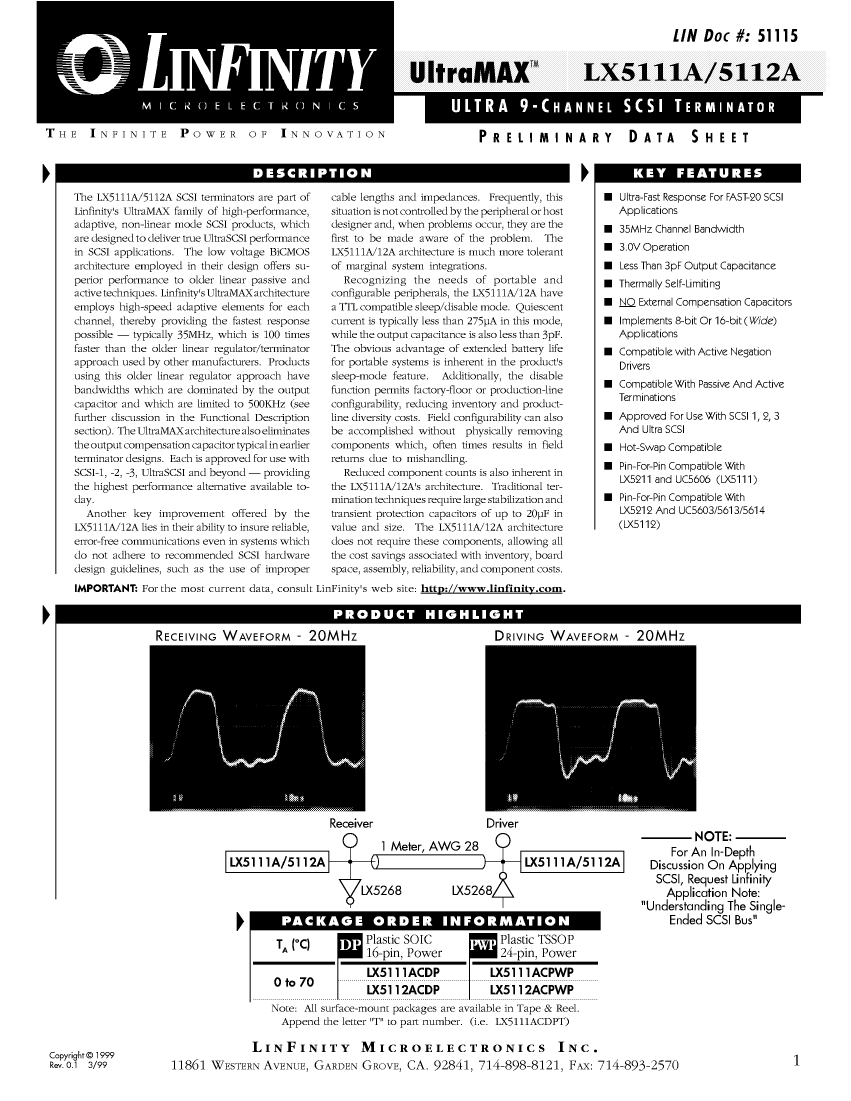

Preview

Download Datasheet

View All

LX5112ACPWPT Related Products

	LX5112ACPWPT	LX5112ACPWP	LX5112ACDP	LX5112ACDPT	LX5111ACPWP	LX5111ACDP	LX5111ACDPT	LX5111ACPWPT
Description	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOIC-16	SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOIC-16	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24	SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOIC-16	SCSI Terminator, 9-Line, BICMOS, PDSO16, PLASTIC, SOIC-16	SCSI Terminator, 9-Line, BICMOS, PDSO24, PLASTIC, TSSOP-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PLASTIC, TSSOP-24	PLASTIC, TSSOP-24	PLASTIC, SOIC-16	PLASTIC, SOIC-16	PLASTIC, TSSOP-24	PLASTIC, SOIC-16	PLASTIC, SOIC-16	PLASTIC, TSSOP-24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Differential output	NO	NO	NO	NO	NO	NO	NO	NO
Interface integrated circuit type	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR	SCSI BUS TERMINATOR
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDSO-G16	R-PDSO-G16	R-PDSO-G24	R-PDSO-G16	R-PDSO-G16	R-PDSO-G24
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of functions	1	1	1	1	1	1	1	1
Number of signal lines	9	9	9	9	9	9	9	9
Number of terminals	24	24	16	16	24	16	16	24
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP	SOP	SOP	SSOP	SOP	SOP	SSOP
Encapsulate equivalent code	SSOP24,.24	SSOP24,.24	SOP16,.25	SOP16,.25	SSOP24,.24	SOP16,.25	SOP16,.25	SSOP24,.24
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
power supply	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS	BICMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm	1.27 mm	1.27 mm	0.635 mm	1.27 mm	1.27 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Linfinity Microelectronics	-	-	-	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics	Linfinity Microelectronics
