Model # BXHF1091
High Frequency Microwave Amplifier
Frequency Range: 6-10 GHz
Features
•
High Frequency and Broad Bandwidth: 6-10 GHz
•
High Output Power: +19 dBm Typical
•
Laser Welded Housing for Ultimate Environmental Protection
•
Internal Voltage Regulator
•
RoHS Compliant Option: Model BXHF1091LF
Model BXHF1091 is a high frequency amplifier covering 6-10 GHz. This design utilizes a laser sealed housing
for superior environmental protection. This standard design may also be ordered in a screened MIL-STD-883
version (Model #SXHF1091.) All specification ratings are based on measurements in a 50 Ω (ohm) system with
a DC supply voltage tolerance of +/- 2%.
Technical Specifications
Parameter
Frequency Range
Gain
Noise Figure
Output Power @ 1 dB
Compression
Output 3
rd
Order Intercept
Output 2
nd
Order Intercept
Reverse Isolation
Input VSWR
Output VSWR
Supply Voltage
Supply Current
Unit
GHz
dB
dB
dBm
dBm
dBm
dB
---
---
volts
mA
Typical
6-10
20
6.5
19
31
38
50
1.5:1
1.5:1
+12 to +15
120
Min/Max
6-10
19
7.5
18
-
-
-
2.0:1
2.0:1
+12 to +15
140
Maximum Ratings
Maximum (No Damage) Ratings
Storage Temperature
Operating Temperature
DC Voltage @ 25°C
Input Drive @ 25°C (CW)
-55°C to +85°C
-40°C to +85°C
+18 volts
+13 dBm
* Typical values are measured at 25°C,
but not guaranteed.
Mechanical & Electrical
Parameter
Specification Temperatures (Min/Max)
Housing Size
Housing Drawing
RF Connectors
Rev Date: 9/10/2014
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Specification
-20°C to +70°C
0.870” L x 1.060” W x 0.300” H
HF1 Package
SMA Female Replaceable Connectors
Page # 1
MicrowaveSales@apitech.com
Model # BXHF1091

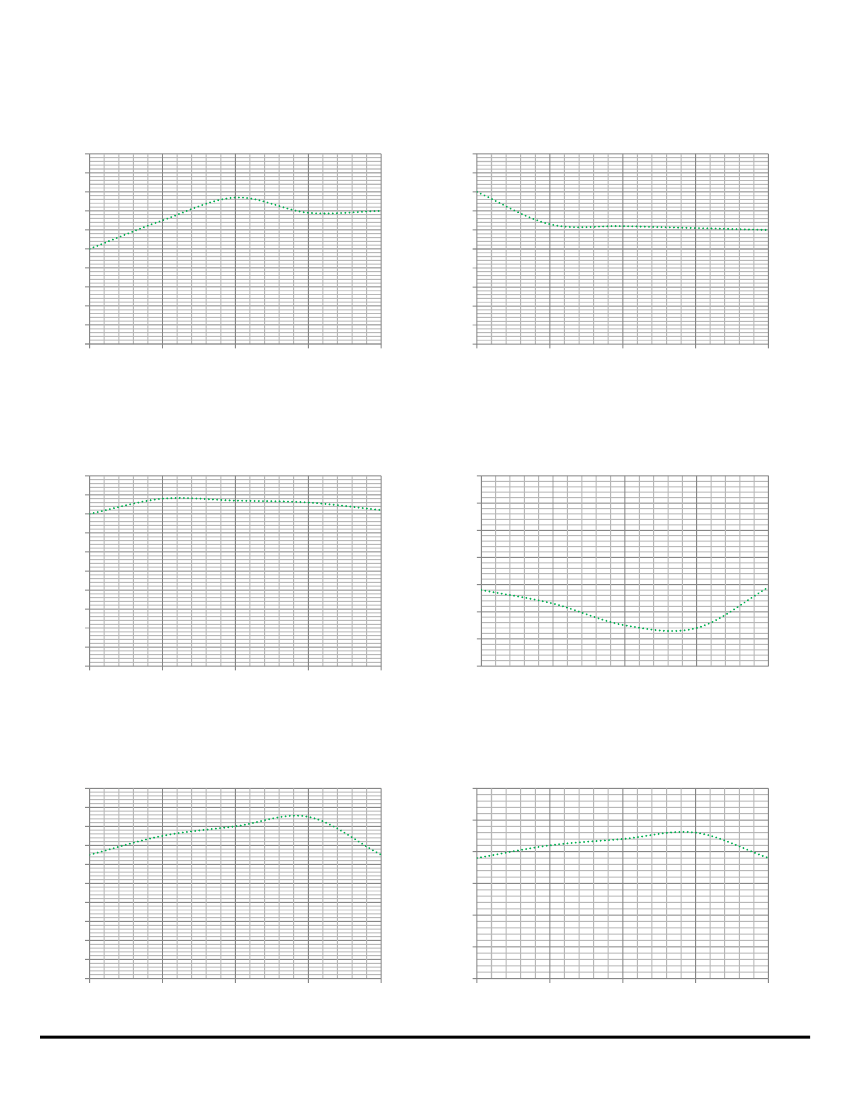

Typical Performance Graphs
Gain (dB)
25
24
23
22
21
20
19
18
17
16
15
6
7
8
Frequency (GHz)
Noise Figure (dB)
10
9
8
7
6
5
4
3
2
1
0
6
7
8
Frequency (GHz)
Gain (dB)
9
10
Noise (dB)
9
10
1 dB Compression (dBm)
25
24
23
22
21
20
19
18
17
16
15
6
7
8
Frequency (GHz)
Reverse Isolation (dB)
-10
-20
Rev. Isolation (dB)
1 dB Comp. (dBm)
-30
-40
-50
-60
-70
-80
9
10
6
7
8
Frequency (GHz)
9
10
3
rd
Order Intercept (dBm)
40
38
36
34
32
30
28
26
24
22
20
6
7
8
Frequency (GHz)
Rev Date: 9/10/2014
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
2
nd
Order Intercept (dBm)
50
45
IP2 (dBm)
IP3 (dBm)
40
35
30
25
20
9
10
6
7
8
Frequency (GHz)
9
10
Page # 2
micro.apitech.com
|
+1.888.553.7531
|
MicrowaveSales@apitech.com
Typical Performance Graphs
Input VSWR
2
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1
6
7
8
Frequency (GHz)
Model # BXHF1091
Output VSWR
2
1.9
1.8
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1
6
7
8
Frequency (GHz)
9
10
Output VSWR
Input VSWR
9
10
Instructions
Grounding Instructions
Revisions
Min./Max. Values
Care should be taken to effectively ground each unit.
API reserves the right to make revisions to both product and/or the information contained within their
datasheets without advanced notice.
Specifications are guaranteed when tested in a 50 Ω (ohm) system.
Typical performance graphs and values are measured at 25°C, but not guaranteed.

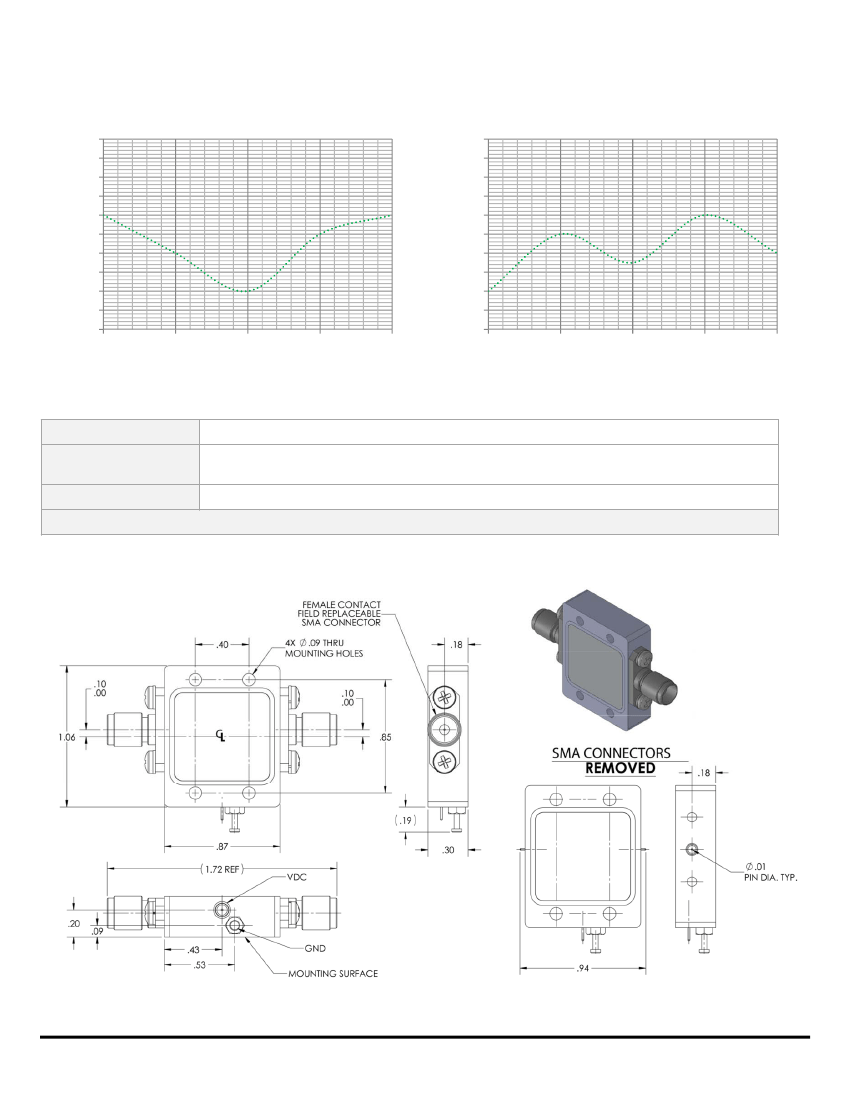

Outline Drawing
Rev Date: 9/10/2014
© API Technologies Corp. Proprietary Information
|
www.apitech.com
|
micro.apitech.com
|
+1.888.553.7531
|
Page # 3
MicrowaveSales@apitech.com
